Directed Graphs: A Fundamental Structure in Mathematics and Computer Science
Concept Map
Directed graphs, or digraphs, are pivotal in representing directional relationships in mathematics and computer science. They model one-way connections, such as traffic flow, social media interactions, and web page rankings. This text delves into their real-world applications, differences from undirected graphs, and their use in algorithms for problem-solving and network analysis.
Summary
Outline
Exploring the Fundamentals of Directed Graphs in Mathematics and Computer Science
Directed graphs, commonly referred to as digraphs, are fundamental structures in mathematics and computer science that consist of a set of vertices connected by edges with a designated direction. These edges are represented by arrows pointing from one vertex to another, for example, \(A \rightarrow B\). This directional aspect distinguishes digraphs from undirected graphs, where edges imply a two-way relationship. Directed graphs are particularly useful for modeling one-way relationships such as those found in traffic flow, organizational charts, and the World Wide Web. Their study is crucial for understanding network theory and for the development of algorithms that process directional data.Real-World Applications of Directed Graphs
Directed graphs have a wide array of practical applications in various domains. They are instrumental in representing relationships where directionality is key. In social networks, for example, a user's "follow" action is a one-way relationship that can be modeled as a directed edge. In web analytics, Google's PageRank algorithm uses a directed graph to evaluate the relevance of web pages by analyzing the network of hyperlinks. Directed graphs also play a vital role in transportation planning, where they can represent routes and schedules to optimize traffic flow. These applications demonstrate the versatility of directed graphs in capturing and analyzing directional relationships in complex systems.Comparing Directed and Undirected Graphs
Directed and undirected graphs are differentiated by the nature of the connections between their vertices. In directed graphs, edges have a direction, represented by arrows, and signify a one-way relationship from one vertex to another. Conversely, undirected graphs feature edges without a direction, indicating a mutual, bidirectional relationship. This distinction is critical when modeling different types of relationships, such as the asymmetry of a Twitter follow versus the symmetry of a Facebook friendship. The choice between using a directed or undirected graph depends on the specific requirements of the scenario being modeled.The Importance of Directed Acyclic Graphs (DAGs)
Directed Acyclic Graphs (DAGs) are a special class of directed graphs that do not contain any cycles, meaning there is no path that starts and ends at the same vertex. DAGs are particularly important in fields such as computer science for scheduling tasks where dependencies must not form cycles, as this could lead to deadlock or infinite loops. They are also used in version control systems to track changes over time. DAGs allow for topological sorting, which provides a linear ordering of vertices that is consistent with the direction of the edges, essential for scheduling and dependency resolution.Representing Directed Graphs Using Adjacency Matrices
Directed graphs can be represented mathematically using adjacency matrices, which are two-dimensional arrays that encode the presence or absence of edges between vertices. In an adjacency matrix, the rows and columns correspond to the graph's vertices, and the entry in the ith row and jth column is 1 if there is an edge from vertex i to vertex j, and 0 otherwise. This compact representation is particularly useful for algorithmic analysis and computer implementations, as it allows for efficient access to the graph's connectivity information, which is essential for algorithms such as those determining paths and connectivity.Algorithmic Processing of Directed Graphs for Problem Solving
Directed graphs are central to numerous algorithms that address problems involving directed data. Graph traversal algorithms, such as Depth-First Search (DFS) and Breadth-First Search (BFS), are fundamental for exploring the structure of directed graphs. DFS explores as deeply as possible along each branch before backtracking, while BFS examines all neighboring vertices at the current depth before moving deeper into the graph. For Directed Acyclic Graphs (DAGs), topological sorting is a crucial algorithm that provides an ordering of vertices that respects the direction of the edges, which is indispensable for scheduling and sequencing problems. These algorithms are key tools for structuring computational problems and devising efficient solutions.Advanced Considerations in Directed Graph Theory and Network Analysis
Advanced studies in directed graph theory involve exploring the computational complexity of graph algorithms and their applications in network analysis. The complexity of an algorithm is a measure of the computational resources it requires, such as time or memory, and is a critical factor in the design of efficient algorithms for large-scale problems. Network analysis uses directed graphs to examine the properties of complex systems, including network topology, patterns of connectivity, and flow dynamics. Directed graphs are essential in optimizing network performance, such as in routing algorithms for telecommunications networks, where they enhance the efficiency and reliability of data transmission. Mastery of these advanced concepts is vital for harnessing the power of directed graphs in technological advancements and complex problem-solving.
Show More

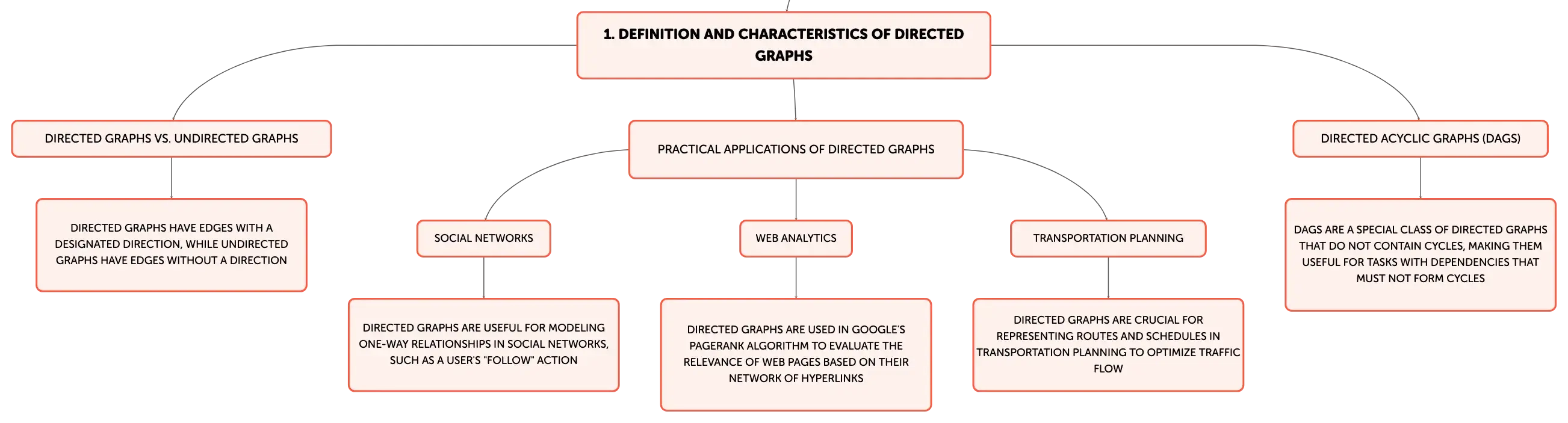

Definition and Characteristics of Directed Graphs
Directed Graphs vs. Undirected Graphs
Directed graphs have edges with a designated direction, while undirected graphs have edges without a direction
Practical Applications of Directed Graphs
Social Networks
Directed graphs are useful for modeling one-way relationships in social networks, such as a user's "follow" action
Web Analytics
Directed graphs are used in Google's PageRank algorithm to evaluate the relevance of web pages based on their network of hyperlinks
Transportation Planning
Directed graphs are crucial for representing routes and schedules in transportation planning to optimize traffic flow
Directed Acyclic Graphs (DAGs)
DAGs are a special class of directed graphs that do not contain cycles, making them useful for tasks with dependencies that must not form cycles

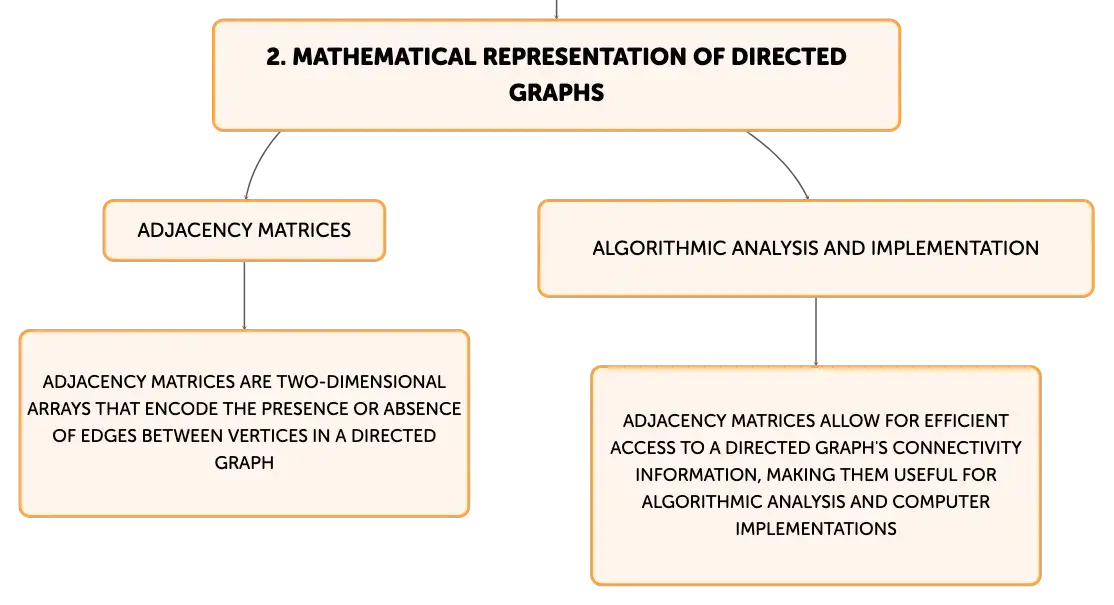

Mathematical Representation of Directed Graphs
Adjacency Matrices
Adjacency matrices are two-dimensional arrays that encode the presence or absence of edges between vertices in a directed graph
Algorithmic Analysis and Implementation
Adjacency matrices allow for efficient access to a directed graph's connectivity information, making them useful for algorithmic analysis and computer implementations

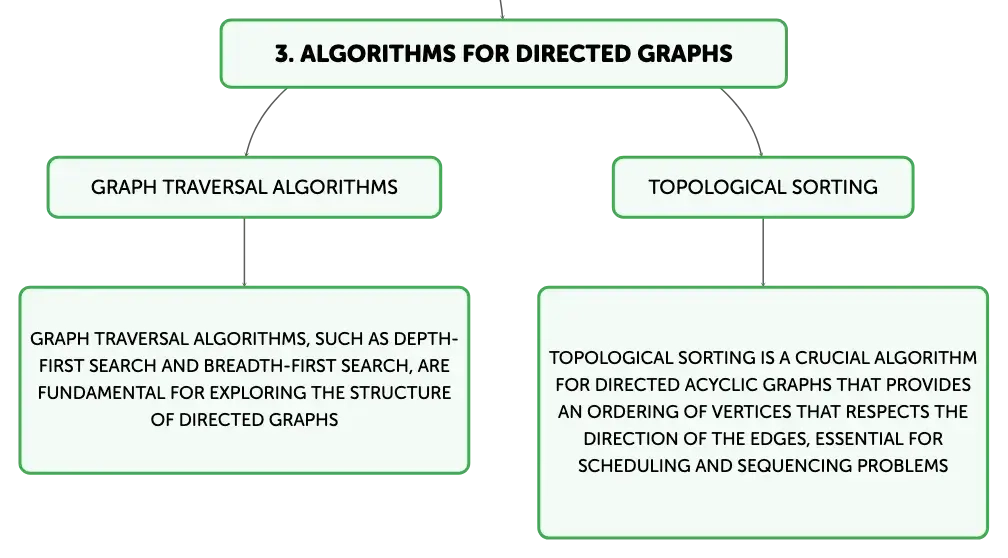

Algorithms for Directed Graphs
Graph Traversal Algorithms
Graph traversal algorithms, such as Depth-First Search and Breadth-First Search, are fundamental for exploring the structure of directed graphs
Topological Sorting
Topological sorting is a crucial algorithm for Directed Acyclic Graphs that provides an ordering of vertices that respects the direction of the edges, essential for scheduling and sequencing problems

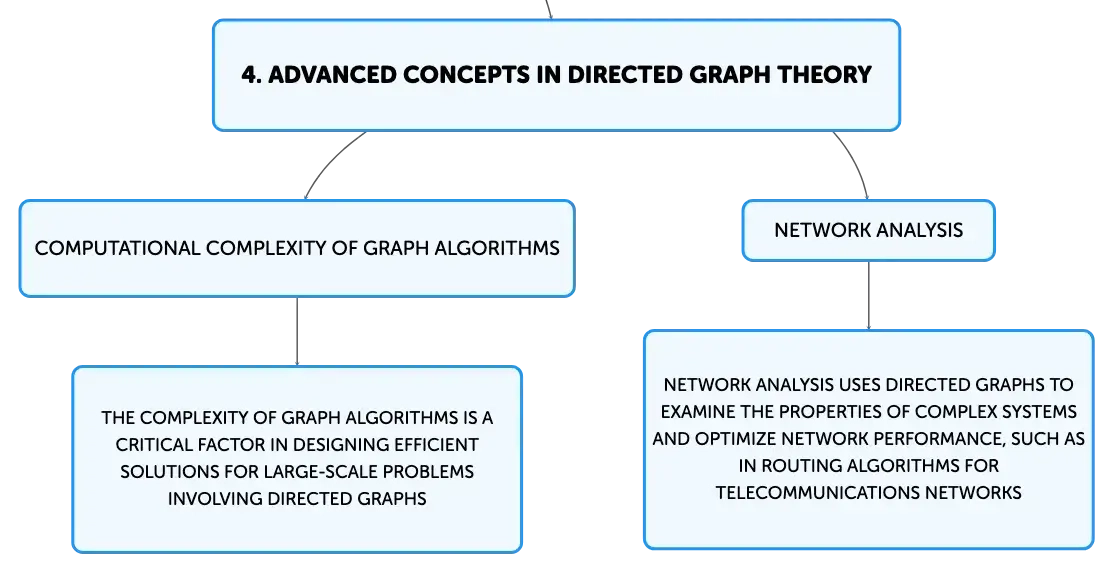

Advanced Concepts in Directed Graph Theory
Computational Complexity of Graph Algorithms
The complexity of graph algorithms is a critical factor in designing efficient solutions for large-scale problems involving directed graphs
Network Analysis
Network analysis uses directed graphs to examine the properties of complex systems and optimize network performance, such as in routing algorithms for telecommunications networks
