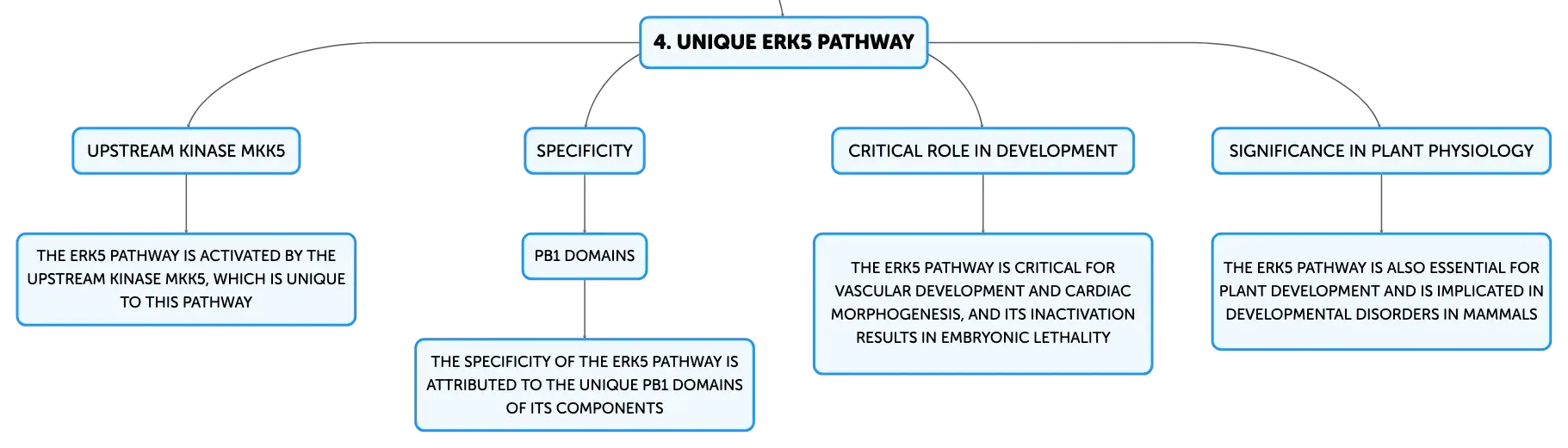

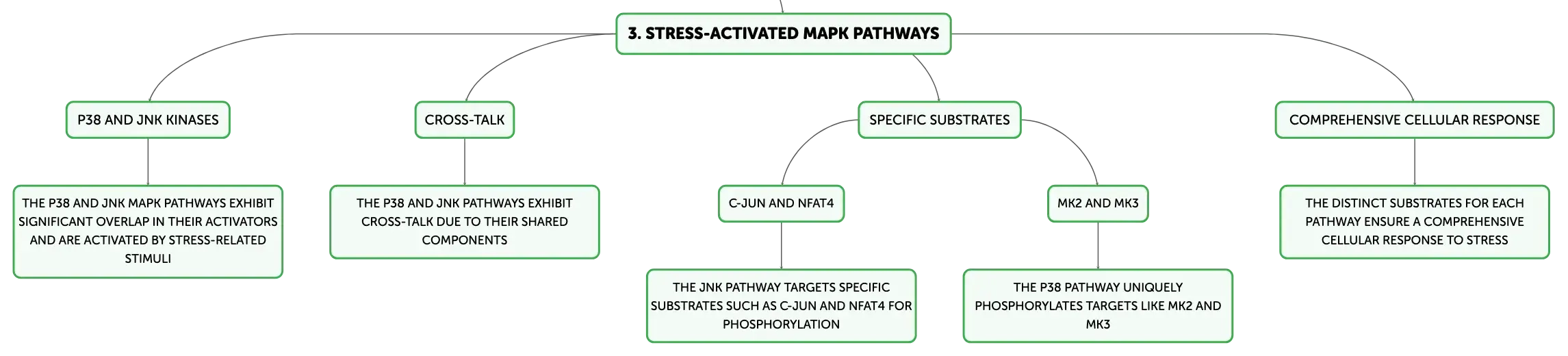

The main topic of the text is the Mitogen-activated protein kinases (MAPK) signaling pathways and their roles in cellular processes. MAPKs are crucial for cellular communication, responding to signals that regulate cell fate, stress adaptation, and development. The text delves into various MAPK pathways, including ERK1/2, p38, JNK, and ERK5, highlighting their unique functions in mammals. It also discusses the diverse roles of MAPK pathways in yeast and plant defense, emphasizing their importance in different biological contexts.

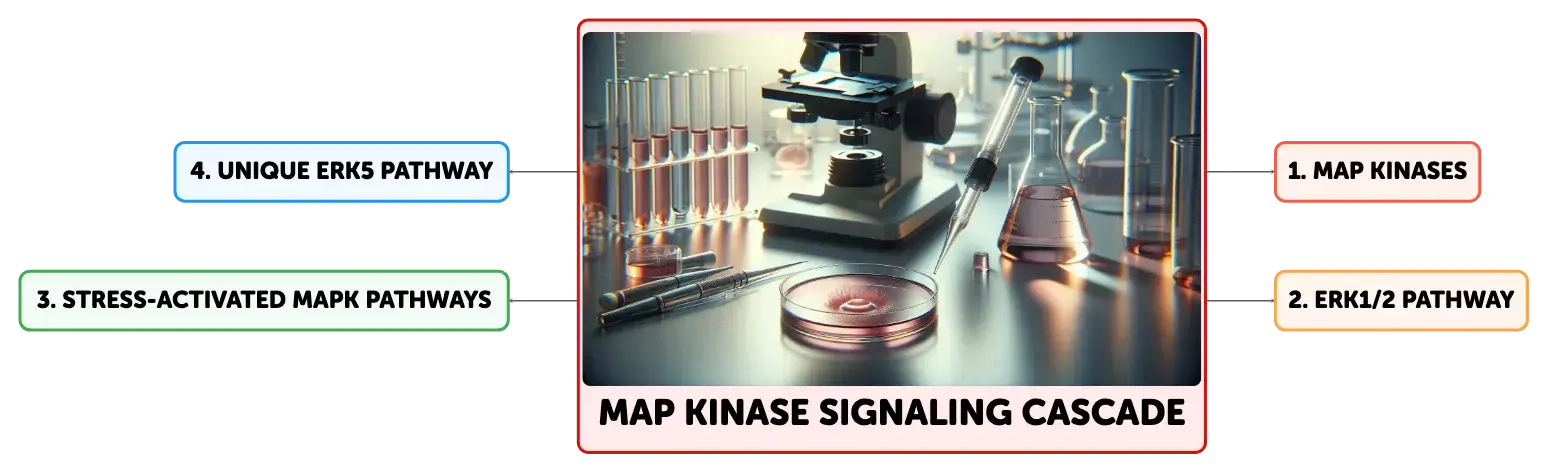

Exploring the MAP Kinase Signaling Cascade

Mitogen-activated protein kinases (MAPKs) are pivotal in cellular communication, orchestrating responses to a multitude of signals. These kinases are part of a hierarchical network that commences with MAP kinase kinase kinases (MAP3Ks), which are subject to intricate regulatory mechanisms. Key MAP3Ks, such as c-Raf, MEKK4, and MLK3, are activated through a series of steps often initiated by ligand binding that disrupts their autoinhibited state. This activation typically unfolds at the cell membrane, a hub for numerous signaling molecules. Subsequent to activation, MAP3Ks engage in homo- or heterodimerization of their kinase domains, a critical event for their enzymatic function. Dimerization not only facilitates a conformation conducive to partial activity but also aligns the kinases for transphosphorylation on activation loops, a process that can be enhanced by other protein kinases. Once fully operational, MAP3Ks phosphorylate MAP kinase kinases (MAP2Ks), which in turn activate MAPKs, culminating the signaling relay.
Close-up of a laboratory bench with petri dishes containing pink-red culture medium, pipette, microscope and Erlenmeyer flasks with amber liquid.

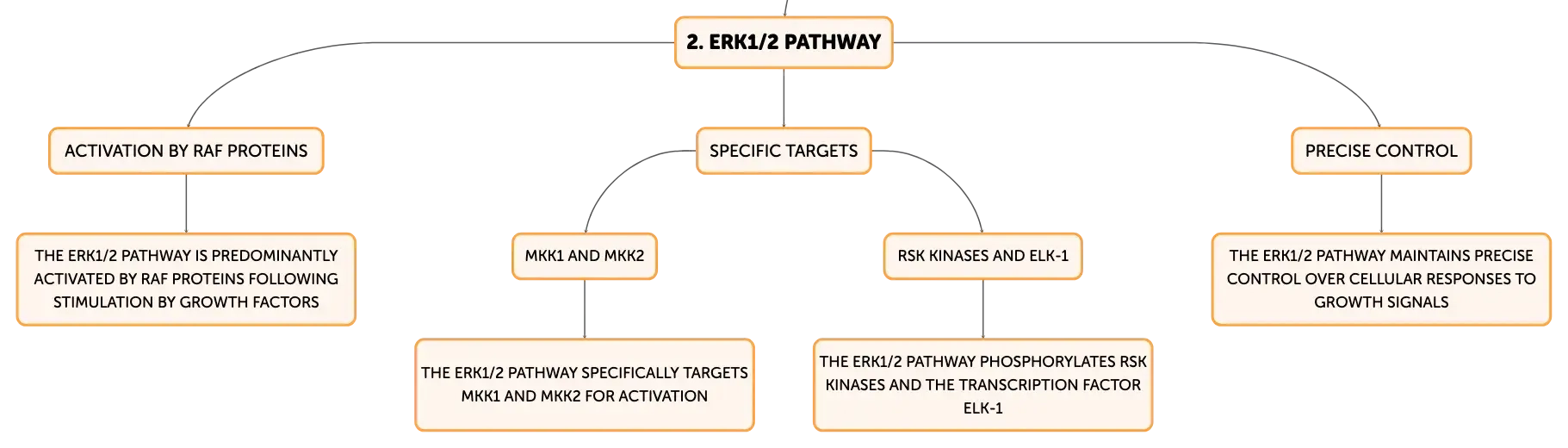

The ERK1/2 Pathway: A Key Regulator of Cell Fate

The ERK1/2 pathway is a prominent MAPK pathway in mammals, predominantly activated by Raf proteins following stimulation by growth factors such as EGF, FGF, and PDGF. These Raf proteins catalyze the phosphorylation and subsequent activation of MAP2Ks, namely MKK1 and MKK2, which specifically target ERK1 and ERK2. The ERK1/2 pathway plays a vital role in the regulation of cell proliferation, cell cycle progression, cell division, and differentiation by phosphorylating a variety of substrates, including RSK kinases and the transcription factor Elk-1. Due to its specific set of activators and effectors, the ERK1/2 pathway maintains precise control over cellular responses to growth signals, ensuring appropriate cellular outcomes.

Show More

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic


In cellular communication, ______ are crucial for managing responses to various signals.

Mitogen-activated protein kinases (MAPKs)


Key ______ such as c-Raf, MEKK4, and MLK3, are activated by ligand binding which interrupts their autoinhibited state.

MAP kinase kinase kinases (MAP3Ks)


The activation of MAP3Ks often leads to their ______, an essential step for their enzymatic activity.

homo- or heterodimerization
