Residual Analysis in Regression
Concept Map
Residuals in regression analysis are differences between observed and predicted values of a dependent variable, crucial for model accuracy. They should ideally show independence, homoscedasticity, a mean of zero, and normal distribution. Residual plots help diagnose model fit, and practical applications range from quality control to financial modeling.
Summary
Outline
Fundamentals of Residuals in Regression Analysis
Residuals are a critical element in regression analysis, which is a statistical method for modeling the relationship between a dependent variable and one or more independent variables. Residuals are the differences between the observed values of the dependent variable and the values that the regression model predicts. These differences are essential for evaluating the model's predictive performance. A residual for an observation is calculated as the actual value of the dependent variable (\(y\)) minus the predicted value (\(\hat{y}\)), which is expressed mathematically as \(\varepsilon = y - \hat{y}\). Analyzing residuals allows researchers to assess the extent to which the model captures the underlying data patterns.The Significance of Residuals in Assessing Model Accuracy
The magnitude of a residual reflects the accuracy of a model's predictions. Smaller residuals indicate that the model's predictions are close to the actual observed values, suggesting a better fit. Conversely, larger residuals point to a significant divergence between predictions and observations. For a regression model to be considered well-fitted, its residuals should ideally exhibit four key properties: independence, homoscedasticity (constant variance), a mean of zero, and normal distribution. These properties help ensure that the model's predictions are consistent and unbiased, and that the residuals represent the random error not explained by the model.Incorporating Residuals in Linear Regression Models
Linear regression is a statistical technique used to model the linear relationship between a dependent variable and one or more independent variables. The linear regression equation is \(y = a + bx + \varepsilon\), where \(y\) is the dependent variable, \(a\) is the y-intercept, \(b\) is the slope of the regression line, \(x\) is the independent variable, and \(\varepsilon\) represents the residual error. The predicted value (\(\hat{y}\)) is calculated using the regression equation without the residual term. The residual is the discrepancy between the actual value and the predicted value, which can shed light on the effect of variables not included in the model.Calculating and Interpreting Residuals
To calculate residuals, one must have the actual values of the dependent variable and a regression model to estimate the predicted values. Once the predicted values are obtained from the regression equation, residuals are computed by subtracting these from the actual values. In a linear regression model, the sum of all residuals should theoretically be zero, which would indicate that the model has no systematic bias. Residuals can be either positive or negative; a positive residual occurs when the actual value exceeds the predicted value, and a negative residual occurs when the predicted value exceeds the actual value.Visualizing Residuals with Residual Plots
Residual plots are visual tools used to assess the fit of a regression model. These plots display the residuals on the y-axis against the independent variable or the predicted values on the x-axis. A residual plot with a random scatter of points suggests that the model has a good fit to the data. In contrast, patterns or systematic deviations in a residual plot may indicate potential issues with the model, such as an incorrect functional form, heteroscedasticity, or the influence of outliers. Residual plots are therefore invaluable for diagnosing and improving regression models.Practical Applications of Residual Analysis
Residual analysis has numerous practical applications, such as in quality control for manufacturing processes or in financial modeling to understand spending behaviors. For example, in a manufacturing context, residuals can reveal whether the actual production levels are consistently higher or lower than predicted, indicating potential inefficiencies or inaccuracies in the predictive model. In personal finance, a positive residual in a regression model analyzing spending behavior might suggest that an individual is spending more than expected given their income level. These applications highlight the utility of residuals in validating and refining predictive models to support accurate forecasting and informed decision-making.
Show More

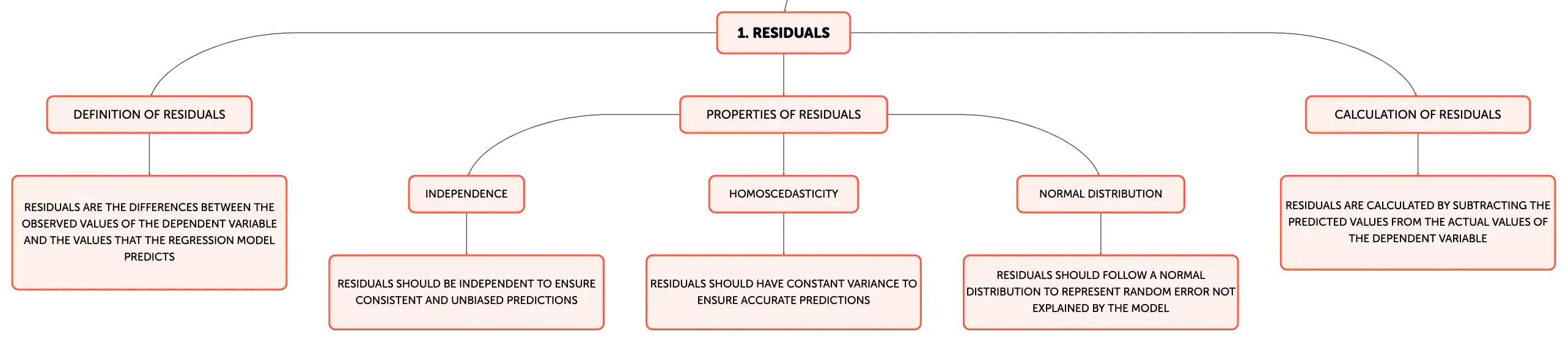

Residuals
Definition of Residuals
Residuals are the differences between the observed values of the dependent variable and the values that the regression model predicts
Properties of Residuals
Independence
Residuals should be independent to ensure consistent and unbiased predictions
Homoscedasticity
Residuals should have constant variance to ensure accurate predictions
Normal Distribution
Residuals should follow a normal distribution to represent random error not explained by the model
Calculation of Residuals
Residuals are calculated by subtracting the predicted values from the actual values of the dependent variable

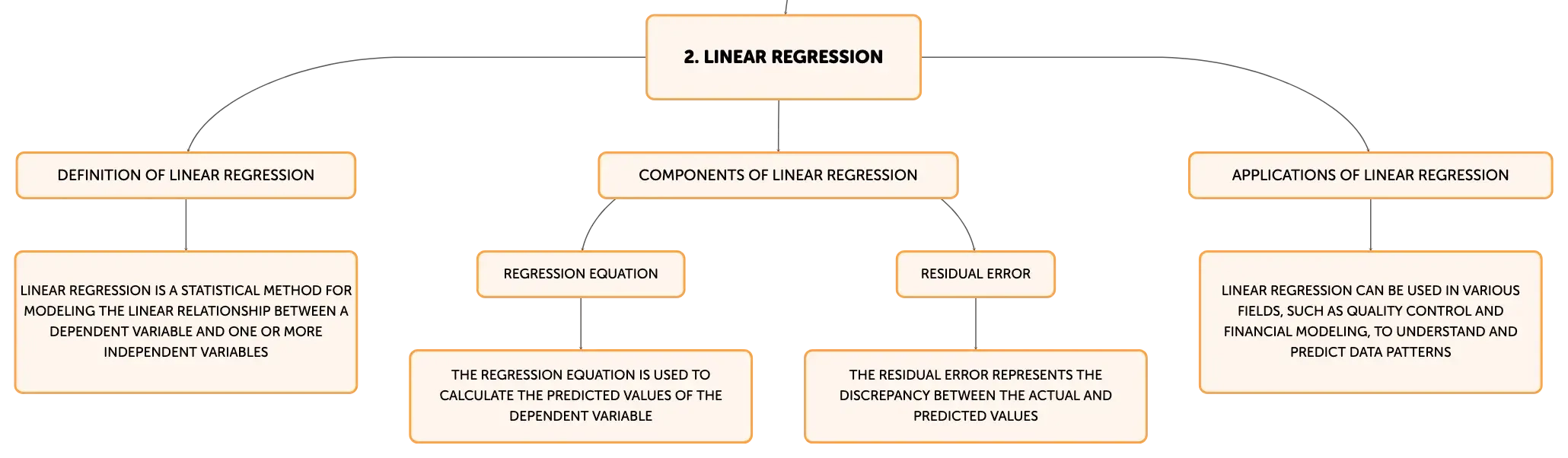

Linear Regression
Definition of Linear Regression
Linear regression is a statistical method for modeling the linear relationship between a dependent variable and one or more independent variables
Components of Linear Regression
Regression Equation
The regression equation is used to calculate the predicted values of the dependent variable
Residual Error
The residual error represents the discrepancy between the actual and predicted values
Applications of Linear Regression
Linear regression can be used in various fields, such as quality control and financial modeling, to understand and predict data patterns

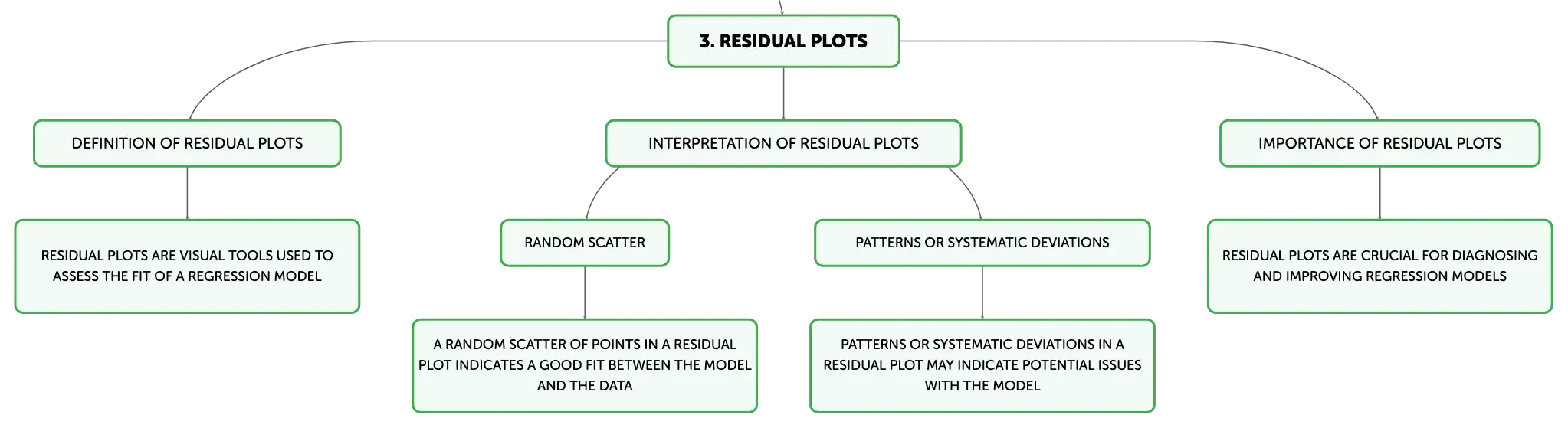

Residual Plots
Definition of Residual Plots
Residual plots are visual tools used to assess the fit of a regression model
Interpretation of Residual Plots
Random Scatter
A random scatter of points in a residual plot indicates a good fit between the model and the data
Patterns or Systematic Deviations
Patterns or systematic deviations in a residual plot may indicate potential issues with the model
Importance of Residual Plots
Residual plots are crucial for diagnosing and improving regression models

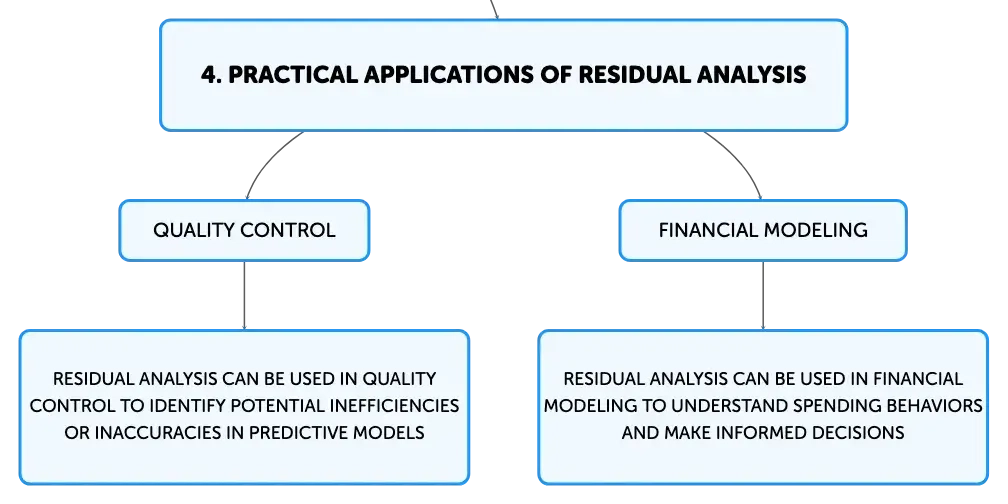

Practical Applications of Residual Analysis
Quality Control
Residual analysis can be used in quality control to identify potential inefficiencies or inaccuracies in predictive models
Financial Modeling
Residual analysis can be used in financial modeling to understand spending behaviors and make informed decisions
Residual Analysis in Regression
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
If a model's predictions are close to the actual observed values, the residuals will be ______, indicating a ______ fit.
smaller
better
01
A ______ residual happens when the actual value is higher than the ______ value.
positive
predicted
02
Purpose of residual plots in regression analysis
Assess model fit by displaying residuals vs. independent variables or predicted values.
