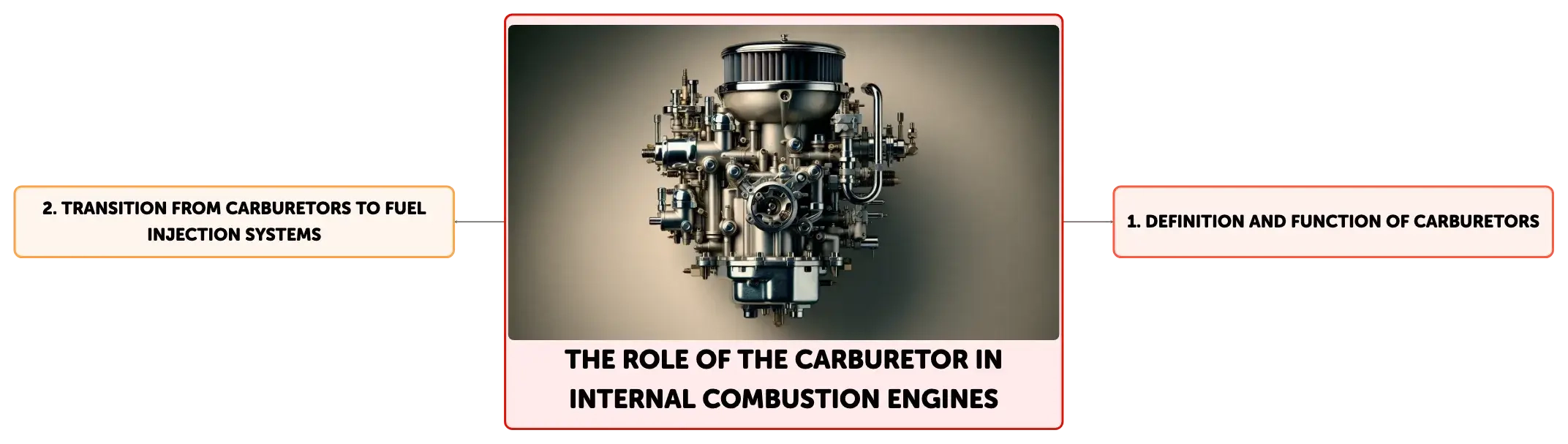

The Role of the Carburetor in Internal Combustion Engines

Exploring the carburetor's role in internal combustion engines, this overview discusses its function in mixing air with fuel for power generation. It covers the evolution of carburetor designs, the challenges faced in maintaining optimal air-fuel ratios, and the various configurations that affect engine efficiency. The text also examines the shift from carburetors to fuel injection systems, highlighting the advancements in fuel economy, emissions control, and engine performance that have resulted from this technological transition.

see more
Open map in editor

1

3

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Carburetor vs. Fuel Injection

Click to check the answer

Carburetors blend air and fuel; fuel injections spray fuel directly, offering more control and efficiency.

2

Venturi Tube Function in Carburetor

Click to check the answer

Venturi tube creates pressure reduction to draw fuel into the airstream for mixing.

3

Diesel Engine Fuel System

Click to check the answer

Diesel engines use direct fuel injection, not carburetors, to handle high-pressure diesel combustion.

4

______ have been crucial in gasoline engines' history, enabling air and fuel to combine before combustion.

Click to check the answer

Carburetors

5

The ______ pedal adjusts the amount of air entering the carburetor, indirectly affecting the air-fuel mixture.

Click to check the answer

throttle

6

Carburetor challenge at varying engine speeds/loads

Click to check the answer

Maintaining optimal air-fuel mix difficult due to changing engine conditions.

7

Venturi tube pressure drop relation to air velocity

Click to check the answer

Pressure drop is proportional to square of air velocity, affecting mixture.

8

Fuel flow factors in carburetors

Click to check the answer

Governed by fuel viscosity and pressure differential, influencing mixture.

9

In early engine models, ______ carburetors were common, pulling air from below and directing it ______.

Click to check the answer

updraft upwards

10

By the late ______, ______ carburetors became favored in the U.S. for their efficient air-fuel mixture routing into the engine.

Click to check the answer

1930s downdraft

11

______ carburetors, which manage air horizontally, were preferred in ______ vehicle designs.

Click to check the answer

Side draft European

12

Choosing the right carburetor type is vital for optimizing ______ ______ and ______.

Click to check the answer

engine performance efficiency

13

Carburetor vs. Fuel Injection: Precision Control

Click to check the answer

Fuel injection offers more precise air-fuel mixture control than carburetors.

14

Impact of Fuel Injection on Engine Performance

Click to check the answer

Fuel injection enhances fuel economy, reduces emissions, and improves engine performance.

15

Current Applications of Carburetors

Click to check the answer

Carburetors are now used mainly in lawn equipment, some motorcycles, and certain aircraft.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Technology

The Role and Mechanism of a Carburetor

View document

Technology

The Function and Evolution of Carburetors in Internal Combustion Engines

View document

Technology

Carburetor Icing in Engine Operation

View document

The Role of the Carburetor in Internal Combustion Engines

The carburetor is an essential device in an internal combustion engine that blends air with liquid fuel to create a combustible mixture. This mixture is then delivered to the engine's cylinders where it ignites to produce power. The carburetor's main metering system typically includes a Venturi tube, which utilizes the principle of pressure reduction to draw fuel into the airstream. Although modern automotive engines have largely transitioned to fuel injection systems for greater efficiency and control, carburetors are still commonly found in smaller engines, motorcycles, and piston-powered aircraft. Diesel engines, on the other hand, do not employ carburetors due to their need for direct fuel injection to achieve the high pressures required for diesel combustion.

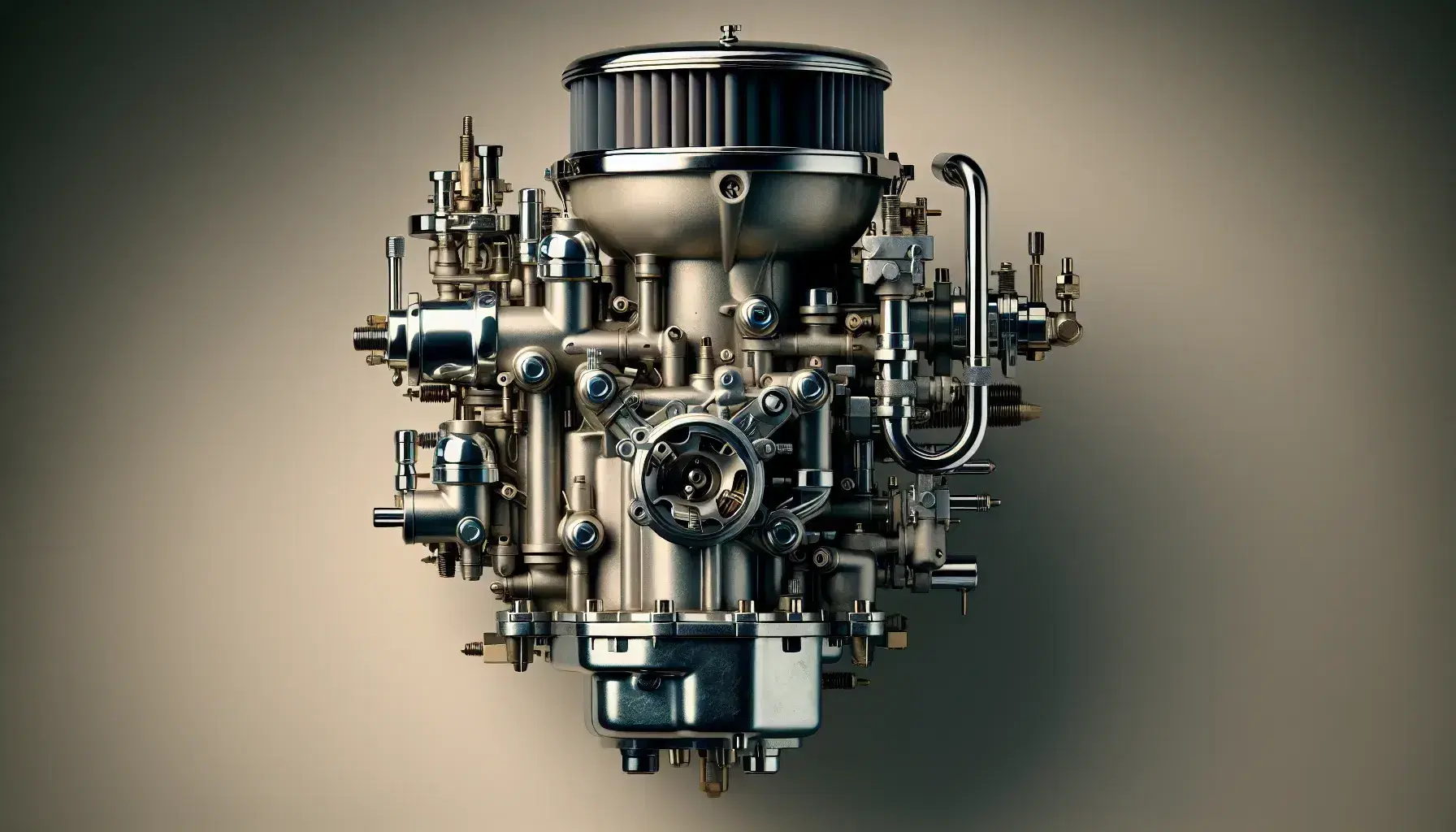

Classic carburetor of internal combustion engine, metal cylindrical body with filters and pipes, on neutral background.

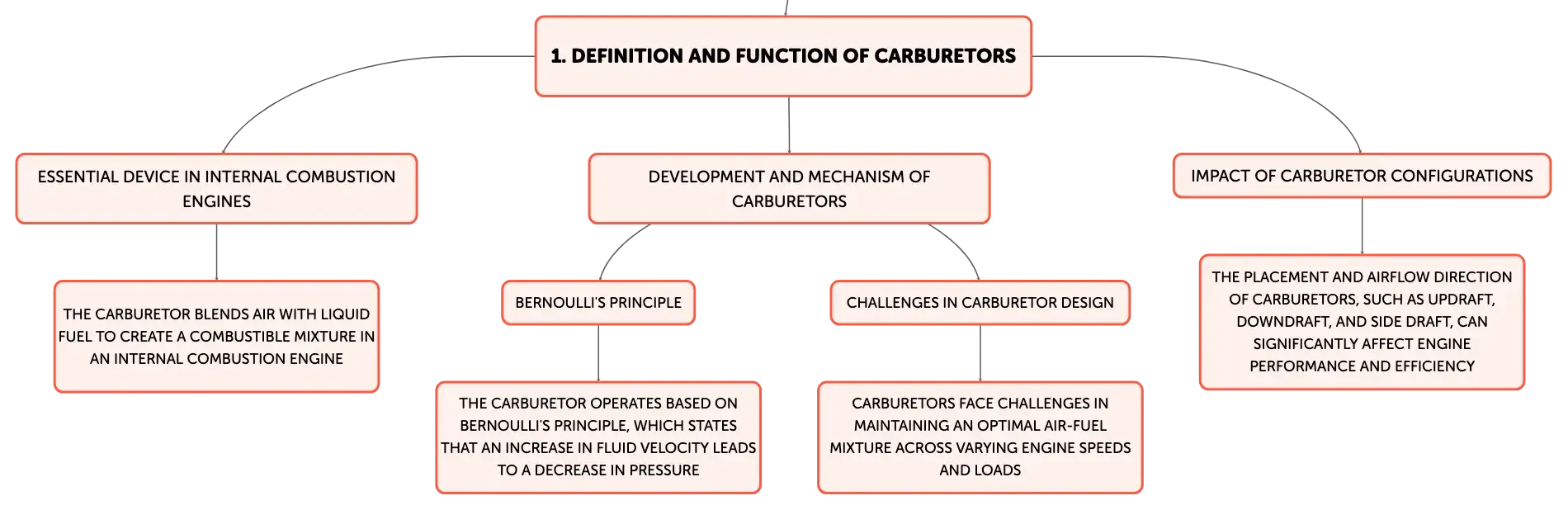

The Development and Mechanism of Carburetors

Carburetors have played a pivotal role in the history of gasoline engines, providing the means for air and fuel to mix before entering the combustion chamber. Air is drawn into the carburetor, often passing through an air filter to remove particulates, and then combines with fuel within the carburetor's mixing chamber. The underlying principle governing the carburetor's operation is Bernoulli's principle, which posits that an increase in fluid velocity leads to a decrease in pressure. As such, when the velocity of incoming air increases within the Venturi tube, the pressure drops, encouraging more fuel to mix with the air. The throttle pedal does not directly control this mixture; rather, it modulates the volume of air entering the carburetor, which in turn influences the fuel mixture ratio.

Overcoming Design Challenges in Carburetors

Carburetor design is challenged by the need to maintain an optimal air-fuel mixture across varying engine speeds and loads. The pressure drop in the Venturi tube is a function of the square of the air velocity, while fuel flow is largely governed by its viscosity and the pressure differential. This can result in a lean mixture during low-speed or partial throttle conditions. To counteract this, engineers have developed carburetors with multiple jets or variable jets, such as those found in SU and Zenith-Stromberg models, which can adjust fuel delivery in response to the engine's requirements, ensuring a more consistent air-fuel ratio.

Carburetor Configurations and Their Impact

Carburetors are categorized by their placement and airflow direction within the engine: updraft, downdraft, and side draft. Updraft carburetors, which draw air in from below and release it upwards, were prevalent in early engine designs. By the late 1930s, downdraft carburetors gained popularity in the United States due to their more efficient pathway for the air-fuel mixture into the engine. Side draft carburetors, which introduce and expel air laterally, were favored in European designs. The selection of carburetor configuration is a critical design decision that influences engine performance and efficiency.

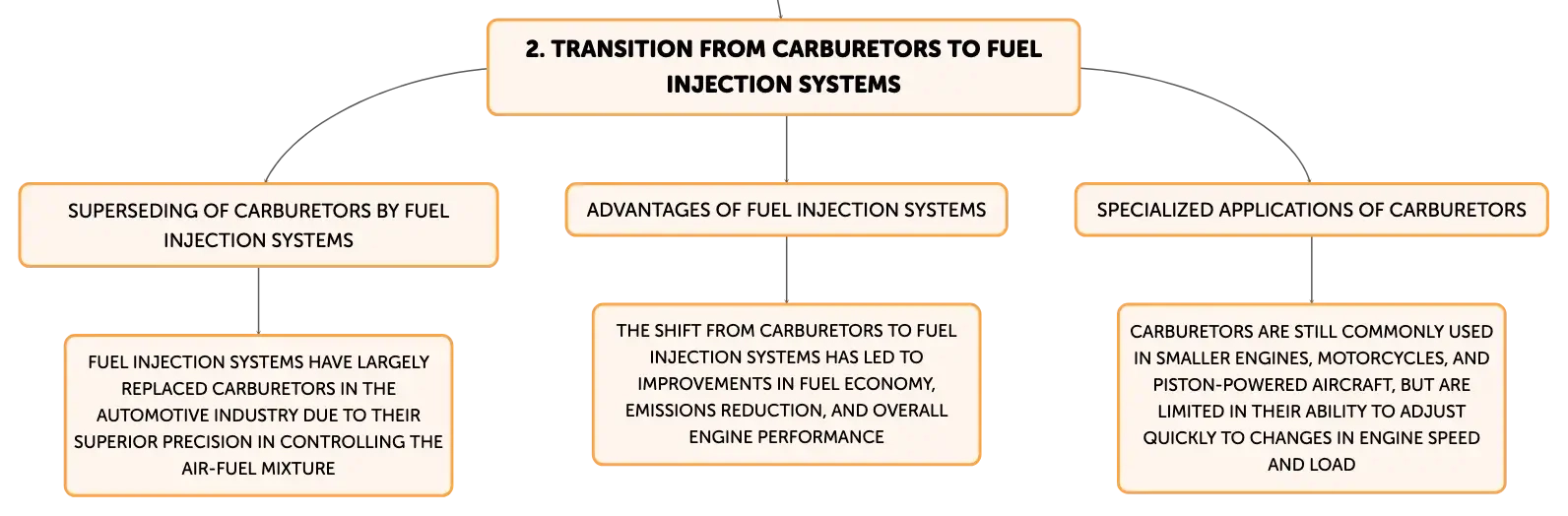

Transition from Carburetors to Fuel Injection Systems

Carburetors have been largely superseded by fuel injection systems in the automotive industry due to the latter's superior precision in controlling the air-fuel mixture. This shift, which began in earnest in the 1990s, has led to enhancements in fuel economy, emissions reduction, and overall engine performance. Today, carburetors are primarily found in specialized applications such as lawn equipment, some motorcycles, and certain aircraft. The limitations of carburetors, particularly their inability to adjust quickly to changes in engine speed and load, have catalyzed the development and adoption of fuel injection technologies, which now predominate in modern vehicles.
