The Role and Mechanism of a Carburetor

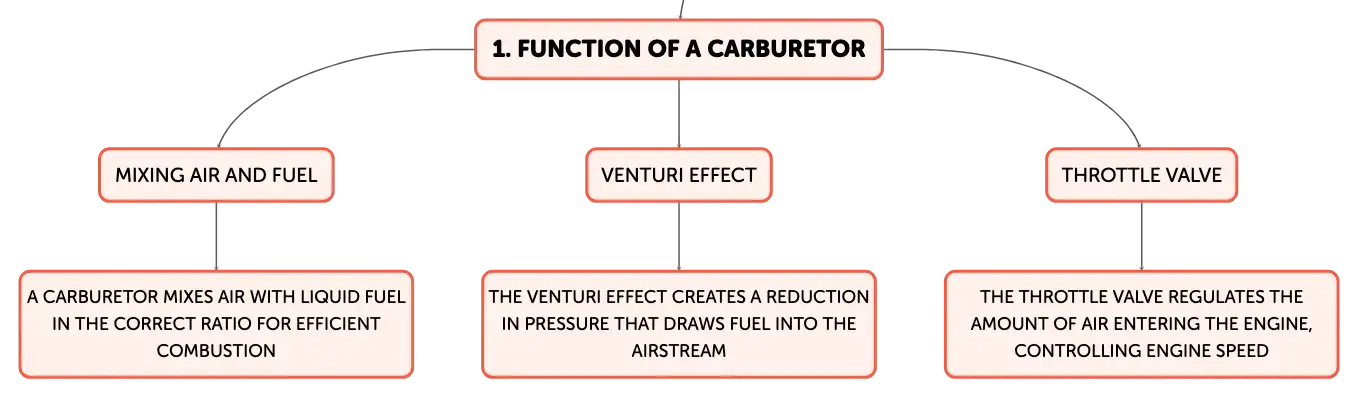

A carburetor is an essential component in an internal combustion engine that mixes air with liquid fuel in the correct ratio for efficient combustion. It utilizes the venturi effect, where air passing through a constricted section (the venturi) of the carburetor tube creates a reduction in pressure that draws fuel into the airstream. The throttle valve, which is connected to the accelerator pedal, regulates the amount of air entering the engine, thus controlling engine speed. At low engine speeds, the idle and off-idle circuits provide the necessary fuel mixture, while at higher speeds, the main metering circuit takes over, with the venturi effect ensuring a richer mixture for increased power.
Classic metal carburetor with silver and brass colors, cold start mechanism and transparent fuel can on a white background.

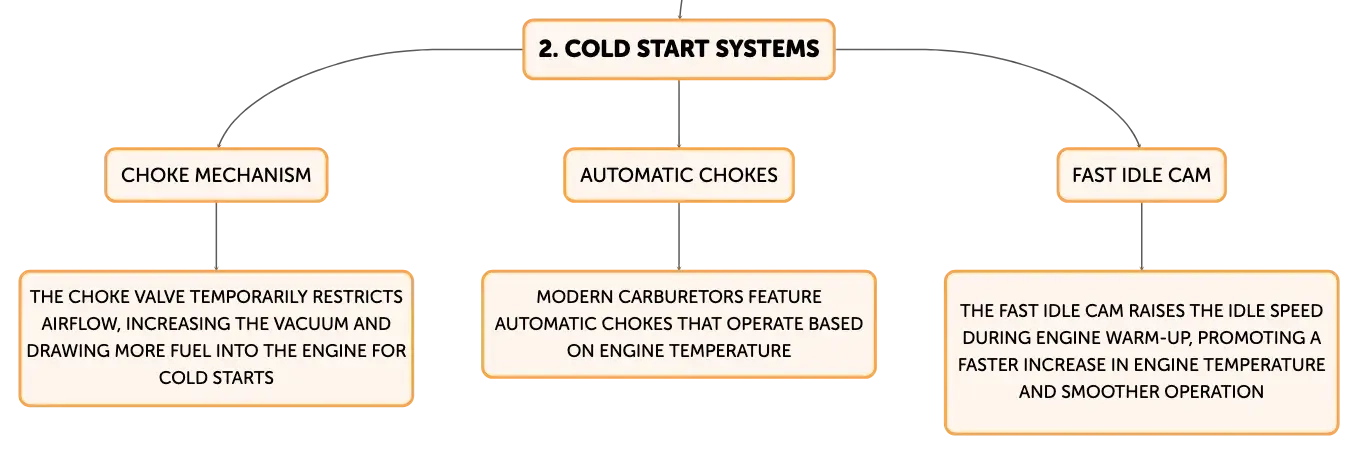

Cold Start Systems in Carburetors

Carburetors are equipped with a choke mechanism to facilitate cold starts, where the engine requires a richer fuel mixture due to denser, colder air. The choke valve temporarily restricts airflow, increasing the vacuum and drawing more fuel into the engine. Modern carburetors typically feature automatic chokes that operate based on engine temperature, using bimetallic springs or electric heating elements. To prevent engine flooding, the choke can be manually disengaged. Additionally, a fast idle cam linked to the choke mechanism raises the idle speed during engine warm-up, promoting a faster increase in engine temperature and smoother operation.

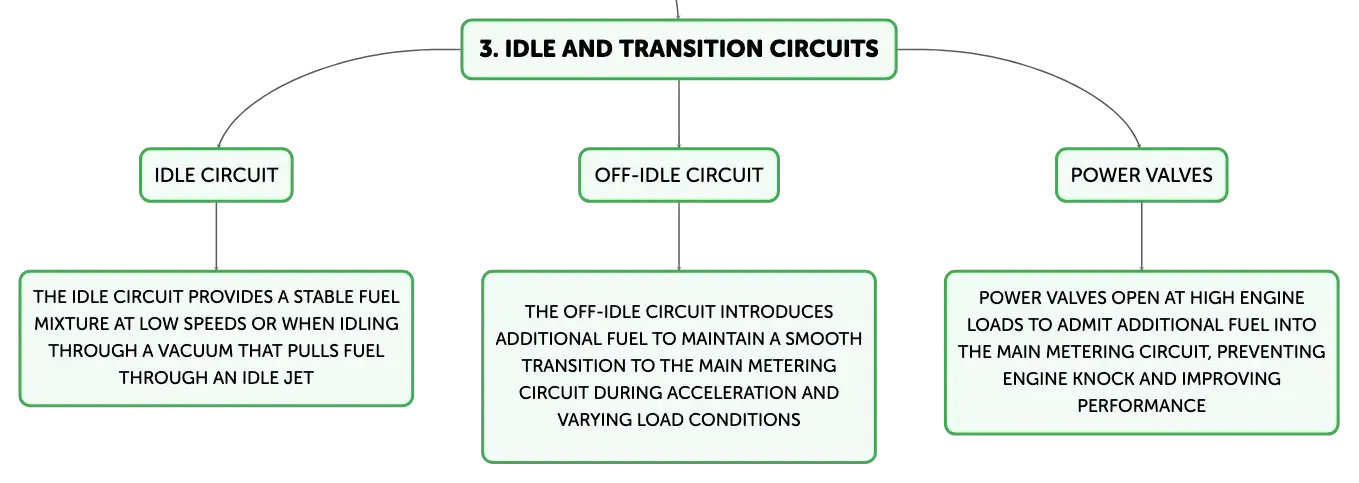

Idle and Transition Circuits in Carburetors

The idle circuit in a carburetor is responsible for providing the engine with a stable fuel mixture at low speeds or when idling. It operates through a vacuum that pulls fuel through an idle jet, which is calibrated to deliver the correct fuel quantity. As the throttle opens slightly, the off-idle circuit introduces additional fuel to maintain a smooth transition to the main metering circuit, ensuring consistent engine performance during acceleration and varying load conditions.

Power Valves and Engine Load Response

Power valves are integral to a carburetor's ability to respond to varying engine loads, particularly during high-demand situations. These valves are vacuum-actuated and remain closed at low engine loads. When the engine demand increases, the vacuum decreases, allowing the power valve to open and admit additional fuel into the main metering circuit. This enriched mixture prevents engine knock and improves performance. In two-stroke engines, the power valve also plays a crucial role in adjusting the fuel mixture to maintain optimal RPM and power output.

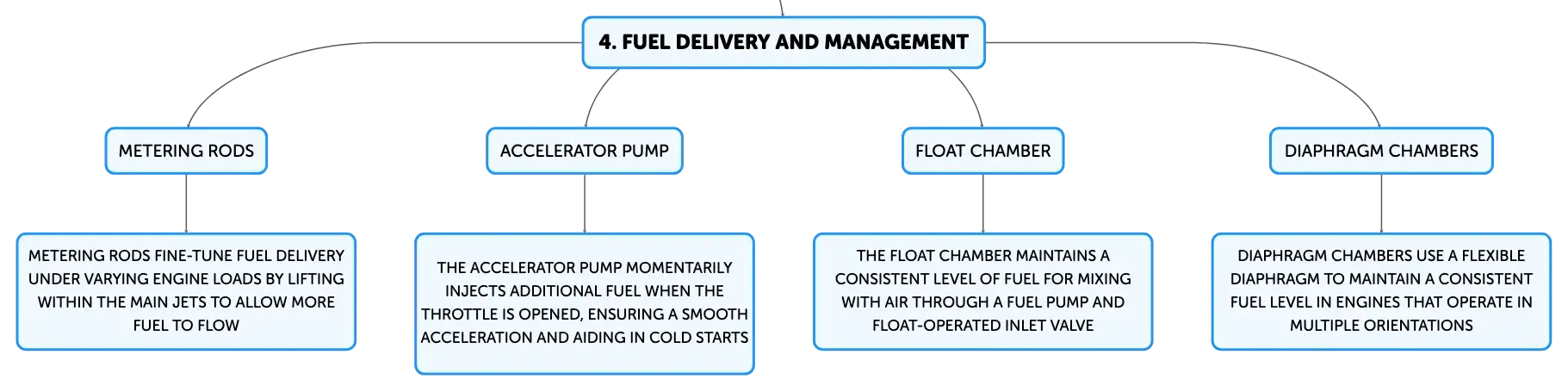

Metering Rods and Accelerator Pumps in Fuel Delivery

Metering rods, also known as step-up rods, are used in some carburetor designs to fine-tune fuel delivery under varying engine loads. These rods are positioned within the main jets and lift to allow more fuel to flow as the engine load increases. The accelerator pump is another feature that momentarily injects additional fuel when the throttle is opened, compensating for the momentary lag in fuel delivery and ensuring a smooth acceleration. This pump also aids in priming the engine with fuel during cold starts.

Fuel Management and Storage in Carburetors

The float chamber is a critical component of the carburetor that ensures a consistent level of fuel is available for mixing with air. A fuel pump delivers fuel to the chamber, and a float-operated inlet valve maintains the fuel at the correct level. Carburetor-based fuel systems are typically not pressurized, unlike fuel injection systems, except in cases where the carburetor is used with a supercharger. To prevent vapor lock, which occurs when fuel vaporizes in the fuel line, vent tubes are incorporated to stabilize pressure within the float chamber and prevent fuel sloshing.

Diaphragm Chambers for Varied Engine Orientations

For engines that operate in multiple orientations, such as those in chainsaws or aircraft, carburetors are equipped with diaphragm chambers instead of float chambers. These chambers use a flexible diaphragm that actuates a needle valve in response to changes in air pressure, ensuring a consistent fuel level and reliable engine performance regardless of the engine's position. This design is crucial for maintaining proper engine function in non-standard operating environments.
