Carburetor Icing in Engine Operation

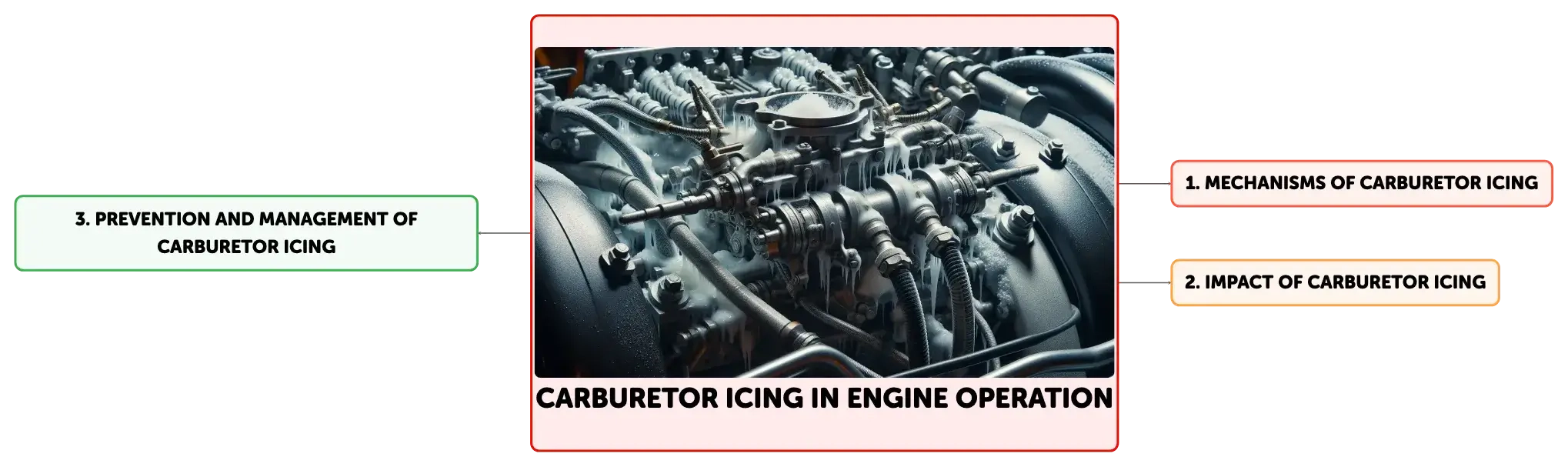

Concept Map
Carburetor icing is a critical issue affecting engine performance, especially in piston-powered aircraft. It occurs when the temperature in the carburetor falls below freezing, often due to fuel vaporization and the venturi effect. This can lead to engine failure if not managed properly. Strategies to prevent icing include using carburetor heating systems and designing inlet manifolds to warm the air.
Summary
Outline
The Fundamentals of Carburetor Icing in Engine Operation
Carburetor icing is a significant concern in engine operation, particularly for aircraft powered by piston engines with float-type carburetors. This phenomenon occurs when the temperature within the carburetor drops below freezing due to the combined effects of fuel vaporization and the venturi effect, which can cause water vapor in the air to freeze on the carburetor's internal components. The formation of ice can disrupt the proper mixing of air and fuel, leading to engine performance issues and potential safety hazards.The Underlying Mechanisms of Carburetor Icing
The mechanisms that lead to carburetor icing include the endothermic nature of fuel vaporization and the venturi effect. Fuel vaporization absorbs heat, which lowers the temperature, while the venturi effect further cools the air as it speeds up while passing through the carburetor's narrow section. This can result in a temperature reduction of up to 70 degrees Fahrenheit, allowing for ice formation even when ambient temperatures are relatively high. Carburetor icing is most likely when the air temperature is below 70°F and the relative humidity is above 80 percent.Environmental Conditions and Risks Associated with Carburetor Icing
Carburetor icing typically occurs under certain environmental conditions, such as when the air temperature is below 70°F with high humidity levels. The risk increases during phases of engine operation where the power setting is reduced, like during aircraft descent. Pilots may not expect icing in warmer temperatures, but as ice builds up, it can restrict airflow and alter the fuel-to-air mixture, potentially leading to engine failure if not corrected. Recognizing and managing carburetor icing is crucial for maintaining engine performance and safety.Impact of Carburetor Icing on Aviation and Automotive Engines
Carburetor icing is a critical issue for piston-powered aircraft, particularly small, single-engine models. These aircraft typically incorporate carburetor heating systems to prevent ice formation. While carburetor icing is less common in road vehicles, it can still occur, especially in certain engine designs. Automotive engines may use heated inlet manifolds and carburetor components to counteract icing. Air-cooled engines, which do not benefit from warm coolant circulation, are more vulnerable to icing, underscoring the importance of design strategies to prevent carburetor icing in various engine types.Strategies for Preventing and Managing Carburetor Icing
To mitigate carburetor icing, the aviation and automotive industries have developed several preventive measures and solutions. Aircraft carburetors may be equipped with heating systems that warm the intake air, preventing ice formation. In the automotive realm, the design of the inlet manifold and carburetor may incorporate warm coolant or exhaust gas channels to deter icing. Additionally, adjusting the air-fuel mixture manually and using fuel system icing inhibitors can help maintain engine performance and safety under conditions conducive to carburetor icing.
Show More

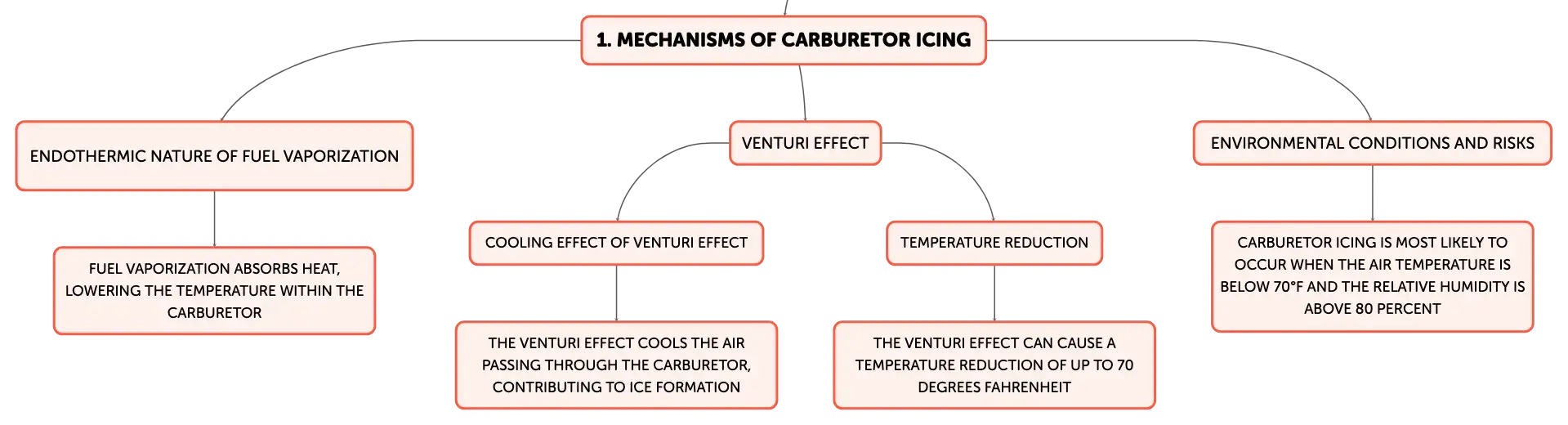

Mechanisms of Carburetor Icing
Endothermic Nature of Fuel Vaporization
Fuel vaporization absorbs heat, lowering the temperature within the carburetor
Venturi Effect
Cooling Effect of Venturi Effect
The venturi effect cools the air passing through the carburetor, contributing to ice formation
Temperature Reduction
The venturi effect can cause a temperature reduction of up to 70 degrees Fahrenheit
Environmental Conditions and Risks
Carburetor icing is most likely to occur when the air temperature is below 70°F and the relative humidity is above 80 percent

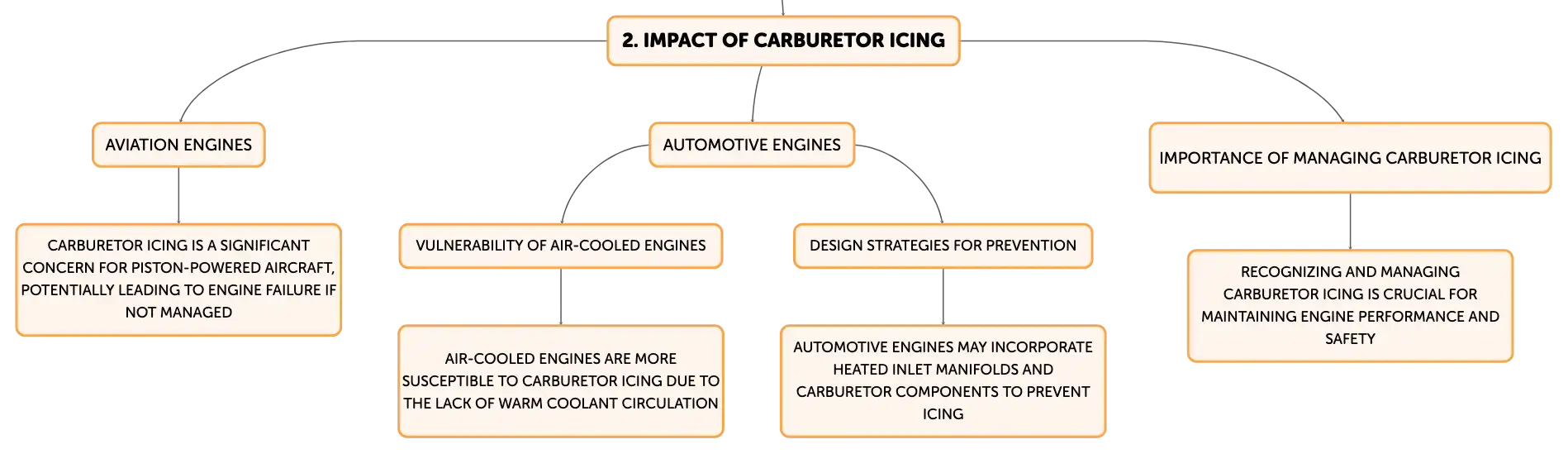

Impact of Carburetor Icing
Aviation Engines
Carburetor icing is a significant concern for piston-powered aircraft, potentially leading to engine failure if not managed
Automotive Engines
Vulnerability of Air-Cooled Engines
Air-cooled engines are more susceptible to carburetor icing due to the lack of warm coolant circulation
Design Strategies for Prevention
Automotive engines may incorporate heated inlet manifolds and carburetor components to prevent icing
Importance of Managing Carburetor Icing
Recognizing and managing carburetor icing is crucial for maintaining engine performance and safety

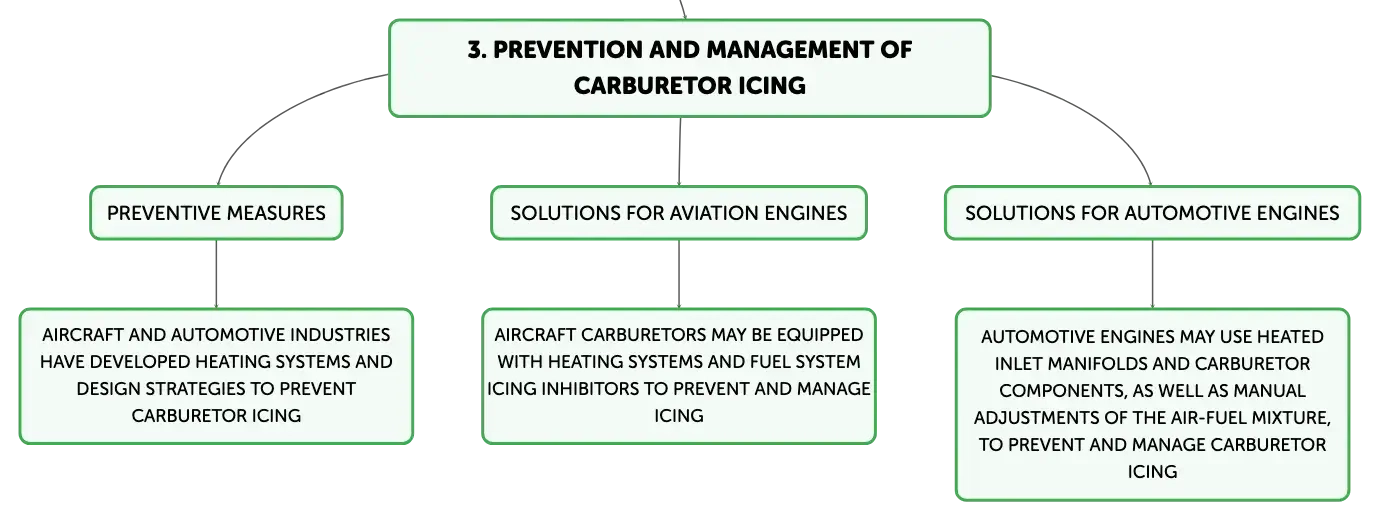

Prevention and Management of Carburetor Icing
Preventive Measures
Aircraft and automotive industries have developed heating systems and design strategies to prevent carburetor icing
Solutions for Aviation Engines
Aircraft carburetors may be equipped with heating systems and fuel system icing inhibitors to prevent and manage icing
Solutions for Automotive Engines
Automotive engines may use heated inlet manifolds and carburetor components, as well as manual adjustments of the air-fuel mixture, to prevent and manage carburetor icing
Carburetor Icing in Engine Operation
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
______ icing is a major issue, especially for aircraft with piston engines and ______ carburetors.
Carburetor
float-type
01
Ice formation in the carburetor can interfere with the correct ______ and ______ blend, causing engine problems and safety risks.
air
fuel
02
Mechanisms leading to carburetor icing
Fuel vaporization and venturi effect
