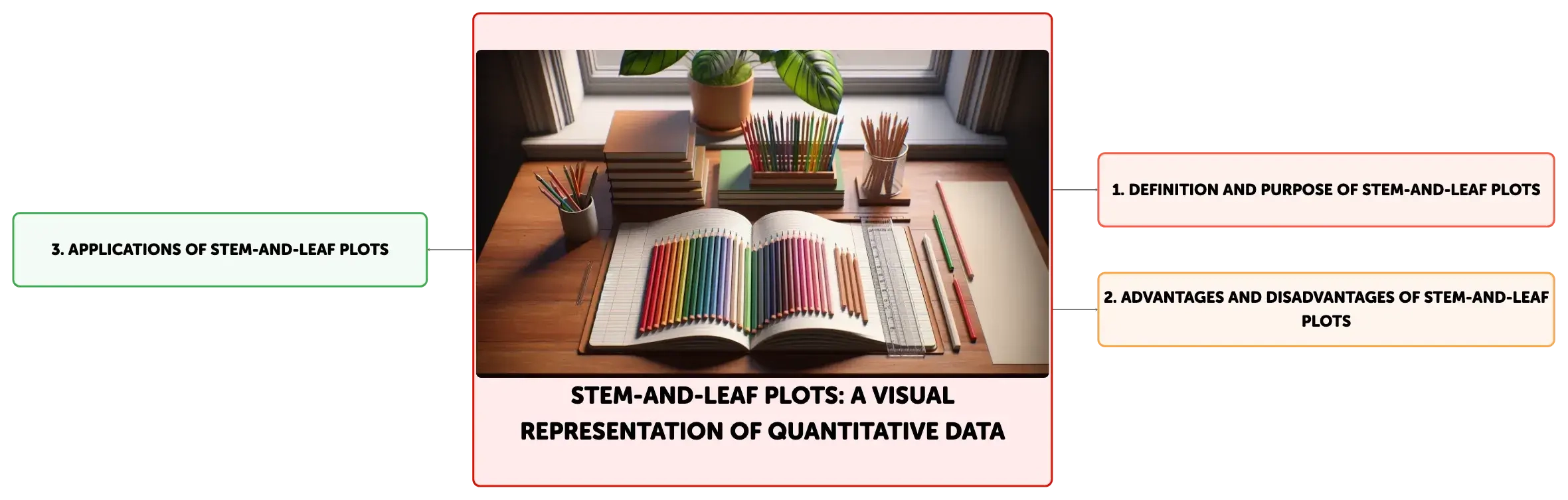

Stem-and-Leaf Plots: A Visual Representation of Quantitative Data
Stem-and-leaf plots are a method of organizing quantitative data to reveal distribution patterns and facilitate statistical analysis. They split numbers into stems and leaves, allowing for easy comparison and calculation of the five-number summary. This visualization technique is particularly useful for small to medium-sized data sets in various fields, including education, economics, and social sciences.
See moreUnderstanding Stem-and-Leaf Plots

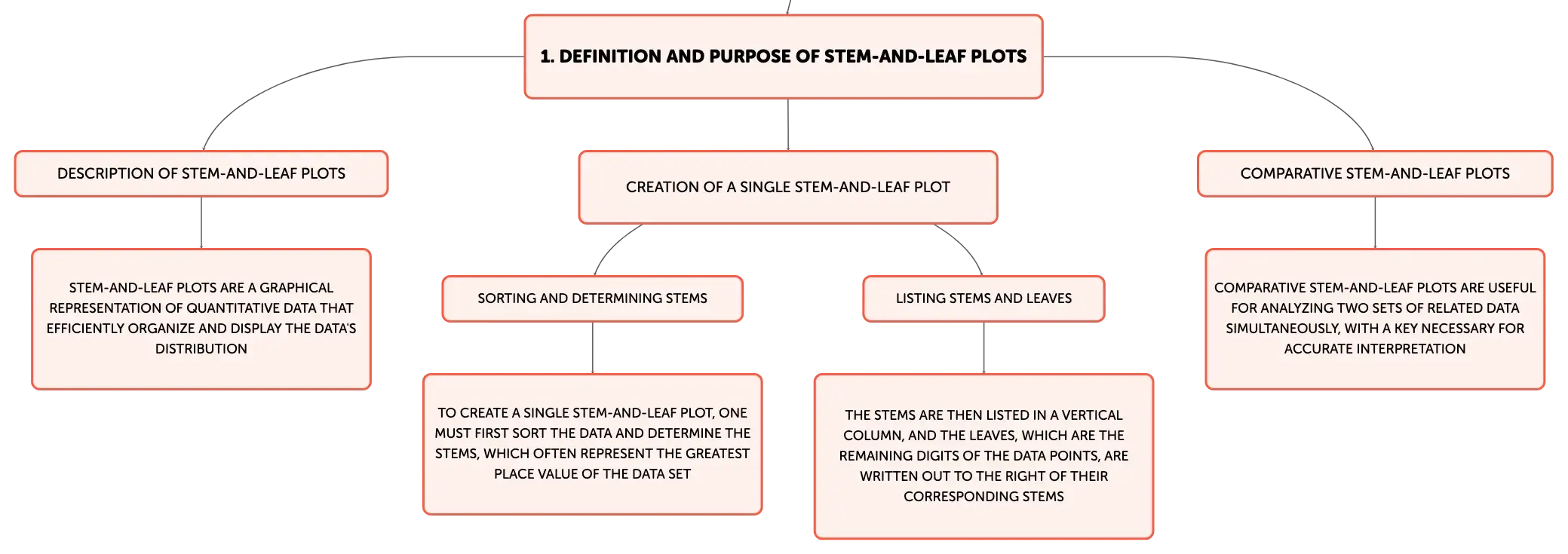

Stem-and-leaf plots are a graphical representation of quantitative data that efficiently organize and display the data's distribution. Each number is split into a "stem" (typically the leading digit or digits) and a "leaf" (usually the last digit). The stems are listed in ascending order on the left side of the plot, and the leaves corresponding to each stem are listed on the right. This method retains the original data values and allows for immediate identification of the shape of the data distribution, making it easier to spot patterns, outliers, and to calculate statistical summaries.Constructing Single Stem-and-Leaf Plots
To create a single stem-and-leaf plot, one must first sort the data and determine the stems, which often represent the greatest place value of the data set. The stems are then listed in a vertical column, and the leaves, which are the remaining digits of the data points, are written out to the right of their corresponding stems. Leaves should be separated by spaces or commas for readability. A key should accompany the plot to clarify the value of the stems and leaves. For example, if the key indicates that the stem represents tens and the leaf represents ones, then a stem of "8" with a leaf of "3" would represent the number "83."Comparative Stem-and-Leaf Plots for Data Analysis
Comparative stem-and-leaf plots are useful for analyzing two sets of related data simultaneously. They share a central column of stems, with one data set's leaves on the left and the other's on the right. This side-by-side layout facilitates direct comparison of the two data sets. It is essential that both data sets have a similar range for the comparison to be meaningful. A key is also necessary for these plots to ensure accurate interpretation of the data. For example, a stem of "3" with leaves "7" on the left and "1" on the right could represent the numbers "37" and "31" for the two different data sets, respectively.Advantages and Limitations of Stem-and-Leaf Plots

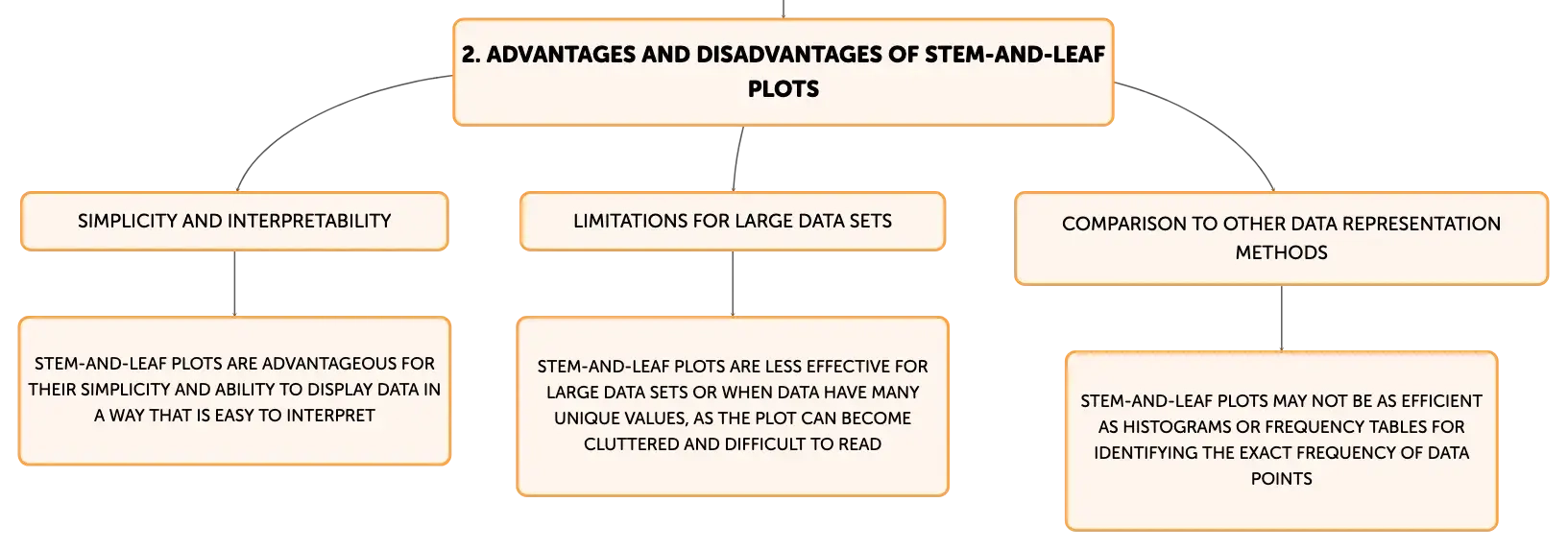

Stem-and-leaf plots are advantageous for their simplicity and ability to display data in a way that is easy to interpret. They are particularly useful for small to medium-sized data sets and can be constructed quickly by hand, making them ideal for preliminary data analysis. These plots preserve the original data values and provide a clear view of the distribution's shape. However, they are less effective for large data sets or when data have many unique values, as the plot can become cluttered and difficult to read. Additionally, they may not be as efficient as histograms or frequency tables for identifying the exact frequency of data points.Practical Applications and Examples of Stem-and-Leaf Plots

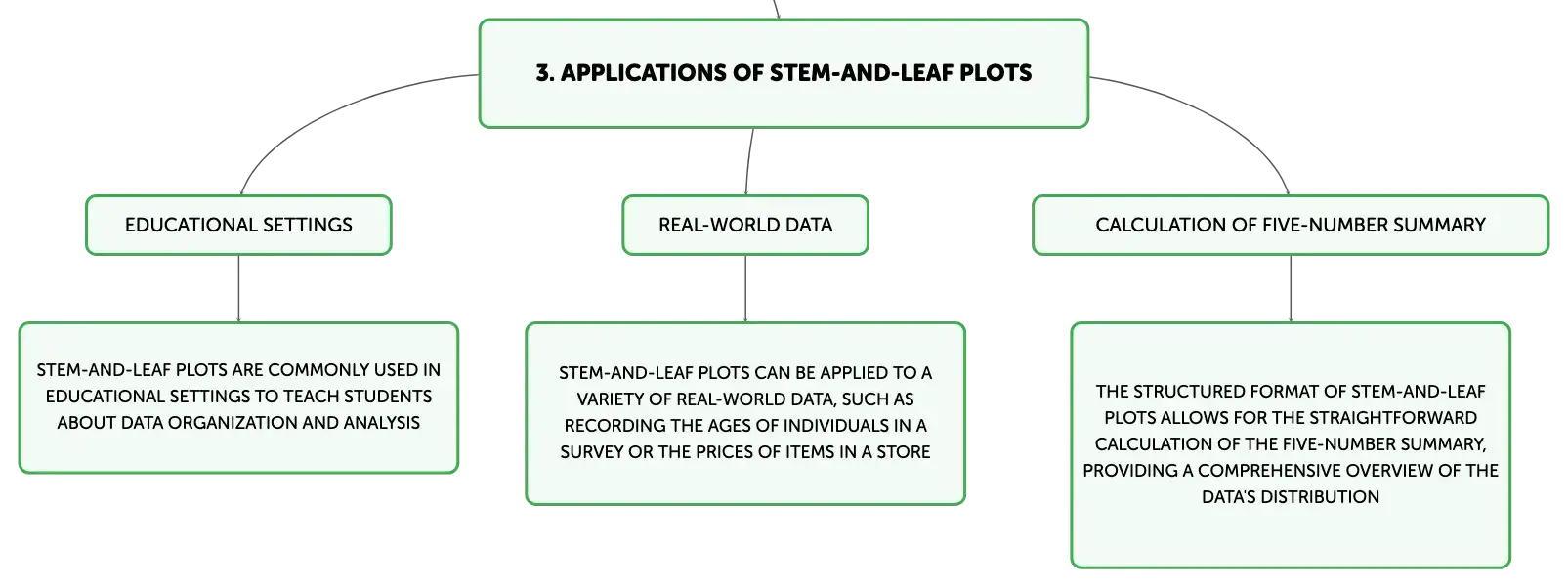

Stem-and-leaf plots are commonly used in educational settings to teach students about data organization and analysis. They can be applied to a variety of real-world data, such as recording the ages of individuals in a survey or the prices of items in a store. By organizing data into stems and leaves, patterns such as common age groups or price ranges become evident. These plots also facilitate the calculation of the five-number summary (minimum, first quartile, median, third quartile, and maximum), which provides a comprehensive overview of the data's distribution, useful in many fields including statistics, economics, and social sciences.Interpreting the Five-Number Summary Using Stem-and-Leaf Plots
The structured format of stem-and-leaf plots allows for the straightforward calculation of the five-number summary. The minimum and maximum are easily identified as the smallest and largest leaves, respectively. The median is located by finding the central leaf or leaves if the data set has an odd or even number of observations, respectively. The first and third quartiles are found by dividing the ordered data set into four equal parts. This summary is essential for understanding the data's central tendency and variability. For example, a stem-and-leaf plot of test scores can quickly show the distribution of students' performance, providing educators with insights into the class's achievements and areas for improvement.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In a stem-and-leaf plot, stems are arranged in ______ order and the leaves show the corresponding data points.
Click to check the answer
2
Sorting Data for Stem-and-Leaf Plot
Click to check the answer
3
Determining Stems in Stem-and-Leaf Plot
Click to check the answer
4
Key for Stem-and-Leaf Plot
Click to check the answer
5
In a stem-and-leaf plot, a stem of '3' with a leaf of '7' on one side and '1' on the other could signify the numbers '37' and '______', respectively.
Click to check the answer
6
Ideal data set size for stem-and-leaf plots
Click to check the answer
7
Stem-and-leaf plots vs. histograms
Click to check the answer
8
Construction speed of stem-and-leaf plots
Click to check the answer
9
These plots help in identifying patterns and calculating the - summary, which includes the median and quartiles.
Click to check the answer
10
Identifying minimum in stem-and-leaf plot
Click to check the answer
11
Locating median in stem-and-leaf plot
Click to check the answer
12
Determining quartiles from stem-and-leaf plot
Click to check the answer
