Perpendicular Lines and Slopes
Concept Map
Perpendicular lines intersect at a right angle, forming four 90-degree angles. This text explores their slopes, which are negative reciprocals, and how to calculate and formulate equations for lines perpendicular to a given line. Practical applications include building design and geometric problem-solving, demonstrating the importance of understanding these fundamental concepts in geometry.
Summary
Outline
Defining Perpendicular Lines
Perpendicular lines are an essential concept in geometry, defined as two lines that intersect at a right angle, which is an angle of exactly 90 degrees. This perpendicularity is denoted by the symbol \( AB \perp CD \), signifying that line segment AB is perpendicular to line segment CD. At the point of intersection, four right angles are formed, each measuring 90 degrees. Perpendicular lines are not only a theoretical construct but also have practical applications in everyday life, such as in the design of buildings, where walls intersect floors at right angles, and in various symbols, including the cross on a first aid kit.Slope of Perpendicular Lines
The slope, or gradient, of a line quantifies its steepness and direction. It is a key concept when examining perpendicular lines, as the slope determines the angle a line makes with the horizontal. Mathematically, the slope is represented by 'm' in the linear equation \( y = mx + b \), where 'b' is the y-intercept. A unique characteristic of perpendicular lines is that their slopes are negative reciprocals of one another. If one line has a slope of \( m_1 \), then a line perpendicular to it will have a slope of \( m_2 \), such that \( m_1 \cdot m_2 = -1 \). This inverse relationship is essential for establishing the perpendicularity between two lines.Determining Slopes of Perpendicular Lines
To calculate the slope of a line perpendicular to a given line, one can start with the general linear equation \( ax + by + c = 0 \). By rearranging this equation into the slope-intercept form \( y = mx + b \), the slope of the original line can be identified. The slope of the perpendicular line is then the negative reciprocal of this value. For instance, with the line equation \( 5x + 3y + 7 = 0 \), the slope \( m_1 \) is \( -\frac{5}{3} \). Therefore, the slope \( m_2 \) of the line perpendicular to it would be \( \frac{3}{5} \).Formulating Equations of Perpendicular Lines
To derive the equation of a line perpendicular to a given line, one uses the slope-intercept form \( y = mx + b \), substituting 'm' with the negative reciprocal of the given line's slope. The y-intercept 'b' can differ, as there are infinitely many lines perpendicular to the original line, each intersecting at various points. If a specific point through which the perpendicular line must pass is known, this point can be used to solve for 'b', thus determining the exact equation of the desired perpendicular line.Practical Examples of Perpendicular Lines
Practical examples help to solidify the understanding of perpendicular lines. To determine if two lines are perpendicular, one can compare the slopes of the lines given by their equations, such as \( 4x - y - 5 = 0 \) and \( x + 4y + 1 = 0 \), and check if the product of their slopes is -1. Another application is to find the equation of a line that must pass through a particular point and be perpendicular to a given line. By using the negative reciprocal of the given line's slope and the coordinates of the point, the equation of the required perpendicular line can be formulated. These examples demonstrate the importance of mastering the concept of perpendicular lines and their slopes in geometric problem-solving.
Show More

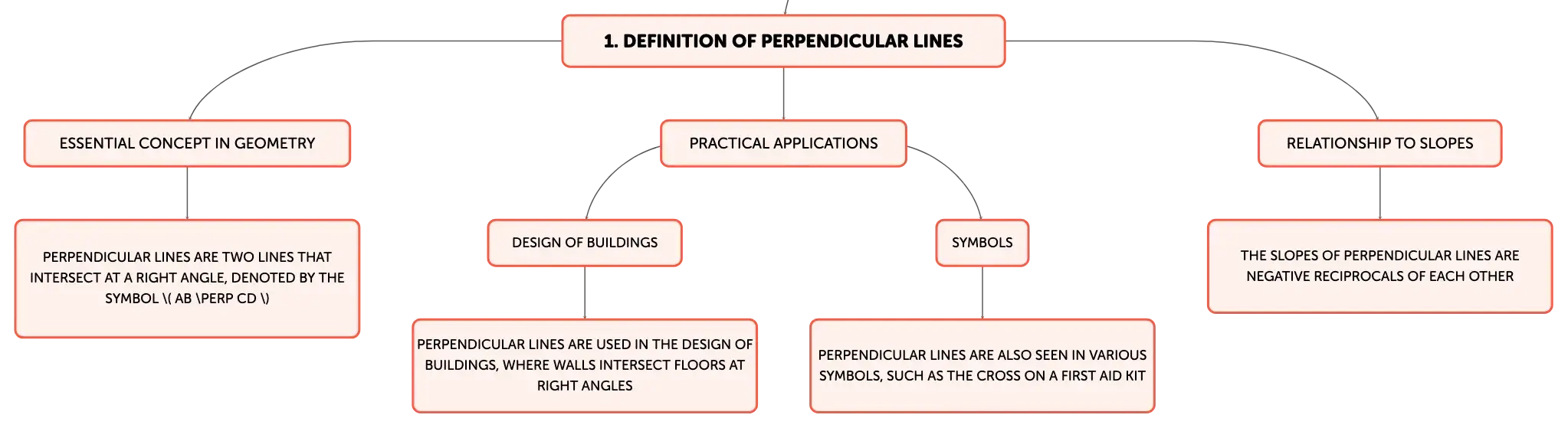

Definition of Perpendicular Lines
Essential concept in geometry
Perpendicular lines are two lines that intersect at a right angle, denoted by the symbol \( AB \perp CD \)
Practical applications
Design of buildings
Perpendicular lines are used in the design of buildings, where walls intersect floors at right angles
Symbols
Perpendicular lines are also seen in various symbols, such as the cross on a first aid kit
Relationship to slopes
The slopes of perpendicular lines are negative reciprocals of each other

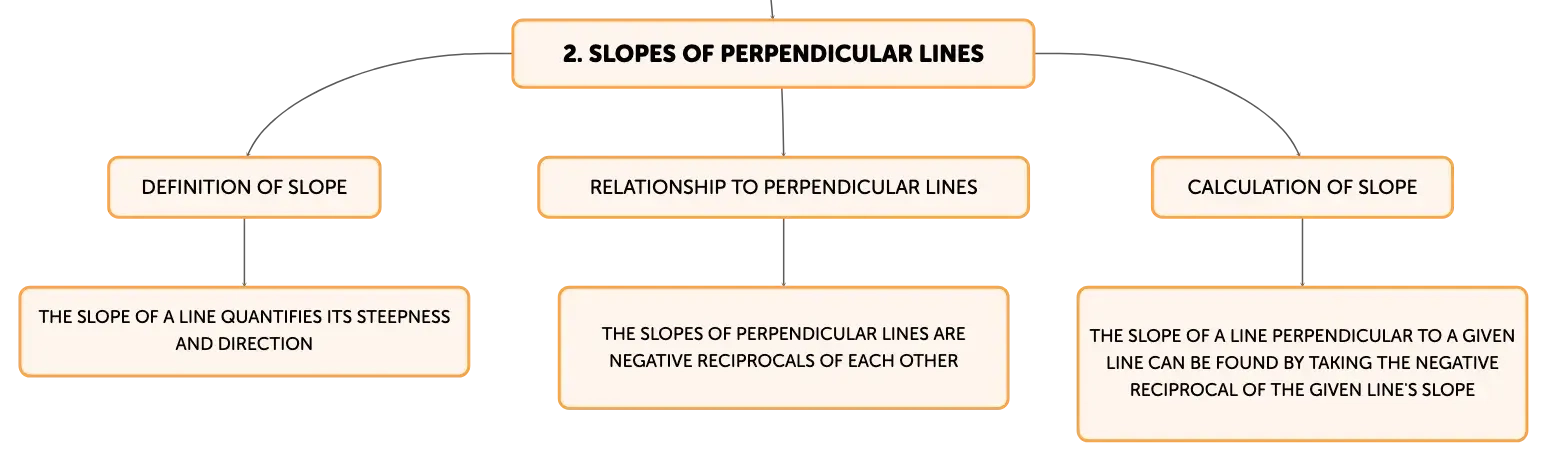

Slopes of Perpendicular Lines
Definition of slope
The slope of a line quantifies its steepness and direction
Relationship to perpendicular lines
The slopes of perpendicular lines are negative reciprocals of each other
Calculation of slope
The slope of a line perpendicular to a given line can be found by taking the negative reciprocal of the given line's slope

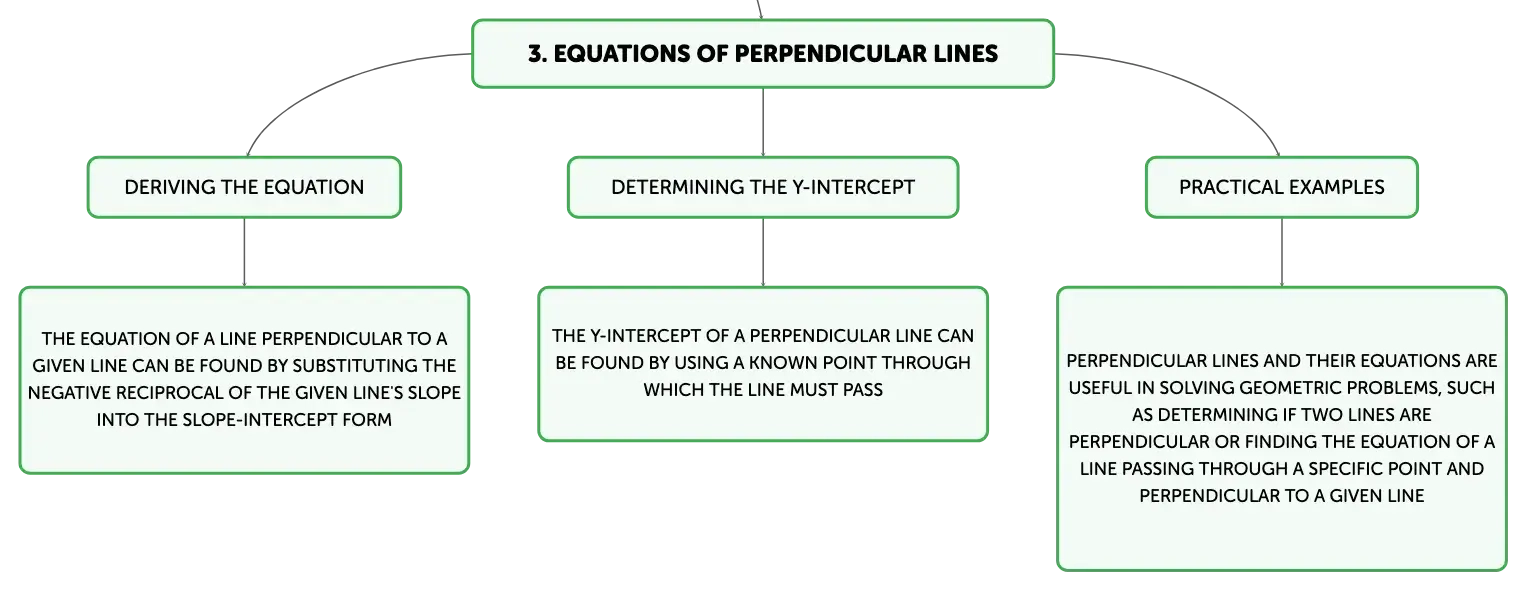

Equations of Perpendicular Lines
Deriving the equation
The equation of a line perpendicular to a given line can be found by substituting the negative reciprocal of the given line's slope into the slope-intercept form
Determining the y-intercept
The y-intercept of a perpendicular line can be found by using a known point through which the line must pass
Practical examples
Perpendicular lines and their equations are useful in solving geometric problems, such as determining if two lines are perpendicular or finding the equation of a line passing through a specific point and perpendicular to a given line
Perpendicular Lines and Slopes
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Definition of slope in a line
Slope quantifies line steepness/direction, represented by 'm' in y=mx+b.
01
Meaning of 'b' in linear equation
'b' is the y-intercept, where line crosses y-axis.
02
Slope of perpendicular lines relationship
Perpendicular lines have slopes that are negative reciprocals (m1 * m2 = -1).
