Coordinate Geometry
Coordinate geometry, or analytic geometry, uses a Cartesian coordinate system to analyze geometric figures algebraically. It covers linear equations, graphing straight lines, circle equations, and parametric equations for describing curves and motion. This field is crucial in physics, engineering, and computer graphics for spatial analysis.
See moreIntroduction to Coordinate Geometry

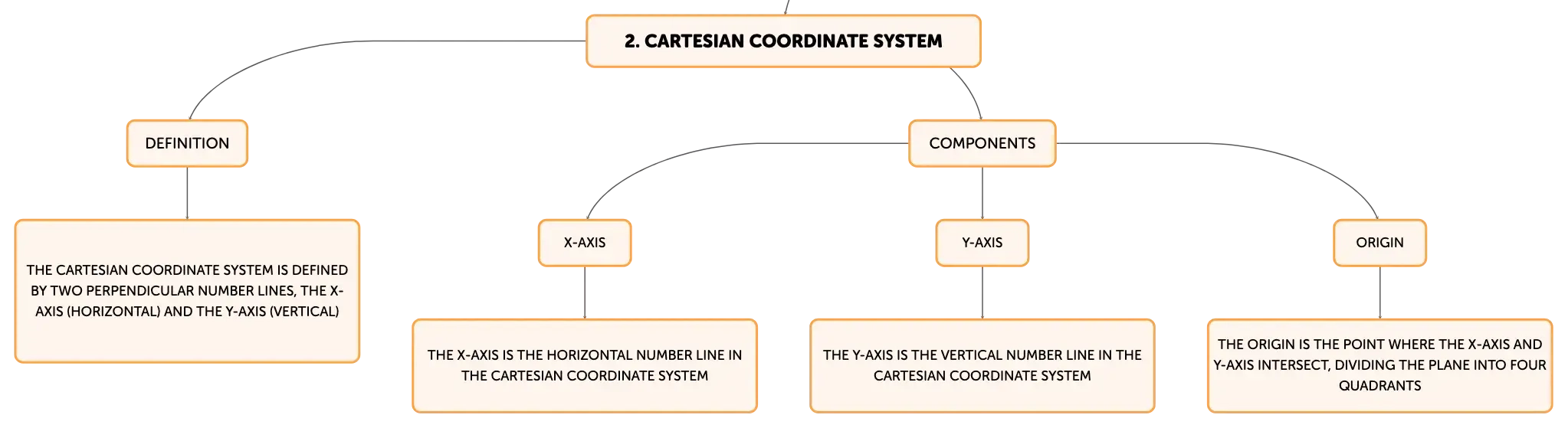

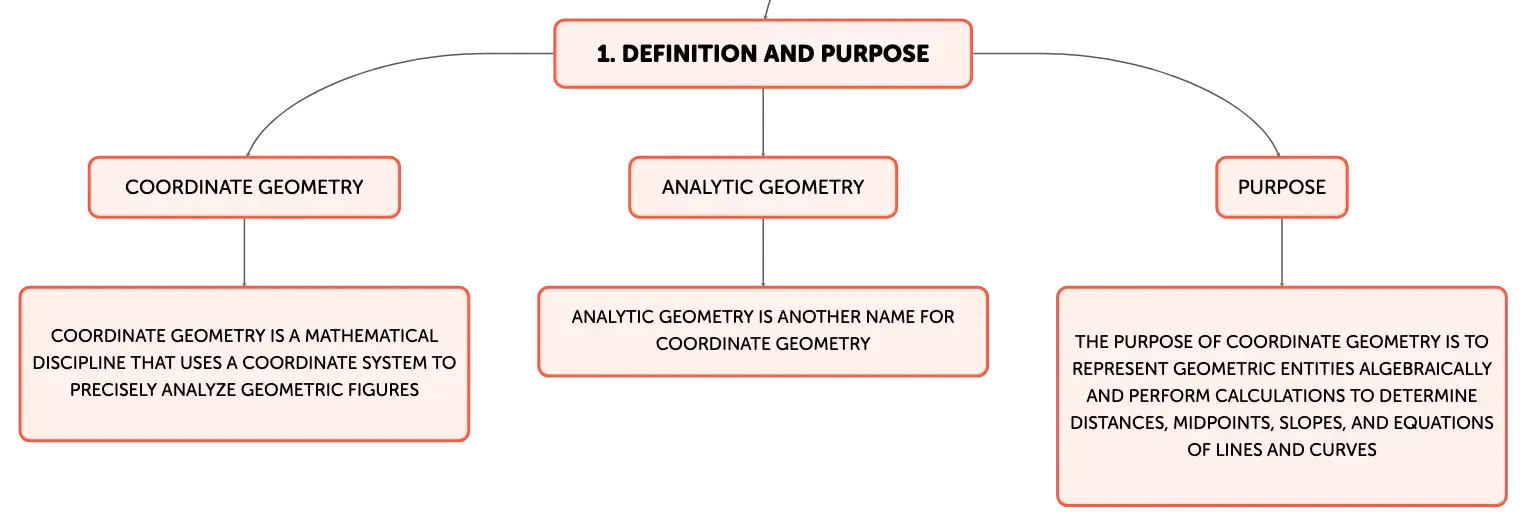

Coordinate geometry, also known as analytic geometry, is a mathematical discipline that enables the precise analysis of geometric figures using a coordinate system. This system, typically the Cartesian coordinate system, is defined by two perpendicular number lines: the x-axis (horizontal) and the y-axis (vertical). Their intersection at the origin divides the plane into four quadrants. By assigning coordinates to points on the plane, one can represent geometric entities algebraically and perform calculations to determine distances, midpoints, slopes, and equations of lines and curves. Coordinate geometry is fundamental in fields such as physics, engineering, and computer graphics, where spatial relationships need to be quantified and utilized.Linear Equations and Graphs in Coordinate Geometry

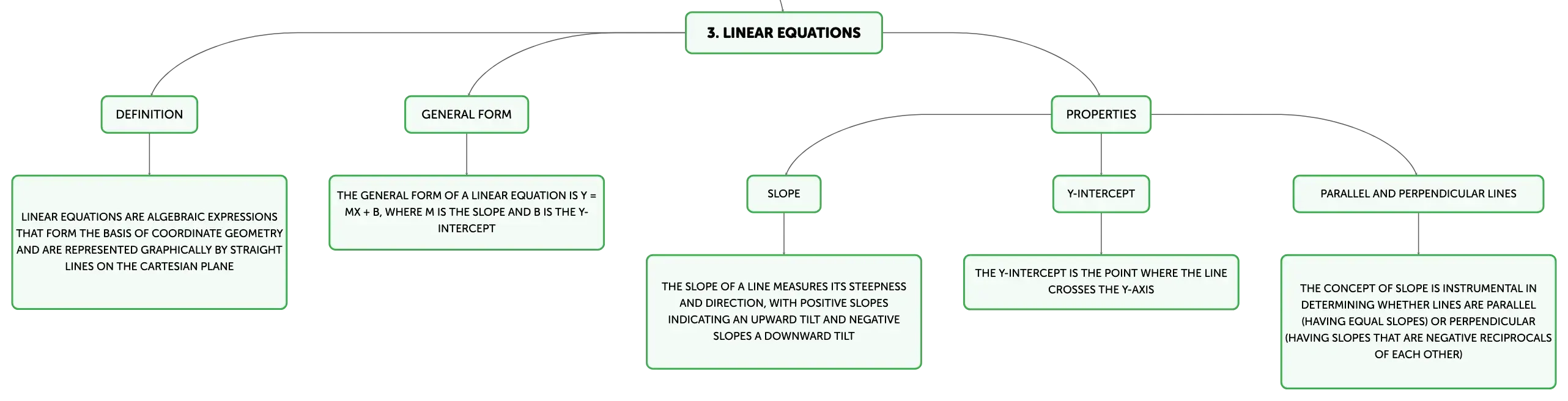

Linear equations form the basis of coordinate geometry and are represented graphically by straight lines on the Cartesian plane. The general form of a linear equation is \(y = mx + b\), where \(m\) is the slope and \(b\) is the y-intercept. The slope measures the line's steepness and direction, with positive slopes indicating an upward tilt and negative slopes a downward tilt. The y-intercept is the point where the line crosses the y-axis. Understanding the properties of linear equations is crucial for solving problems involving rates of change and relationships between variables. Additionally, the concept of slope is instrumental in determining whether lines are parallel (having equal slopes) or perpendicular (having slopes that are negative reciprocals of each other).The Geometry of Circles in the Cartesian Plane

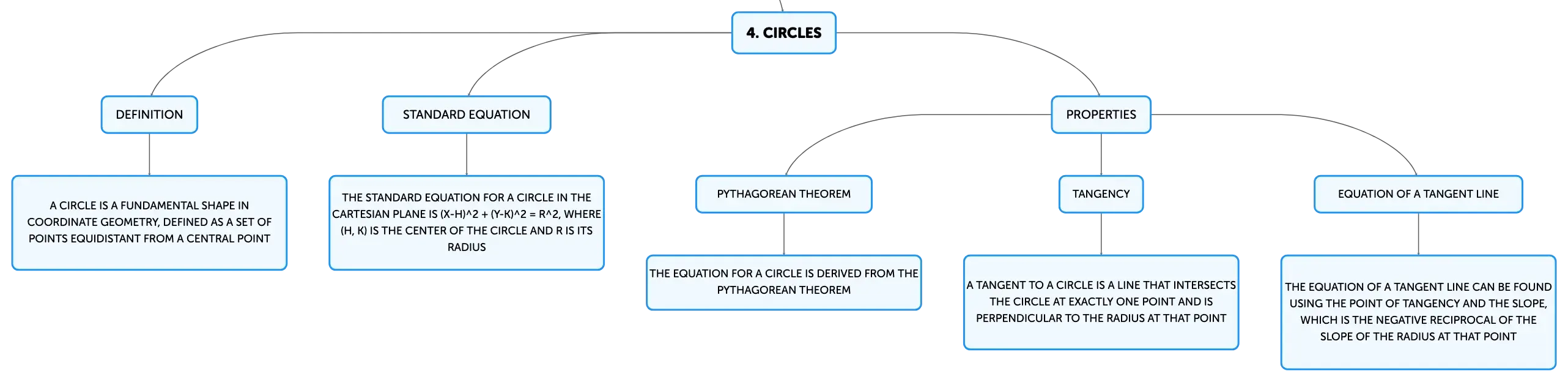

The circle, a set of points equidistant from a central point, is a fundamental shape in coordinate geometry. Its standard equation in the Cartesian plane is \((x-h)^2 + (y-k)^2 = r^2\), where \((h, k)\) is the center of the circle and \(r\) is its radius. This equation is derived from the Pythagorean theorem and is essential for solving problems related to circles, such as finding the points of intersection with lines or other circles. The concept of tangency is also important; a tangent to a circle is a line that intersects the circle at exactly one point and is perpendicular to the radius at that point. The equation of a tangent line can be found using the point of tangency and the slope, which is the negative reciprocal of the slope of the radius at that point.Parametric Equations in Coordinate Geometry
Parametric equations provide a powerful way to describe motion and curves in coordinate geometry. Instead of expressing \(y\) directly as a function of \(x\), both \(x\) and \(y\) are defined as functions of a third variable, typically \(t\), called the parameter. For example, the parametric equations \(x = r\cos(t)\) and \(y = r\sin(t)\) describe a circle of radius \(r\) centered at the origin. Parametric equations are particularly useful for tracing the path of an object over time or for describing curves that cannot be represented as a function of \(x\) alone. They also facilitate the calculation of derivatives and integrals for curves, making them invaluable in calculus and physics.Concluding Insights on Coordinate Geometry
Coordinate geometry is an indispensable branch of mathematics that bridges algebra and geometry. It provides a framework for analyzing and solving a wide array of geometric problems by translating them into algebraic terms. The study of linear equations and their graphs lays the groundwork for understanding relationships between variables and the concept of function. The analysis of circles and their properties deepens our understanding of shapes and their equations. Parametric equations extend the scope of coordinate geometry to include complex curves and motions. Mastery of these concepts is essential for students and professionals in various scientific and engineering disciplines, where spatial analysis and problem-solving are required.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
______ geometry, also known as ______ geometry, uses a coordinate system to analyze geometric figures.
Click to check the answer
2
General form of a linear equation
Click to check the answer
3
Interpretation of slope value
Click to check the answer
4
Criteria for parallel and perpendicular lines
Click to check the answer
5
Parametric equations vs. function of x
Click to check the answer
6
Circle parametric representation
Click to check the answer
7
Parametric equations in calculus
Click to check the answer
8
The examination of ______ and their characteristics enhances comprehension of forms and their ______.
Click to check the answer
