Cumulative Frequency

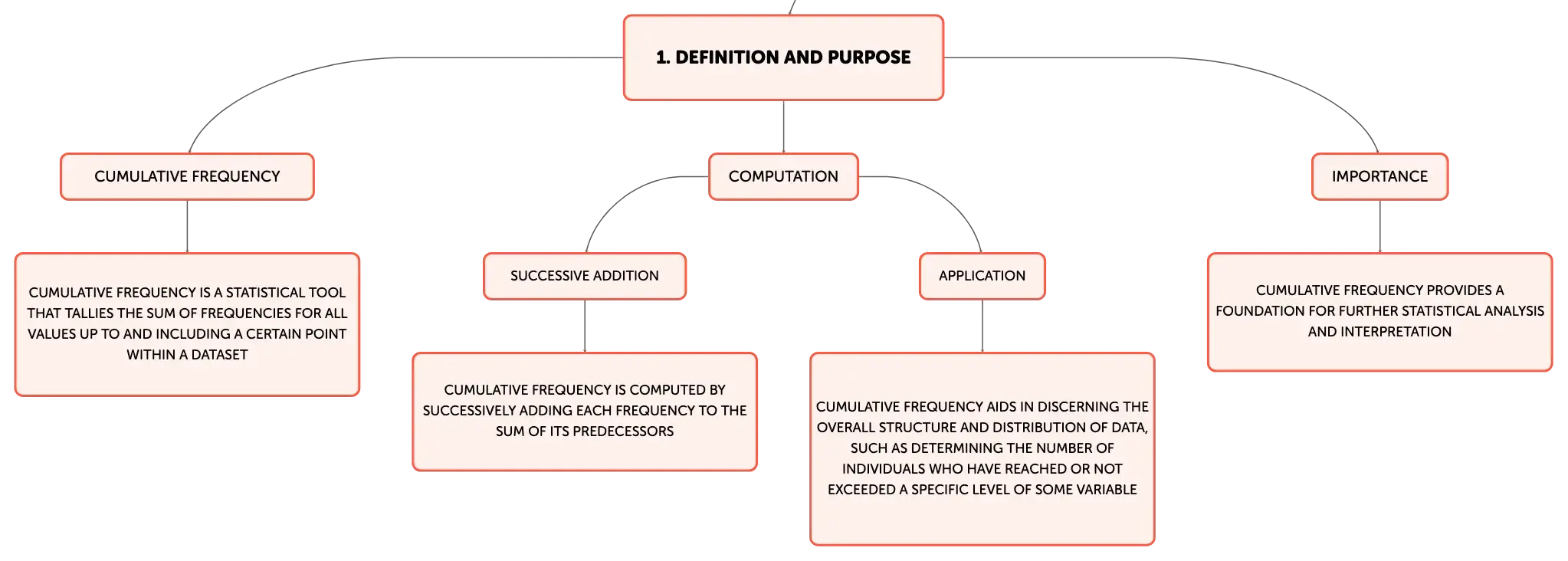

Exploring the Concept of Cumulative Frequency

Cumulative frequency is a crucial statistical tool that tallies the sum of frequencies for all values up to and including a certain point within a dataset. It is instrumental in assessing the cumulative effect of data points and is computed by successively adding each frequency to the sum of its predecessors. This method aids in discerning the overall structure and distribution of data, such as determining the number of individuals who have reached or not exceeded a specific level of some variable, like pizza consumption in a month. Cumulative frequency provides a foundation for further statistical analysis and interpretation.

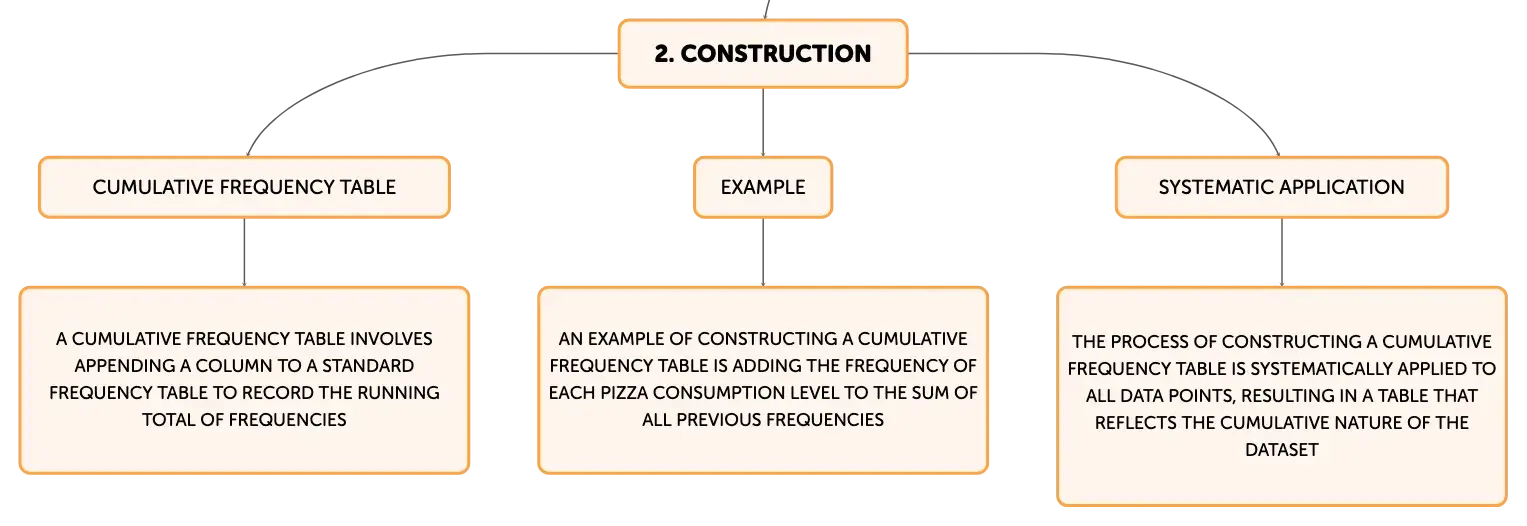

Creating Cumulative Frequency Tables

Constructing a cumulative frequency table involves appending a column to a standard frequency table to record the running total of frequencies. For each entry, the cumulative frequency is the sum of its own frequency and all those before it. Taking an example where individuals' pizza consumption is recorded, if the frequency for zero pizzas is three, one pizza is one, and two pizzas is four, the cumulative frequency for two pizzas would be eight (3+1+4). This process is systematically applied to all data points, yielding a table that reflects the cumulative nature of the dataset.

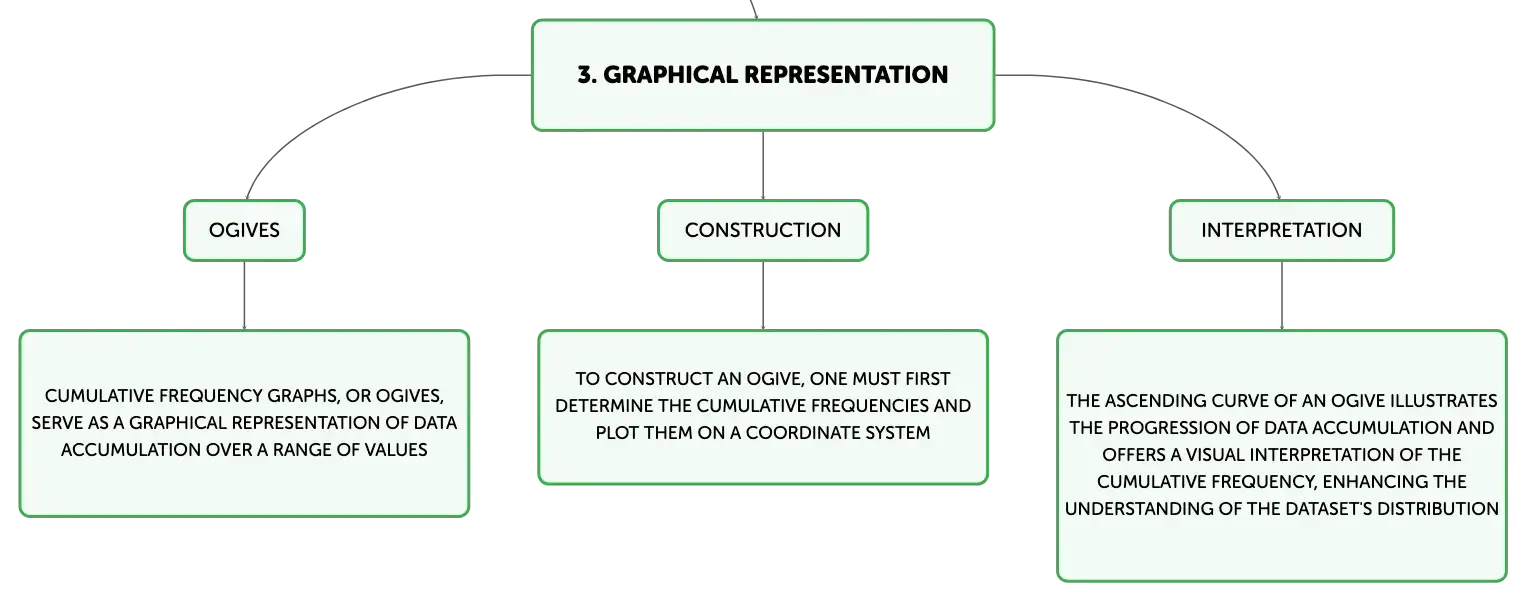

Depicting Data with Cumulative Frequency Graphs

Cumulative frequency graphs, or ogives, serve as a graphical representation of data accumulation over a range of values. To construct an ogive, one must first determine the cumulative frequencies. These are then plotted on a coordinate system, with the data values on the horizontal axis and the cumulative frequencies on the vertical axis. The ascending curve that connects these points illustrates the progression of data accumulation and offers a visual interpretation of the cumulative frequency, enhancing the understanding of the dataset's distribution.

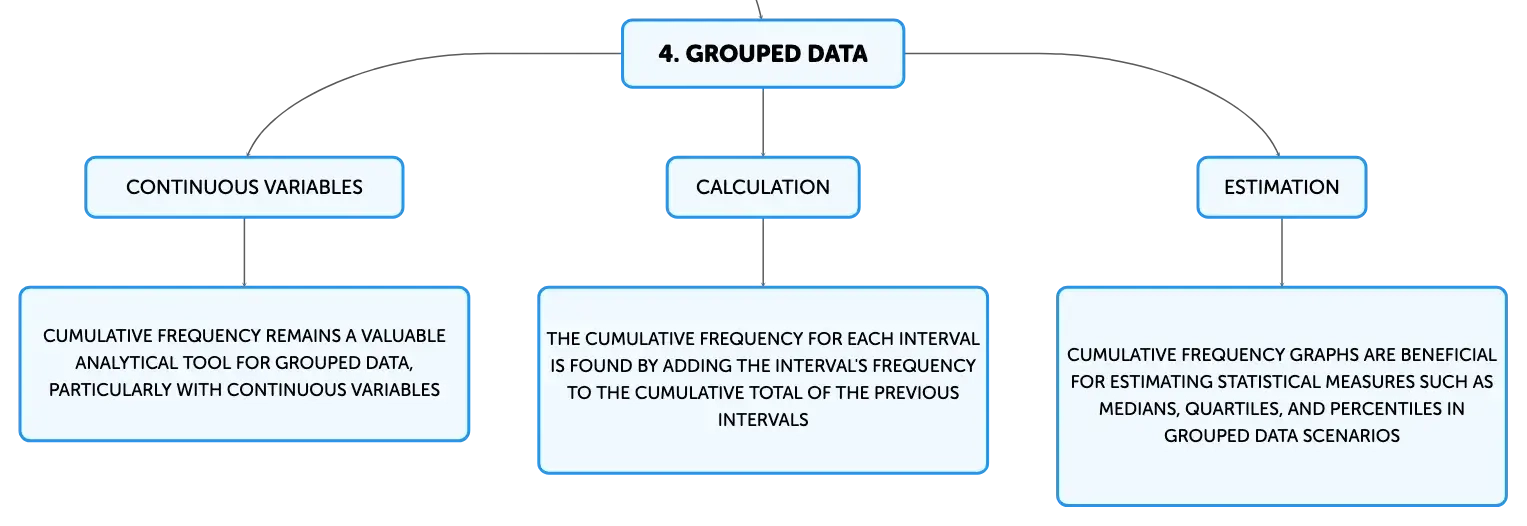

Applying Cumulative Frequency to Grouped Data

When data are categorized into intervals or classes, particularly with continuous variables, cumulative frequency remains a valuable analytical tool. The cumulative frequency for each interval is found by adding the interval's frequency to the cumulative total of the previous intervals. For graphical representation, the class mark, or midpoint of each interval, is typically used. This method facilitates the visualization of distribution trends and patterns within the grouped data, providing insights into the overall structure of the dataset.

Estimating Statistical Measures Using Cumulative Frequency

Cumulative frequency graphs are especially beneficial for estimating statistical measures such as medians, quartiles, and percentiles in grouped data scenarios. As exact values are not always available for grouped data, these graphs offer a practical estimation technique. By plotting cumulative frequencies against the upper boundaries of class intervals and drawing a curve of best fit, one can approximate the median by identifying the point corresponding to the 50th percentile of the data. Quartiles and other percentiles are similarly estimated by locating the points that align with the 25th, 75th, or other specific percentages of the cumulative frequency.

Understanding the Importance of Cumulative Frequency

Cumulative frequency is an essential statistical concept that sheds light on the pattern of occurrences within a dataset. It is depicted through cumulative frequency tables and ogives, which are integral to comprehensive data analysis. While cumulative frequency provides valuable insights into data distributions, it is important to recognize that the medians, quartiles, and percentiles derived from these methods are estimations. Despite this, such approximations are critical for making educated assessments and forecasts based on the data under consideration.
