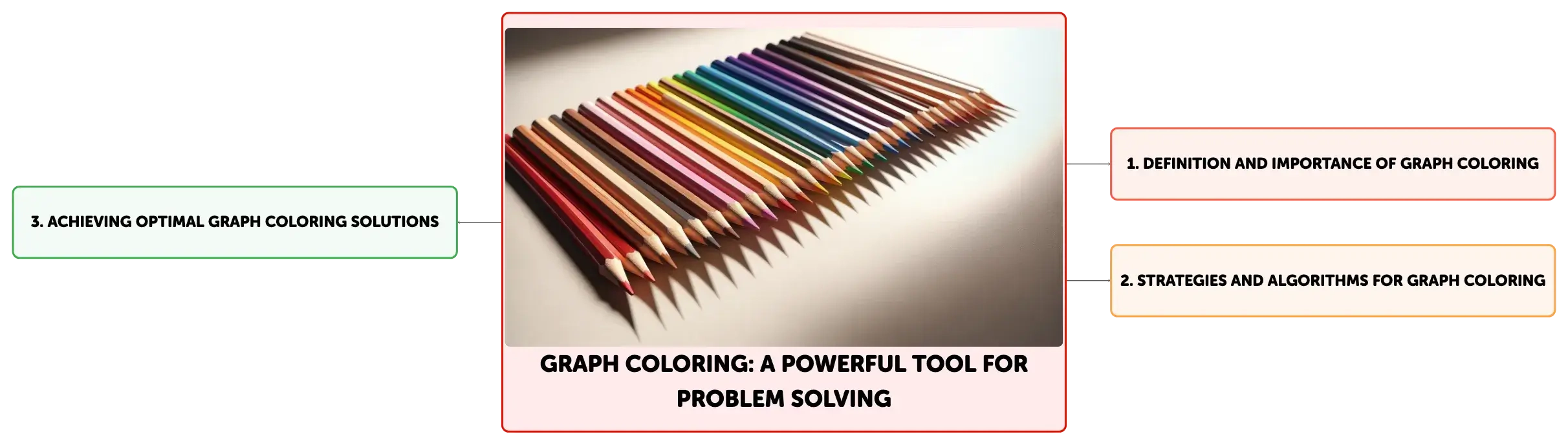

Graph Coloring: A Powerful Tool for Problem Solving

Graph coloring is a pivotal concept in discrete mathematics, used to assign colors to graph vertices to ensure no adjacent ones match. It's crucial for scheduling, network design, and algorithm development. The text delves into the complexity of finding the minimum chromatic number, strategies like Greedy Coloring and Backtracking, and practical uses in timetabling and wireless networks.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In ______ mathematics and computer science, graph coloring involves assigning different colors to ______ such that connected ones don't share the same color.

Click to check the answer

discrete vertices

2

The main objective in graph coloring is to reduce the ______, which is the minimum number of colors needed for the vertices.

Click to check the answer

chromatic number

3

Graph Coloring Applications

Click to check the answer

Used in scheduling, network optimization, algorithm design.

4

Graph Coloring in Engineering

Click to check the answer

Helps solve problems like data compression, resource allocation.

5

Graph Coloring in Computer Science

Click to check the answer

Facilitates efficient bandwidth use, data structure management.

6

The ______ states that any ______ graph can be colored with no more than four colors, ensuring adjacent regions differ in color.

Click to check the answer

Four Color Theorem planar

7

Greedy Coloring algorithm approach

Click to check the answer

Assigns smallest available color to each vertex sequentially.

8

Backtracking method in graph coloring

Click to check the answer

Explores all possibilities, backtracks at conflicts to find valid colorings.

9

Advanced algorithms for larger graphs

Click to check the answer

DSATUR, Tabu search, Genetic algorithms used for near-optimal solutions.

10

In ______, graph coloring aids in organizing ______ or ______ to prevent simultaneous obligations for students.

Click to check the answer

educational timetabling classes exams

11

Chromatic number significance

Click to check the answer

Chromatic number is the minimum count of colors needed to color a graph so no two adjacent vertices share the same color.

12

Greedy vs. Welsh-Powell

Click to check the answer

Greedy Algorithm colors vertices sequentially, while Welsh-Powell prioritizes and colors higher degree vertices first for potentially better results.

13

Heuristic methods for complex graphs

Click to check the answer

Genetic algorithms and Simulated Annealing are iterative heuristics used to find optimal/near-optimal graph coloring in intricate graphs.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Algorithms and Complexity in Computer Science

View document

Computer Science

Cryptography

View document

Computer Science

Subsequences in Mathematics and Computer Science

View document

Computer Science

Computational Geometry

View document

Fundamentals of Graph Coloring

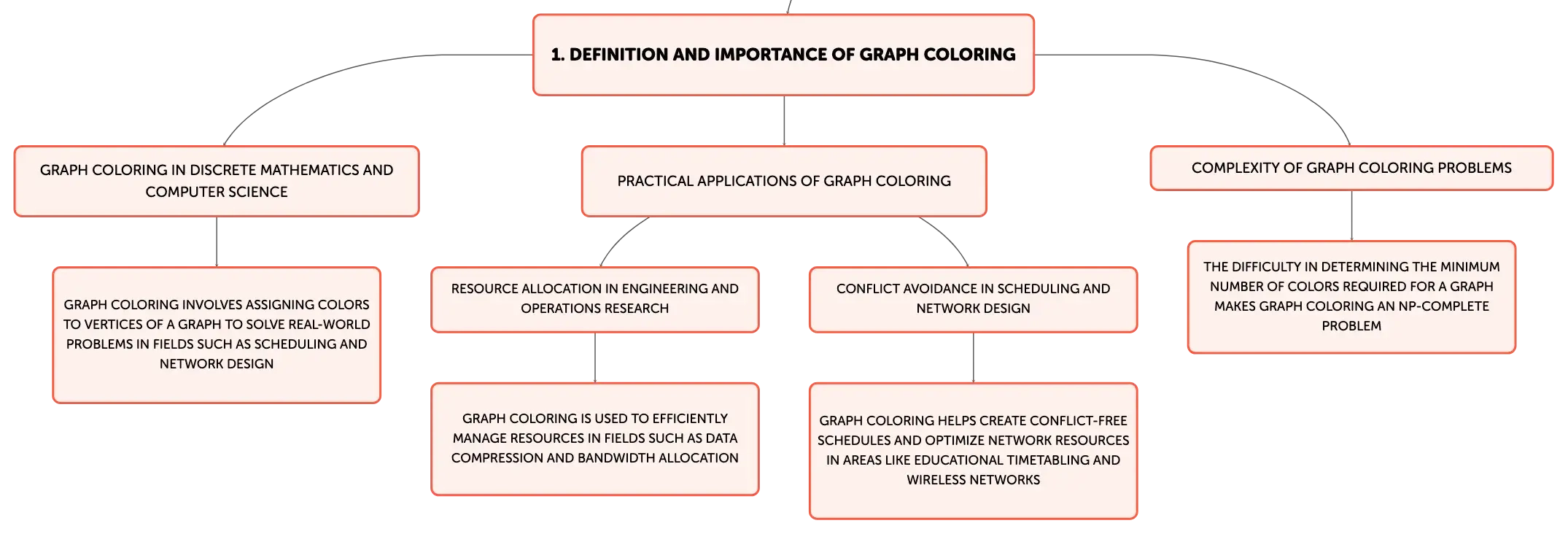

Graph coloring is an essential concept in discrete mathematics and computer science, involving the assignment of colors to vertices of a graph such that no two adjacent vertices share the same color. The primary goal is to minimize the number of colors used, known as the graph's chromatic number. This problem is deceptively simple to state but often computationally challenging to solve for large graphs. Graph coloring has practical applications in various domains, including scheduling, network design, and the development of efficient algorithms, serving as a practical tool for solving real-world problems.
Colored pencils in rainbow order with tips pointing right on a white background, showcasing a spectrum from red to violet with unused pink erasers.

The Role of Graph Coloring in Discrete Mathematics

In discrete mathematics, graph coloring is a powerful tool for modeling and solving a range of problems. It is particularly useful in creating schedules that avoid conflicts, optimizing network resources, and developing algorithms that efficiently manage complex data structures. The utility of graph coloring is widespread, with applications in fields such as engineering, computer science, and operations research, where it helps to address challenges like data compression, resource allocation, and the efficient use of bandwidth.

Navigating the Complexity of Graph Coloring

The complexity of graph coloring problems stems from the difficulty in determining the minimum number of colors required for a given graph, which is an NP-Complete problem. This means that there is no known algorithm that can solve all instances of the problem quickly (in polynomial time). The complexity can vary depending on the graph's properties; for example, the Four Color Theorem asserts that four colors are sufficient to color any planar graph so that no two adjacent regions are the same color. This theorem is a notable exception in the field of graph coloring, illustrating that certain types of graphs have specific coloring rules.

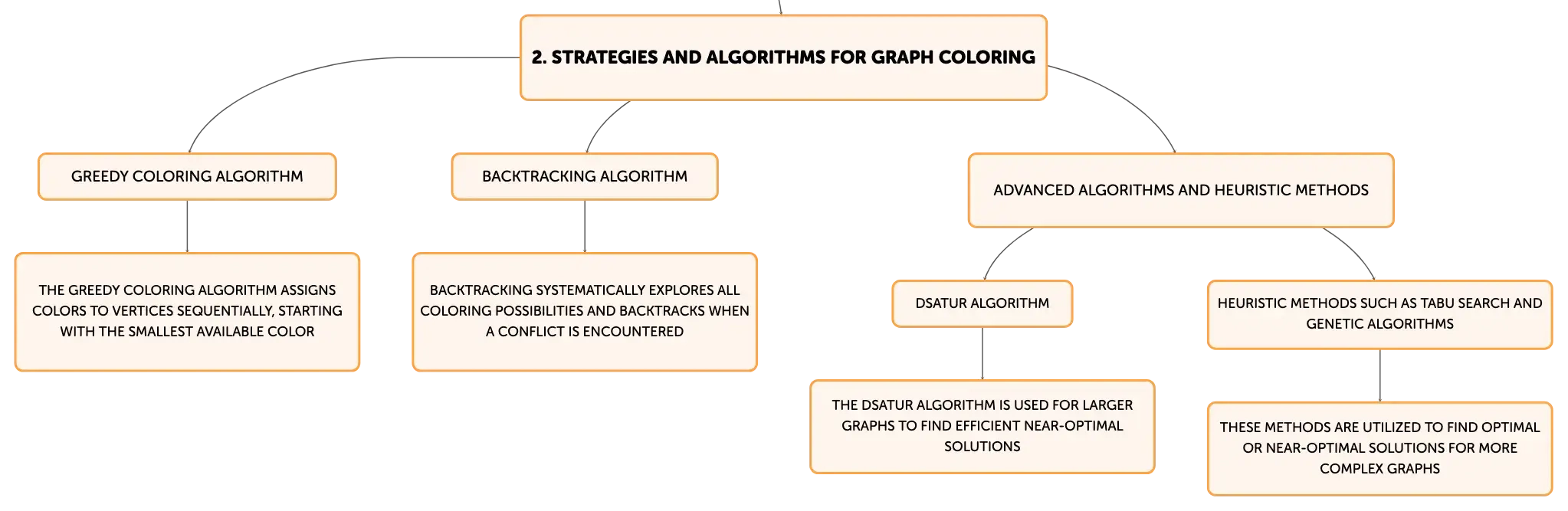

Strategies for Graph Coloring

A variety of strategies and algorithms are employed to tackle graph coloring problems. The Greedy Coloring algorithm is a simple technique that sequentially assigns the smallest available color to each vertex. Backtracking is a more comprehensive method that systematically explores all coloring possibilities and backtracks when a conflict is encountered. For larger graphs, more sophisticated algorithms like DSATUR or heuristic methods such as Tabu search and Genetic algorithms are utilized to find efficient near-optimal solutions. These approaches reflect the adaptability required in graph coloring to address the unique challenges posed by different graphs.

Practical Implications of Graph Coloring

Graph coloring has significant practical implications, particularly in scenarios requiring the efficient allocation of limited resources. In educational timetabling, it helps to schedule classes or exams so that no student has overlapping commitments. In the realm of wireless networks, graph coloring algorithms assist in frequency assignment to reduce interference and enhance communication efficiency. These instances underscore the importance of graph coloring in the effective management of complex systems and the optimization of resource use.

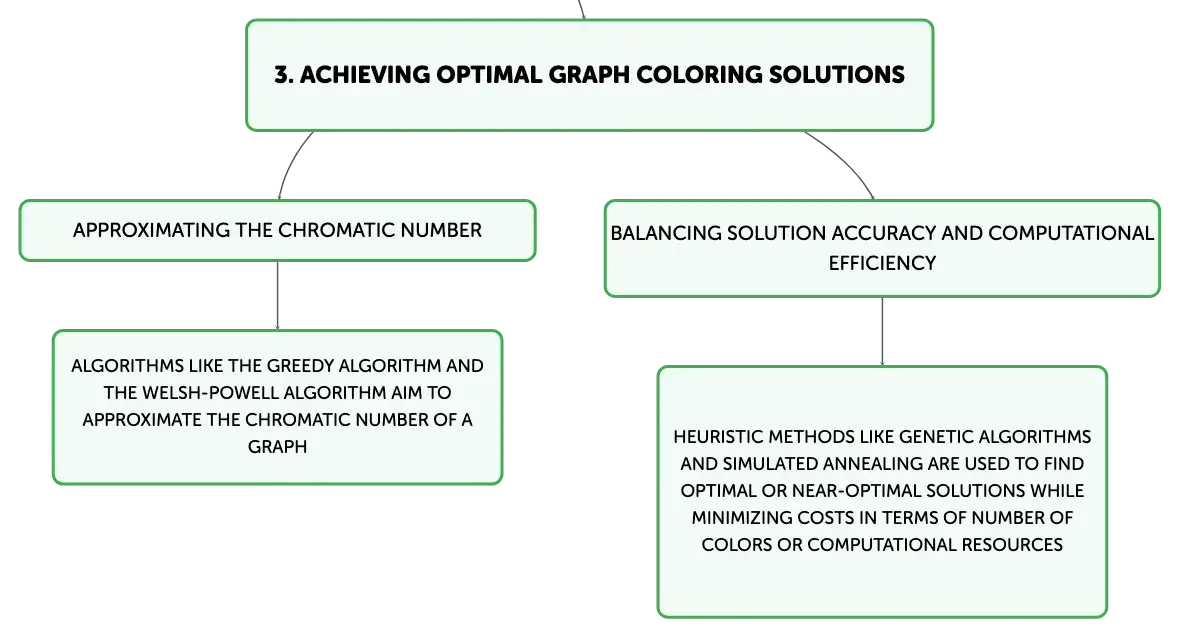

Achieving Optimal Graph Coloring Solutions

Achieving optimal graph coloring solutions involves determining the chromatic number of a graph while balancing the trade-off between solution accuracy and computational efficiency. Algorithms such as the Greedy Algorithm and the Welsh-Powell Algorithm aim to approximate the chromatic number, with the latter often providing better results by prioritizing vertices with higher degrees. For more intricate graphs, heuristic methods like Genetic algorithms and Simulated Annealing are employed to iteratively find an optimal or near-optimal solution. These methods highlight the critical role of algorithmic efficiency in minimizing the costs associated with graph coloring, whether those costs are measured in terms of the number of colors or computational resources.
