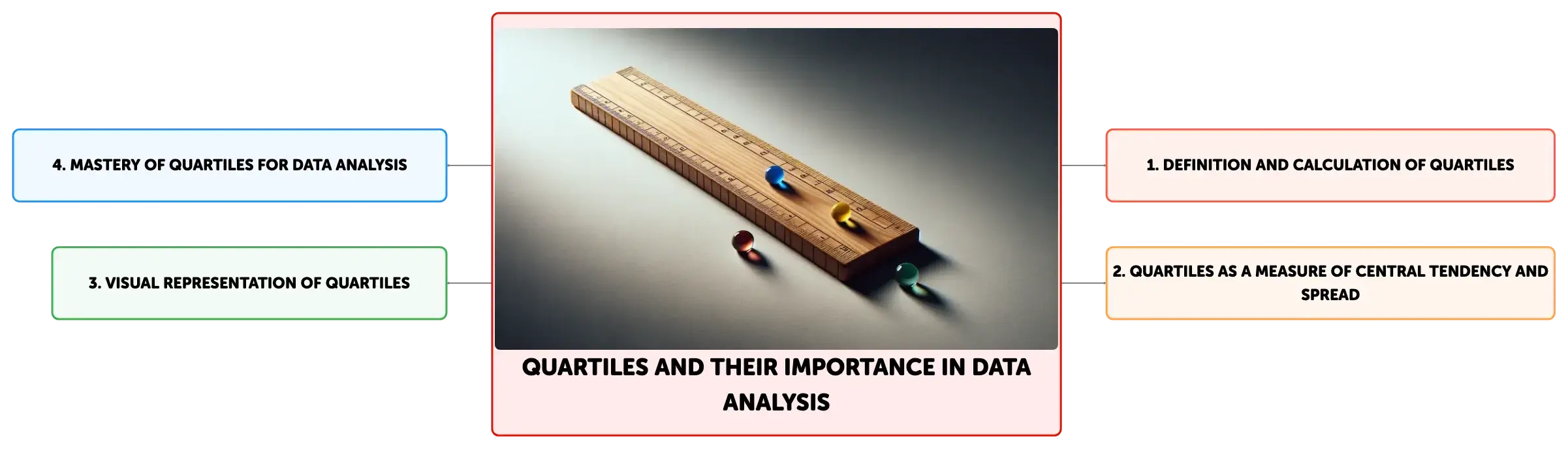

Quartiles and Their Importance in Data Analysis

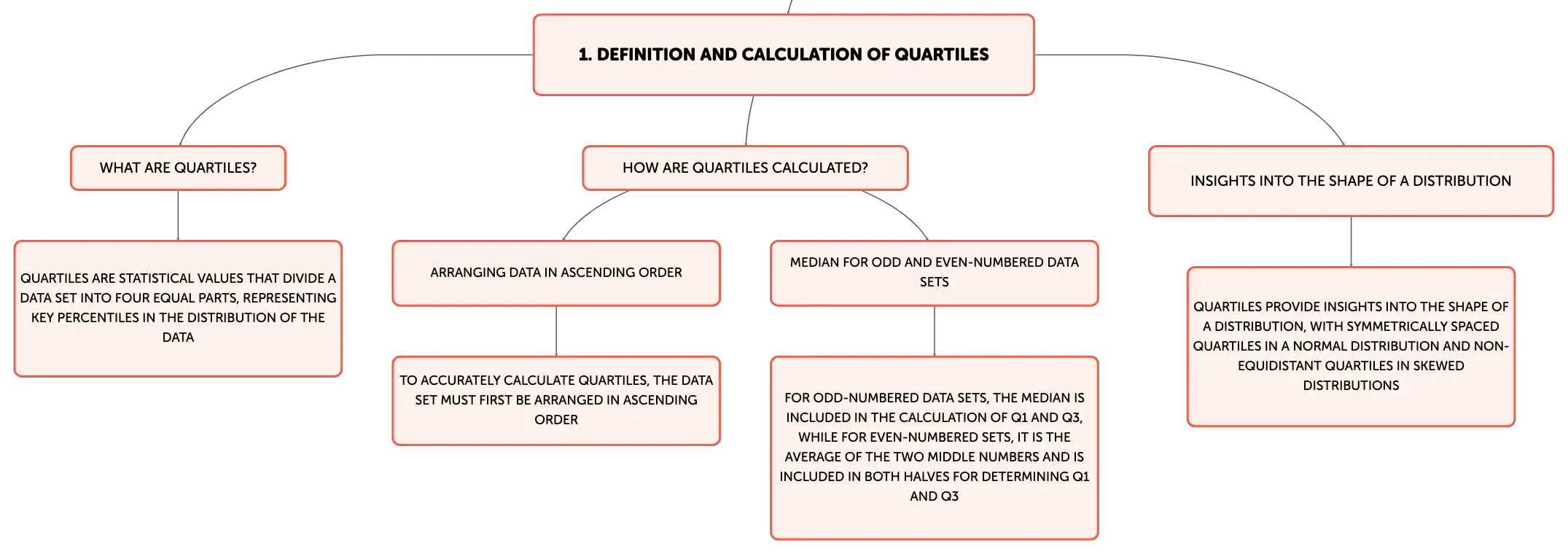

Quartiles in Normal and Skewed Distributions

Quartiles provide insights into the shape of a distribution. In a perfectly normal distribution, the quartiles are symmetrically spaced around the mean, which is also the median. The first and third quartiles are equidistant from the median. However, in skewed distributions, the quartiles may not be equidistant, reflecting the asymmetry of the data. Quartiles are particularly useful in skewed distributions as they are not as affected by extreme values as the mean, providing a more robust measure of central tendency and spread.

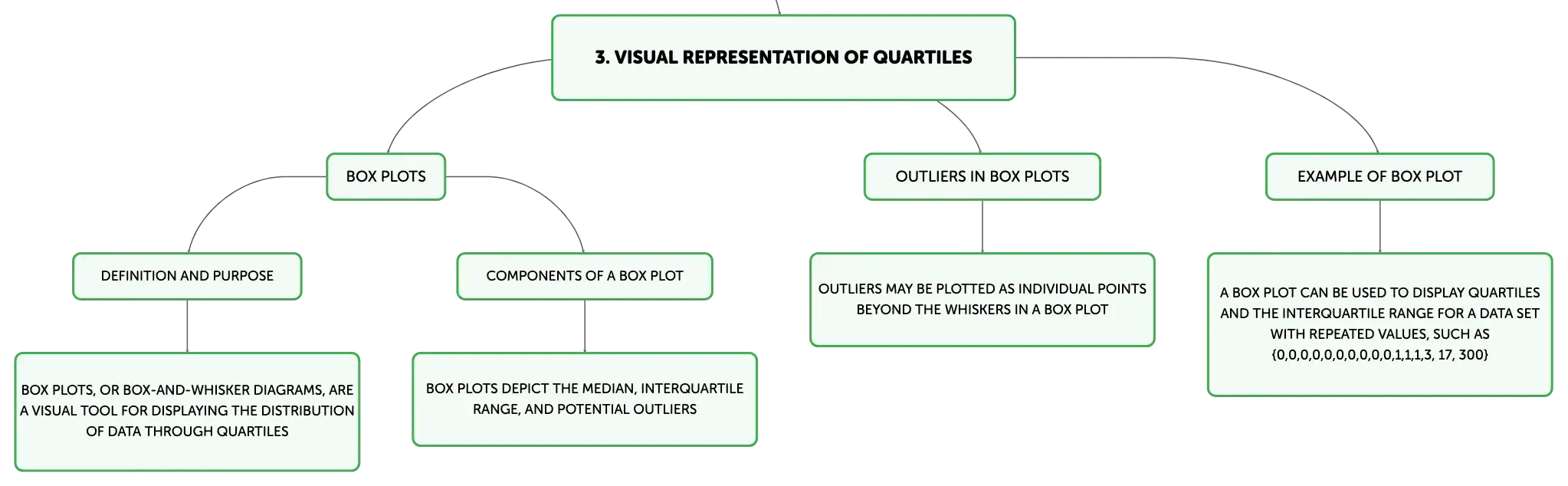

Box Plots and Quartiles Visualization

Box plots, or box-and-whisker diagrams, are a visual tool for displaying the distribution of data through quartiles. They depict the median, the interquartile range (IQR), and potential outliers. The central box represents the range between Q1 and Q3, with a line at the median (Q2). Whiskers extend from the box to the smallest and largest values within 1.5 times the IQR from the quartiles, highlighting the spread of the bulk of the data. Outliers may be plotted as individual points beyond the whiskers.

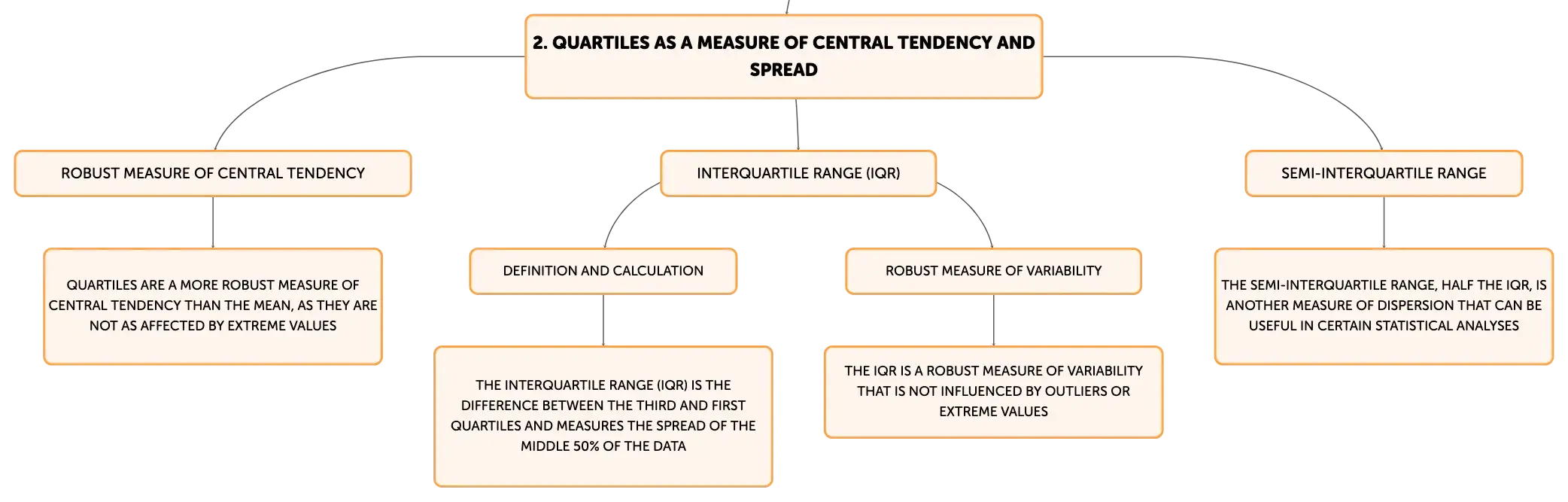

The Interquartile Range and Variability

The interquartile range (IQR) is the difference between the third and first quartiles (Q3 - Q1) and measures the spread of the middle 50% of the data. It is a robust measure of variability that is not influenced by outliers or extreme values. A smaller IQR indicates that the data points are closer to the median, suggesting less variability, while a larger IQR indicates greater variability. The semi-interquartile range, half the IQR, is another measure of dispersion that can be useful in certain statistical analyses.

Practical Examples of Quartile Calculations

Consider a data set with repeated values, such as {0,0,0,0,0,0,0,0,0,0,1,1,1,3, 17, 300}. The quartiles are calculated by ordering the data and finding the appropriate percentiles. Here, Q1 is 0, Q2 (the median) is also 0, and Q3 is 1. The IQR is 1, indicating low variability among the central 50% of the data set. This example shows that even with an outlier, the quartiles and IQR provide a clear picture of the data's central tendency and variability.

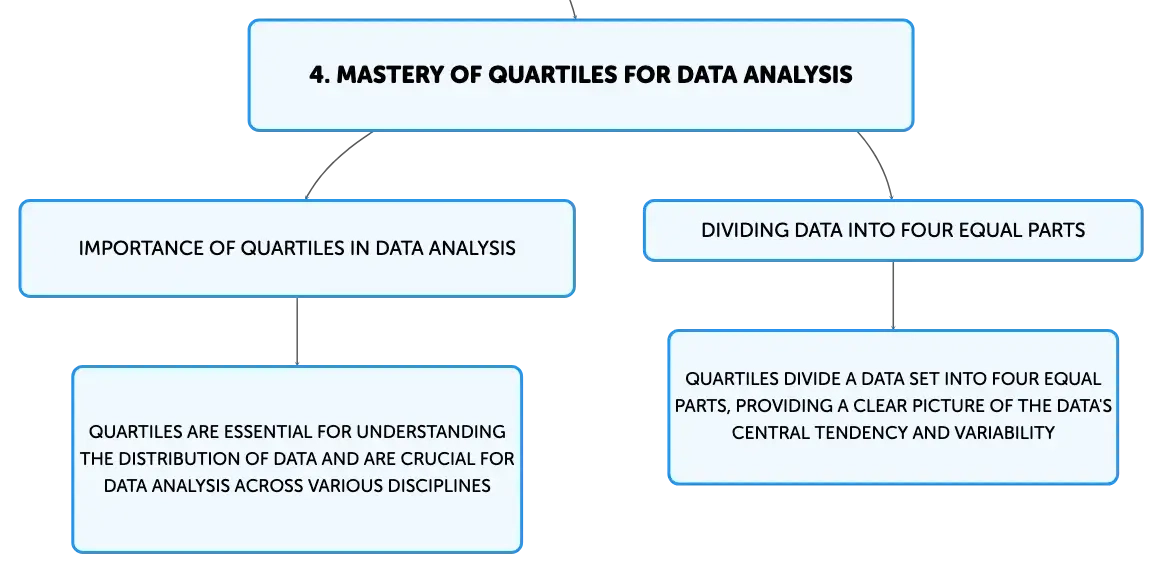

Key Takeaways on Quartiles

Quartiles are essential for understanding the distribution of data, dividing the data set into four equal parts. Q1 and Q3 are found by calculating the medians of the lower and upper halves of the ordered data set, while Q2 is the median of the entire set. For an odd number of data points, the median is included in both halves when calculating Q1 and Q3. The interquartile range (IQR) measures the middle 50% of the data's spread, and the semi-interquartile range offers a less outlier-sensitive measure of variability. Mastery of quartiles is crucial for data analysis across various disciplines.
