Cayley Tables: A Tool for Understanding Group Theory
Cayley tables are pivotal in group theory, providing a visual representation of group elements and operations. They confirm group axioms, illustrate commutativity, and aid in understanding geometric symmetries, such as those in the Dihedral group. This guide explains how to construct Cayley tables and their application in analyzing group structures, particularly for groups of order 4 and geometric transformations.
See moreExploring the Basics of Cayley Tables in Group Theory

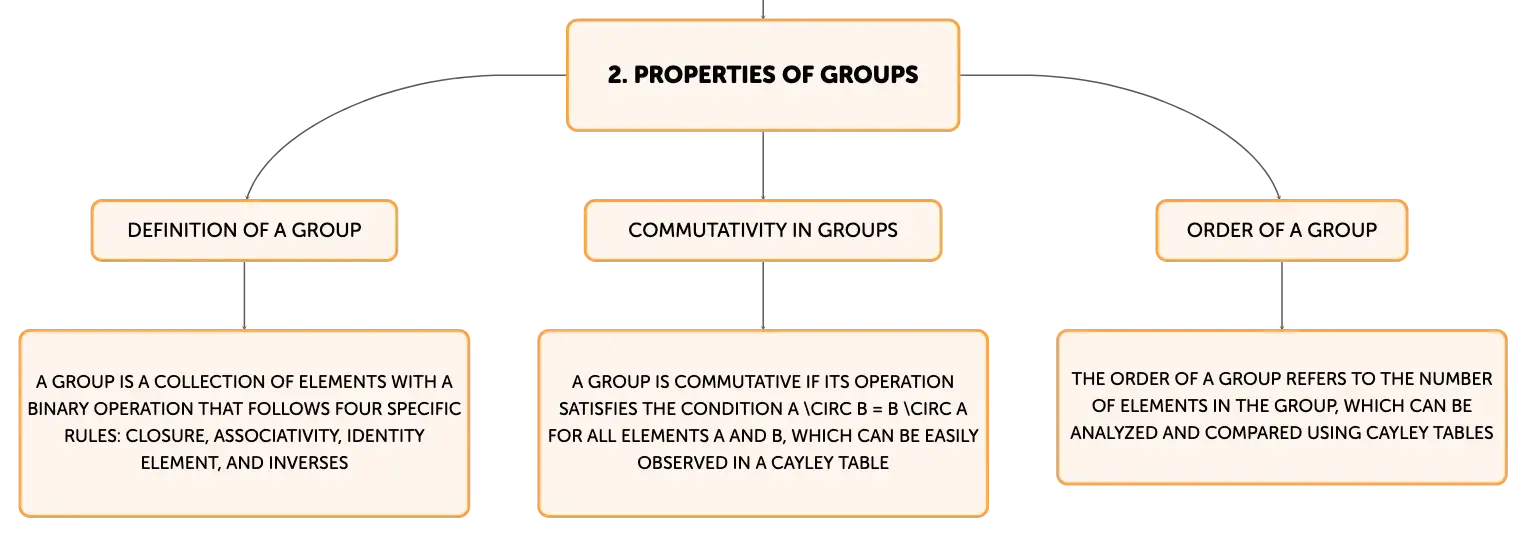

Cayley tables, named after the British mathematician Arthur Cayley, serve as an essential instrument in group theory, which is a core area of abstract algebra. These tables offer a structured way to represent the elements of a group and the outcomes of their binary operations. A group is a collection of elements, G, combined with an operation, denoted by \(\circ\), that adheres to four specific rules: closure, associativity, the existence of an identity element, and the presence of inverses for every element in the group. Cayley tables display the results of applying the group operation to all pairs of elements, thus providing a clear and concise way to comprehend the group's structure and to verify its defining properties.The Role of Cayley Tables in Abstract Algebra

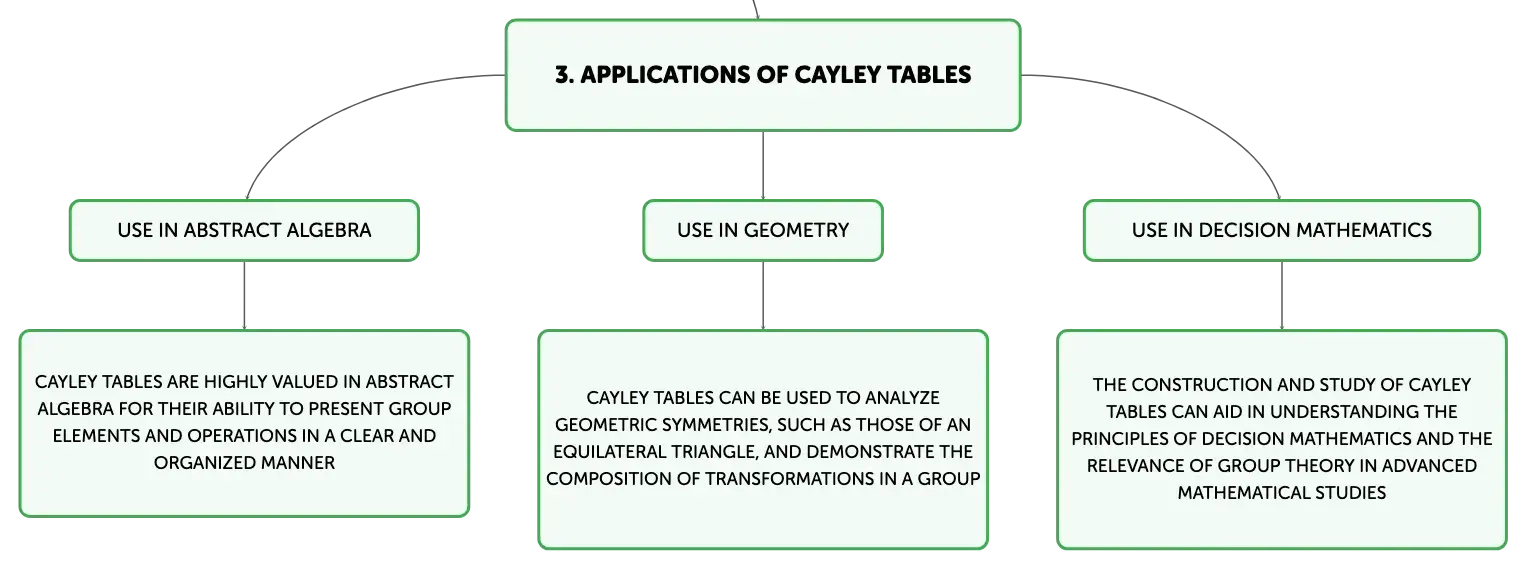

In the realm of abstract algebra, Cayley tables are highly valued for their ability to present the elements of a group and their interactions in a clear, organized manner. These tables are particularly beneficial for verifying whether a set paired with an operation satisfies the group axioms, for visualizing the patterns and properties within a group, and for comparing the structures of different groups. A significant advantage of Cayley tables is their capacity to indicate whether a group is commutative, also known as abelian, which means that the operation \(\circ\) fulfills the condition \(a \circ b = b \circ a\) for all elements \(a\) and \(b\) in the group. This property is easily observed in a Cayley table as a symmetry along the main diagonal, providing a simple visual cue to identify abelian groups.Constructing a Cayley Table: A Step-by-Step Guide

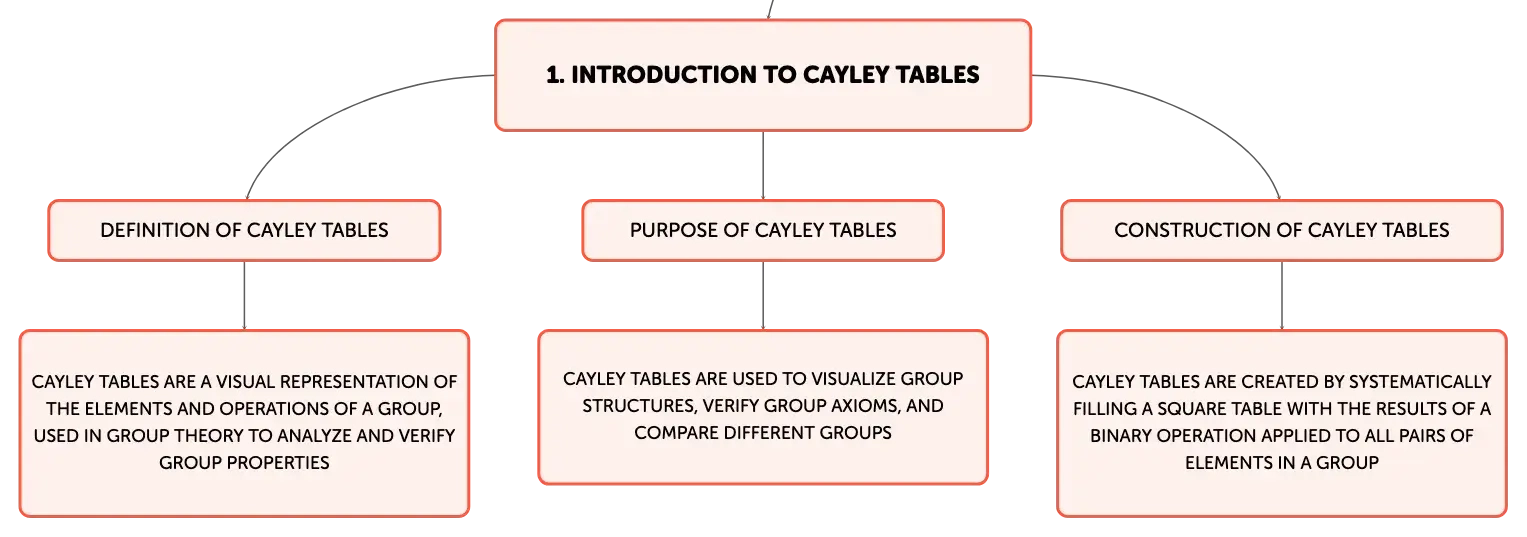

Constructing a Cayley table involves a sequence of methodical steps. Begin by enumerating the elements of the group and selecting the binary operation of interest. Next, create a square table where the number of rows and columns corresponds to the number of elements in the group. Label the first row and column with the group's elements. Proceed to fill each cell of the table with the result of the operation applied to the element from the row and the element from the column. For instance, a Cayley table for the group of integers modulo 3 under addition would yield a symmetric table, reflecting the group's commutative nature. This systematic approach is foundational for analyzing group structures and their characteristics.Crafting Cayley Tables for Groups of Order 4
The construction of a Cayley table for a group of order 4 follows the same general procedure but is tailored to a set with exactly four elements. After listing the elements and choosing an appropriate binary operation, one fills in a 4x4 table with the outcomes of the operation. This process is especially useful for studying small groups or for identifying subgroups within larger groups. For example, Cayley tables for the group of integers modulo 4 under addition or for the Klein four-group under group operation illustrate the utility of Cayley tables in depicting the structure of various groups and operations.Utilizing Cayley Tables to Understand Geometric Symmetries
Cayley tables are also instrumental in analyzing geometric symmetries, such as those associated with an equilateral triangle. The symmetries of such a triangle form a group known as the Dihedral group \(D_3\), which includes both rotations and reflections that preserve the triangle's form. By identifying the vertices and cataloging the possible symmetries, one can construct a Cayley table that demonstrates the composition of these transformations. This graphical representation aids in comprehending the group's operation and the symmetries of the equilateral triangle, offering valuable insights into the structural principles of groups in the context of decision mathematics and group theory.Insights Gained from Constructing Cayley Tables
The practice of constructing Cayley tables is a vital exercise in visualizing group operations and grasping the abstract concept of a group in algebra. These tables not only confirm whether a group is commutative but also act as a practical tool for investigating the attributes of groups of different sizes. Constructing Cayley tables for specific geometric symmetries, like those of an equilateral triangle, showcases the application of group theory in the analysis of mathematical principles that govern shapes and patterns. Through the construction and study of Cayley tables, students can achieve a thorough understanding of the essential aspects of group theory and its relevance in advanced mathematical studies.Want to create maps from your material?
