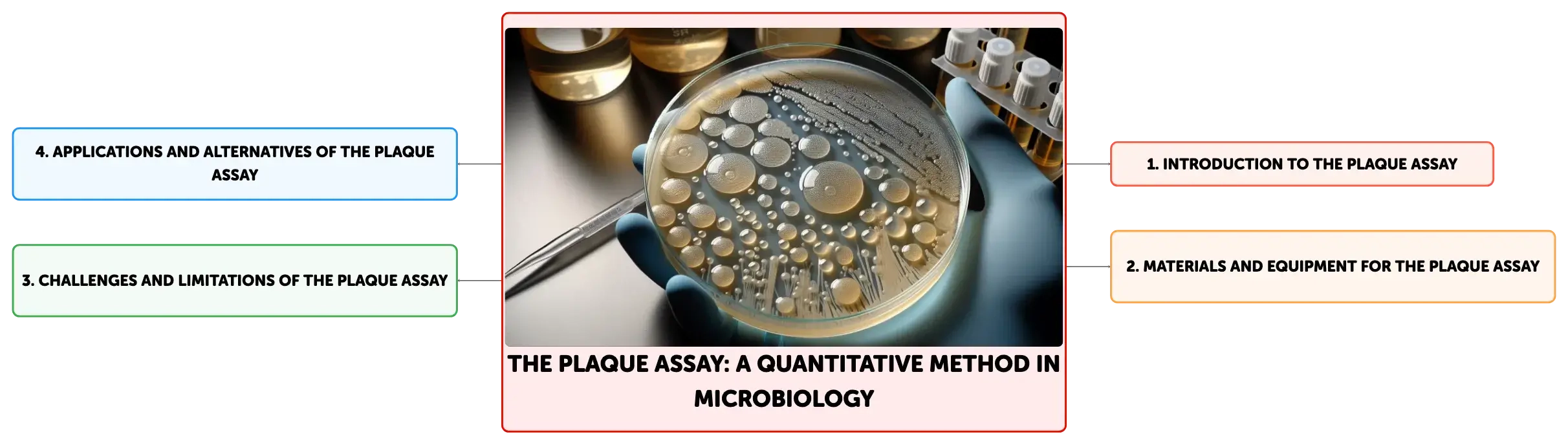

The Plaque Assay: A Quantitative Method in Microbiology

The Plaque Assay technique is a cornerstone in microbiology for quantifying virus particles, particularly bacteriophages. It involves infecting a bacterial lawn with a virus, leading to clear areas or 'plaques' that indicate virus presence. Counting these plaques allows for the calculation of viral titers, essential in vaccine potency, antiviral research, and understanding viral genetics. Despite its utility, the method has limitations, such as the inability to detect non-cytopathic viruses, prompting the use of alternative techniques in certain research scenarios.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Plaque Assay: Quantitative or Qualitative?

Click to check the answer

Quantitative method - measures number of infectious virus particles.

2

Origin of Plaques in Plaque Assay

Click to check the answer

Each plaque results from infection by a single virus particle.

3

Cellular component for Plaque Assay

Click to check the answer

Lawn of cells grown on agar plate - viruses infect and kill these cells.

4

In a Plaque Assay, clear zones, known as ______, form where the viruses have destroyed the bacteria after an incubation period.

Click to check the answer

plaques

5

Plaque Assay Essential Biological Reagents

Click to check the answer

Susceptible bacterial culture, viral sample, nutrient-rich agar, soft agar.

6

Plaque Assay Host Cell and Virus Selection

Click to check the answer

Dependent on assay objectives; determines interaction and results.

7

Importance of Aseptic Technique in Plaque Assay

Click to check the answer

Prevents contamination, ensures result validity.

8

In the ______ Assay, issues like no plaques, inconsistent plaque sizes, or bacterial contamination can impact results.

Click to check the answer

Plaque

9

To ensure ______ and reproducible outcomes in the Plaque Assay, one must maintain strict aseptic methods and optimal incubation conditions.

Click to check the answer

reliable

10

Plaque Assay data analysis step

Click to check the answer

Count well-defined plaques, apply PFU calculation for viral concentration.

11

Applications of Plaque Assay in virology

Click to check the answer

Assess vaccine potency, evaluate antivirals, understand viral genetics.

12

______ Assays are utilized for measuring viruses and assessing ______ compounds among other research purposes.

Click to check the answer

Plaque antiviral

13

To overcome the drawbacks of the Plaque Assay, such as the lengthy time for ______ development, scientists might use ______ or cell-free systems.

Click to check the answer

plaque rapid assays

14

Plaque Assay Definition

Click to check the answer

A technique to measure virus infectivity by counting plaques formed by virus particles in a sample.

15

Key to Plaque Assay Success

Click to check the answer

Precise execution and accurate plaque counting ensure reliable infectivity measurements.

16

Troubleshooting in Plaque Assays

Click to check the answer

Systematic problem-solving to overcome experimental challenges and maintain assay reliability.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Biology

Meiosis and Genetic Diversity

View document

Biology

Operon Theory

View document

Biology

Genetic Inheritance and Punnett Squares

View document

Biology

DNA Structure and Function

View document

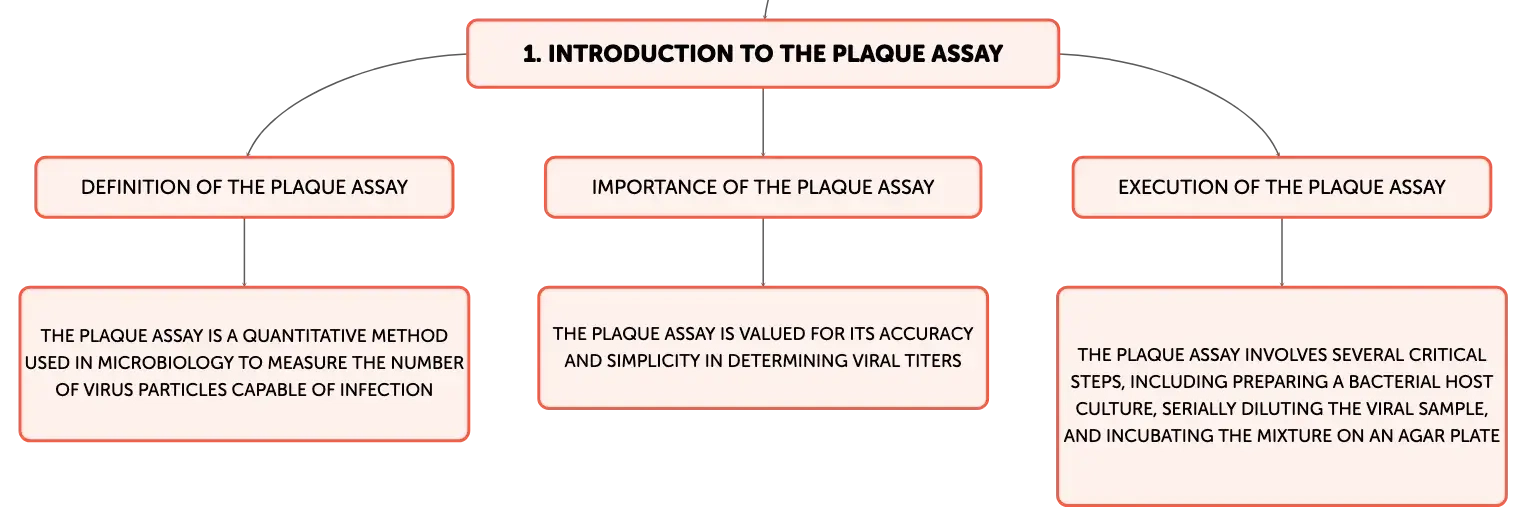

The Fundamentals of the Plaque Assay Technique

The Plaque Assay is an essential quantitative method in microbiology, used to measure the number of virus particles capable of infection, known as bacteriophages when referring to viruses that infect bacteria. This technique is based on the observation that viruses can infect and kill host cells, leading to the formation of clear areas called "plaques" on a lawn of cells grown on an agar plate. Each plaque originates from a single virus particle, thus serving as a proxy for counting the number of infectious units in a sample. The Plaque Assay is valued for its accuracy and simplicity in determining viral titers.
Close-up view of a Petri dish with agar showing clear zones of bacterial inhibition, hands with gloves and a pipette in a lab setting.

Detailed Plaque Assay Methodology and Viral Titer Calculation

The execution of a Plaque Assay involves several critical steps. Initially, a bacterial host culture is prepared, and the viral sample is serially diluted. The diluted viruses are then mixed with the host bacteria and a semi-solid agar medium to prevent the spread of the virus. This mixture is poured onto an agar plate to solidify, creating a uniform layer of bacteria and virus. Following an incubation period, clear plaques appear where viruses have lysed the bacteria. The number of plaques is counted, and the viral titer is calculated using the formula: Plaque Forming Units (PFU) per ml = Number of plaques / (Dilution Factor * Volume of viral sample added to the assay (ml)). This calculation is critical for estimating the number of infectious viral particles in the original viral sample.

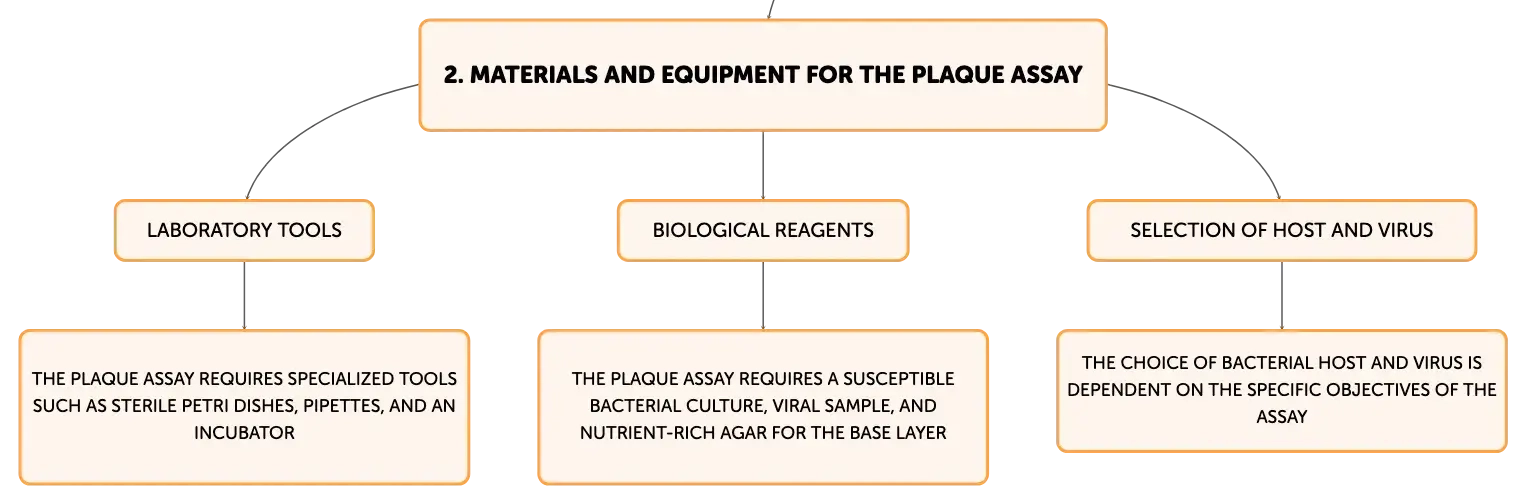

Essential Equipment and Reagents for Conducting a Plaque Assay

Performing a Plaque Assay requires a set of specialized laboratory tools and biological reagents. Key equipment includes sterile petri dishes, pipettes, and an incubator set to the appropriate temperature for the host cells. The materials needed are a susceptible bacterial culture, the viral sample, nutrient-rich agar for the base layer, and soft agar for the top layer. The selection of the bacterial host and virus is dependent on the specific objectives of the assay. Strict adherence to aseptic technique is crucial to prevent contamination and ensure the validity of the assay results.

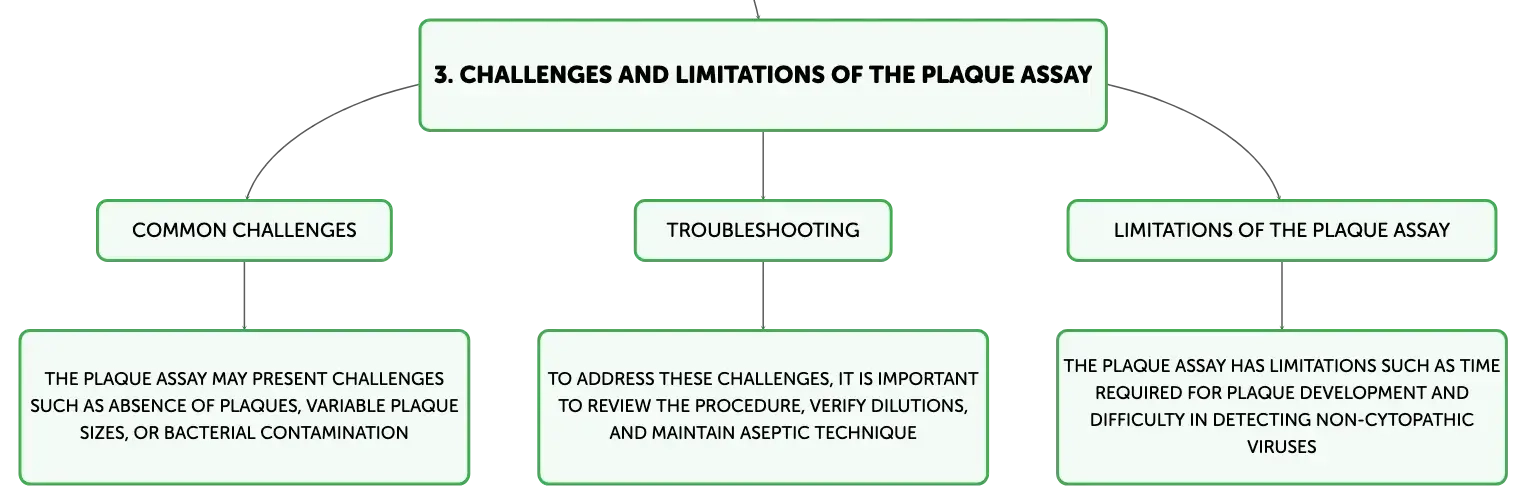

Common Challenges and Solutions in Plaque Assay Procedures

The Plaque Assay, while straightforward, can present several challenges that may affect the outcome, such as the absence of plaques, variable plaque sizes, or bacterial contamination. To troubleshoot these issues, it is important to review the entire procedure, verify the accuracy of dilutions, ensure that the incubation conditions are optimal, and maintain rigorous aseptic technique. Addressing these challenges is a critical component of the Plaque Assay, as it helps to secure reliable and reproducible results.

Data Analysis and Interpretation in Plaque Assays

The analysis of Plaque Assay data involves counting the number of well-defined plaques and applying the PFU calculation to determine viral concentration. The resulting information is vital for various applications in virology, such as assessing the potency of vaccines, evaluating the effectiveness of antiviral agents, and understanding viral genetics. Accurate data interpretation is essential for the progression of research and clinical practices in microbiology and virology.

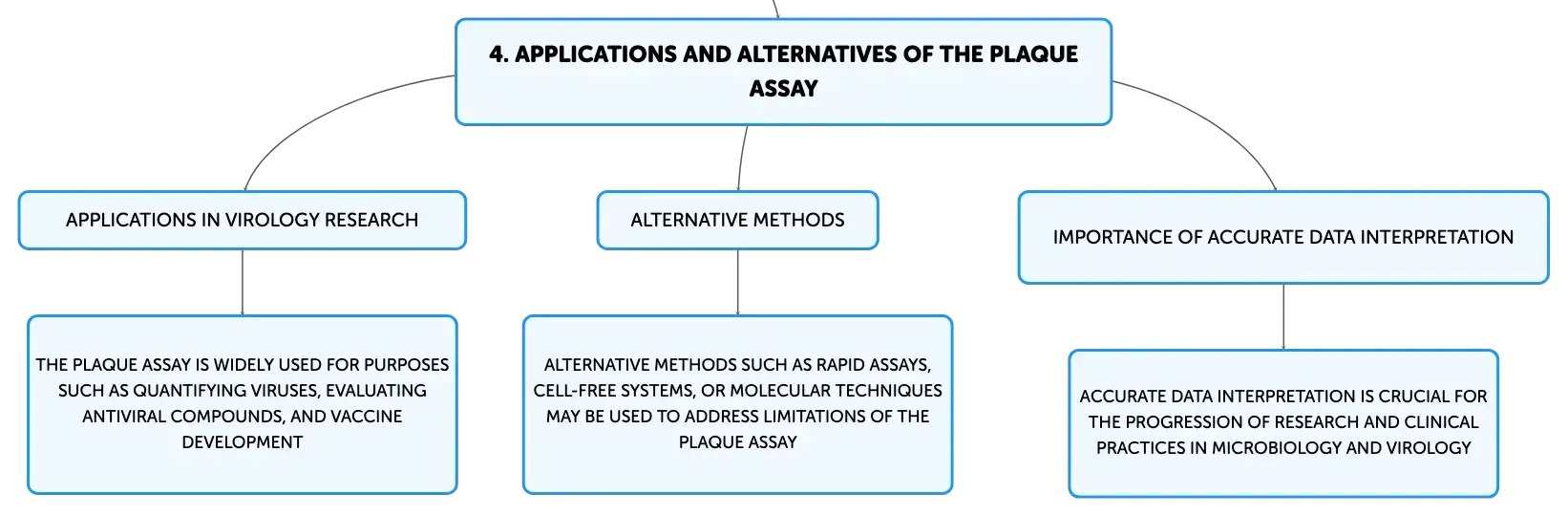

The Scope and Limitations of Plaque Assays in Research

Plaque Assays are widely used in research for purposes such as quantifying viruses, investigating viral mutation and evolution, evaluating antiviral compounds, and vaccine development. However, the technique has its limitations, including the time required for plaque development, the necessity for a susceptible host cell layer, and difficulties in detecting non-cytopathic viruses that do not cause clear plaques. To address these limitations, alternative methods such as rapid assays, cell-free systems, or molecular techniques like quantitative PCR may be employed. Recognizing these limitations is important for the effective use of the Plaque Assay in scientific research.

Concluding Insights on the Plaque Assay Technique

The Plaque Assay remains a fundamental technique in the field of virology, offering a direct measure of the infectivity of virus particles in a given sample. The success of this method depends on the precise execution of the assay and accurate plaque enumeration. By addressing common experimental challenges through systematic troubleshooting, the reliability of the assay can be maintained. The Plaque Assay's role in virological research is invaluable, as it provides critical insights into the dynamics of infectious diseases and the efficacy of interventions.
