Perpendicular Bisectors and Central Points in Geometry

Exploring the concept of perpendicular bisectors, this overview delves into their geometric properties, theorems like the Perpendicular Bisector Theorem, and points of concurrency such as the circumcenter and incenter in triangles. It also covers the centroid and orthocenter, highlighting their significance in triangle geometry and practical applications in solving geometric problems.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

On a Cartesian plane, the midpoint M of a segment with ends A(x₁, y₁) and B(x₂, y₂) is calculated as M = ((______ + )/2, ( + ______)/2).

Click to check the answer

x₁ x₂ y₁ y₂

2

Slopes of Perpendicular Lines Relationship

Click to check the answer

Negative reciprocals of each other; if one slope is m, the other is -1/m.

3

Finding Midpoint of Line Segment AB

Click to check the answer

Average the x-coordinates and y-coordinates of A and B separately.

4

Calculating Slope of Perpendicular Bisector

Click to check the answer

Use negative reciprocal of original line's slope for perpendicular bisector.

5

The ______ of the Perpendicular Bisector Theorem asserts that if a point has equal distances from a segment's ends, it is on the segment's bisector.

Click to check the answer

Converse

6

Circumcenter properties

Click to check the answer

Intersection of perpendicular bisectors; equidistant from vertices.

7

Incenter properties

Click to check the answer

Intersection of angle bisectors; equidistant from triangle sides.

8

Constructing the circumcenter

Click to check the answer

Find perpendicular bisectors of two sides; locate intersection.

9

Depending on the triangle's shape, the ______ can be located inside, on the ______ for right triangles, or outside for obtuse ones.

Click to check the answer

orthocenter hypotenuse

10

Perpendicular Bisector Theorem

Click to check the answer

In a triangle, the perpendicular bisector of a side equidistant from the endpoints implies any point on it is equidistant from the triangle's vertices.

11

Angle Bisector Theorem

Click to check the answer

The angle bisector in a triangle divides the opposite side into segments proportional to the adjacent sides.

12

Median of a Triangle

Click to check the answer

A median connects a vertex to the midpoint of the opposite side, dividing the triangle into two areas of equal size.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Surfaces of Revolution

View document

Geometry

Tangent Lines in Geometry

View document

Geometry

Tangent Planes in Differential Geometry and Multivariable Calculus

View document

Geometry

Solids of Revolution

View document

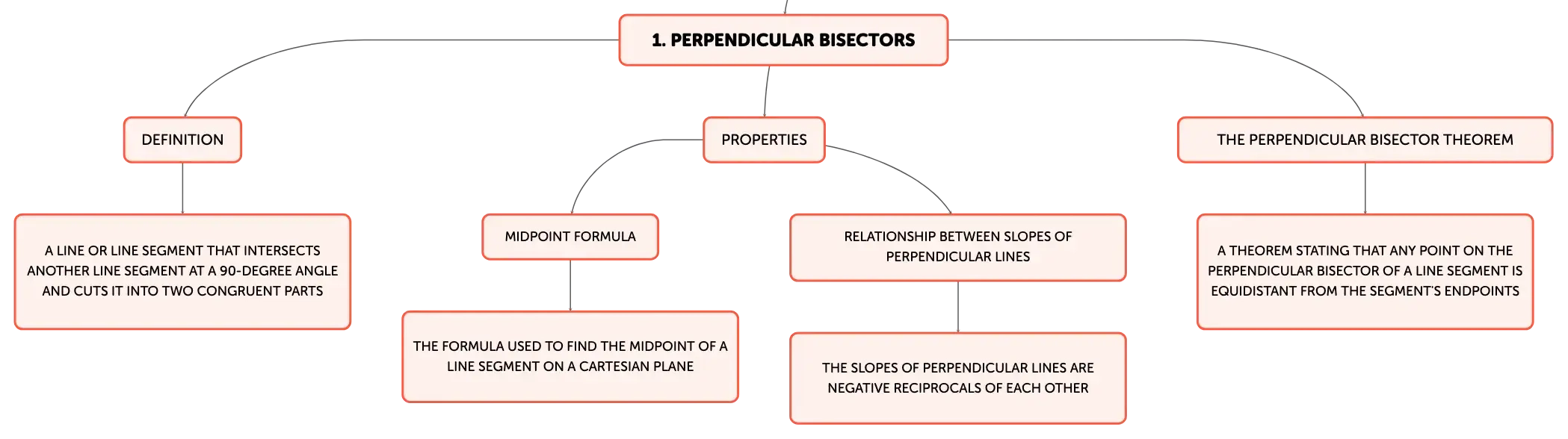

Exploring the Concept of Perpendicular Bisectors

A perpendicular bisector is a line or line segment that intersects another line segment at a 90-degree angle and cuts it into two congruent parts. The intersection occurs at the midpoint of the original line segment. On a Cartesian plane, if we consider a line segment with endpoints A(x₁, y₁) and B(x₂, y₂), the midpoint M can be found using the Midpoint Formula, M = ((x₁ + x₂)/2, (y₁ + y₂)/2). The perpendicular bisector will pass through M, ensuring that the distances from M to both A and B are equal, which can be expressed as AM = MB.
Geometric drawing with compass on paper, featuring a circle with a diameter and perpendicular bisector, alongside a ruler and protractor.

The Slope Relationship of Perpendicular Lines

The slopes of perpendicular lines in a Cartesian coordinate system have a specific relationship: they are negative reciprocals of each other. If a line segment with endpoints A and B has the equation y = m₁x + b₁, where m₁ is the slope, then the slope of the perpendicular bisector, m₂, satisfies the condition m₁ * m₂ = -1. To find the equation of the perpendicular bisector, one must first determine the midpoint of the line segment AB and calculate its slope. Then, using the negative reciprocal of this slope and the coordinates of the midpoint, the equation of the perpendicular bisector can be derived.

The Perpendicular Bisector Theorem and Its Converse

The Perpendicular Bisector Theorem is a classical result in geometry which states that any point on the perpendicular bisector of a line segment is equidistant from the segment's endpoints. This theorem can be proven using the Side-Angle-Side (SAS) Congruence Postulate, which states that if two sides and the included angle of one triangle are congruent to two sides and the included angle of another triangle, then the triangles are congruent. The converse of this theorem is equally important: if a point is equidistant from the endpoints of a line segment, then it lies on the perpendicular bisector of that segment. This converse is also established through the use of congruent triangles.

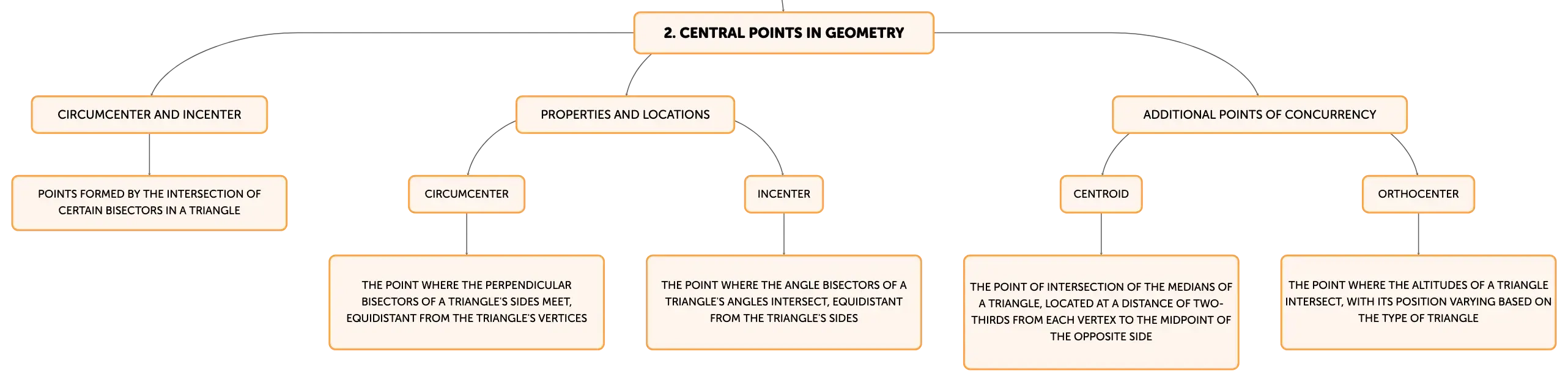

Circumcenter and Incenter as Points of Concurrency

In the study of triangles, the circumcenter and incenter are central points formed by the intersection of certain bisectors. The circumcenter is the point where the perpendicular bisectors of the sides of a triangle meet, and it is equidistant from the triangle's vertices. The incenter is the intersection point of the angle bisectors and is equidistant from the sides of the triangle. To locate the circumcenter, one must find the perpendicular bisectors of at least two sides of the triangle and determine their point of intersection. The incenter is found by intersecting the angle bisectors of the triangle's angles. These points are crucial for understanding the properties and symmetries of triangles.

The Centroid and Orthocenter in Triangle Geometry

Additional points of concurrency within a triangle include the centroid and the orthocenter. The centroid is the point of intersection of the medians of a triangle and is located at a distance of two-thirds from each vertex to the midpoint of the opposite side. The orthocenter is the point where the altitudes of a triangle intersect. Its position varies with the type of triangle: inside for acute triangles, on the hypotenuse for right triangles, and outside for obtuse triangles. To find the orthocenter, one must determine the slopes of the altitudes by taking the negative reciprocals of the slopes of the sides they intersect and then solve for their intersection point. These central points provide insight into the balance and structure of triangles.

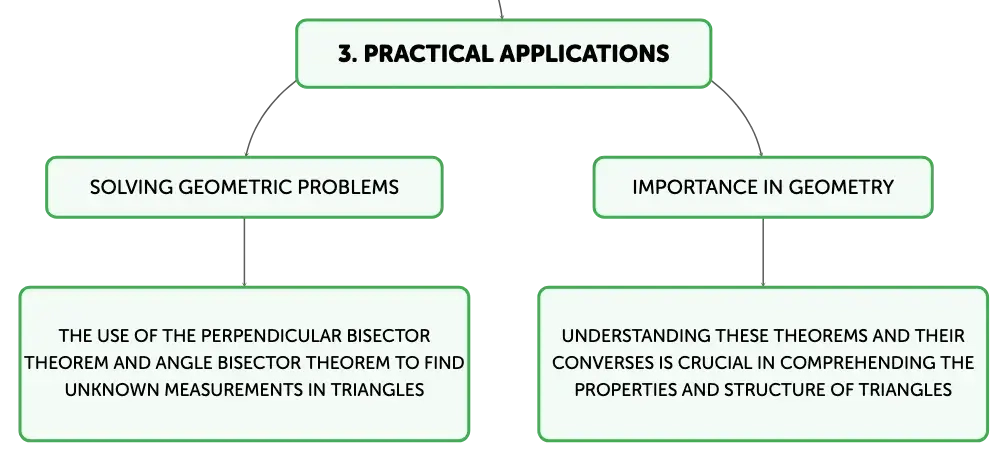

Practical Applications of Geometric Theorems

The principles governing perpendicular bisectors, angle bisectors, medians, and altitudes are not merely theoretical; they have practical applications in solving geometric problems. For example, the Perpendicular Bisector Theorem can be used to find the length of a side of a triangle when certain other measurements are known. The Angle Bisector Theorem assists in determining the lengths of sides when a point lies on the bisector of an angle. Mastery of these theorems and their converses is essential for deducing unknown aspects of triangles and comprehending their geometric properties, making them fundamental to the field of geometry.
