Exploring the Geometry of Solids of Revolution

Solids of revolution are three-dimensional objects formed by the rotation of a two-dimensional plane curve about a fixed axis, which is not necessarily part of the curve. This process transforms the curve into a volumetric shape that exhibits rotational symmetry. Understanding solids of revolution is essential in calculus and geometry, as it connects planar figures with their three-dimensional counterparts. The shape of the resulting solid is determined by the profile of the curve and its relation to the axis of rotation, providing a diverse range of geometric forms.

Lathe carving wooden workpiece with shavings in air, calipers on side, glass flask, and hands shaping clay on pottery wheel, reflecting rotational symmetry.

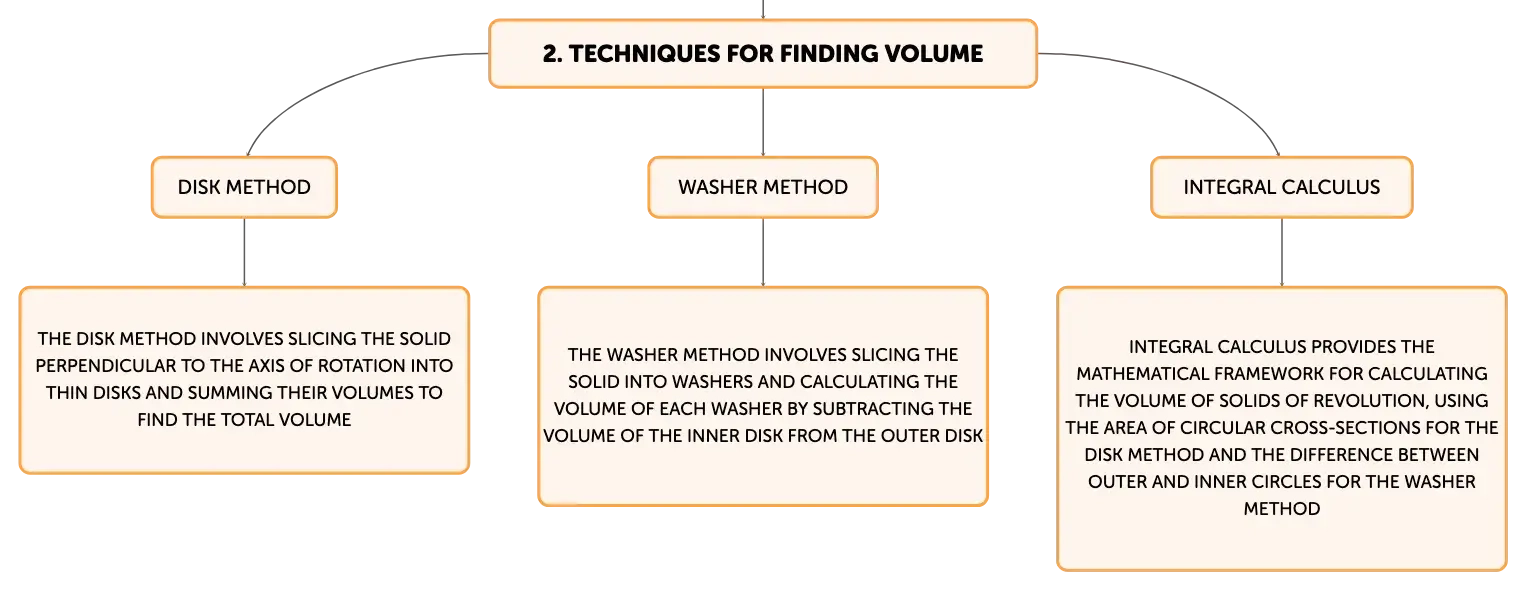

Calculating Volumes Using the Disk and Washer Methods

The disk and washer methods are two techniques used to find the volume of solids of revolution. The disk method involves slicing the solid perpendicular to the axis of rotation into thin disks, whose volumes are then summed to find the total volume. This method is suitable when the solid has no hollow sections along the axis of rotation. The washer method, on the other hand, is used when the solid has a hollow core, and involves slicing the solid into washers—cylindrical rings with varying inner and outer radii. The volume of each washer is calculated by subtracting the volume of the inner disk from that of the outer disk, and the total volume is obtained by summing these individual volumes.

Distinguishing Between Solids and Surfaces of Revolution

It is important to differentiate between a solid of revolution and a surface of revolution. A surface of revolution is the locus of all points in a plane curve that rotate about an axis, forming a hollow shell without volume. This concept is significant in understanding the properties of shapes that are defined only by their boundaries, such as the outer layer of an object. Recognizing the distinction between the two concepts is crucial for comprehending their unique geometric and physical attributes.

Integral Calculus in Volume Determination

Integral calculus provides the mathematical framework for calculating the volume of solids of revolution. For the disk method, the volume is determined by integrating the area of the circular cross-sections, which is πr², along the axis of rotation. The radius r is a function of the variable of integration. For the washer method, the volume is found by integrating the difference between the areas of the outer and inner circles, π(R² - r²), where R and r are the outer and inner radii respectively, defined by the functions being rotated. These integrals yield precise volumes for solids of revolution, accommodating even complex and irregular shapes.

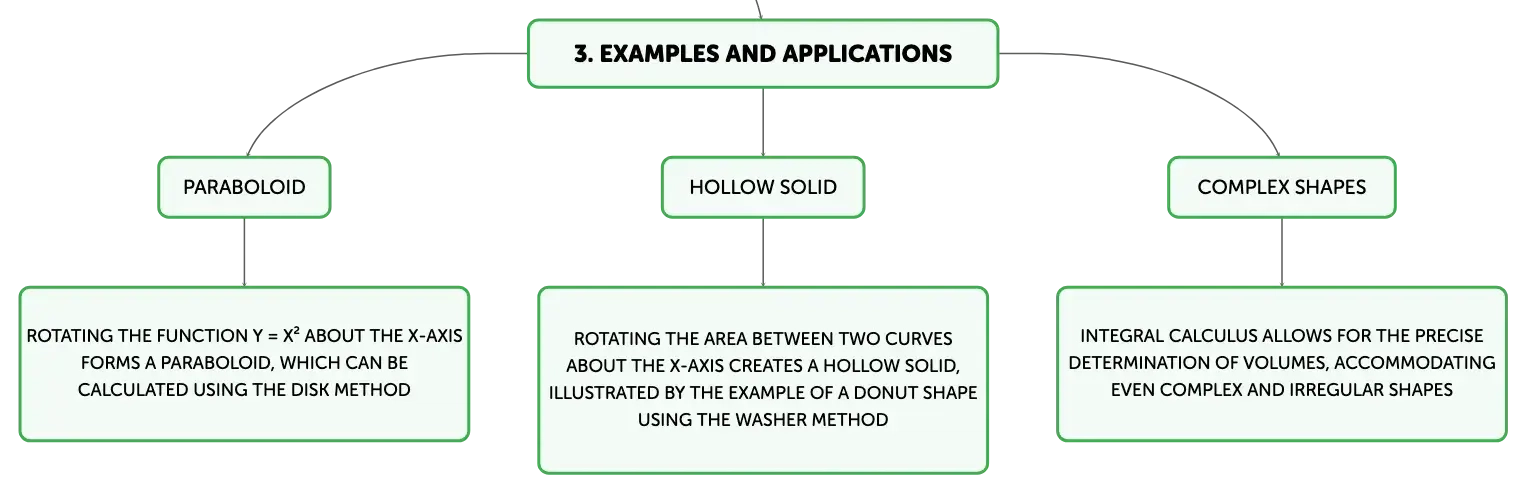

Practical Applications and Examples

Practical examples help to visualize the concepts of disk and washer methods. For instance, rotating the function y = x² from x = 0 to x = 2 about the x-axis forms a paraboloid, which can be calculated using the disk method. If the same function is rotated about the y-axis, it creates a different solid, resembling a bowl. Using the washer method, consider the area between the curves f(x) = -(x - 2)² + 3 and g(x) = -(x - 2)² + 2, rotated about the x-axis from x = 1 to x = 3. This forms a hollow solid with a shape similar to a donut, illustrating the concept of creating volumes with empty space inside.

Concluding Insights on Solids of Revolution

Solids of revolution are a pivotal concept in mathematics, bridging the gap between planar curves and their three-dimensional manifestations. The disk and washer methods provide structured approaches for volume calculation, while the distinction between solids and surfaces of revolution highlights the importance of geometric comprehension. Integral calculus enables the precise determination of volumes, demonstrating the relevance and application of mathematical principles in analyzing and creating complex shapes.
