Surfaces of Revolution

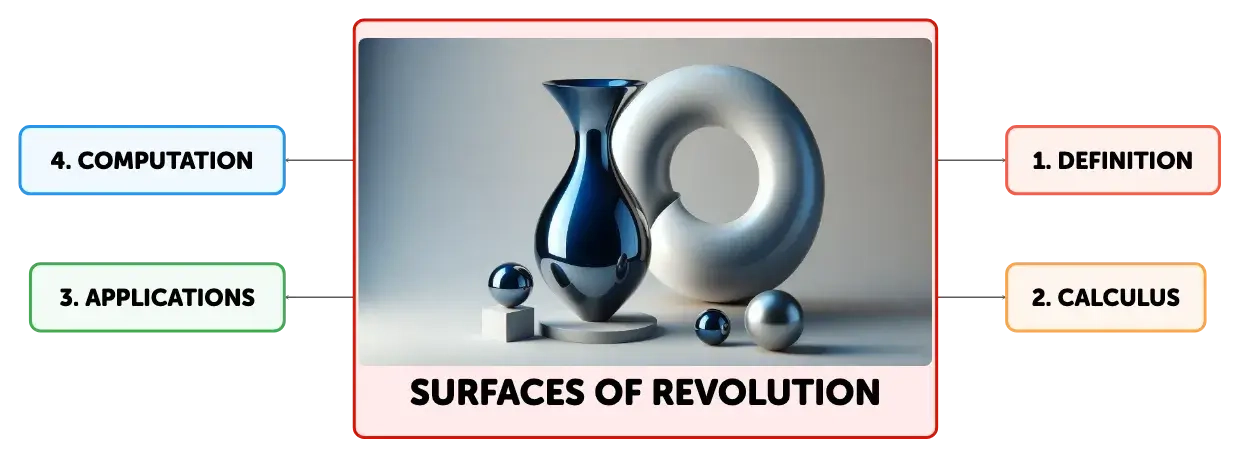

Surfaces of revolution are 3D shapes created by rotating a 2D curve around an axis. This text delves into their geometry, calculus applications for surface area calculation, and practical uses in technology like parabolic antennas. It also discusses the computational challenges faced when determining these areas and the role of Computer Algebra Systems in solving complex integrals.
See moreExploring the Geometry of Surfaces of Revolution

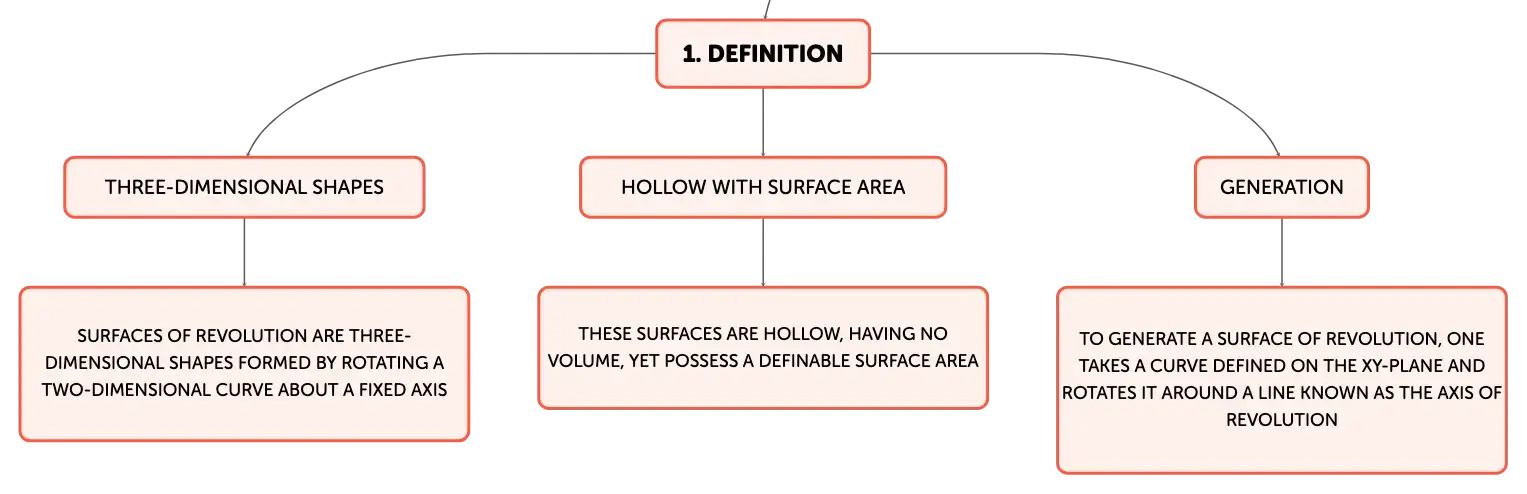

Surfaces of revolution are three-dimensional shapes formed by rotating a two-dimensional curve about a fixed axis. This concept is akin to the process of shaping pottery on a wheel, where a simple profile can create a complex form. In the realm of calculus, these surfaces are of particular interest because they are hollow, having no volume, yet possess a definable surface area. To generate a surface of revolution, one takes a curve defined on the xy-plane and rotates it around a line known as the axis of revolution, which is often the x-axis or y-axis but can be any line in the plane. The specific surface created depends on the original curve and the axis chosen for rotation.Calculating Surface Area of Surfaces of Revolution

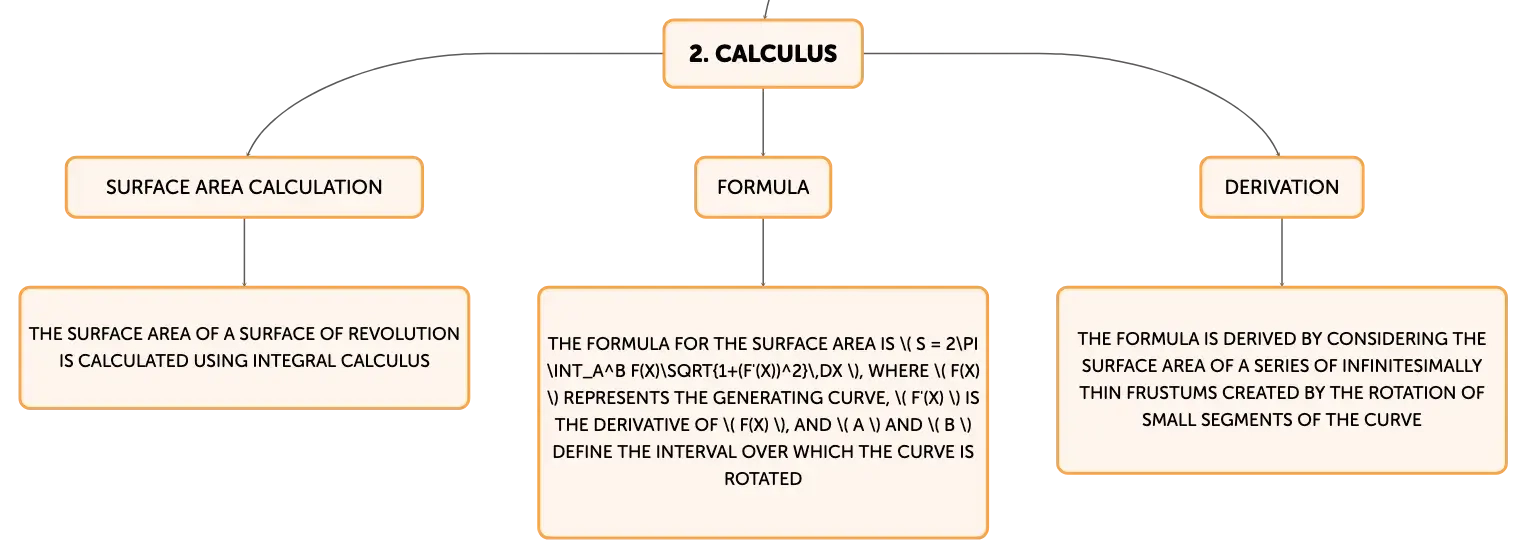

The surface area of a surface of revolution is calculated using integral calculus. The formula for this is \( S = 2\pi \int_a^b f(x)\sqrt{1+(f'(x))^2}\,dx \), where \( f(x) \) represents the generating curve, \( f'(x) \) is the derivative of \( f(x) \), and \( a \) and \( b \) define the interval over which the curve is rotated. This formula is derived by considering the surface area of a series of infinitesimally thin frustums—truncated cones—created by the rotation of small segments of the curve. By integrating the surface areas of these frustums over the interval, we obtain the total surface area of the surface of revolution.Practical Applications of Surfaces of Revolution

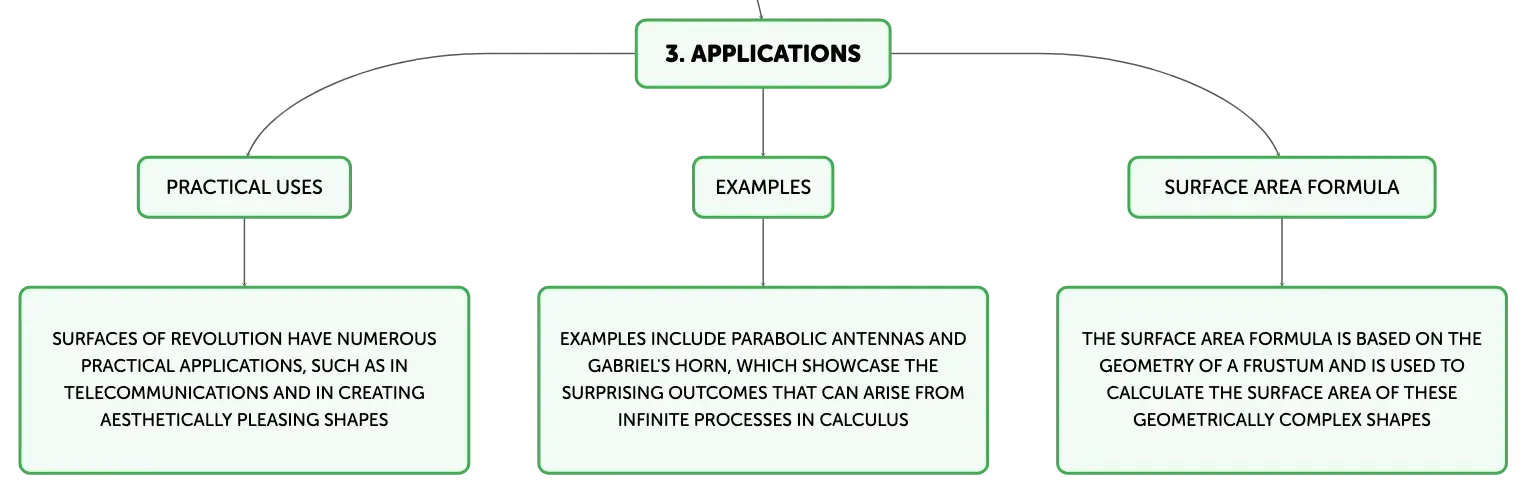

Surfaces of revolution have numerous practical applications. For example, a parabolic antenna, essential in telecommunications, is a paraboloid of revolution formed by rotating a parabola about its axis of symmetry. Another intriguing example is Gabriel's Horn, created by revolving the function \( f(x) = \frac{1}{x} \) around the x-axis. This shape is famous for its paradoxical property of having an infinite surface area but a finite volume, showcasing the surprising outcomes that can arise from infinite processes in calculus.Deriving the Surface Area Formula for a Surface of Revolution
The surface area formula for a surface of revolution is based on the geometry of a frustum. By examining the lateral surface area of a cone and the dimensions of a frustum, we can relate the area of the frustum to the function \( f(x) \). Using algebra and the properties of similar triangles, we determine the slant height \( s \) of the frustum, which is crucial for calculating the area. The surface area of the revolution is approximated by summing the areas of all such frustums, and the precise area is found by transforming this sum into an integral and taking the limit as the number of frustums approaches infinity.Computational Challenges in Determining Surface Areas

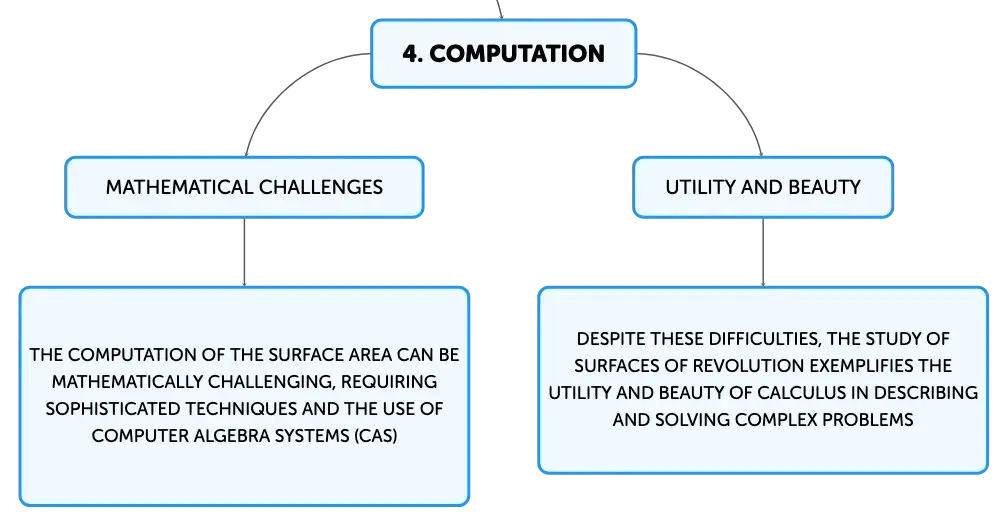

Although the formula for the surface area of a surface of revolution is conceptually clear, its computation can be mathematically challenging. The integrals involved may require sophisticated techniques such as integration by parts or substitution, or the use of inverse trigonometric or hyperbolic functions. Often, these calculations are too complex for manual computation, necessitating the use of Computer Algebra Systems (CAS). These powerful computational tools can manage the intricate mathematics involved and yield precise results for the surface areas of these geometrically complex shapes.Concluding Thoughts on Surfaces of Revolution
Surfaces of revolution represent a fascinating intersection of geometry and calculus. They illustrate how the rotation of a simple curve can give rise to intricate and aesthetically pleasing three-dimensional forms. The computation of their surface area is a direct application of integral calculus and underscores the profound connections between mathematical theory and the physical world. Despite computational difficulties, the study of surfaces of revolution exemplifies the utility and beauty of calculus in describing and solving complex problems.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In ______, surfaces of revolution are interesting because they have no ______, but a calculable ______ area.
Click to check the answer
2
Surface Area Formula Components
Click to check the answer
3
Role of f(x) in Surface Area Formula
Click to check the answer
4
Role of f'(x) in Surface Area Formula
Click to check the answer
5
Lateral surface area of a cone
Click to check the answer
6
Frustum slant height determination
Click to check the answer
7
Surface area approximation to integral
Click to check the answer
8
To obtain accurate results for the surface areas of complex shapes, one might have to use ______, which are capable of handling the involved mathematics.
Click to check the answer
9
Definition: Surfaces of Revolution
Click to check the answer
10
Surface Area Calculation: Surfaces of Revolution
Click to check the answer
11
Mathematical-Physical World Connection
Click to check the answer
