Exploring thermodynamic efficiency, this content delves into the conversion of heat to work in heat engines, influenced by temperature gradients between hot and cold reservoirs. It discusses the Carnot cycle's role in defining efficiency limits and the concept of entropy in both classical and statistical mechanics. Additionally, it touches on the phenomena of generalized and negative temperatures in specialized systems, and the scientific advancements made possible through precise temperature control.

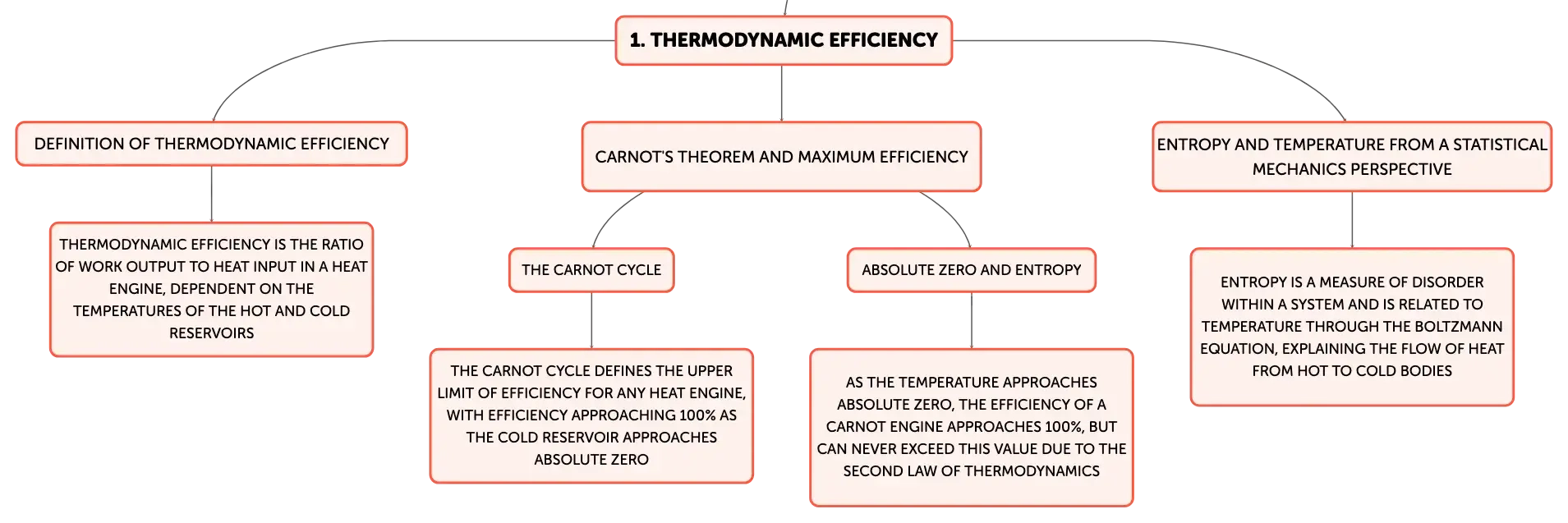

Thermodynamic Efficiency and the Influence of Temperature Gradients

Thermodynamic efficiency is a measure of how effectively a heat engine converts heat into work. This efficiency is determined by the ratio of the work output per cycle ('w'cy) to the heat input at the high temperature reservoir ('q'H). The efficiency depends on the temperatures of the hot ('T'H) and cold ('T'C) reservoirs, with the relationship given by the equation |'q'C|/'q'H = f('T'H, 'T'C), where 'f' is a function of these temperatures. According to Carnot's theorem, all reversible heat engines operating between two fixed temperatures have the same maximum efficiency, which is independent of the working substance. This principle is crucial for the design and analysis of heat engines and refrigeration systems.
Modern laboratory with steel cryostat, digital thermometer and insulating gloves, colored glassware in the background, white LED lighting.

The Carnot Cycle: Maximizing Efficiency and Understanding Absolute Zero

The Carnot cycle is a theoretical construct that defines the upper limit of efficiency for any heat engine. The efficiency of a Carnot engine is expressed as efficiency = 1 - 'T'C/'T'H, where 'T'H and 'T'C are the absolute temperatures of the hot and cold reservoirs, respectively. As 'T'C approaches absolute zero, the efficiency approaches 100%, but it can never exceed this value due to the second law of thermodynamics. The lowest temperature achieved in a laboratory setting is much above absolute zero, demonstrating the practical challenges of reaching this limit. The concept of entropy ('S') is also introduced in this context, defined as a measure of disorder within a system. For a reversible process, the change in entropy is zero, which is mathematically represented by the equation d'S' = dq_rev/T, where dq_rev is the reversible heat transfer.

Show More

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

00

The measure of how a heat engine turns heat into work is known as ______ ______.

Thermodynamic

efficiency

01

In a heat engine, the ______ is the ratio of work done per cycle to the heat absorbed at the high temperature source.

efficiency

02

The efficiency of a heat engine is influenced by the temperatures of the ______ and ______ reservoirs.

hot

cold
