Temperature Scales and Measurements

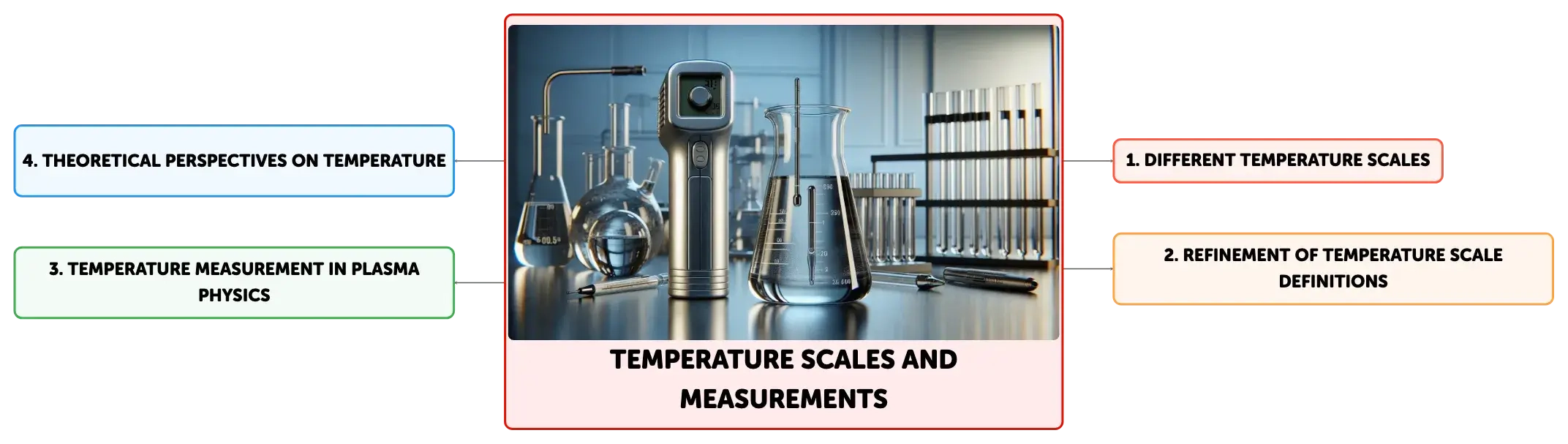

Concept Map
Temperature is a fundamental physical property measured in Celsius, Fahrenheit, Kelvin, and Rankine. This overview discusses the refinement of temperature scales, their use in plasma physics, and the theoretical frameworks that define temperature, including classical thermodynamics, kinetic theory, and statistical mechanics. It also explores the role of the kinetic theory of gases in temperature measurement and the thermodynamic principles that underpin the concept of temperature.
Summary
Outline
Exploring the Different Temperature Scales
Temperature is a key physical property that indicates the thermal condition of matter. It is measured using various scales, including Celsius, Fahrenheit, Kelvin, and Rankine. The Celsius scale, set at 0°C for the freezing point and 100°C for the boiling point of water at sea level, is widely used in daily life and science. The Kelvin scale, starting at absolute zero where particle motion theoretically stops, is the standard unit of temperature in the physical sciences. The Fahrenheit scale, with 32°F for water's freezing point and 212°F for its boiling point, is primarily used in the United States. The Rankine scale, similar to Kelvin but using Fahrenheit degree increments, is utilized in certain engineering disciplines within the U.S.Refinement of Temperature Scale Definitions
The Kelvin and Celsius scales were originally defined by two fixed points: absolute zero and the triple point of Vienna Standard Mean Ocean Water, a precise isotopic composition of water. Absolute zero was defined as 0 K and -273.15°C, the point of complete cessation of particle motion. The triple point was set at 273.16 K and 0.01°C, determining the magnitude of the Kelvin and its equivalence to the Celsius degree. In May 2019, the definitions of these scales were revised to be based on the Boltzmann constant, enhancing their precision, although the practical impact on the scales was minimal.Temperature Measurement in Plasma Physics
In plasma physics, where temperatures can be extremely high, temperature is often expressed in electronvolts (eV) or kiloelectronvolts (keV), which are units of energy. The relationship between these units and the Kelvin scale is established through the Boltzmann constant. For instance, 1 eV/kB corresponds to approximately 11,605 K. This energy-based temperature measurement is crucial for studying high-energy states such as quark-gluon plasma, where temperatures can exceed hundreds of MeV/kB, equating to trillions of degrees Kelvin.Discrete and Continuous Temperature Measurements
Temperature measurements can be either continuous or discrete, reflecting the equilibrium state of the system. While temperature is often considered continuous, it can display discontinuities at the interfaces between different materials or phases. These discontinuities are a natural part of interfacial heat transfer, where differences in thermal properties can lead to non-uniform temperature distributions and hinder instantaneous heat exchange.Theoretical Perspectives on Temperature
The concept of temperature is explained through various scientific theories, including classical thermodynamics, kinetic theory, and statistical mechanics. Classical thermodynamics describes temperature using macroscopic empirical laws. The kinetic theory of gases links temperature to the average kinetic energy of particles, providing a microscopic perspective. Statistical mechanics and quantum mechanics further elucidate temperature at the microscopic level, with the Boltzmann constant connecting macroscopic temperature measurements to microscopic energy states.The Kinetic Theory of Gases and Its Role in Temperature Measurement
The kinetic theory of gases, formulated by Maxwell and Boltzmann, elucidates the behavior of gases and defines temperature in terms of the average kinetic energy of gas particles. This theory underpins the ideal gas law, which correlates pressure, volume, and temperature, and suggests the existence of absolute zero. Gas thermometers, while not commonly used in everyday applications, provide a fundamental reference for calibrating other types of thermometers and enable the extrapolation of temperature to absolute zero using the ideal gas law.Thermodynamic Principles and the Concept of Temperature
The zeroth law of thermodynamics introduces the concept of thermal equilibrium and is foundational for defining temperature. The second law of thermodynamics, which posits that entropy tends to increase in an isolated system, relates temperature to the disorder or randomness of particle motion. This law is exemplified by the Carnot cycle, which describes the maximum efficiency that any heat engine can achieve, dependent on the temperature differential between the heat source and sink. This reinforces the understanding of temperature as a measure of the energy distribution within a system.
Show More
Different Temperature Scales
Celsius Scale
The Celsius scale is widely used in daily life and science, with 0°C representing the freezing point and 100°C representing the boiling point of water at sea level
Kelvin Scale
The Kelvin scale is the standard unit of temperature in the physical sciences, starting at absolute zero where particle motion theoretically stops
Fahrenheit Scale
The Fahrenheit scale, primarily used in the United States, has 32°F as the freezing point and 212°F as the boiling point of water

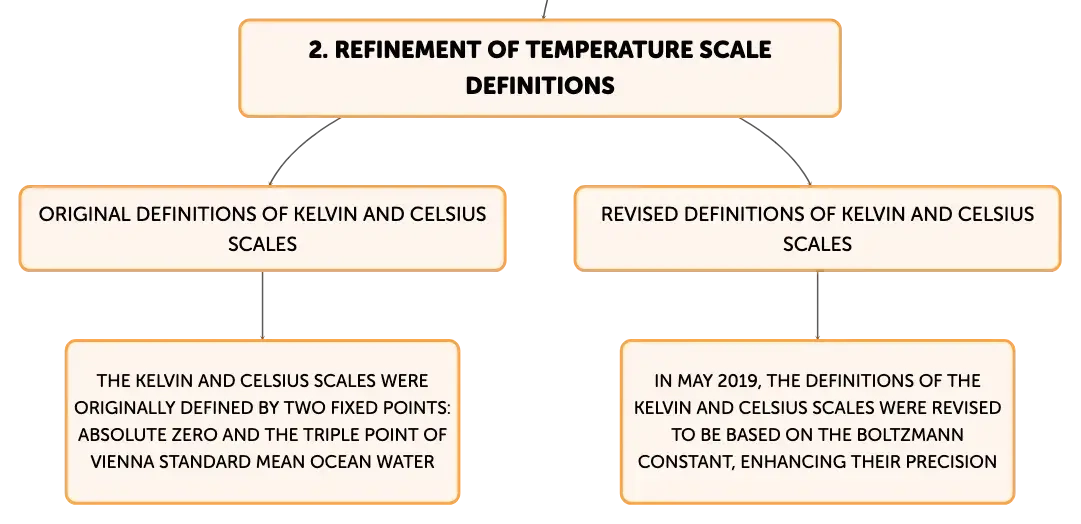

Refinement of Temperature Scale Definitions
Original Definitions of Kelvin and Celsius Scales
The Kelvin and Celsius scales were originally defined by two fixed points: absolute zero and the triple point of Vienna Standard Mean Ocean Water
Revised Definitions of Kelvin and Celsius Scales
In May 2019, the definitions of the Kelvin and Celsius scales were revised to be based on the Boltzmann constant, enhancing their precision
Temperature Measurement in Plasma Physics
Measurement Units in Plasma Physics
In plasma physics, temperature is often expressed in electronvolts (eV) or kiloelectronvolts (keV), which are units of energy
Relationship between Energy Units and Kelvin Scale
The Boltzmann constant connects energy-based temperature measurements in plasma physics to the Kelvin scale

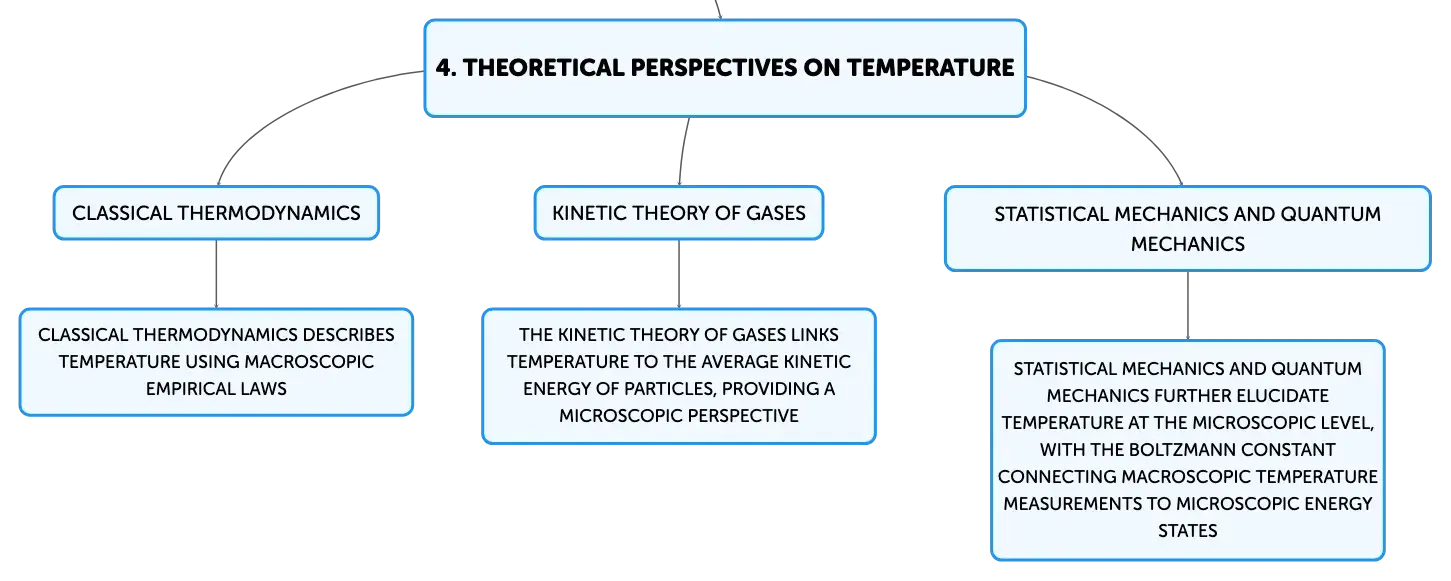

Theoretical Perspectives on Temperature
Classical Thermodynamics
Classical thermodynamics describes temperature using macroscopic empirical laws
Kinetic Theory of Gases
The kinetic theory of gases links temperature to the average kinetic energy of particles, providing a microscopic perspective
Statistical Mechanics and Quantum Mechanics
Statistical mechanics and quantum mechanics further elucidate temperature at the microscopic level, with the Boltzmann constant connecting macroscopic temperature measurements to microscopic energy states
Temperature Scales and Measurements
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Celsius scale reference points
0°C for water's freezing point, 100°C for boiling point at sea level.
01
Kelvin scale starting point
Absolute zero, where particle motion theoretically stops, 0 K.
02
Fahrenheit to Celsius conversion formula
(°F - 32) x 5/9 = °C.
