Mechanics

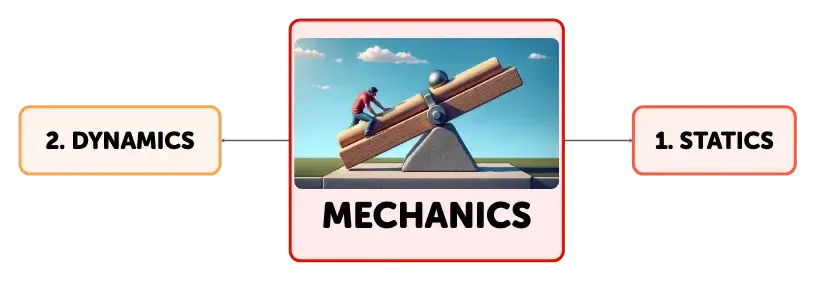

The main topic of the text is the principles of statics and dynamics within the field of mechanics. Statics examines bodies at rest or in uniform motion, emphasizing equilibrium where forces and moments sum to zero. Dynamics, including kinematics and kinetics, studies the forces affecting motion, with kinematics describing motion without force consideration. Projectile motion analysis exemplifies practical kinematics applications.
See morePrinciples of Statics in Mechanics
Statics is a crucial branch of mechanics that examines the conditions under which physical bodies remain at rest or move with constant velocity. It is predicated on the concept of equilibrium, a state where the sum of all forces and moments acting on a body is zero, aligning with Newton's first law of motion. In statics, the absence of acceleration implies that the net force and net moment on a body are zero. This simplification allows for the focus to be on the vector nature of forces and moments, their magnitudes, directions, and points of application to ensure a body's equilibrium. Problems in statics often involve finding the conditions for equilibrium by applying the principles of force balance and moment balance.Equilibrium and Force Systems
In statics, forces are modeled as vectors characterized by magnitude, direction, and point of application. These vectors represent the push or pull resulting from interactions between bodies. For a body to be in equilibrium, the vector sum of all forces must be zero, and the sum of moments about any point must also be zero. This is achieved by balancing applied forces with reactive forces and moments. The concept of the resultant force is essential; it is the single vector that represents the combined effect of all forces acting on a body. To analyze equilibrium, forces are resolved into orthogonal components, typically along the x and y axes, and the conditions for equilibrium are applied to these components to solve for unknown forces.Dynamics and the Laws of Motion

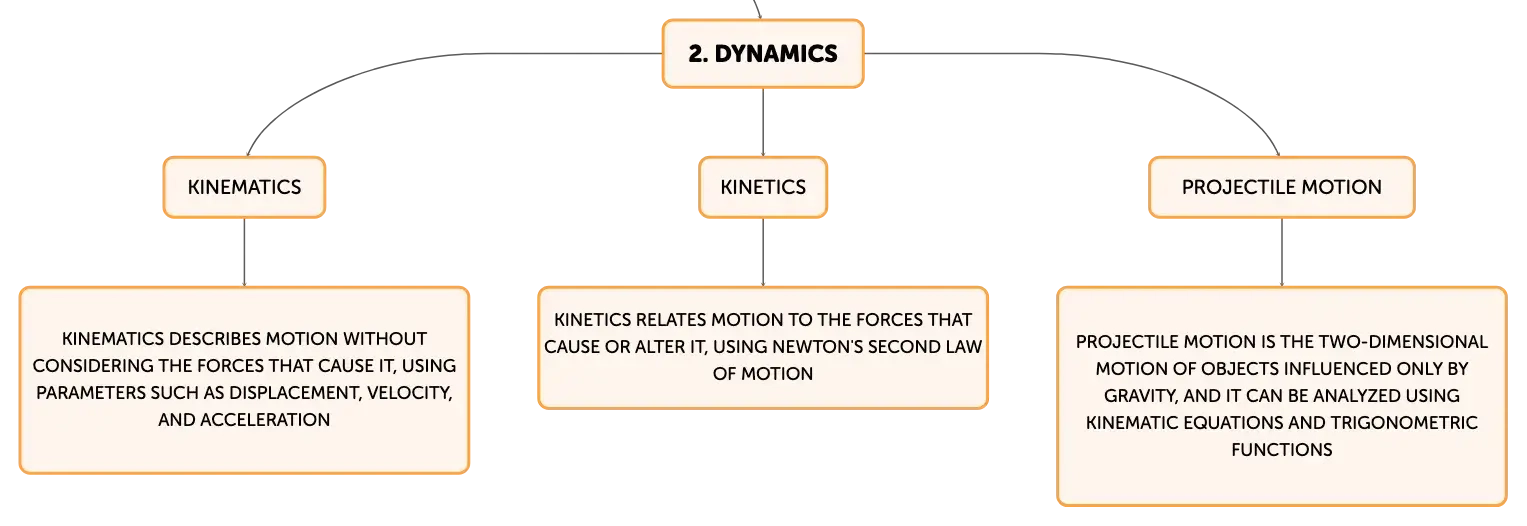

Dynamics is the study of forces and their effects on the motion of bodies, contrasting with statics. It encompasses both kinematics, which describes motion without regard to the forces that cause it, and kinetics, which relates the motion to the forces that cause or alter it. Dynamics involves the application of Newton's second law of motion, which states that the force acting on a body is equal to the mass of the body multiplied by its acceleration (F=ma). This law is fundamental in understanding how forces result in changes in velocity and direction of a body in motion, and it is used to solve problems involving the motion of objects under the influence of various forces.Kinematics: Motion Described
Kinematics is the branch of dynamics that focuses on describing motion through parameters such as displacement, velocity, and acceleration, without considering the forces that produce such motion. It involves the study of objects moving with either constant or variable acceleration. For constant acceleration, kinematic equations provide a set of tools for analyzing linear motion. When acceleration is variable, calculus becomes necessary to relate velocity and acceleration to displacement over time. Velocity is defined as the rate of change of displacement, and acceleration is the rate of change of velocity, both with respect to time. These relationships are foundational for predicting the future state of moving objects.Analyzing Projectile Motion
Projectile motion is a key topic in kinematics, describing the motion of objects that are projected into the air and influenced only by gravity after launch. The motion of a projectile is two-dimensional and can be analyzed by decomposing it into horizontal and vertical components. This decomposition is typically achieved using trigonometric functions to separate the initial velocity into x and y components. The equations of kinematics are then applied to each component separately to determine the range, maximum height, time of flight, and final position of the projectile. Understanding projectile motion is vital for predicting the behavior of objects in various fields, including sports, engineering, and ballistics.Conclusion: Understanding Statics and Dynamics
Statics and dynamics are integral parts of mechanics, each with distinct focuses and methodologies. Statics deals with the conditions for equilibrium, ensuring that structures and mechanisms remain stable or move predictably without acceleration. Dynamics, which includes kinematics and kinetics, explores the forces and torques that cause changes in motion. Mastery of the concepts of force vectors, equilibrium, and motion equations is essential for solving problems in both statics and dynamics. The study of projectile motion serves as a practical application of these concepts, demonstrating the interplay between theoretical mechanics and real-world phenomena.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In ______, a body is in equilibrium when the total of all forces and ______ acting on it equals zero.
Click to check the answer
2
Forces as Vectors in Statics
Click to check the answer
3
Equilibrium Conditions for a Body
Click to check the answer
4
Resultant Force Concept
Click to check the answer
5
Newton's ______ law of motion, which is pivotal in dynamics, can be summarized by the equation ______.
Click to check the answer
6
Kinematic Equations for Constant Acceleration
Click to check the answer
7
Role of Calculus in Variable Acceleration
Click to check the answer
8
Defining Velocity and Acceleration
Click to check the answer
9
In ______, the study of projectile motion is crucial for predicting the trajectory of objects thrown into the air.
Click to check the answer
10
Define Statics in Mechanics
Click to check the answer
11
Components of Dynamics
Click to check the answer
12
Application of Force Vectors and Motion Equations
Click to check the answer
