Forces and Resultant Force

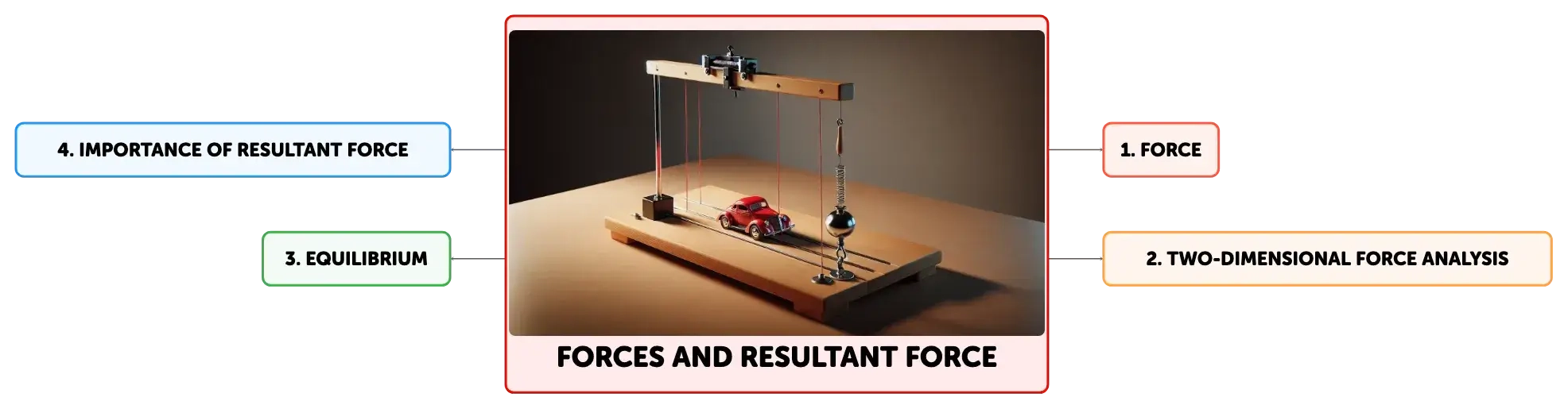

Concept Map
Exploring the concept of force in physics, this content delves into how force, as a vector quantity with magnitude and direction, influences the motion of objects. It covers the calculation of resultant force through vector addition, the resolution of forces into components, and the conditions for equilibrium. Understanding these principles is crucial for analyzing the dynamics of mechanical systems and predicting object behavior under various forces.
Summary
Outline
Force as a Vector Quantity
In physics, force is a central concept that is defined as a vector quantity, possessing both magnitude and direction. The magnitude of a force signifies how strong the force is, while the direction indicates the line along which the force is acting. Forces are the result of interactions between objects and are only present during these interactions. The motion of an object is governed by the net force acting on it, which is the vector sum of all individual forces. If the net force is zero, the object remains at rest or continues to move at a constant velocity, a condition known as equilibrium. For example, applying a force to an object in a specific direction will cause it to accelerate in that direction. This section explores the concept of resultant force, which represents the combined effect of all forces acting on an object and determines the object's acceleration according to Newton's second law of motion.Calculating Resultant Force with Vector Addition
The resultant force on an object is calculated by performing vector addition on all the individual forces acting upon it. For example, if two forces, F1 = 23N to the right and F2 = 34N to the left, are applied to an object, the resultant force is found by subtracting the second force from the first, due to their opposite directions: 23N - 34N = -11N. This indicates that the net force is 11N to the left. Graphically, forces can be represented as arrows on a graph, with their tails at the origin and their tips indicating the direction and magnitude of the forces. The resultant force is then the diagonal of the parallelogram formed by these arrows. In more complex situations, it is necessary to resolve each force into its horizontal and vertical components before summing them to find the resultant force.Vector Components and Resultant Force in Two Dimensions
In two-dimensional force analysis, it is essential to resolve each force into its horizontal (x) and vertical (y) components using trigonometric functions. The x component is calculated as the product of the force's magnitude and the cosine of its angle with the x-axis, while the y component is the product of the force's magnitude and the sine of its angle. For instance, a force F1 of 200N at a 30° angle from the x-axis has components F1x = 200N * cos(30°) and F1y = 200N * sin(30°). Another force F2 of 300N at a 135° angle from the x-axis has components F2x = 300N * cos(135°) and F2y = 300N * sin(135°). These components are then added algebraically along each axis to find the total x and y components of the resultant force, which can be expressed in unit vector notation with 'i' denoting the x component and 'j' the y component.Determining the Magnitude and Direction of the Resultant Force
After calculating the individual components, they are summed to obtain the resultant force vector in component form. The magnitude of the resultant force is determined by applying the Pythagorean theorem to its components, essentially finding the hypotenuse of a right-angled triangle whose sides are the x and y components. The direction of the resultant force is ascertained by calculating the angle it makes with the x-axis, using the arctangent function of the y component over the x component. It is important to consider the signs of the components to ensure the angle is correctly referenced from the positive x-axis. This process yields a comprehensive description of the resultant force, encapsulating both its magnitude and direction, which is critical for predicting the resulting acceleration of the object according to Newton's second law.Equilibrium and the Importance of Resultant Force
An object is in a state of equilibrium when the resultant force acting on it is zero, meaning that the sum of all forces cancel each other out. In such a case, the object will not accelerate and will either remain at rest or continue moving at a constant velocity. The concept of resultant force is pivotal for understanding the effects of forces on an object's motion. By reducing the complexity of multiple forces to a single resultant force, it simplifies the analysis of mechanical systems. This simplification is a cornerstone in the study of dynamics, enabling the prediction and analysis of the motion of objects under the influence of various forces.
Show More

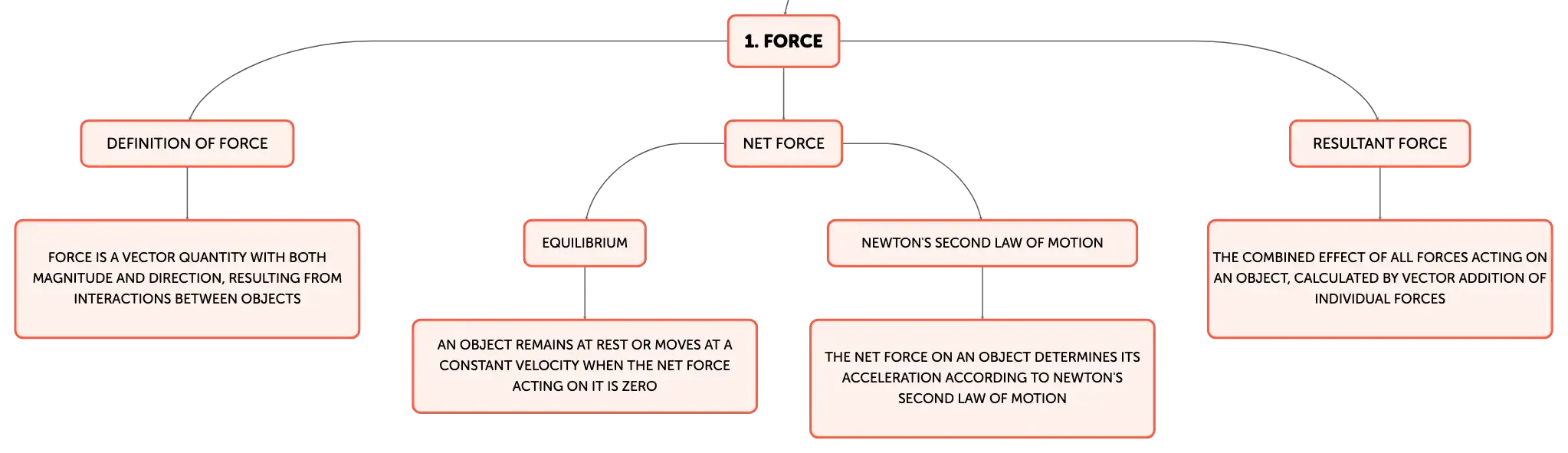

Force
Definition of Force
Force is a vector quantity with both magnitude and direction, resulting from interactions between objects
Net Force
Equilibrium
An object remains at rest or moves at a constant velocity when the net force acting on it is zero
Newton's Second Law of Motion
The net force on an object determines its acceleration according to Newton's second law of motion
Resultant Force
The combined effect of all forces acting on an object, calculated by vector addition of individual forces

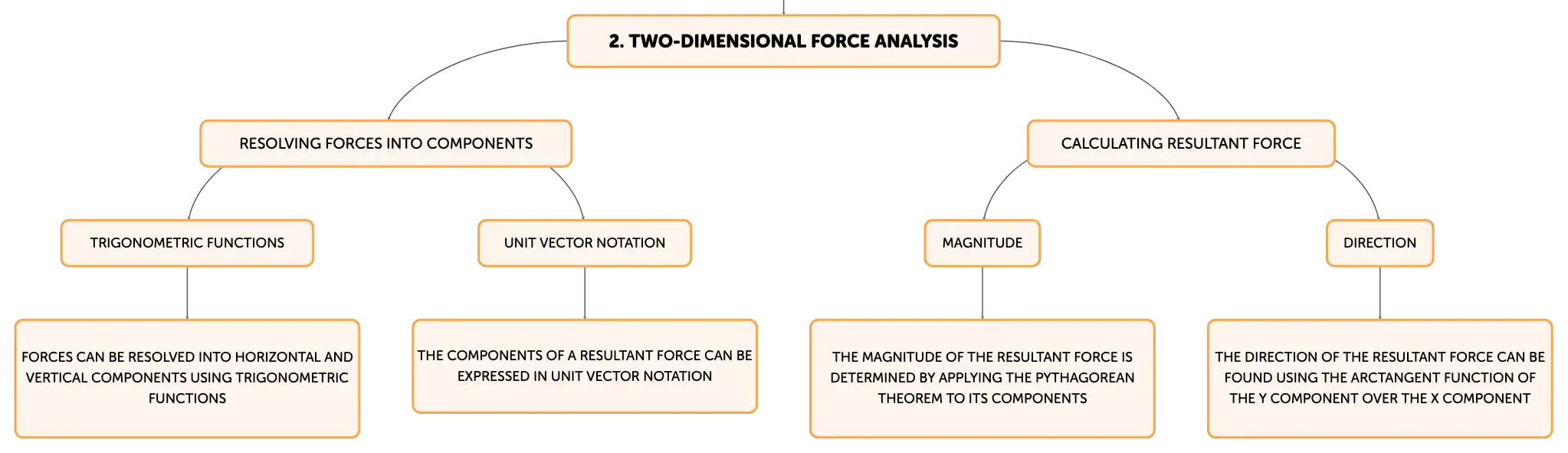

Two-Dimensional Force Analysis
Resolving Forces into Components
Trigonometric Functions
Forces can be resolved into horizontal and vertical components using trigonometric functions
Unit Vector Notation
The components of a resultant force can be expressed in unit vector notation
Calculating Resultant Force
Magnitude
The magnitude of the resultant force is determined by applying the Pythagorean theorem to its components
Direction
The direction of the resultant force can be found using the arctangent function of the y component over the x component

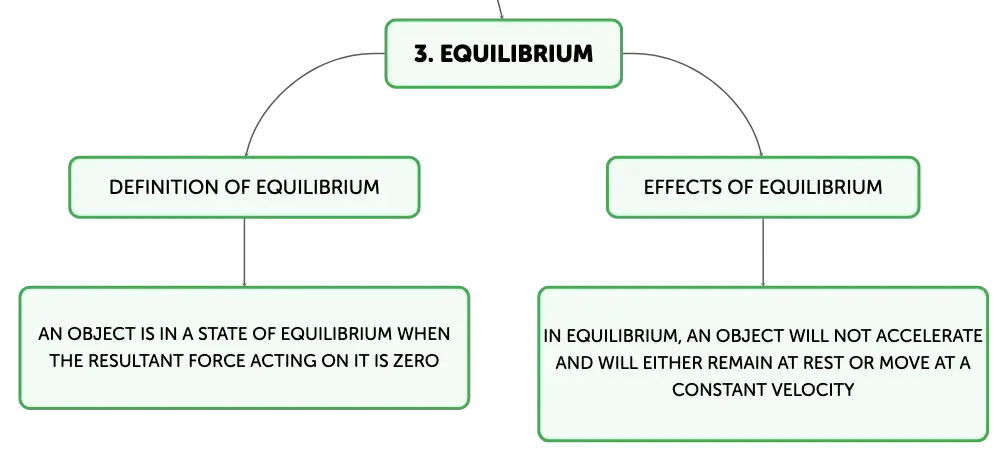

Equilibrium
Definition of Equilibrium
An object is in a state of equilibrium when the resultant force acting on it is zero
Effects of Equilibrium
In equilibrium, an object will not accelerate and will either remain at rest or move at a constant velocity

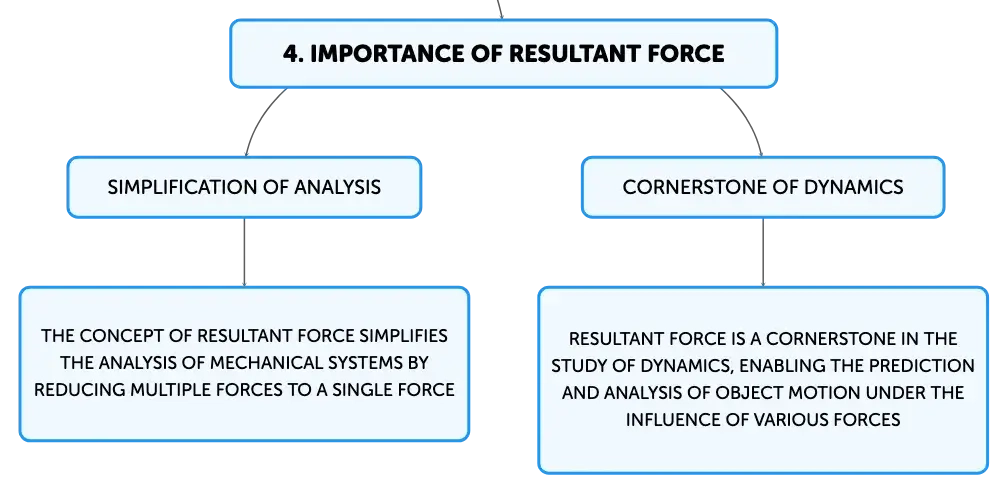

Importance of Resultant Force
Simplification of Analysis
The concept of resultant force simplifies the analysis of mechanical systems by reducing multiple forces to a single force
Cornerstone of Dynamics
Resultant force is a cornerstone in the study of dynamics, enabling the prediction and analysis of object motion under the influence of various forces
Forces and Resultant Force
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In ______, a force is recognized as a vector quantity, which includes both strength and orientation.
physics
01
The ______ of a force reveals its intensity, and its direction shows where the force is applied.
magnitude
02
Resultant force calculation with opposing forces
Subtract magnitudes of forces in opposite directions to find resultant force.
