Projectile Motion

Projectile motion encompasses the two-dimensional movement of objects launched into the air, influenced solely by gravity. This motion can be horizontal or angled, with distinct trajectories. Understanding its fundamentals involves analyzing horizontal and vertical displacements, time of flight, range, and maximum height. These concepts are pivotal in fields like ballistics and engineering, where predicting a projectile's path is crucial.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The path of a projectile, typically ______ in shape, is altered if additional forces like ______ interfere.

Click to check the answer

parabolic air resistance

2

Characteristics of horizontal projectile motion

Click to check the answer

Object launched parallel to Earth's surface, symmetric trajectory about peak, analyzed by decomposing motion.

3

Characteristics of angled projectile motion

Click to check the answer

Object launched at an angle, asymmetric trajectory, distinct peak height, motion analyzed by kinematics principles.

4

Kinematics principles in projectile motion analysis

Click to check the answer

Motion decomposed into horizontal/vertical components, principles of kinematics applied to each component separately.

5

The equations vx = v * cos(θ) and vy = v * sin(θ) use ______ functions to determine a projectile's velocity components, where θ represents the ______.

Click to check the answer

trigonometric launch angle

6

Horizontal displacement definition in projectile motion

Click to check the answer

Distance a projectile travels along the horizontal axis.

7

Effect of gravity on horizontal motion in ideal conditions

Click to check the answer

Gravity does not affect horizontal motion; horizontal velocity is constant.

8

Role of horizontal velocity component (vx) in projectile motion

Click to check the answer

Vx determines the rate of horizontal displacement over time.

9

The constant acceleration impacting a projectile's vertical movement on Earth is roughly ______ m/s².

Click to check the answer

9.81

10

Time of Flight Equation for Symmetrical Trajectories

Click to check the answer

T = (2 * vy) / g, where T is time of flight, vy is initial vertical velocity, and g is acceleration due to gravity.

11

Range Calculation for Angled Projectiles

Click to check the answer

R = (v^2 * sin(2θ)) / g, where R is range, v is initial velocity, θ is launch angle, and g is acceleration due to gravity.

12

Maximum Height Formula in Projectile Motion

Click to check the answer

h = (vy^2) / (2 * g), where h is maximum height, vy is initial vertical velocity, and g is acceleration due to gravity.

13

In vector analysis, the ______ of a projectile is described by considering both size and direction.

Click to check the answer

motion

14

A velocity vector expressed as v = 5i + 3j signifies a horizontal speed of ______ units and a vertical speed of ______ units.

Click to check the answer

5 3

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Damped Harmonic Oscillator

View document

Physics

Work and Energy in Classical Mechanics

View document

Physics

Elastic Energy

View document

Physics

The Small Angle Approximation

View document

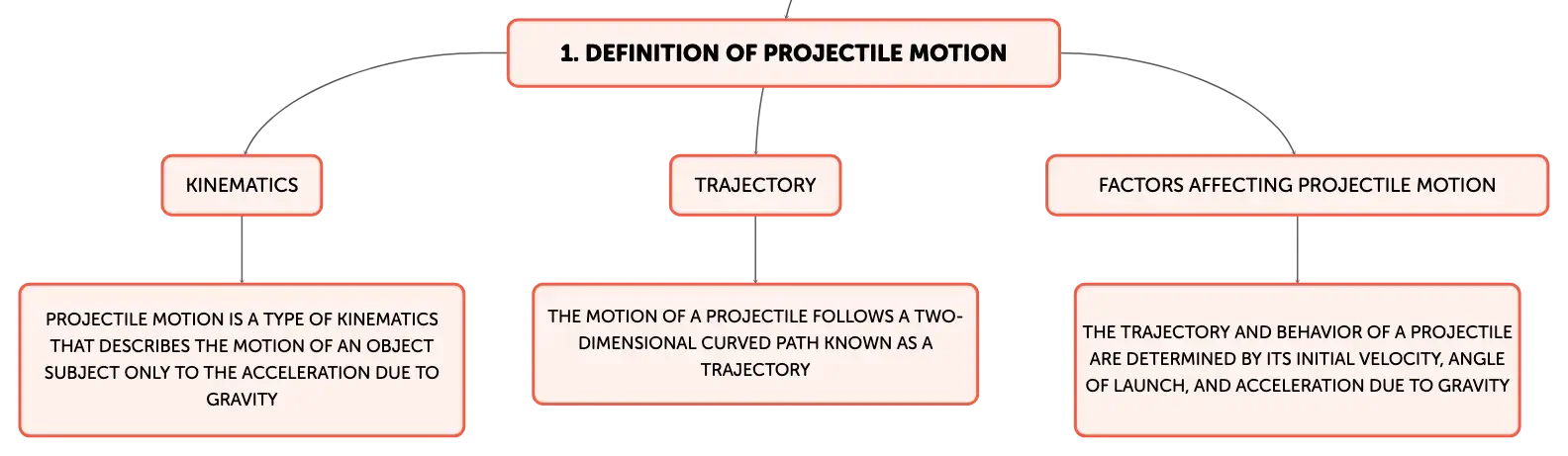

Exploring the Fundamentals of Projectile Motion

Projectile motion is a type of kinematics that describes the motion of an object that is thrown or projected into the air and is subject only to the acceleration due to gravity. The motion follows a two-dimensional curved path known as a trajectory, which is typically parabolic unless acted upon by other forces such as air resistance. The trajectory and behavior of a projectile are determined by its initial velocity, the angle of launch, and the acceleration due to gravity. Real-world examples include a football in flight, water from a fountain, and a diver leaping off a diving board.
Soccer player in red shirt and black shorts kicking a ball mid-air in a grassy field under a clear blue sky.

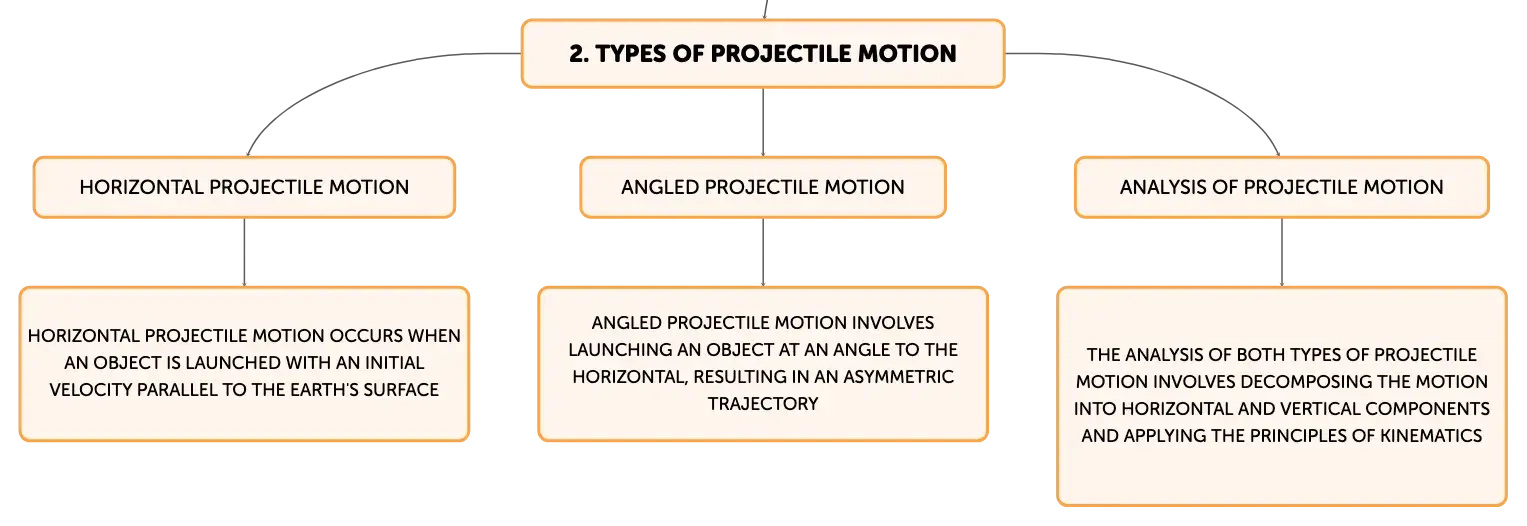

Types of Projectile Motion

There are two primary classifications of projectile motion: horizontal and angled. Horizontal projectile motion occurs when an object is launched with an initial velocity that is parallel to the Earth's surface, resulting in a trajectory that is symmetric about the peak. Angled projectile motion involves launching the object with an initial velocity at an angle to the horizontal, leading to an asymmetric trajectory with a distinct peak height. The analysis of both types involves decomposing the motion into horizontal and vertical components and applying the principles of kinematics to each.

Analyzing Projectile Motion Components

To analyze projectile motion, it is essential to consider its horizontal and vertical components separately. The initial velocity vector can be decomposed into horizontal (vx) and vertical (vy) components using trigonometric functions: vx = v * cos(θ) and vy = v * sin(θ), where θ is the launch angle. These components allow us to predict the projectile's position and velocity at any point in its trajectory by applying the kinematic equations independently to the horizontal and vertical motions.

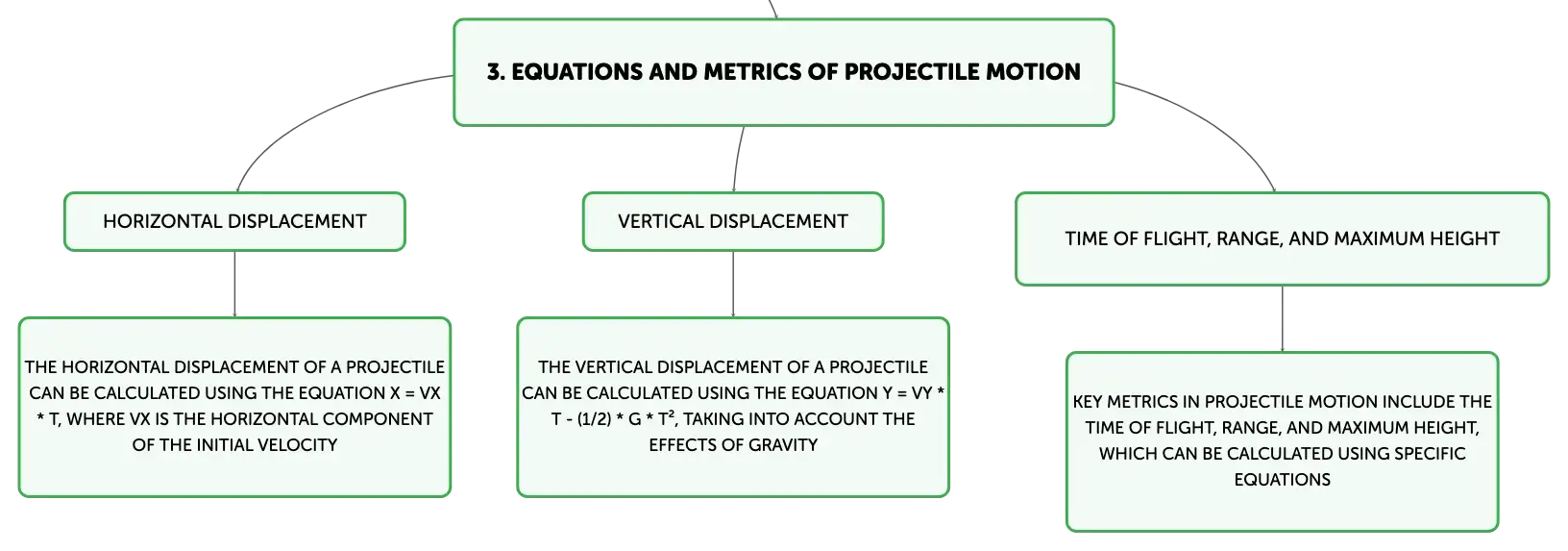

Horizontal Displacement in Projectile Motion

The horizontal displacement of a projectile is the distance it travels along the horizontal axis. Since horizontal motion is not affected by gravity in the idealized case (ignoring air resistance), the horizontal velocity remains constant. The horizontal displacement (x) at any time (t) can be calculated using the equation x = vx * t, where vx is the horizontal component of the initial velocity. This relationship allows for straightforward calculations of the projectile's horizontal position over time.

Vertical Displacement in Projectile Motion

The vertical displacement of a projectile is influenced by the constant acceleration due to gravity (g), which is approximately 9.81 m/s² on Earth. The vertical displacement (y) at any time (t) can be calculated using the equation y = vy * t - (1/2) * g * t², where vy is the vertical component of the initial velocity. This equation takes into account the initial upward motion and the subsequent downward motion as the projectile is accelerated by gravity.

Calculating Time of Flight, Range, and Maximum Height

The time of flight (T), range (R), and maximum height (h) are key metrics in projectile motion. The time of flight is the total time the projectile spends in the air and can be found using T = (2 * vy) / g for symmetrical trajectories. The range is the total horizontal distance traveled and is calculated by R = (v^2 * sin(2θ)) / g for angled projectiles. The maximum height is the highest vertical position the projectile reaches, given by h = (vy^2) / (2 * g). These metrics are crucial for applications such as ballistics, sports, and engineering.

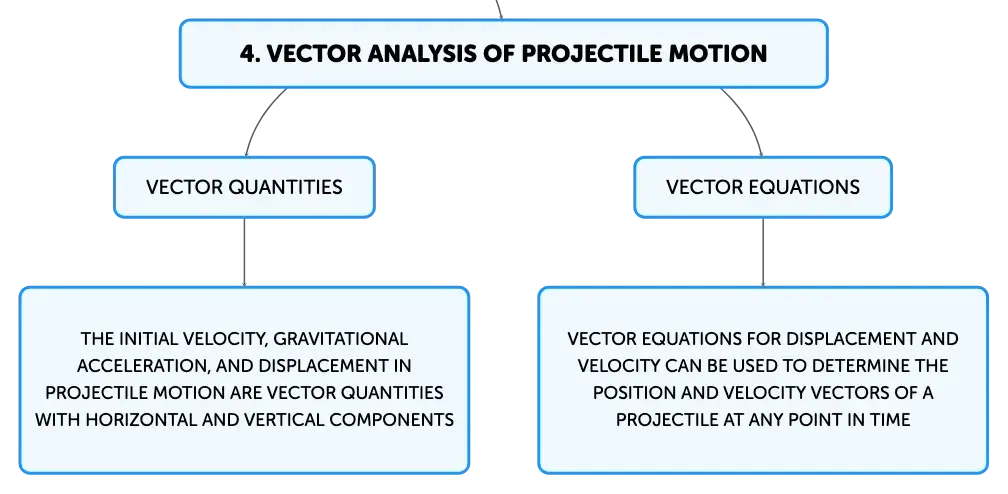

Vector Analysis in Projectile Motion

Vector analysis provides a comprehensive approach to projectile motion by considering both magnitude and direction. The initial velocity, gravitational acceleration, and displacement are vector quantities with horizontal (i) and vertical (j) components. For example, a velocity vector v = 5i + 3j indicates a horizontal velocity of 5 units and a vertical velocity of 3 units. Vector equations for displacement (S = S₀ + ut + (1/2) * at²) and velocity (v = u + at) can be used to determine the projectile's position and velocity vectors at any point in time, providing a complete description of its motion.
