Damped Harmonic Oscillator

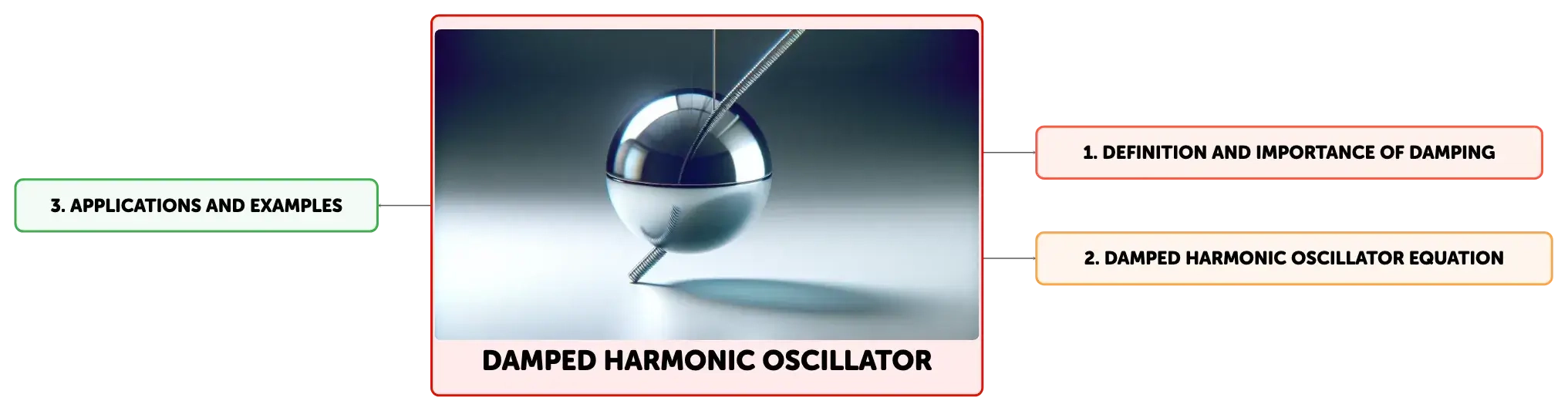

Concept Map
The damped harmonic oscillator is a pivotal model in physics, illustrating how systems with resistance to oscillation behave. It involves a damping force that causes a gradual reduction in oscillation amplitude. The model is described by a second-order differential equation, leading to three damping scenarios: overdamped, critically damped, and underdamped. These concepts are vital for designing stable mechanical and structural systems, with applications ranging from vehicle suspensions to building stability.
Summary
Outline
Understanding the Damped Harmonic Oscillator
The damped harmonic oscillator is an essential model in physics and engineering, illustrating the motion of systems experiencing resistance to oscillation. This model extends the concept of simple harmonic motion (SHM) by incorporating a damping force that opposes the motion, leading to a gradual decrease in the amplitude of oscillation. The system is governed by a second-order linear differential equation, which reflects the interplay between the mass of the object, the damping force, and the restoring force provided by a spring or similar mechanism. The equation's solutions describe three types of damping: overdamped, critically damped, and underdamped, each with unique characteristics that influence the system's temporal evolution.The Role of Damping in Oscillatory Systems
Damping is a critical factor in the behavior of oscillatory systems, affecting their response to perturbations and their ability to dissipate energy. It is the process by which kinetic energy is converted into other forms of energy, such as heat, thereby reducing the amplitude of oscillations over time. In practical applications, appropriate damping is vital for the stability and performance of systems. For example, in vehicle suspensions, damping helps absorb shocks and maintain ride comfort, while in buildings and bridges, it reduces the amplitude of vibrations due to wind or seismic activity. Understanding and controlling damping is also essential to prevent resonance, which can lead to catastrophic failure if a system is subjected to periodic forces at its natural frequency.Derivation and Solutions of the Damped Harmonic Oscillator Equation
The damped harmonic oscillator equation is derived from Newton's second law, factoring in the forces of the spring (as per Hooke's Law) and the damping force. The standard form of the equation is \(m\frac{d^2x}{dt^2} + c\frac{dx}{dt} + kx = 0\), where \(m\) represents the mass, \(c\) the damping coefficient, \(k\) the spring constant, and \(x\) the displacement from equilibrium. The characteristic equation obtained from this differential equation reveals the nature of the system's response. The roots of the characteristic equation indicate whether the system is overdamped, critically damped, or underdamped. These theoretical solutions are crucial for predicting the behavior of damped oscillators and for designing systems that require specific damping characteristics.Experimental Insights and Applications of Damped Harmonic Oscillators
Laboratory experiments with damped harmonic oscillators provide valuable hands-on experience in understanding the effects of damping. These experiments often involve a mass attached to a spring with a variable damping element, allowing for the observation and measurement of the system's dynamic response. Real-world examples of damped harmonic oscillators are ubiquitous, ranging from the motion of skyscrapers in the wind to the functioning of vehicle suspension systems and the precision of timekeeping devices. The principles governing these systems are critical for ensuring their effective operation and resilience to external forces.The Quality Factor of Damped Harmonic Oscillators
The Quality Factor, or Q-factor, is a measure of the damping of an oscillator, quantifying the balance between energy stored and energy dissipated in each cycle of oscillation. It is defined as \(Q = \frac{\omega_0 m}{c}\), where \(\omega_0\) is the natural angular frequency of the undamped system, \(m\) is the mass, and \(c\) is the damping coefficient. A high Q-factor indicates a low rate of energy loss relative to the stored energy, which is desirable in applications such as timekeeping devices and musical instruments, where sustained oscillations are essential. Conversely, a low Q-factor, indicating high energy dissipation, is preferred in systems like automotive suspensions, where quick stabilization after disturbances is necessary.Concluding Insights on the Damped Harmonic Oscillator
The damped harmonic oscillator is a fundamental concept in physics, providing a framework for understanding the decay of oscillations in the presence of damping forces. The governing differential equation accounts for the mass, damping, and restoring forces, and its solutions reveal the system's behavior under various damping conditions. The study of damped harmonic oscillators is integral to the design and analysis of many mechanical and structural systems, where controlling oscillatory motion is crucial. The Quality Factor offers a metric for evaluating the efficiency of energy conservation in these systems, which is essential for optimizing their performance in diverse applications.
Show More

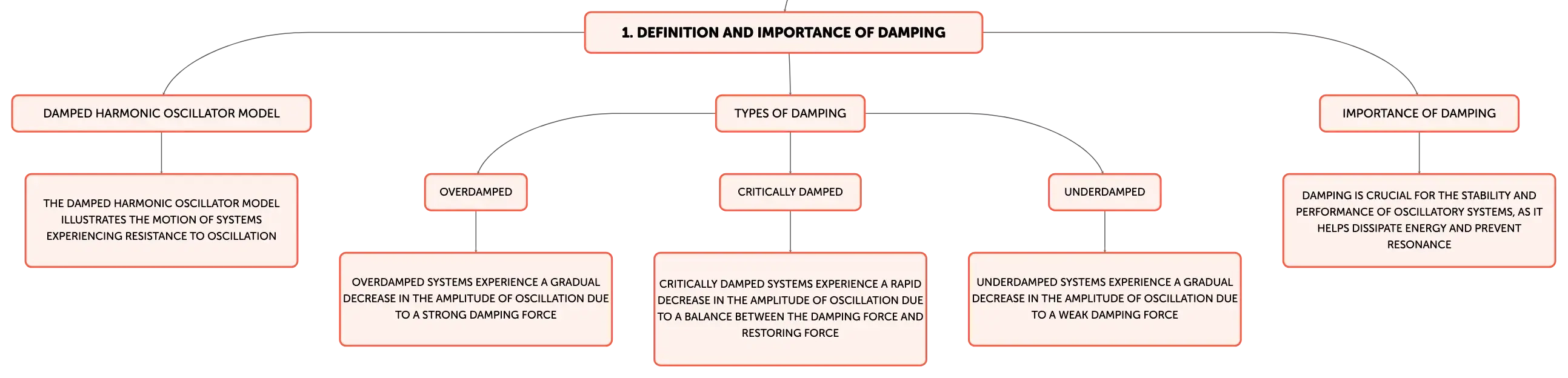

Definition and Importance of Damping
Damped Harmonic Oscillator Model
The damped harmonic oscillator model illustrates the motion of systems experiencing resistance to oscillation
Types of Damping
Overdamped
Overdamped systems experience a gradual decrease in the amplitude of oscillation due to a strong damping force
Critically Damped
Critically damped systems experience a rapid decrease in the amplitude of oscillation due to a balance between the damping force and restoring force
Underdamped
Underdamped systems experience a gradual decrease in the amplitude of oscillation due to a weak damping force
Importance of Damping
Damping is crucial for the stability and performance of oscillatory systems, as it helps dissipate energy and prevent resonance
Damped Harmonic Oscillator Equation
Derivation from Newton's Second Law
The damped harmonic oscillator equation is derived from Newton's second law, incorporating the forces of a spring and damping force
Standard Form of the Equation
The standard form of the damped harmonic oscillator equation is \(m\frac{d^2x}{dt^2} + c\frac{dx}{dt} + kx = 0\), where \(m\) represents mass, \(c\) represents damping coefficient, \(k\) represents spring constant, and \(x\) represents displacement from equilibrium
Characteristic Equation and Solutions
The characteristic equation obtained from the damped harmonic oscillator equation reveals the system's response and solutions, indicating whether the system is overdamped, critically damped, or underdamped

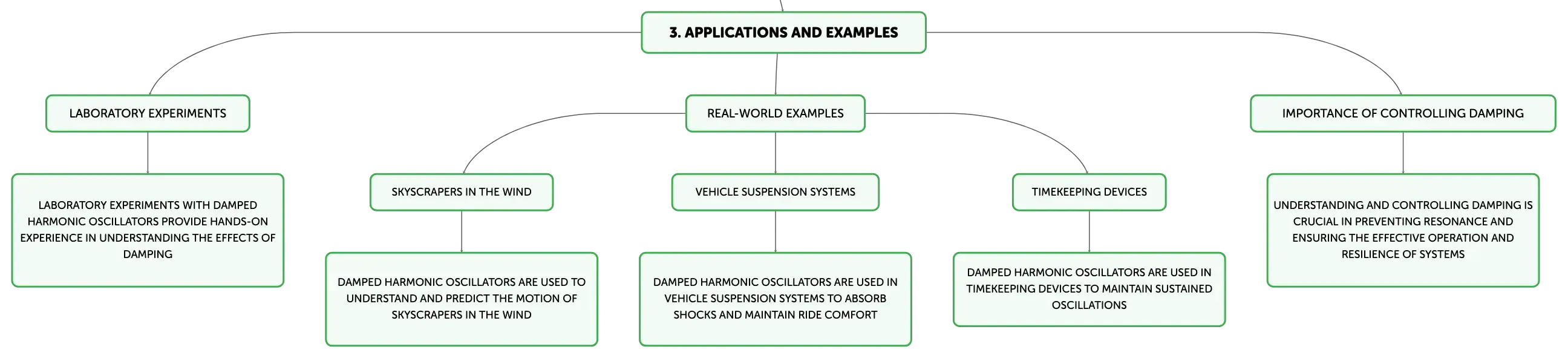

Applications and Examples
Laboratory Experiments
Laboratory experiments with damped harmonic oscillators provide hands-on experience in understanding the effects of damping
Real-World Examples
Skyscrapers in the Wind
Damped harmonic oscillators are used to understand and predict the motion of skyscrapers in the wind
Vehicle Suspension Systems
Damped harmonic oscillators are used in vehicle suspension systems to absorb shocks and maintain ride comfort
Timekeeping Devices
Damped harmonic oscillators are used in timekeeping devices to maintain sustained oscillations
Importance of Controlling Damping
Understanding and controlling damping is crucial in preventing resonance and ensuring the effective operation and resilience of systems
Damped Harmonic Oscillator
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
The ______ ______ oscillator is a key model in physics, showing how systems with resistance behave during oscillation.
damped
harmonic
01
Damping effect on kinetic energy
Damping converts kinetic energy into other forms, like heat, reducing oscillation amplitude.
02
Damping in vehicle suspensions
In vehicles, damping absorbs shocks, maintains ride comfort by minimizing oscillations.
