The Principle of Work in Classical Mechanics

In classical mechanics, 'work' is a term that quantifies the energy transferred to an object when a force causes it to move. This transfer of energy is a key concept in the study of dynamics and energy conservation. Work is mathematically defined as the product of the force applied to an object and the displacement of the object in the direction of the force. For example, when a force is exerted to slide a box across a floor, work is done against the force of friction, and the box acquires kinetic energy. The work-energy theorem relates the work done on an object to the change in its kinetic energy, given by the equation \(W = \Delta E_k\), where \(W\) is the work done and \(\Delta E_k\) is the change in kinetic energy.

Wooden seesaw with metallic sphere weight on one end, balanced on a triangular fulcrum in a grassy field under a clear blue sky.

Calculating Work with a Constant Force

The work done by a constant force is calculated using the formula \(W = F \cdot d \cdot \cos(\theta)\), where \(W\) is the work in joules (J), \(F\) is the magnitude of the force in newtons (N), \(d\) is the displacement in meters (m), and \(\theta\) is the angle between the force and the displacement vectors. When the force is applied in the same direction as the displacement, the angle \(\theta\) is zero, and the formula simplifies to \(W = Fd\). This relationship indicates that a force of one newton moving an object one meter does one joule of work. The joule, as a unit of work or energy, is equivalent to a newton-meter, which reflects the interplay between force, displacement, and energy.

Derivation of the Work Formula

The derivation of the work formula involves analyzing the change in kinetic energy of an object as a result of a force applied over time. Considering the kinetic energy at two different times, \(t_1\) and \(t_2\), the work done is \(W = E_{k2} - E_{k1}\). By substituting the expression for kinetic energy, \(E_k = \frac{1}{2}mv^2\), and rearranging, we get \(W = \frac{1}{2}m(v^2 - u^2)\), where \(v\) is the final velocity and \(u\) is the initial velocity. Using the kinematic equation \(v^2 - u^2 = 2as\), where \(a\) is acceleration and \(s\) is displacement, we can rewrite the work as \(W = mas\). Applying Newton's second law, \(F = ma\), allows us to replace \(ma\) with \(F\), yielding the work formula \(W = Fs\), which is commonly written as \(W = Fd\) when the displacement is in the direction of the force.

Practical Application of the Work Formula

The practical application of the work formula, \(W = Fd\), is evident in problems involving energy transfer. For instance, if a 4 kg box is pushed with a constant force of 3 N over a distance of 10 m, the work done on the box is \(W = 3 \times 10 = 30 J\). To determine the box's final velocity, we can equate the work done to the kinetic energy gained, resulting in a final velocity of \(v = \sqrt{2 \times 30 / 4} \approx 3.87 m/s\). This example demonstrates the use of the work-energy principle to predict the outcome of applying a force over a distance in real-world situations.

Examples of Work Done by a Constant Force

To illustrate the concept, consider two examples. In the first, a 50 kg bicycle moves down a hill under the influence of a net force of 140 N (accounting for friction) over a distance of 30 m. The work done on the bicycle is \(W = 140 \times 30 = 4200 J\), which can be used to calculate the bicycle's speed at the bottom of the hill using the work-energy principle. In the second example, a 2300 kg car climbs a hill with a net force of 200 N (considering gravitational and frictional forces) over a distance of 60 m. The work done on the car is \(W = 200 \times 60 = 12000 J\), and this work leads to an increase in the car's gravitational potential energy, which can be related to its speed at the top of the hill. These examples demonstrate the application of the work formula to calculate the work done by a constant force and the resulting changes in kinetic or potential energy.

Conclusions on Work Done by a Constant Force

The concept of work done by a constant force is fundamental to understanding energy transfer mechanisms in classical mechanics. It shows that work results in the transfer of energy, often manifesting as kinetic or potential energy, to the object upon which the force is exerted. The equation \(W = Fd\) is a powerful tool for calculating this energy transfer, enabling predictions about an object's state after a force has acted over a given distance. Through problem-solving and real-life examples, students can grasp the significance of the work-energy principle and its applications in physics.

Work and Energy in Classical Mechanics

Concept Map

Summary

Outline

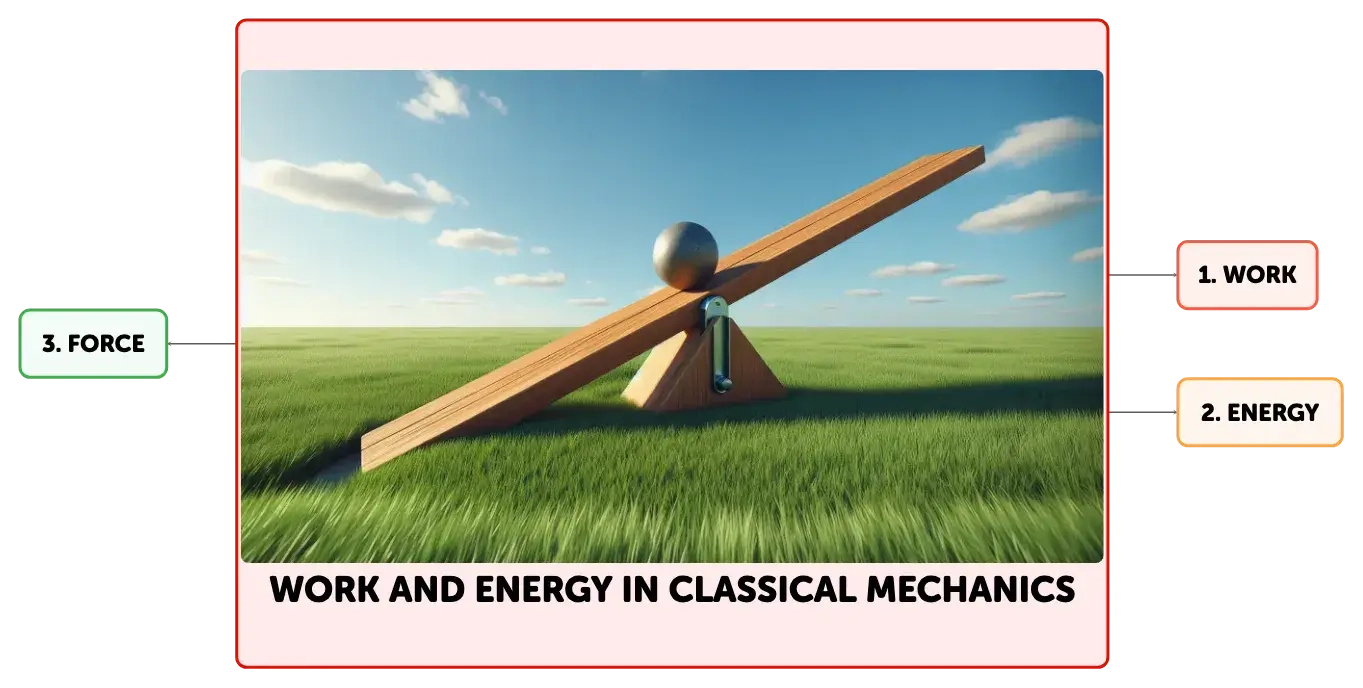

Work and Energy in Classical Mechanics

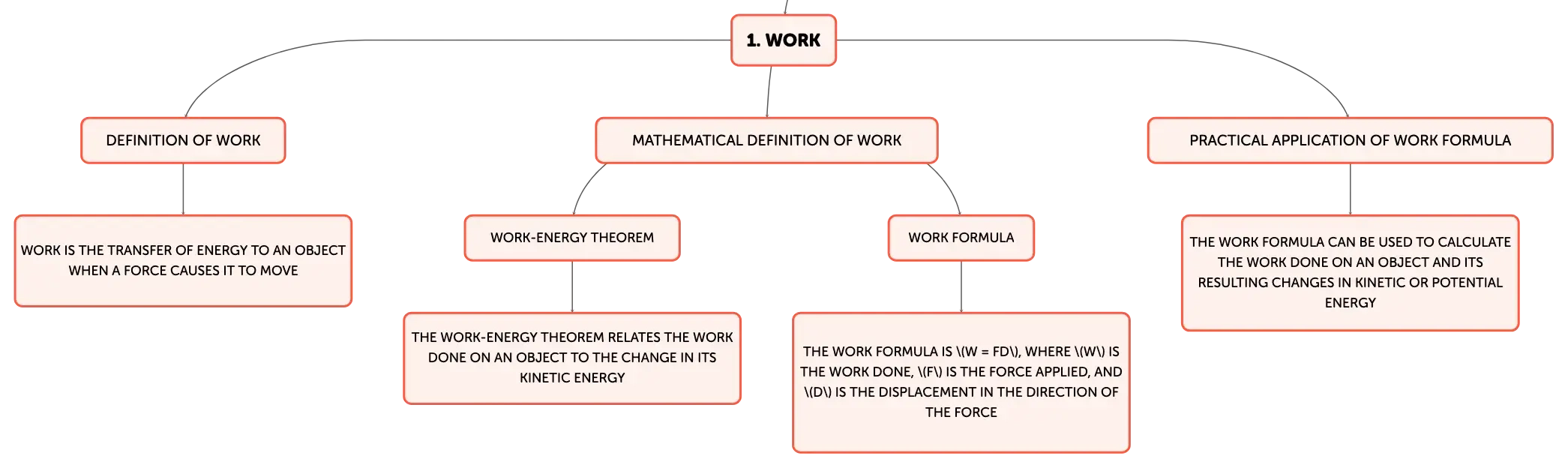

Work

Definition of Work

Mathematical Definition of Work

Practical Application of Work Formula

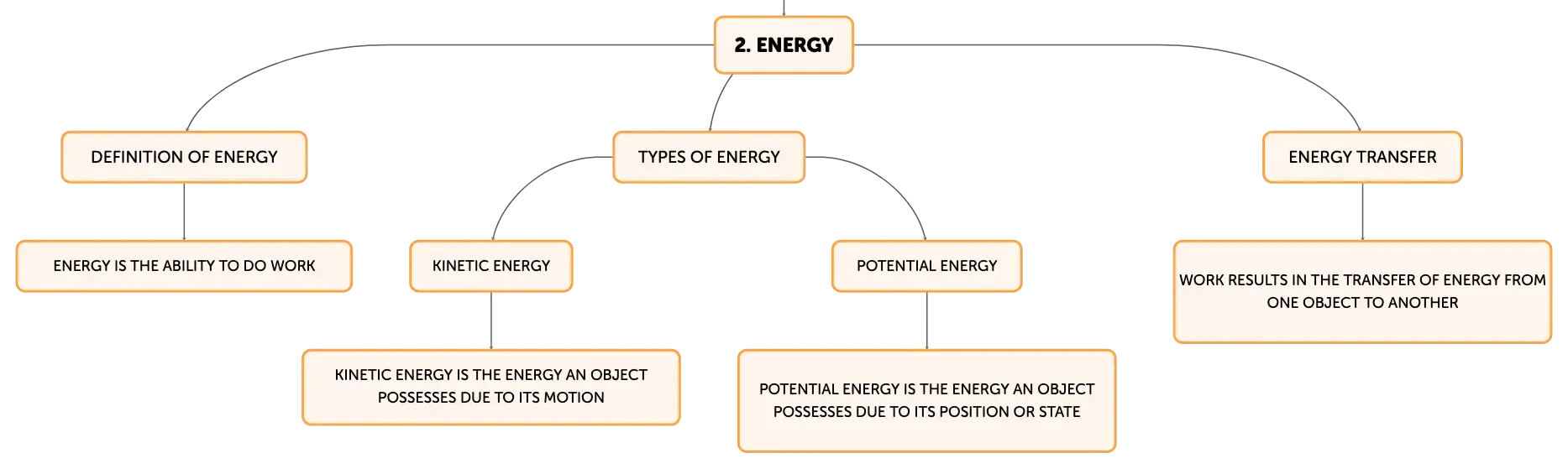

Energy

Definition of Energy

Types of Energy

Energy Transfer

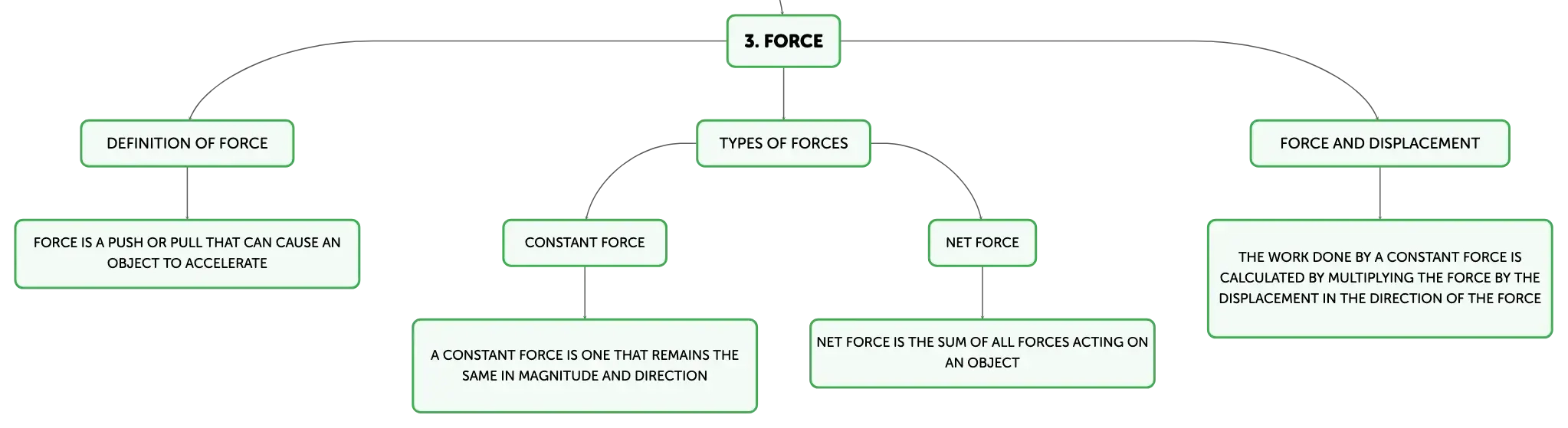

Force
