Understanding Elastic Energy in Mechanics

Elastic energy is a type of potential energy stored in an object when it undergoes deformation due to an external force. This energy is recoverable, meaning the object can return to its original shape after the deforming force is removed. Elastic energy is a key concept in the mechanics section of Further Mathematics, providing insight into the potential energy accumulated in objects from springs to complex structural systems. The study of elastic energy is not only foundational for understanding mechanical behavior but also has practical implications in engineering and technology.

Close-up view of a compressed metallic coil spring between two steel plates, with visible gradient spacing and reflective highlights on a white background.

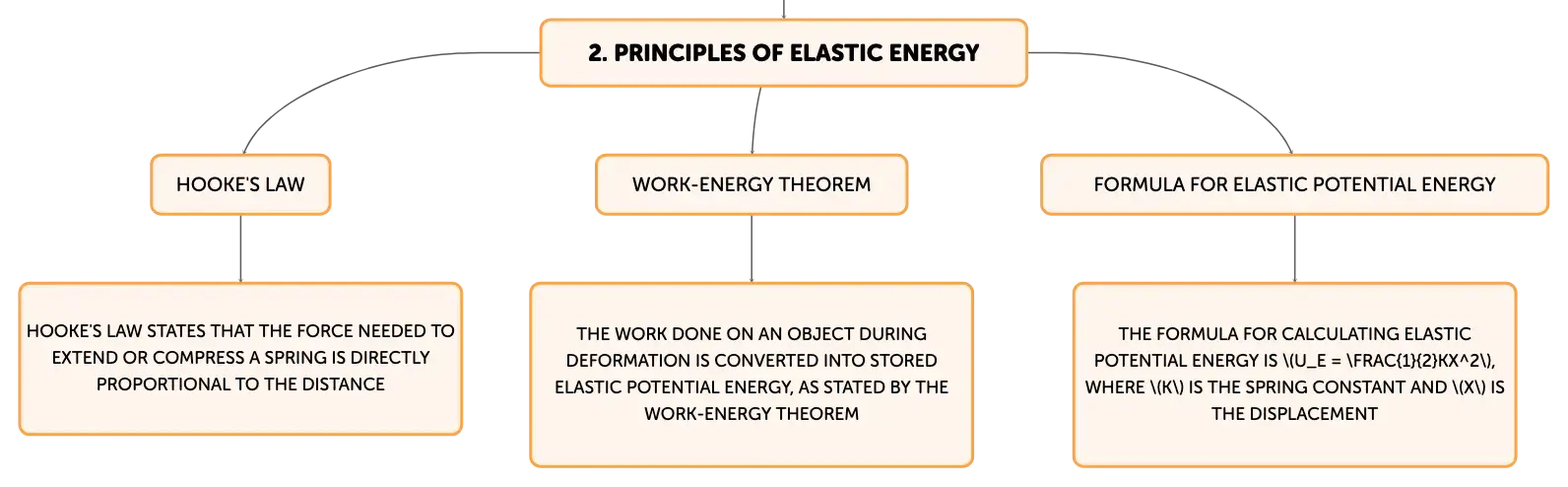

Core Principles of Elastic Energy

Grasping the concept of elastic energy involves understanding several fundamental principles. Hooke's Law is pivotal, stating that the force needed to extend or compress a spring by some distance is directly proportional to that distance, which is mathematically represented as \(F = -kx\). In this equation, \(F\) is the force exerted, \(k\) is the spring constant, and \(x\) is the displacement from the equilibrium position. The negative sign indicates that the force exerted by the spring is in the opposite direction of the displacement. The work done on the spring during deformation is converted into stored elastic potential energy, which is governed by the work-energy theorem, stating that the work done is equal to the change in kinetic energy of the system.

Importance of Elastic Potential Energy

Elastic potential energy (\(U_e\)) is the energy stored as a result of an object's deformation. It quantifies the work done to deform the object and is fully recoverable when the deforming force is removed. The formula for calculating elastic potential energy is \(U_e = \frac{1}{2}kx^2\), where \(k\) is the spring constant and \(x\) is the displacement from the equilibrium position. This concept is essential in the design and analysis of mechanical systems, physics research, and in understanding the energy stored in common devices such as archery bows and bungee cords.

Elastic Energy Equations and Applications

Elastic energy equations are derived from Hooke's Law and the work-energy theorem. The fundamental equation for elastic potential energy, \(U_e = \frac{1}{2}kx^2\), shows that the energy is proportional to the spring constant and the square of the displacement. These equations are crucial for solving problems in Further Mathematics that involve the deformation of objects. They are used in various contexts, including simple harmonic motion, structural analysis, and energy conservation. Mastery of these equations enables students to tackle a broad spectrum of theoretical and practical problems.

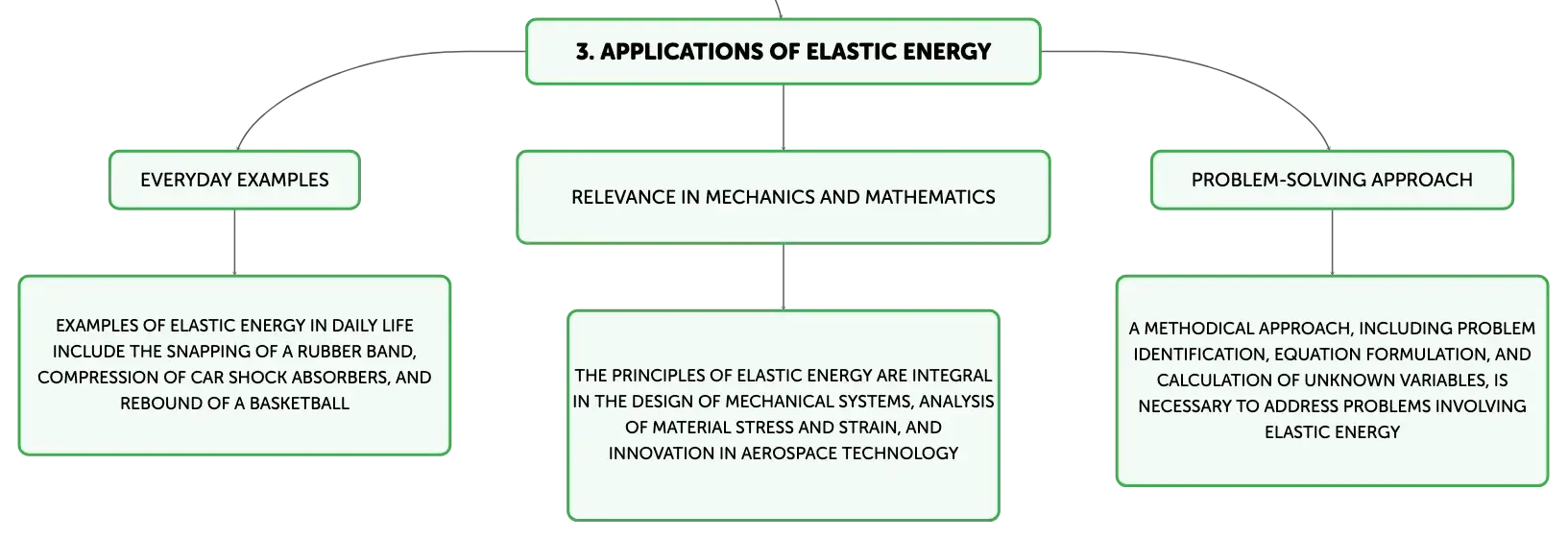

Practical Examples of Elastic Energy

Elastic energy is prevalent in daily life and has a multitude of practical applications in various fields. Everyday examples include the snapping of a rubber band, the compression of car shock absorbers, and the rebound of a basketball. These illustrate the transformation of elastic potential energy into kinetic energy. In the realm of mechanics and mathematics, the principles of elastic energy are integral to the design of mechanical systems, the analysis of material stress and strain, the assessment of earthquake-resistant structures, and the innovation in aerospace technology. These applications underscore the relevance of elastic energy in both academic and professional settings.

Solving Problems with Elastic Energy

Addressing problems that involve elastic energy necessitates a methodical approach, which includes problem identification, equation formulation, and the calculation of unknown variables. To find the elastic potential energy in a spring, one would apply the equation \(U_e = \frac{1}{2}kx^2\), identifying \(k\) as the spring constant and \(x\) as the displacement. This structured problem-solving strategy not only enhances students' analytical abilities but also equips them with the skills to apply these concepts to real-world challenges, bridging the gap between theoretical knowledge and practical application.

Concluding Thoughts on Elastic Energy

In conclusion, elastic energy is a pivotal concept in the study of mechanics, encapsulating the storage of potential energy in objects subjected to deformation. The principles of Hooke's Law and the work-energy theorem are indispensable for calculating and understanding this form of energy. Elastic potential energy has broad applications, from the engineering of mechanical systems to the functionality of everyday objects. Proficiency in the related equations and formulas is crucial for students to solve problems in Further Mathematics and to apply these principles to diverse practical situations, thereby deepening their comprehension of mechanical systems and preparing them for future academic and professional endeavors.

Elastic Energy

Concept Map

Summary

Outline

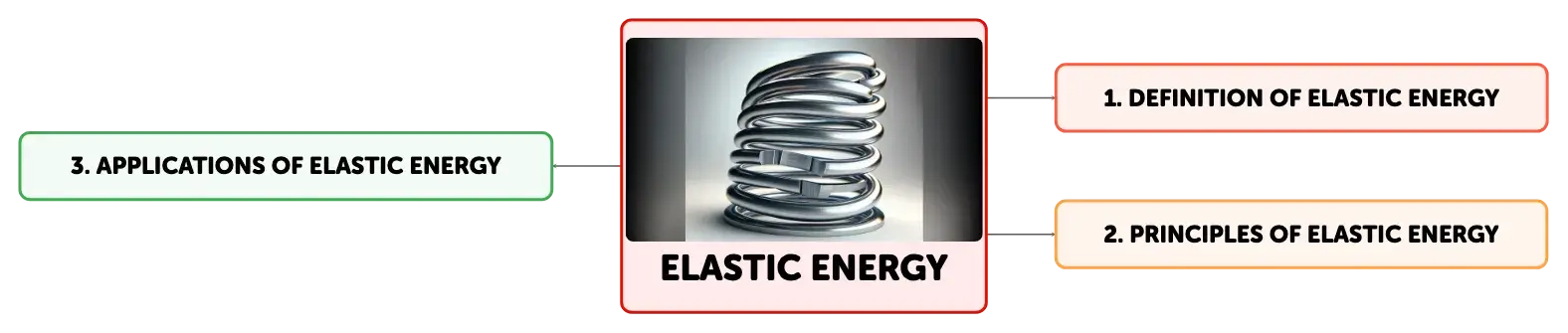

Elastic Energy

Definition of Elastic Energy

Potential energy stored in an object due to deformation

Recoverability of Elastic Energy

Importance of Elastic Energy

Principles of Elastic Energy

Hooke's Law

Work-Energy Theorem

Formula for Elastic Potential Energy

Applications of Elastic Energy

Everyday Examples

Relevance in Mechanics and Mathematics

Problem-Solving Approach
