The Respiratory System

Concept Map

Algorino

Edit available

Exploring the respiratory system reveals its role in gas exchange, involving the airways, lungs, and muscles. It's vital for oxygen uptake and CO2 elimination, maintaining blood pH. Diseases like asthma, COPD, and infections can impair its function, highlighting the importance of respiratory health.

Summary

Outline

Exploring the Respiratory System

The respiratory system is an intricate network crucial for sustaining life by facilitating the exchange of gases—oxygen (O2) and carbon dioxide (CO2)—between the body and the environment. This system comprises the airways, lungs, and the respiratory muscles. The lungs, protected by the ribcage, are the central organs where gas exchange occurs. The diaphragm, a key respiratory muscle, aids in the inhalation and exhalation process by changing the volume of the thoracic cavity.
Semi-transparent human thorax model highlighting respiratory system with trachea, bronchi, pink lungs, and purple diaphragm encased by ribcage.

Detailed Anatomy of the Respiratory System

The respiratory system includes the nasal cavity, pharynx, larynx, trachea, bronchi, bronchioles, and alveoli. Air is inhaled through the nasal cavity or mouth, filtered by nasal hairs and mucous membranes, and then warmed and humidified. The pharynx serves as a pathway for both air and food, while the larynx contains the vocal cords. The trachea, or windpipe, filters the air further before it branches into the bronchi, which lead to each lung. The bronchi subdivide into smaller bronchioles, ending in clusters of alveoli—the site of gas exchange.

The Physiology of Breathing

Breathing, or ventilation, is the process of moving air into and out of the lungs. Inhalation occurs when the diaphragm contracts and moves downward, enlarging the thoracic cavity and reducing the pressure inside the lungs, causing air to flow in. The external intercostal muscles also lift the ribs to increase chest volume. Exhalation is usually passive, occurring when the diaphragm and intercostal muscles relax, increasing the pressure in the lungs and pushing air out. Forced exhalation involves the internal intercostal muscles and abdominal muscles.

Gas Exchange and Regulation of Blood pH

Gas exchange in the respiratory system is governed by the principles of diffusion and partial pressures. Oxygen diffuses from the alveoli into the pulmonary capillaries because its partial pressure is higher in the alveoli than in the deoxygenated blood. Carbon dioxide, produced by cellular metabolism, diffuses in the opposite direction, from the blood into the alveoli, due to its higher partial pressure in the blood. This exchange is vital for maintaining the pH balance of the blood, as CO2 is acidic in solution and its regulation is essential for homeostasis.

Pathways of Airflow in the Respiratory System

The pathway of airflow begins when air is inhaled through the nose or mouth, moving through the nasal or oral cavity where it is conditioned. It then travels through the pharynx, past the larynx, and down the trachea. The trachea splits into two main bronchi, each entering a lung and branching into smaller bronchioles that distribute air throughout the lung tissue. The bronchioles terminate in alveoli, where the exchange of gases occurs. This pathway is designed to optimize the surface area for gas exchange and to protect against pathogens and particulates.

Respiratory Health and Impact of Diseases

The respiratory system is susceptible to a range of diseases, such as asthma, chronic obstructive pulmonary disease (COPD), pneumonia, and lung cancer, as well as infections like influenza and COVID-19. These conditions can compromise the system's efficiency in gas exchange, leading to hypoxemia—low levels of oxygen in the blood. Pathogens can damage the respiratory epithelium, while immune responses to infections or allergens can cause inflammation and obstruct airflow. Preventative measures, such as vaccinations and avoiding pollutants, along with treatments like bronchodilators and anti-inflammatory drugs, are important for maintaining respiratory health.

Concluding Insights on Respiratory System Functions

The respiratory system's intricate design ensures efficient oxygen uptake for cellular respiration and the elimination of carbon dioxide, a metabolic waste product. The coordinated action of the airways, lungs, and respiratory muscles achieves this through a series of processes that include ventilation, diffusion, and perfusion. A clear understanding of the respiratory system's anatomy and physiology is essential for recognizing its role in maintaining homeostasis and the implications of respiratory diseases on overall health.

Show More

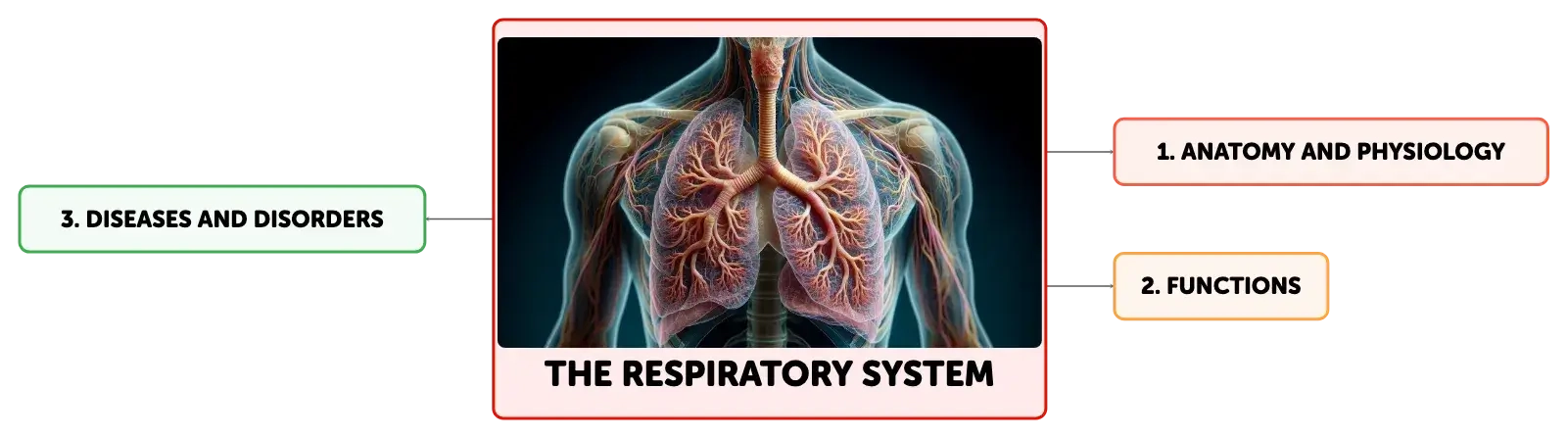

    The Respiratory System

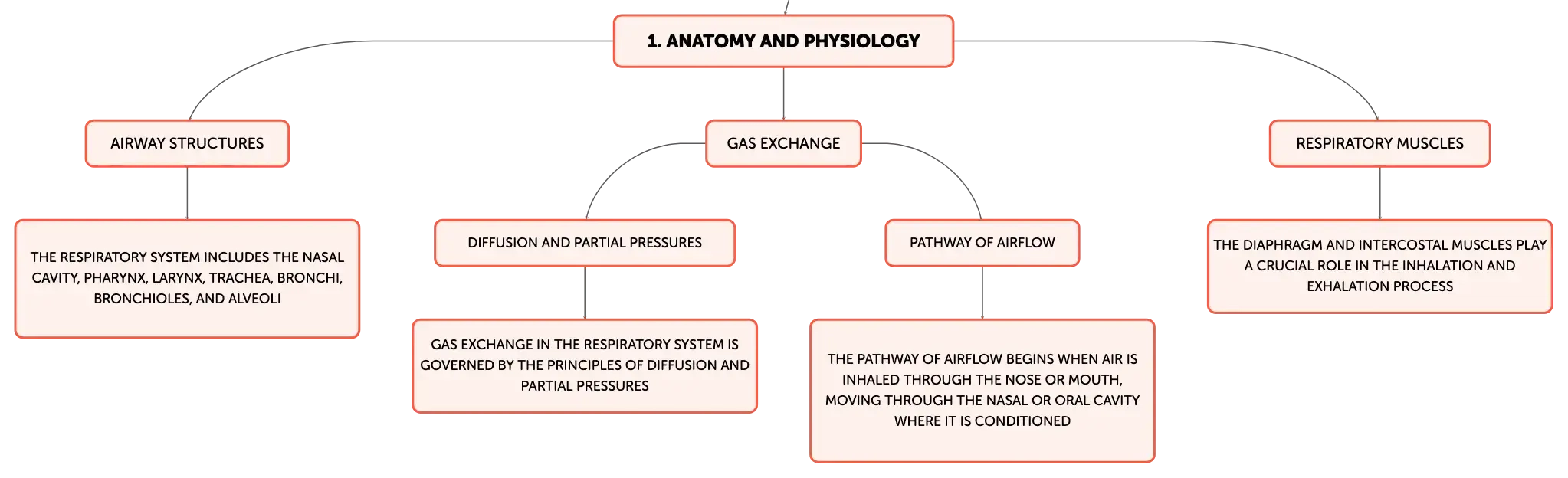

  • Anatomy and Physiology

  • Airway Structures

  • The respiratory system includes the nasal cavity, pharynx, larynx, trachea, bronchi, bronchioles, and alveoli

  • Gas Exchange

  • Diffusion and Partial Pressures

  • Gas exchange in the respiratory system is governed by the principles of diffusion and partial pressures

  • Pathway of Airflow

  • The pathway of airflow begins when air is inhaled through the nose or mouth, moving through the nasal or oral cavity where it is conditioned

  • Respiratory Muscles

  • The diaphragm and intercostal muscles play a crucial role in the inhalation and exhalation process

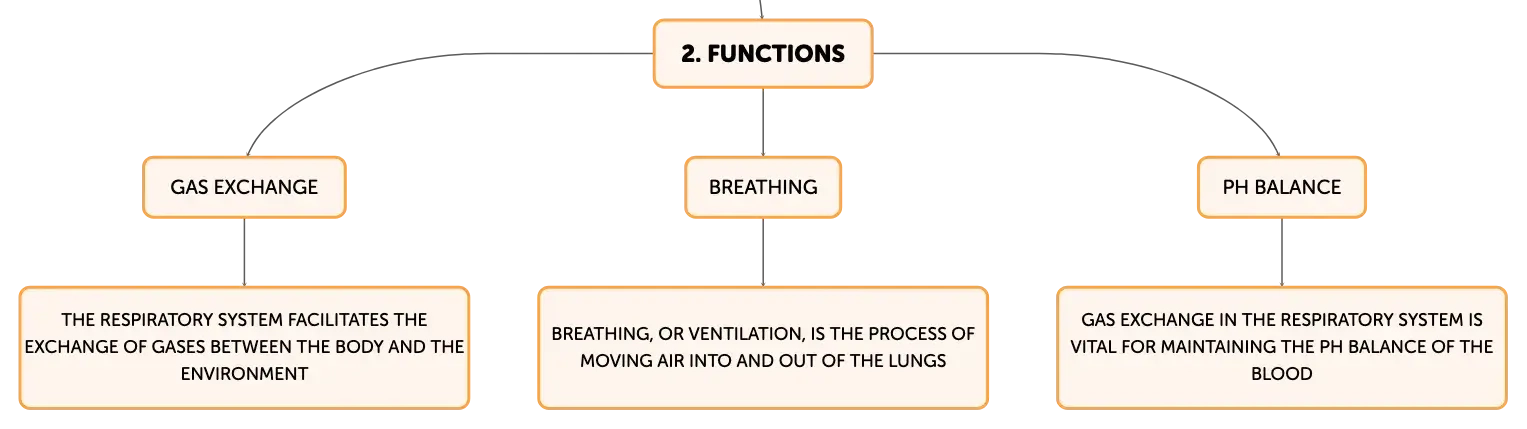

  • Functions

  • Gas Exchange

  • The respiratory system facilitates the exchange of gases between the body and the environment

  • Breathing

  • Breathing, or ventilation, is the process of moving air into and out of the lungs

  • pH Balance

  • Gas exchange in the respiratory system is vital for maintaining the pH balance of the blood

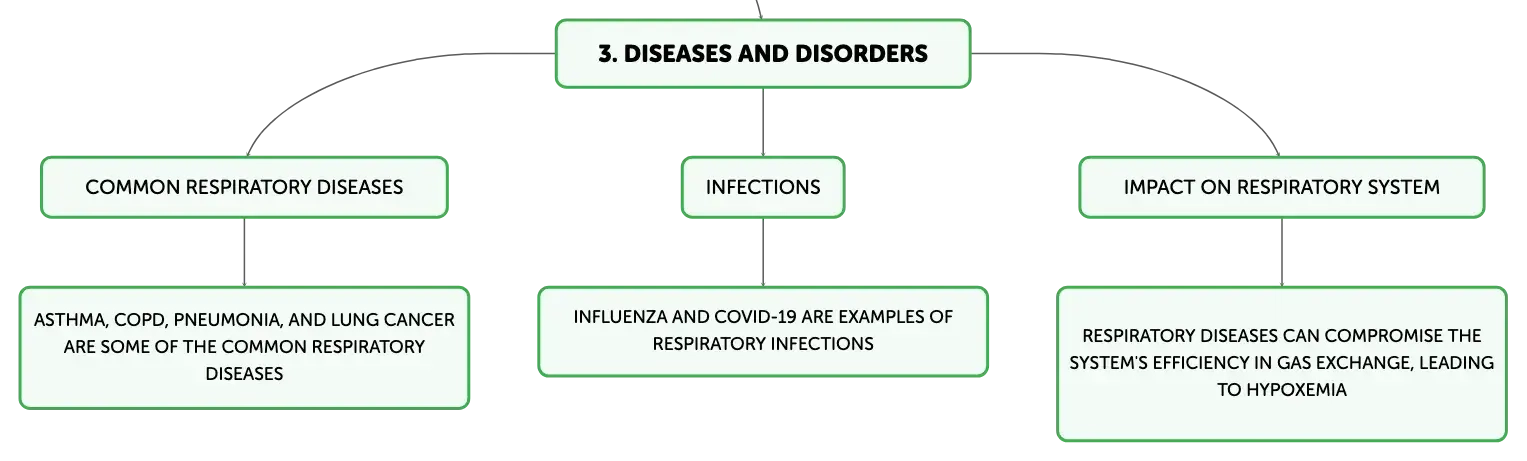

  • Diseases and Disorders

  • Common Respiratory Diseases

  • Asthma, COPD, pneumonia, and lung cancer are some of the common respiratory diseases

  • Infections

  • Influenza and COVID-19 are examples of respiratory infections

  • Impact on Respiratory System

  • Respiratory diseases can compromise the system's efficiency in gas exchange, leading to hypoxemia

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Main components of the respiratory system

Airways, lungs, respiratory muscles

01

Role of the diaphragm in respiration

Facilitates inhalation and exhalation by altering thoracic cavity volume

02

The ______ system is comprised of parts such as the nasal cavity, pharynx, and alveoli, where the alveoli are crucial for ______ exchange.

respiratory

gas

03

Inhaled air is cleaned and moistened in the ______ cavity, then passes through the ______, which houses the vocal cords, before reaching the lungs.

nasal

larynx

04

Role of diaphragm in breathing

Diaphragm contracts and moves down for inhalation, relaxes and moves up for exhalation.

05

Function of external intercostal muscles

Lift ribs during inhalation to increase chest volume.

06

Muscles used in forced exhalation

Internal intercostal and abdominal muscles contract to expel air.

07

In the respiratory system, ______ diffuses from the alveoli to the pulmonary capillaries because it has a higher partial pressure in the ______.

Oxygen

alveoli

08

______ moves from the blood to the alveoli as it has a higher partial pressure in the ______, which is crucial for pH balance and homeostasis.

Carbon dioxide

blood

09

Air conditioning in respiratory pathway

Air is warmed, moistened, and filtered in nasal/oral cavity.

10

Function of alveoli

Alveoli allow gas exchange between air and blood.

11

Respiratory defense mechanisms

Mucous membranes and cilia trap pathogens and particulates.

12

To preserve the health of the ______ system, it's crucial to engage in preventative actions such as ______ and to minimize exposure to harmful substances.

respiratory

vaccinations

13

Respiratory system's primary functions

Oxygen uptake for cellular respiration; elimination of CO2.

14

Processes ensuring respiratory efficiency

Ventilation, diffusion, perfusion; coordinated by airways, lungs, muscles.

15

Consequences of respiratory diseases

Disruption of homeostasis; impacts oxygen and CO2 exchange, overall health.
