Kernel Density Estimation (KDE)

Kernel Density Estimation (KDE) is a statistical method for estimating the probability density function of a continuous random variable. It's a non-parametric approach that uses a kernel to smooth data points and reveal underlying patterns. The choice of bandwidth is crucial, affecting the estimate's precision. KDE finds applications in various fields, from environmental science to finance, and can be adapted for different data structures and analysis goals.

See more
Open map in editor

1

3

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In disciplines like ______, ______, and ______, KDE helps analyze complex data by applying a smooth curve over each point and aggregating them.

Click to check the answer

economics machine learning environmental science

2

Kernel function role in KDE

Click to check the answer

Kernel function K influences the shape of the curve around each data point; common choices include Gaussian, Epanechnikov, and uniform kernels.

3

Bandwidth significance in KDE

Click to check the answer

Bandwidth h determines smoothness of KDE; small h may lead to overfitting (noise), large h may underfit (oversmoothing).

4

Effect of data points number on KDE

Click to check the answer

The number of data points n affects the KDE's accuracy; more points can provide a more reliable estimate, assuming appropriate bandwidth.

5

To find the optimal ______, methods like ______ are used to minimize bias and variance in KDE.

Click to check the answer

bandwidth cross-validation

6

KDE Gaussian Kernel: Purpose

Click to check the answer

Estimates continuous probability density function of data.

7

KDE Bandwidth: Importance

Click to check the answer

Controls smoothness of KDE curve; too narrow or wide affects accuracy.

8

In the field of ______ and environmental science, KDE is utilized to model the distribution of resources and analyze ______ habitats.

Click to check the answer

geography animal

9

KDE is applied in ______ to assist in risk management by examining the distributions of ______ returns.

Click to check the answer

finance asset

10

Silverman's rule of thumb purpose

Click to check the answer

Provides quick KDE bandwidth estimate using data's standard deviation and size.

11

Effect of overly broad bandwidth in KDE

Click to check the answer

May hide important data features, leading to oversimplified analysis.

12

Consequence of too narrow bandwidth in KDE

Click to check the answer

Can introduce false complexity, suggesting misleading data structure.

13

______ Kernel Density Estimation uses a Gaussian function, ideal for data similar to a ______ distribution.

Click to check the answer

Gaussian normal

14

______ Kernel Density Estimation adjusts the bandwidth based on the ______ data structure, providing a more detailed representation.

Click to check the answer

Adaptive local

15

KDE Kernel Functions Purpose

Click to check the answer

Kernel functions in KDE weight data points to create a smooth density estimate.

16

KDE Bandwidth Role

Click to check the answer

Bandwidth in KDE controls the smoothness of the estimated density curve; larger bandwidths lead to smoother curves.

17

KDE Applications

Click to check the answer

KDE is used in various fields like environmental studies and finance for non-parametric data analysis.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Statistical Data Presentation

View document

Mathematics

Hypothesis Testing for Correlation

View document

Mathematics

Statistical Testing in Empirical Research

View document

Mathematics

Standard Normal Distribution

View document

Exploring Kernel Density Estimation (KDE)

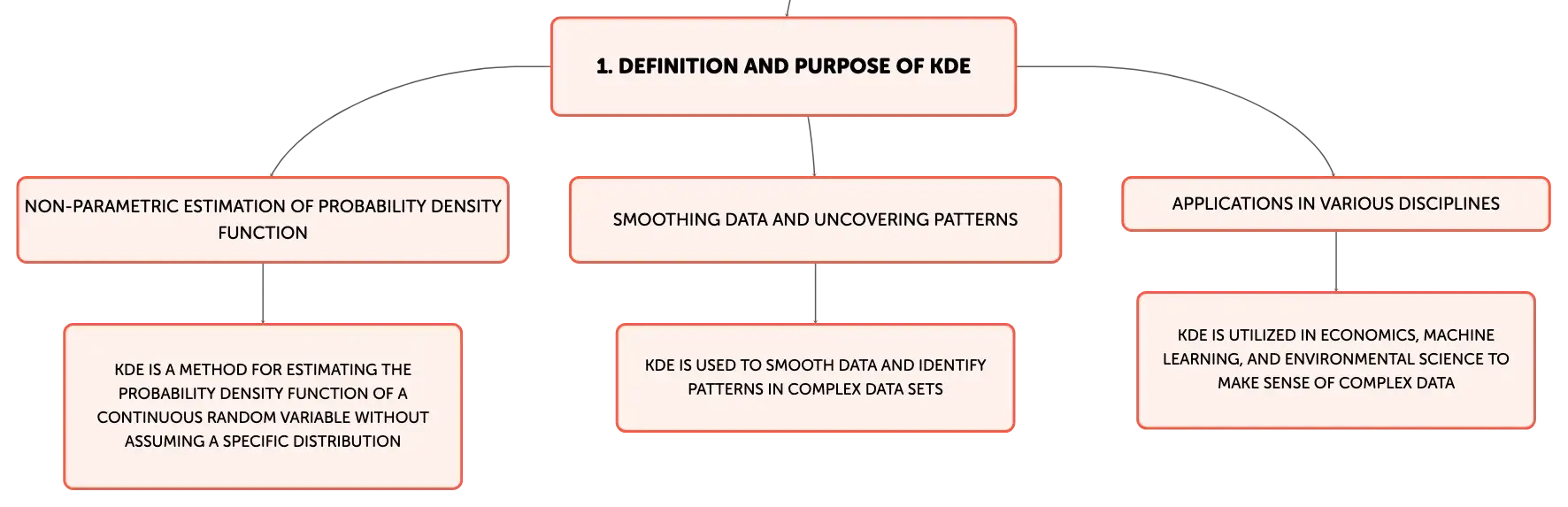

Kernel Density Estimation (KDE) is a non-parametric way to estimate the probability density function (PDF) of a continuous random variable. It is a valuable tool for smoothing data and uncovering patterns when the precise distribution is unknown. KDE is utilized in various disciplines, such as economics, machine learning, and environmental science, to make sense of complex data. The method involves overlaying a kernel—a smooth, bell-shaped curve—over each data point and summing these to approximate the overall distribution. The kernel's shape and the bandwidth, which controls the kernel's spread, are crucial in forming the estimate.
Close-up view of rolling sand dunes under a clear sky, with long shadows highlighting the natural curves in beige and gold tones.

The Mathematical Underpinnings of KDE

The kernel density estimate at a specific point x is calculated using the formula: \[\hat{f}(x) = \frac{1}{nh}\sum_{i=1}^{n} K\left(\frac{x - x_i}{h}\right)\] where \(n\) is the number of data points, \(x_i\) represents the data points, \(K\) is the kernel function, and \(h\) is the bandwidth. The bandwidth is a key parameter that determines the smoothness of the estimated density function. A smaller bandwidth yields a more detailed estimate but may include noise, whereas a larger bandwidth provides a smoother estimate that may overlook important data characteristics such as multimodality.

The Critical Role of Bandwidth in KDE

Bandwidth selection is a critical component of KDE, influencing the precision of the density estimate and the data's interpretation. Optimal bandwidth can be determined through methods like cross-validation, which seeks to balance bias and variance in the estimate. The adaptive nature of KDE allows for flexibility and accuracy, especially when dealing with complex or multimodal data. The bandwidth serves as a smoothing parameter, with its magnitude directly affecting the granularity of the estimated density curve.

KDE in Action: A Practical Example

Consider a dataset of student heights to see KDE in action. By applying KDE with a Gaussian kernel and a carefully chosen bandwidth, one can estimate the distribution of heights and discern patterns. The process entails selecting a kernel, setting the bandwidth, and computing the KDE for points across the data range. Visualization of the KDE can be achieved with software like Python's seaborn or R's ggplot2, which facilitate the interpretation of the density distribution.

KDE's Broad Application Spectrum

KDE's adaptability is showcased by its broad application spectrum. In geography and environmental science, it is used to model resource distribution and study animal habitats or pollutant dispersion. Law enforcement agencies employ KDE for crime mapping to identify hotspots and efficiently allocate resources. In finance, KDE aids in risk management by analyzing asset return distributions. In the realms of machine learning and data science, KDE is instrumental for anomaly detection, clustering, and improving algorithm performance by understanding data distributions.

Selecting the Right Bandwidth for KDE

The correct bandwidth is essential for KDE's effectiveness. Silverman's rule of thumb offers a quick bandwidth estimate based on the data's standard deviation and size, while cross-validation methodically evaluates multiple bandwidths to minimize the error in prediction. The bandwidth's impact on KDE interpretation is substantial; an overly broad bandwidth may obscure key features, whereas an excessively narrow bandwidth may create the illusion of complexity. Fine-tuning the bandwidth is vital to accurately uncover the data's true structure.

Diverse Forms of Kernel Density Estimation

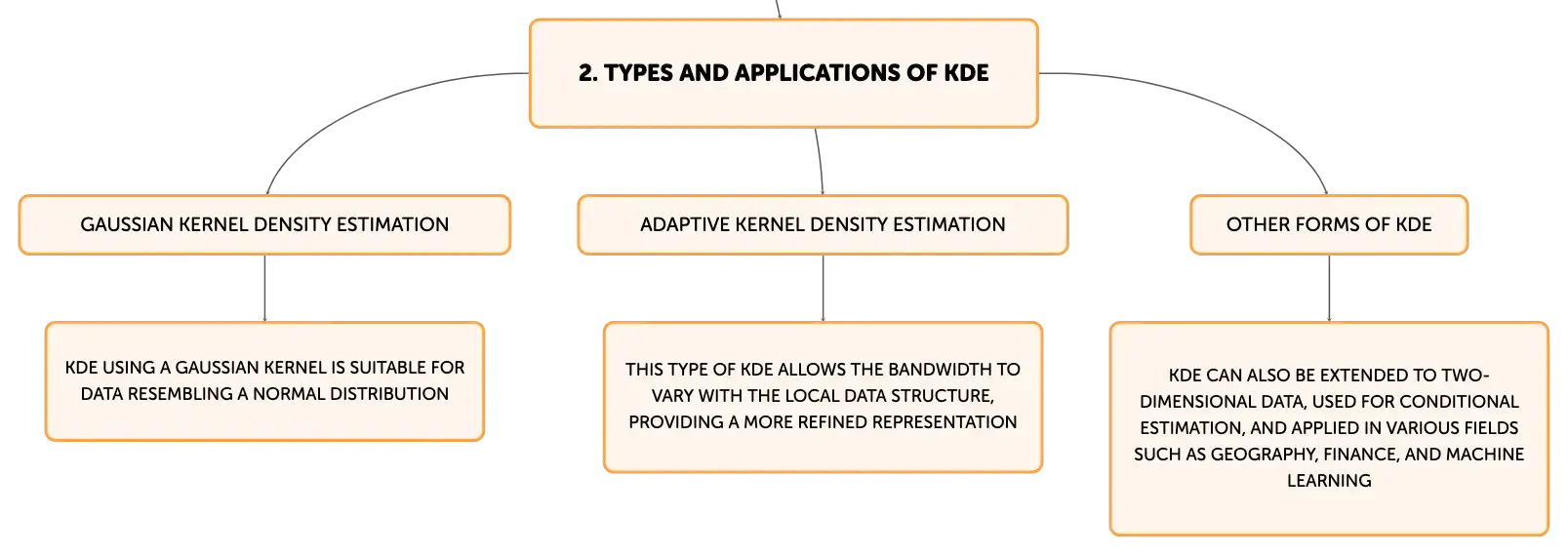

KDE comes in various forms, each tailored to specific analytical needs. Gaussian Kernel Density Estimation employs a Gaussian function as the kernel, suitable for data resembling a normal distribution. Adaptive Kernel Density Estimation allows the bandwidth to vary with the local data structure, offering a more refined representation. Two-Dimensional (2D) Kernel Density Estimation extends the technique to spatial data analysis. Conditional Kernel Density Estimation calculates the density of one variable contingent on another, useful for exploring inter-variable relationships. The selection of KDE type should align with the dataset's nature and the goals of the analysis.

Key Insights into Kernel Density Estimation

Kernel Density Estimation (KDE) is an indispensable statistical method for estimating the probability density function of a random variable without presupposing a specific distribution. It employs various kernel functions, such as Gaussian, Epanechnikov, and Uniform, to weight data points and uses bandwidth to regulate the density curve's smoothness. KDE can adjust to different data regions through adaptive estimation, extend to two dimensions, or conditionally estimate based on other variables. Its widespread application, from environmental studies to finance, underscores its significance in data analysis.
