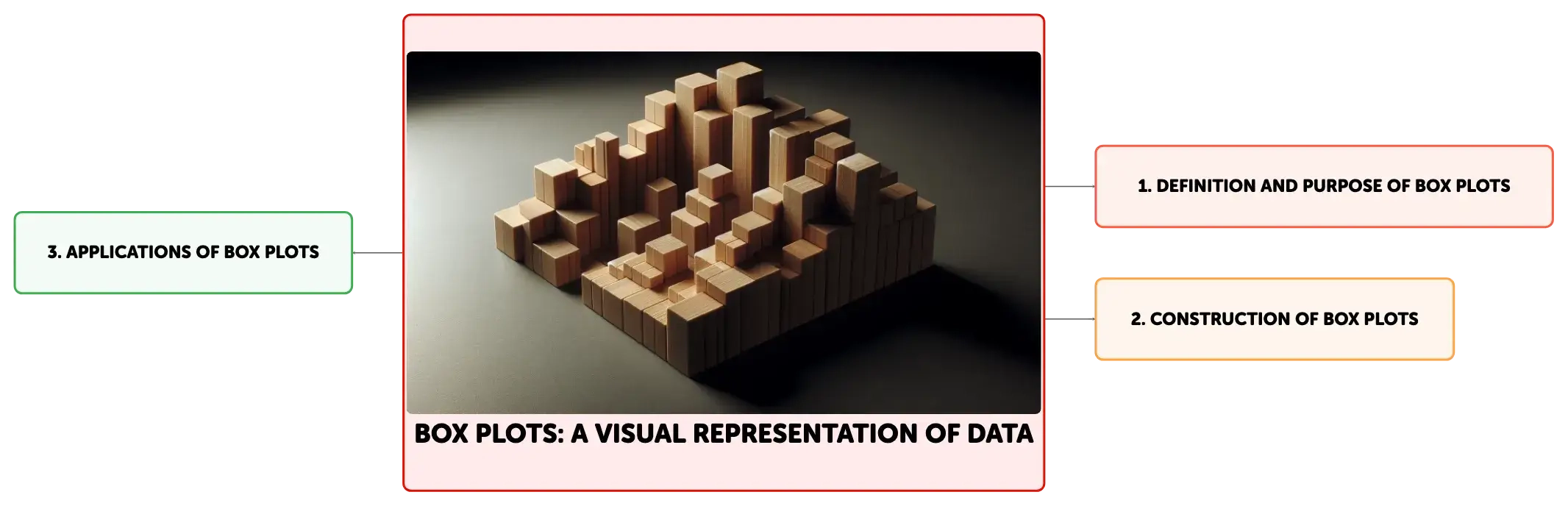

Box Plots: A Visual Representation of Data

Exploring the Fundamentals of Box Plots

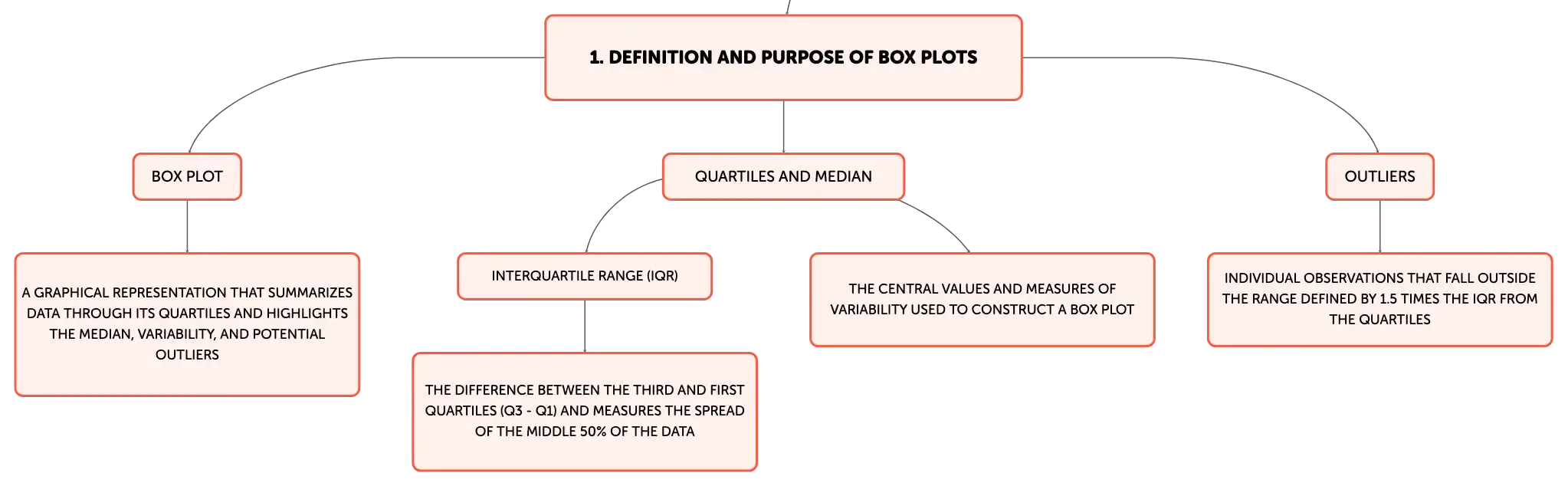

A box plot, or box-and-whisker plot, is a graphical representation that summarizes data through its quartiles and highlights the median, variability, and potential outliers. It consists of a box, which spans from the first quartile (Q1) to the third quartile (Q3), encapsulating the middle 50% of the data set. The median is indicated by a line within the box. Whiskers extend from the box to the smallest and largest values that are within 1.5 times the interquartile range (IQR) from the Q1 and Q3, respectively. Data points outside this range are plotted as individual points and labeled as outliers.

Understanding the Interquartile Range and Outliers

The interquartile range (IQR) is the difference between the third and first quartiles (Q3 - Q1) and measures the spread of the middle 50% of the data. It is a robust measure of variability that is less influenced by extreme values than the range. Outliers are individual observations that fall outside the range defined by 1.5 times the IQR from the quartiles. For example, if Q1 is 5.5 and the IQR is 2, any data point below 2.5 (5.5 - 1.5 * 2) or above 8.5 (5.5 + 1.5 * 2) would be considered an outlier. Identifying the IQR and outliers is crucial for accurate interpretation of box plots and understanding the underlying data distribution.

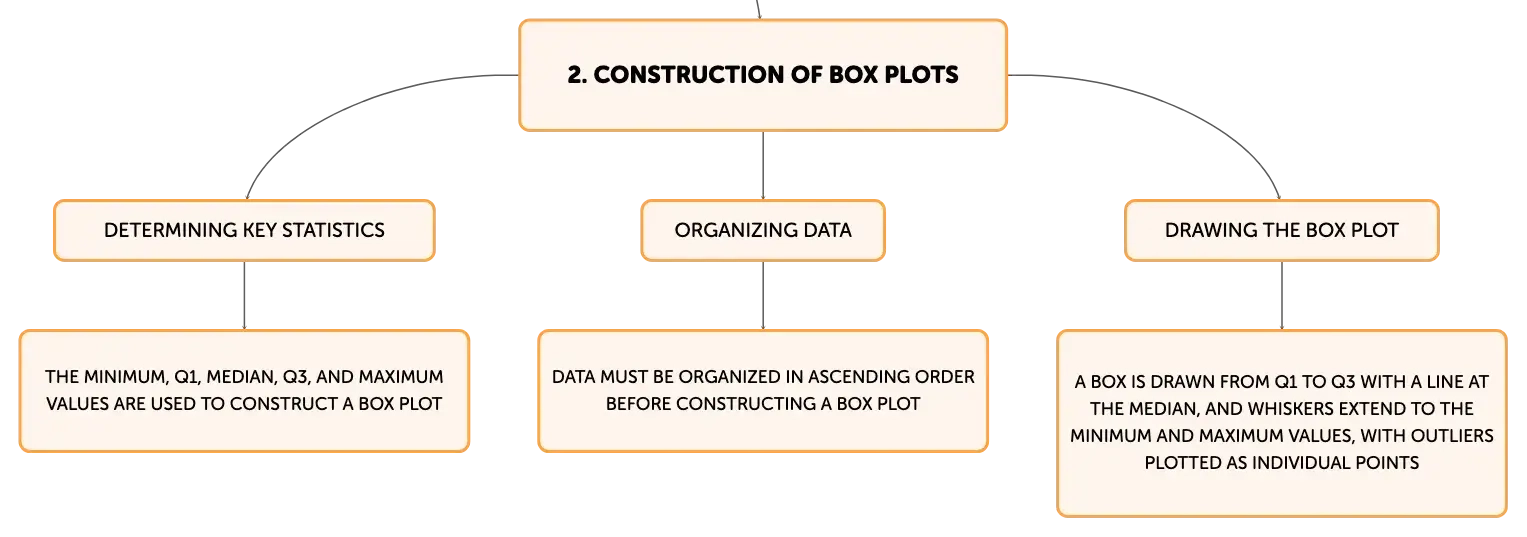

Steps to Construct a Box Plot

Constructing a box plot requires determining five key statistics: the minimum, Q1, median, Q3, and maximum. Begin by organizing the data in ascending order. The median (Q2) is the central value for an odd number of observations or the average of the two central values for an even number. Q1 and Q3 are the medians of the data points below and above the median, respectively. The minimum and maximum are the smallest and largest non-outlier data points. With these statistics, draw a box from Q1 to Q3 with a line at the median, and add whiskers from the box to the minimum and maximum values. Plot any outliers as individual points.

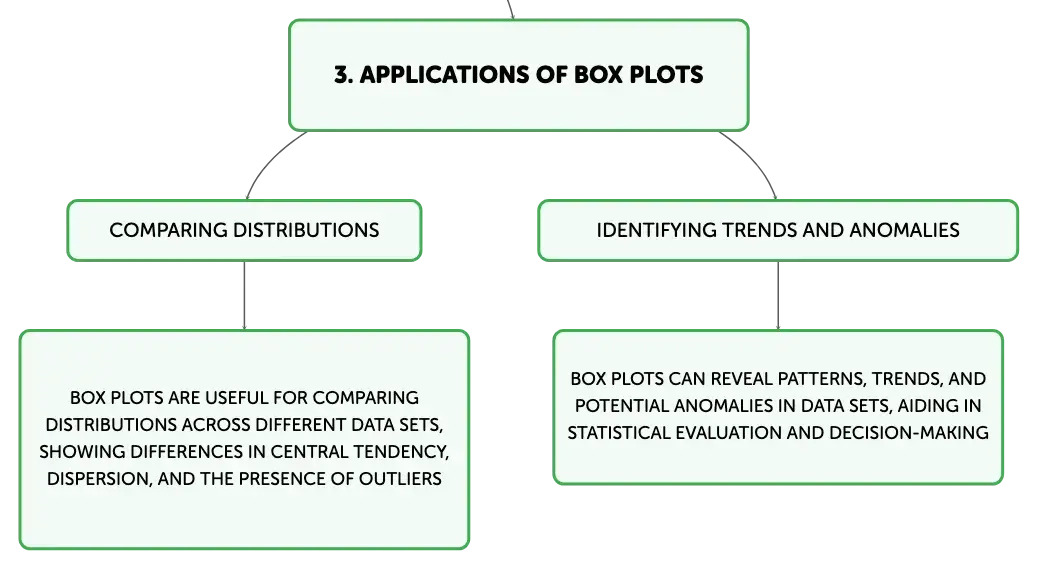

Comparative Analysis with Box Plots

Box plots are invaluable for comparing distributions across different data sets. The position and length of the box and whiskers provide visual cues about the central tendency, dispersion, and skewness of the data. When comparing multiple box plots, one can assess differences in medians, quartile ranges, and the presence of outliers. For instance, in comparing the heights of two groups, the box plots may show differences in median height and the variability of heights within each group. Such comparisons can be critical in identifying trends, patterns, and potential anomalies across data sets.

Gleaning Insights from Box Plot Interpretation

Box plots offer a succinct visual summary of data, revealing its distribution, central tendency, and spread. They depict the minimum, Q1, median, Q3, and maximum, as well as any outliers, providing a comprehensive view of the data's range and potential extremes. By analyzing box plots, one can discern the symmetry or skewness of the distribution and compare the distributions of different data sets. Mastery of box plot creation, interpretation, and application is a fundamental aspect of data analysis, equipping students with the tools for informed statistical evaluation and decision-making.
