The North-West Corner Method for Transportation Problems

The North-West Corner Method is an algorithm used to solve transportation problems in operations research. It aims to distribute goods cost-effectively from suppliers to consumers, starting at the cost matrix's north-west corner and allocating resources to minimize total transportation costs while adhering to supply and demand constraints. This method is a stepping stone to more advanced optimization techniques and is essential for logistics and supply chain management.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The - Corner Method is a technique used in ______ ______ to address transportation issues.

Click to check the answer

North-West operations research

2

The main objective of this method is to reduce the overall ______ ______ while adhering to the supply and demand ______.

Click to check the answer

transportation cost constraints

3

Objective of transportation problem in LP

Click to check the answer

Minimize total transportation cost, function Z = sum of c_ij * x_ij for all sources i and destinations j.

4

Meaning of c_ij and x_ij in transportation problem

Click to check the answer

c_ij is cost per unit from source i to destination j, x_ij is number of units transported.

5

Handling unequal supply and demand in transportation problems

Click to check the answer

Add dummy row or column with zero cost to balance the problem before using North-West Corner Method.

6

In the transportation problem, the North-West Corner Method offers an initial feasible solution by iteratively allocating until all ______ and ______ are met.

Click to check the answer

supplies demands

7

North-West Corner Method purpose

Click to check the answer

Generates initial solutions for logistics problems; not necessarily optimal.

8

Post North-West Corner Method optimization

Click to check the answer

Stepping-stone and MODI methods refine initial allocations for optimality.

9

To address unbalanced transportation issues, the - Corner Method introduces a ______ source or destination to equalize supply and demand.

Click to check the answer

North-West dummy

10

In the North-West Corner Method, after balancing with a dummy, the allocations are made as if it's a ______ problem, and then the dummy entries are ______ to find the original solution.

Click to check the answer

balanced disregarded

11

North-West Corner Method: Initial Step

Click to check the answer

Begin at north-west corner of matrix; allocate min(supply, demand) to minimize cost.

12

North-West Corner Method: Constraint Adherence

Click to check the answer

Ensure supply and demand constraints are satisfied after each allocation.

13

North-West Corner Method: Solution Evaluation

Click to check the answer

Compare with other methods to assess solution quality and identify potential improvements.

14

The - Corner Method is essential for creating initial solutions to ______ problems in operations research.

Click to check the answer

North-West transportation

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Statistical Testing in Empirical Research

Mathematics

Correlation and Its Importance in Research

Mathematics

Standard Normal Distribution

Mathematics

Ordinal Regression

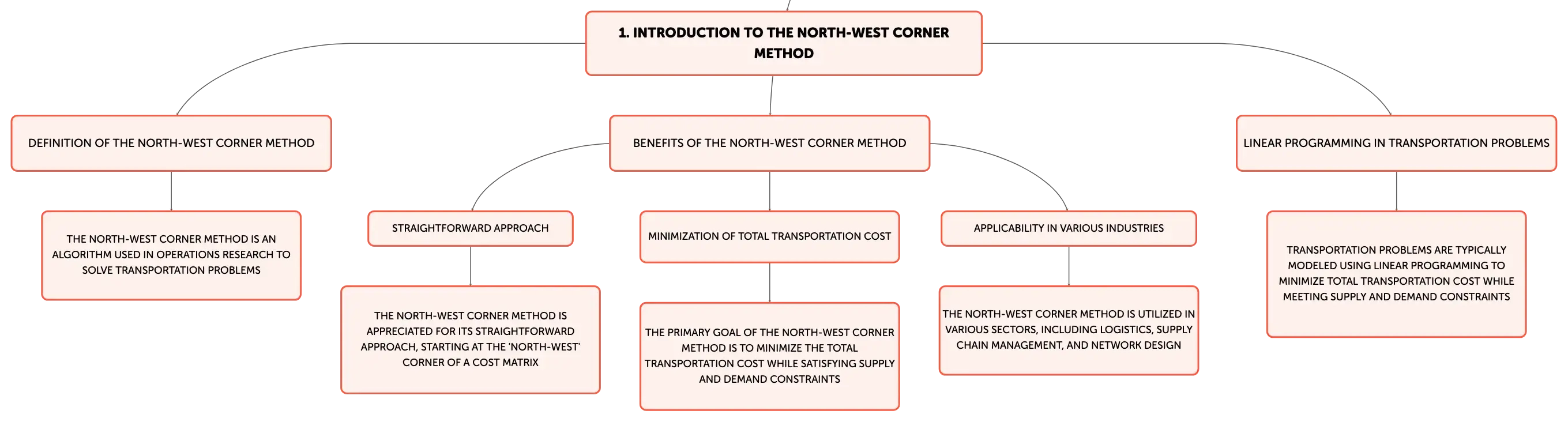

Introduction to the North-West Corner Method for Transportation Problems

The North-West Corner Method is an algorithm used in operations research to solve transportation problems, which involve finding the most cost-effective way to distribute goods from several suppliers to various consumers. This method is appreciated for its straightforward approach, starting at the 'north-west' corner of a cost matrix and progressing through the matrix to allocate resources. The primary goal is to minimize the total transportation cost while satisfying the supply and demand constraints at each source and destination.
Close-up of a hand-drawn grid on white paper with colorful and natural wooden blocks forming a path.

Mathematical Framework of Transportation Problems

Transportation problems are typically modeled using linear programming. The objective is to minimize the total transportation cost, represented by the function \( Z = \sum_{i=1}^{m}\sum_{j=1}^{n} c_{ij}x_{ij} \), where \( c_{ij} \) is the cost to transport a unit of goods from source \(i\) to destination \(j\), and \( x_{ij} \) is the number of units transported. The constraints ensure that the supply at each source \( \sum_{j=1}^{n} x_{ij} = a_i \) and the demand at each destination \( \sum_{i=1}^{m} x_{ij} = b_j \) are met. If the total supply and demand are unequal, a dummy row or column with zero cost is added to balance the problem before applying the North-West Corner Method.

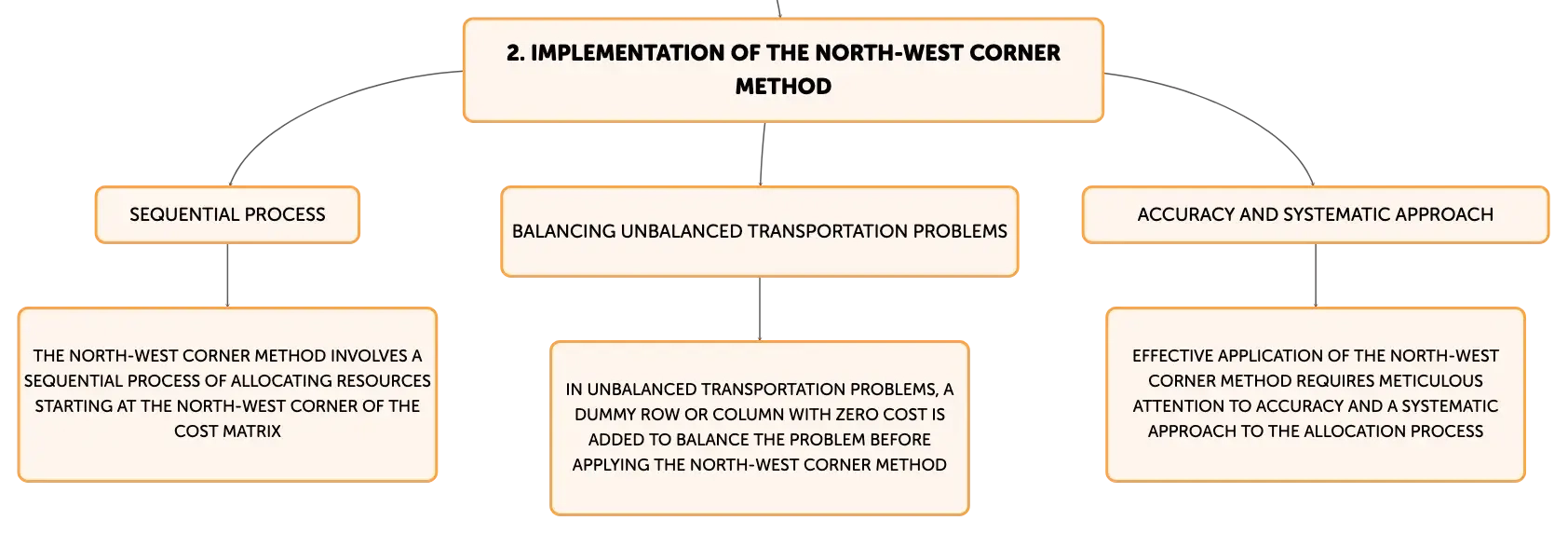

Implementing the North-West Corner Method

The implementation of the North-West Corner Method involves a sequential process. Starting at the north-west corner of the cost matrix, the maximum possible quantity is allocated without exceeding the supply and demand constraints. Once the supply for a row or the demand for a column is satisfied, the method moves to the next row or column. This allocation continues iteratively until all supplies and demands are fulfilled, providing an initial feasible solution to the transportation problem.

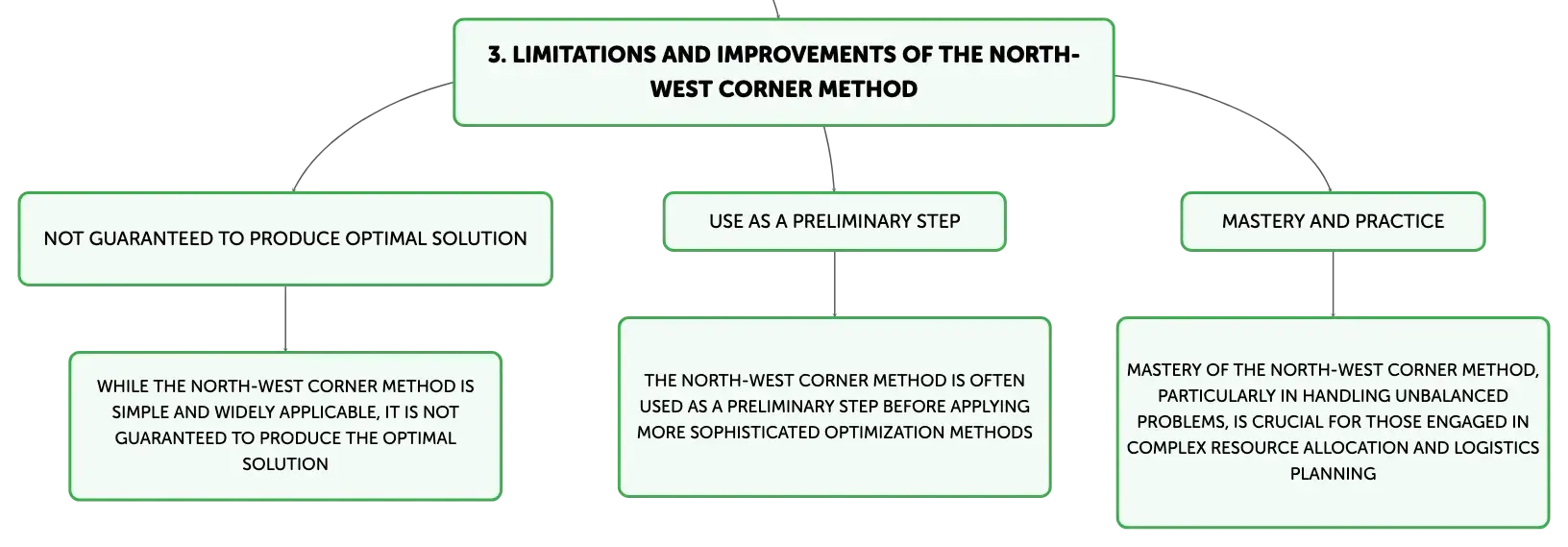

Practical Applications and Constraints

The North-West Corner Method is utilized in various sectors, including logistics, supply chain management, and network design, due to its simplicity in generating initial solutions. However, it is not guaranteed to produce the optimal solution. As such, it is often used as a preliminary step before applying more sophisticated optimization methods, such as the stepping-stone or the modified distribution (MODI) method, to improve upon the initial allocation.

Addressing Unbalanced Transportation Problems

When faced with unbalanced transportation problems where supply does not equal demand, the North-West Corner Method requires the introduction of a dummy source or destination with zero transportation costs to balance the equation. The method is then applied as if it were a balanced problem. Once the allocations are determined, the dummy entries are disregarded to reveal the solution to the original problem.

Best Practices for the North-West Corner Method

Effective application of the North-West Corner Method necessitates meticulous attention to the accuracy of the input data and a systematic approach to the allocation process. It is important to continuously check that the supply and demand constraints are being met throughout the procedure. Comparing the initial solution with those obtained from other methods can provide a measure of the solution's quality. Practice with diverse problem sets can improve understanding and skill in using the method for transportation problem-solving.

Concluding Insights on the North-West Corner Method

The North-West Corner Method is a fundamental tool in operations research for generating initial solutions to transportation problems. Its simplicity and broad applicability make it a valuable technique in various industries. While it may not always lead to the optimal solution, it serves as a critical first step in the optimization process. Mastery of this method, particularly in handling unbalanced problems, is crucial for those engaged in complex resource allocation and logistics planning.
