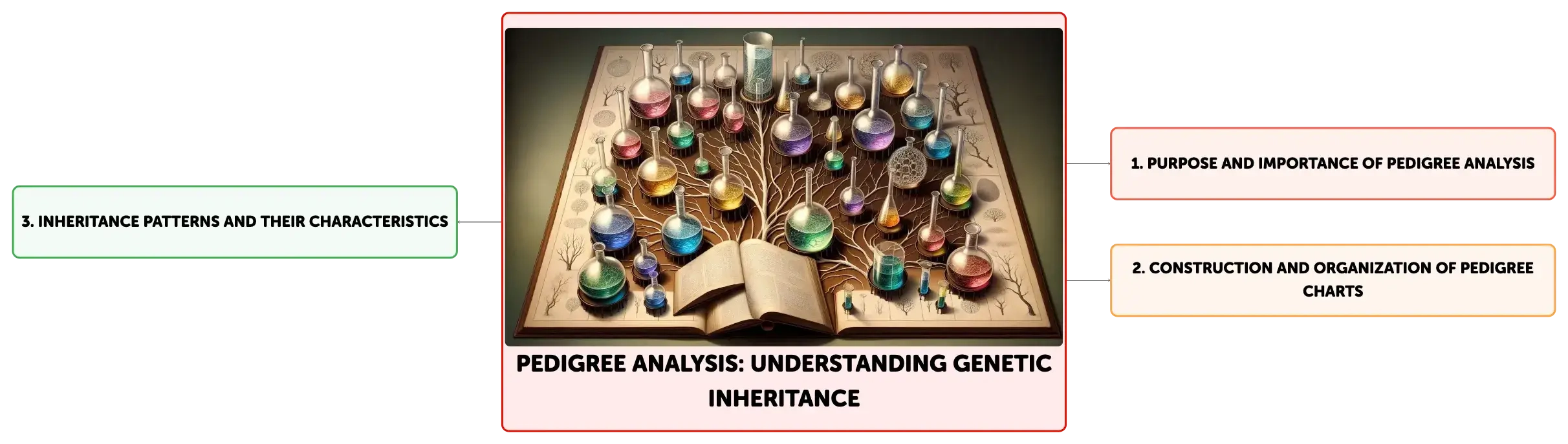

Pedigree Analysis: Understanding Genetic Inheritance

Pedigree analysis is a key tool in genetics for tracking the inheritance of traits and genetic conditions. It uses standardized symbols to represent individuals and their phenotypes, revealing patterns of autosomal recessive and dominant traits, X-linked and Y-linked disorders, and mitochondrial inheritance. These charts help predict trait transmission and are vital in genetics education.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Pedigree charts use symbols to show phenotypes, indicating affected individuals, ______, and the unaffected.

Click to check the answer

carriers of a trait

2

Symbol representation in pedigree charts

Click to check the answer

Filled symbols indicate individuals with a trait; unfilled for unaffected. Males, females, mating pairs, offspring, carriers have unique symbols.

3

Pedigree chart complexity variation

Click to check the answer

Charts range from simple to complex, showing just familial links or detailed info like causes of death and biological vs adopted relations.

4

Purpose of consistent symbols in pedigree charts

Click to check the answer

Ensures clarity in hereditary pattern representation across generations, aiding in the study of genetics and family traits.

5

For a(n) ______ ______ trait to be expressed, an individual must inherit two ______ alleles.

Click to check the answer

autosomal recessive recessive

6

Diseases like ______ ______ and ______ ______ ______ are inherited through an autosomal recessive pattern.

Click to check the answer

cystic fibrosis sickle cell anemia

7

Autosomal dominant inheritance - parent to child transmission rate

Click to check the answer

50% chance of passing the trait to offspring if one parent is affected and the other is not.

8

Examples of autosomal dominant disorders

Click to check the answer

Marfan syndrome and achondroplasia are examples of autosomal dominant disorders.

9

Use of pedigree charts in autosomal dominant disorders

Click to check the answer

Pedigree charts help predict inheritance likelihood and understand trait distribution in a family.

10

Disorders like ______ and ______ color blindness are passed down in an X-linked recessive manner.

Click to check the answer

Hemophilia red-green

11

X-linked dominant inheritance from father to offspring

Click to check the answer

Fathers pass X-linked dominant disorders to all daughters, no sons.

12

Identification of Y-linked disorders in pedigrees

Click to check the answer

Y-linked disorders show affected males in each generation, no females affected.

13

When illustrating ______ inheritance on pedigree charts, all ______ of an affected mother are shown as affected, but children of affected ______ do not inherit the trait.

Click to check the answer

mitochondrial children fathers

14

Pedigree analysis: visual representation benefits

Click to check the answer

Facilitates understanding of genetic principles by illustrating inheritance visually.

15

Application of pedigree charts in learning

Click to check the answer

Allows students to apply theoretical genetics to real-world family scenarios.

16

Pedigree charts: scope of illustration

Click to check the answer

Demonstrates inheritance of simple traits and complex patterns in genetic disorders.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Biology

Meiosis and Genetic Diversity

View document

Biology

Operon Theory

View document

Biology

DNA Structure and Function

View document

Biology

Genetic Inheritance and Punnett Squares

View document

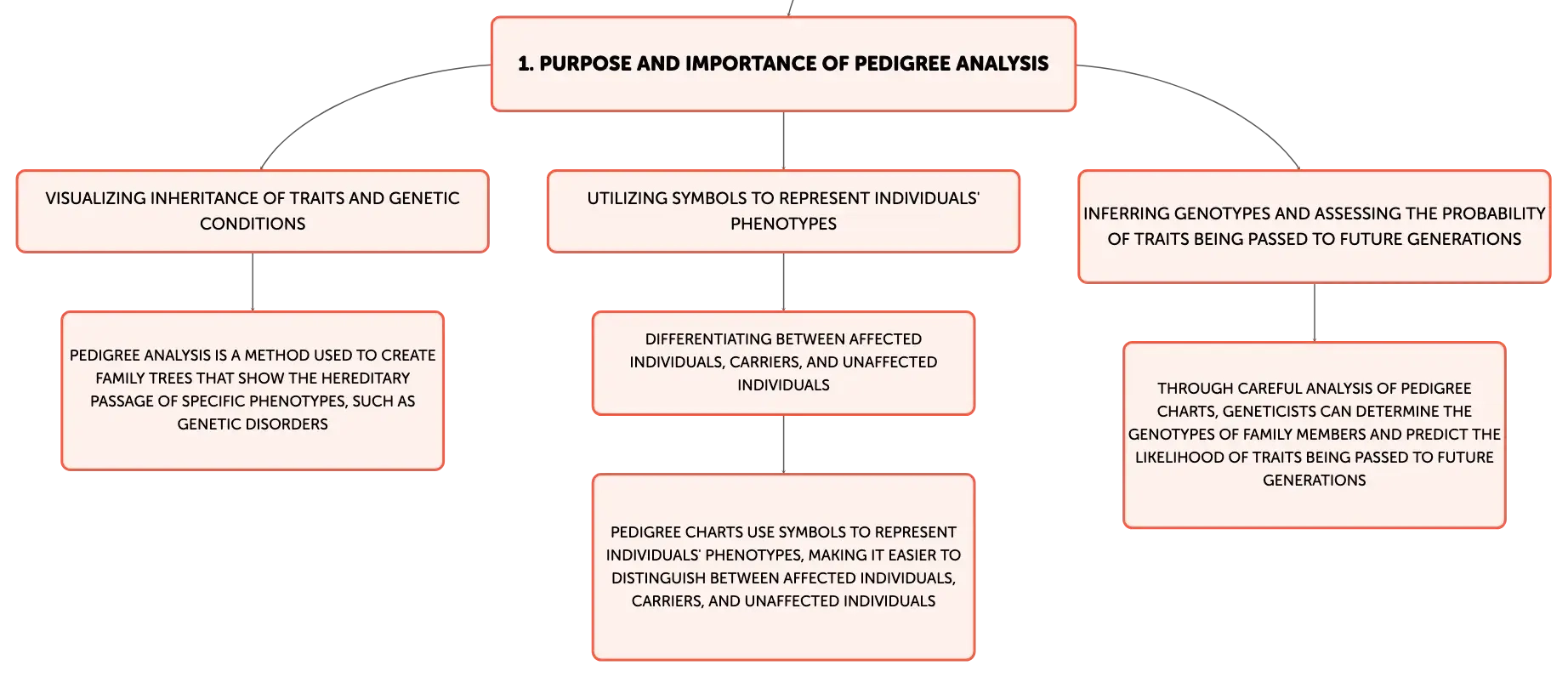

Exploring the Fundamentals of Pedigree Analysis in Genetics

Pedigree analysis is an essential method in genetics for visualizing the inheritance of traits and genetic conditions across generations within a family. It involves the construction of a detailed family tree that illustrates not only familial connections but also the hereditary passage of specific phenotypes, such as genetic disorders. Pedigree charts utilize universally recognized symbols to represent individuals' phenotypes, distinguishing between affected individuals, carriers of a trait, and those who are unaffected. Through careful analysis of these diagrams, geneticists can infer the genotypes of family members and assess the probability of traits being passed to future generations.
Polished wooden table with colorful liquid-filled glass flasks, a leather-bound book with tree illustrations, a chalkboard, and a potted plant by a window.

The Detailed Structure and Standardized Symbols of Pedigree Charts

Pedigree charts are meticulously organized to represent family relationships, including spousal unions, progeny, and the deceased. The complexity of these charts can vary, with some including additional details such as specific causes of death or differentiating between adopted and biological offspring. Individuals affected by a trait are typically represented by filled symbols, while those who are unaffected are depicted with unfilled symbols. A consistent set of symbols is employed to denote males, females, mating pairs, offspring, and carriers, facilitating the clear representation of hereditary patterns through successive generations.

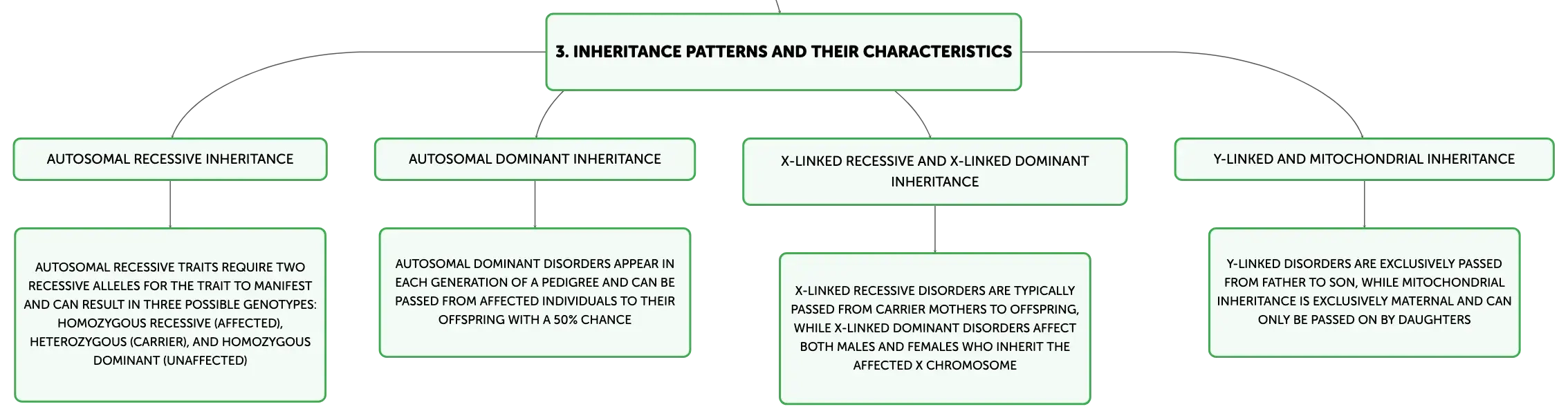

Autosomal Recessive Traits in Pedigree Analysis

Autosomal recessive traits necessitate the presence of two recessive alleles for the trait to manifest. This inheritance pattern results in three possible genotypes: homozygous recessive (affected), heterozygous (carrier), and homozygous dominant (unaffected). Conditions such as cystic fibrosis and sickle cell anemia are examples of diseases inherited in this manner. Pedigree analysis is instrumental in identifying carriers and in calculating the risk of offspring being affected by the trait. In pedigrees, autosomal recessive traits may not be evident in every generation, as carriers typically do not exhibit symptoms, leading to the misconception that the trait has skipped generations.

Tracing Autosomal Dominant Disorders with Pedigree Charts

Autosomal dominant disorders are characterized by their appearance in each generation of a pedigree, making them more conspicuous than recessive traits. Affected individuals will have at least one affected parent. Conditions such as Marfan syndrome and achondroplasia follow this inheritance pattern. An individual with an autosomal dominant disorder has a 50% chance of transmitting the trait to each offspring if the other parent is unaffected. Pedigree charts are invaluable in predicting the likelihood of inheritance and in understanding the distribution of dominant traits within a family.

X-linked Recessive Inheritance and Its Pedigree Characteristics

X-linked recessive disorders are typically transmitted from carrier mothers to offspring, with males being more frequently affected due to their single X chromosome. Affected males cannot transmit the disorder to their sons but can pass the carrier status to their daughters. Hemophilia and red-green color blindness are examples of X-linked recessive disorders. In pedigree charts, the prevalence of these disorders in males and the absence of father-to-son transmission are indicative of an X-linked recessive inheritance pattern.

The Uncommon Patterns of X-linked Dominant and Y-linked Inheritance

X-linked dominant disorders, though less common, affect both males and females who inherit the affected X chromosome. Fathers with an X-linked dominant disorder will transmit the condition to all their daughters but none of their sons. Y-linked disorders are exclusively passed from father to son and are extremely rare. These disorders can be identified in pedigree charts by the pattern of affected males in each generation, with no females displaying the condition.

Maternal Transmission and Pedigree Patterns of Mitochondrial Inheritance

Mitochondrial inheritance is characterized by its exclusive maternal transmission, with affected mothers passing mitochondrial DNA traits to all their offspring, while affected fathers do not pass these traits to their children. Only daughters, however, can further transmit these traits to subsequent generations. Pedigree charts depicting mitochondrial inheritance will show all children of affected mothers as affected, regardless of sex, while no children of affected fathers will inherit the trait.

Utilizing Pedigree Analysis as a Pedagogical Instrument

Pedigree analysis is a potent pedagogical instrument that facilitates the comprehension of intricate genetic principles through visual representation. By engaging with pedigree charts, students can apply theoretical inheritance concepts to tangible familial scenarios, thereby enhancing their analytical and pattern recognition capabilities. Pedigree charts are not only illustrative of the inheritance of simple traits but also elucidate the multifaceted patterns associated with a variety of genetic disorders, rendering them an invaluable resource in genetics education.
