Probability Density Functions (PDFs) are crucial in statistics for representing continuous random variables' outcomes. They must be non-negative and integrate to one, differentiating them from PMFs for discrete variables. The text delves into PDF characteristics, the role of the Cumulative Distribution Function (CDF), and practical applications, using the normal distribution as a prime example.

Exploring Probability Density Functions

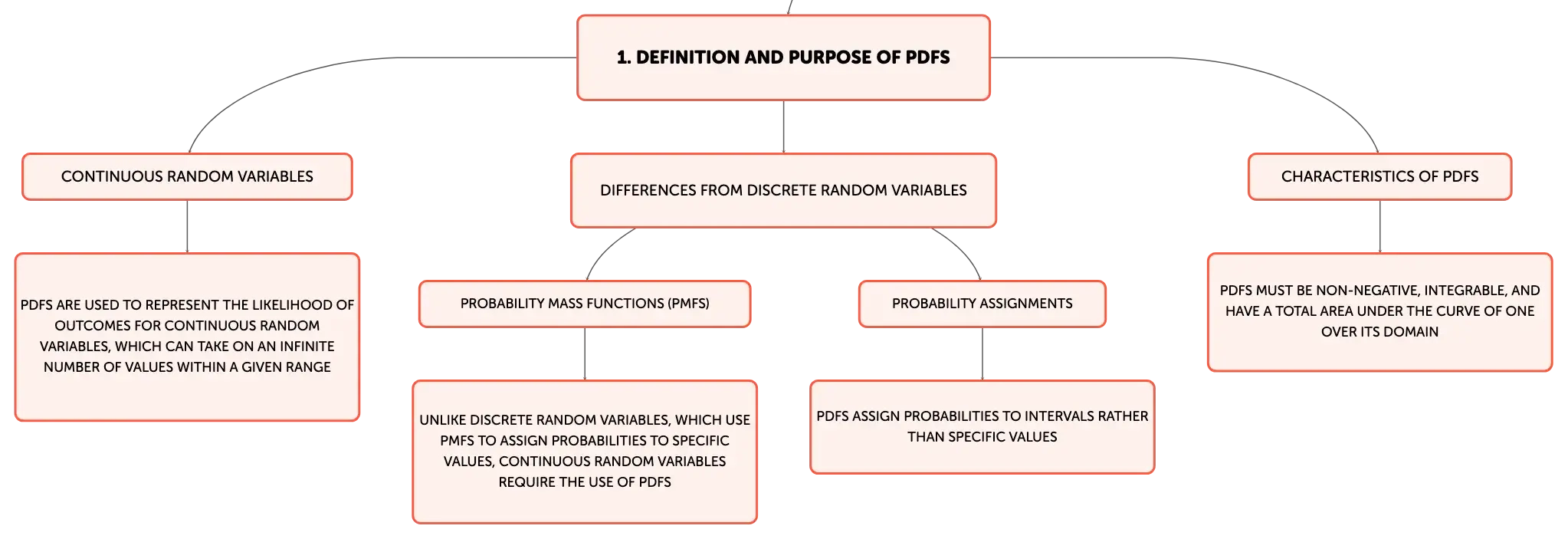

Probability density functions (PDFs) are essential tools in statistics for representing the likelihood of outcomes for continuous random variables—variables that can take on an infinite number of values within a given range. Unlike discrete random variables, which use a probability mass function (PMF) to assign probabilities to specific values, continuous random variables require the use of a PDF. A PDF, denoted as \(f_X(x)\) for a random variable \(X\), is a function that satisfies two conditions: it must be non-negative (\(f_X(x) \ge 0\) for all \(x\)), and the integral of \(f_X(x)\) over the entire space where \(X\) is defined must equal one (\(\int_{-\infty}^{\infty} f_X(x) \, \mathrm{d} x = 1\)), ensuring that the total probability across all possible outcomes is one.
Three bell-shaped glass flasks with colored liquids on laboratory bench: blue on the left, green in the center, red on the right, with subtle shadows.

Visualizing Probability Density Functions

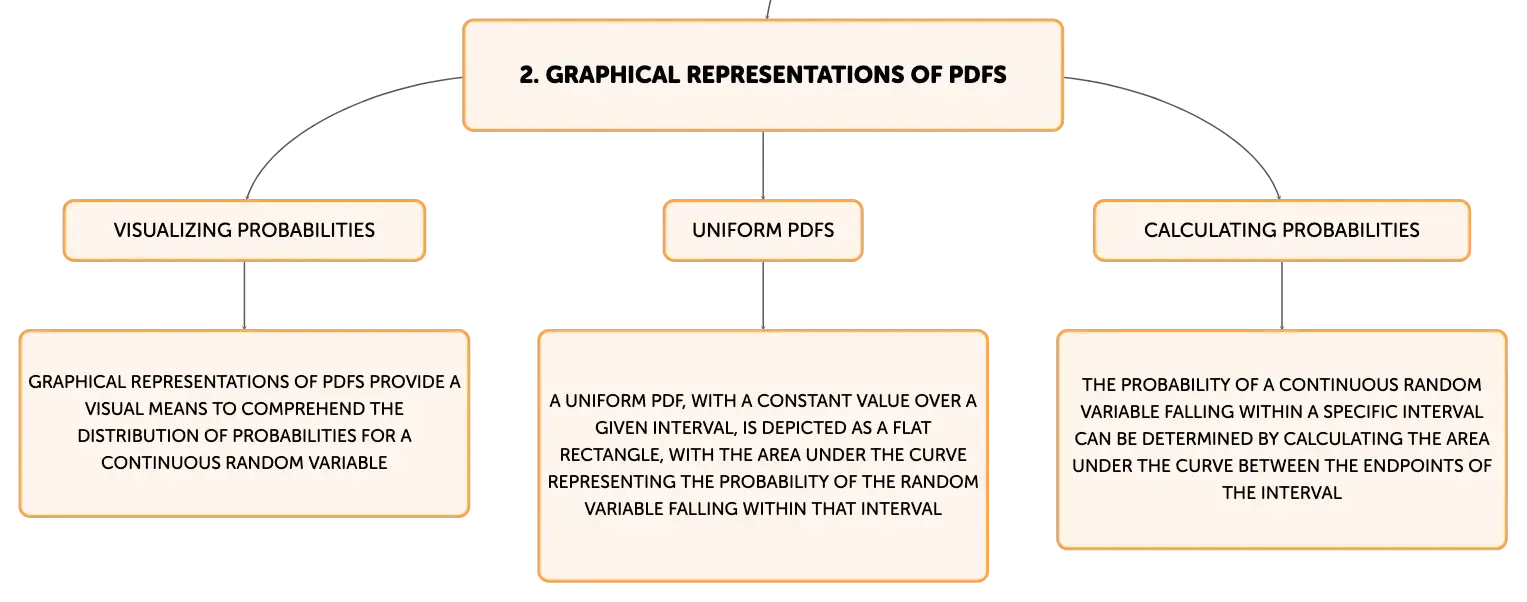

Graphical representations of PDFs provide a visual means to comprehend the distribution of a continuous random variable's probabilities. For instance, a uniform PDF defined on the interval [1, 11] with a constant value of \(f_X(x) = 0.1\) would be depicted as a flat rectangle from \(x = 1\) to \(x = 11\). The area under the curve within a specific interval represents the probability of the random variable falling within that interval. To determine the probability that \(X\) lies between 5 and 7, one would calculate the area under the curve between these points, which is \(P(5 < X < 7) = (7 - 5) \times 0.1 = 0.2\). This visual approach aids in understanding the distribution of probabilities and how they vary across different intervals.

Show More

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Define PDF in statistics.

PDF stands for Probability Density Function, a tool for representing likelihood of outcomes for continuous random variables.

01

Difference between PDF and PMF.

PDF is used for continuous random variables and is integrated to find probabilities, while PMF is used for discrete variables and sums probabilities of specific values.

02

Integral of PDF over all space.

The integral of a PDF over the entire space must equal one, ensuring total probability of all outcomes is one.
