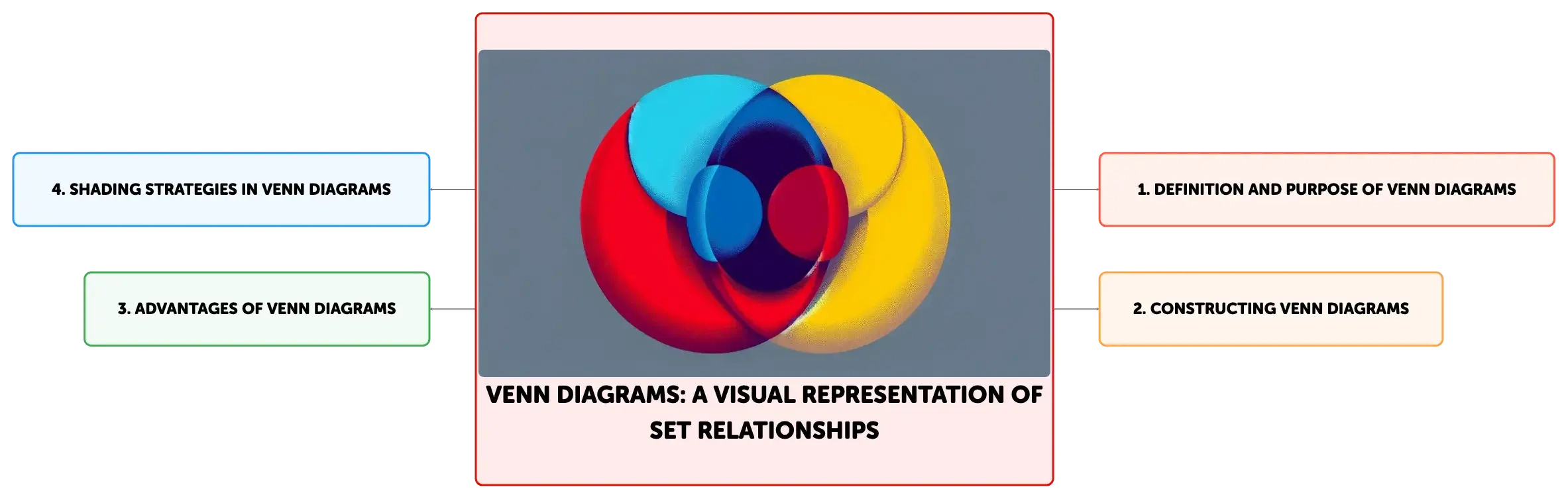

Venn Diagrams: A Visual Representation of Set Relationships

Venn diagrams are essential tools in set theory and probability, providing a visual representation of set relationships and interactions. They depict elements, intersections, and logical operations like union and intersection, aiding in the comprehension of complex relationships and the calculation of event probabilities. Shading techniques further illustrate logical connections, making Venn diagrams a fundamental aspect of mathematical analysis.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Venn Diagram Composition

Click to check the answer

Consists of overlapping circles within a universal set, typically a rectangle, representing logical set relationships.

2

Circle Representation in Venn Diagrams

Click to check the answer

Each circle represents a set; intersections show common elements between sets.

3

Universal Set Symbol

Click to check the answer

Denoted by uppercase letter U, encompasses all possible elements under consideration.

4

When depicting three sets in a Venn diagram, include an additional circle named ______, ensuring it intersects with circles ______ and ______.

Click to check the answer

C A B

5

Venn diagram purpose

Click to check the answer

Clarifies interactions within a universal set visually.

6

Venn diagram football and rugby intersection

Click to check the answer

Represents students playing both sports: 8.

7

Venn diagram exclusive participants

Click to check the answer

Shows students playing only one sport, excluding intersection.

8

In Venn diagrams, the ______ (A ∩ B) is the area where only the elements common to both sets are represented.

Click to check the answer

intersection

9

Events as Sets in Probability

Click to check the answer

Events represented by sets; probability calculated by favorable to total outcomes ratio.

10

Probability of Studying One Subject

Click to check the answer

Use Venn to find probability of one subject; identify non-overlapping regions for each.

11

Mutually Exclusive Events in Venn Diagrams

Click to check the answer

Mutually exclusive events have no intersection; Venn diagrams show this visually.

12

In Venn diagrams, to illustrate the area that is not part of set ______ but is included in set ______, the region outside ______ and within ______ is shaded.

Click to check the answer

A B A B

13

To visually convey the area that is not in either set ______ or set ______, one shades the region outside both ______ and ______ in a Venn diagram.

Click to check the answer

A B A B

14

Purpose of Venn diagrams

Click to check the answer

Visualize set relationships, understand probabilities, and logical operations in set theory.

15

Universal set (U) in Venn diagrams

Click to check the answer

Contains all possible elements, context for other sets within the diagram.

16

Importance of accounting for all elements

Click to check the answer

Ensures accurate representation and interpretation of set relationships in the diagram.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Statistical Testing in Empirical Research

View document

Mathematics

Statistical Data Presentation

View document

Mathematics

Ordinal Regression

View document

Mathematics

Correlation and Its Importance in Research

View document

Exploring the Fundamentals of Venn Diagrams in Set Theory and Probability

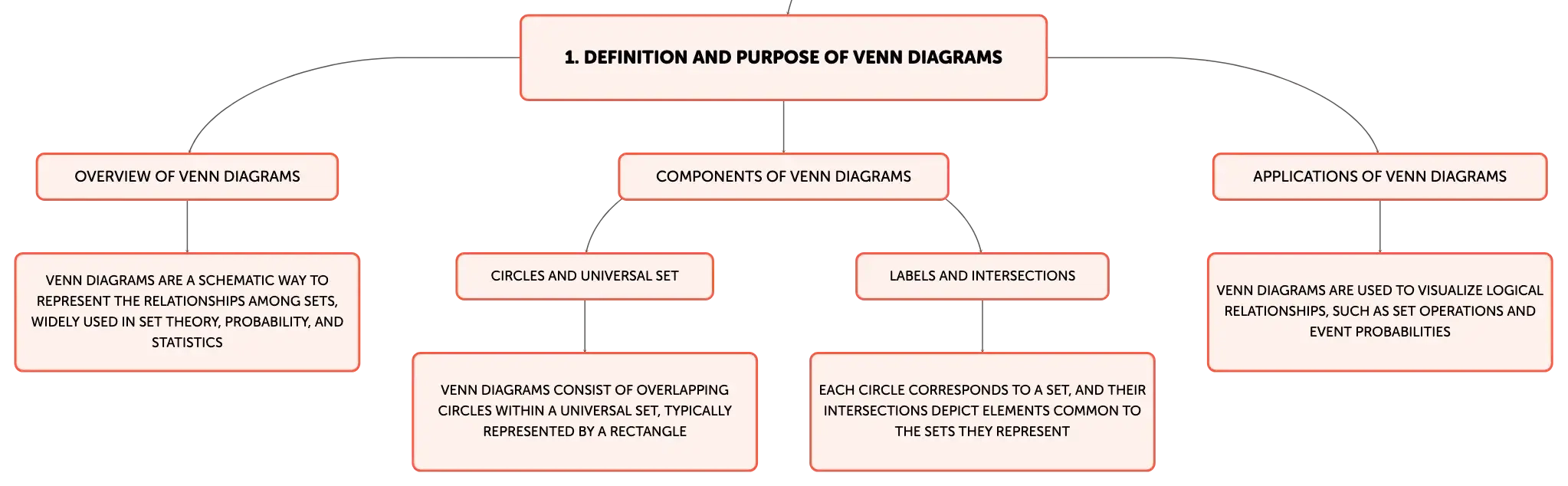

Venn diagrams are a schematic way to represent the relationships among sets, widely used in set theory, probability, and statistics to visualize logical relationships. These diagrams consist of overlapping circles within a universal set, typically represented by a rectangle. Each circle corresponds to a set, and their intersections depict elements common to the sets they represent. The universal set, often denoted by the uppercase letter U, contains all possible elements under consideration, not the lowercase Greek letter xi (𝛏) as previously stated.
Three overlapping circles in red, blue and yellow on a light gray background with intersecting areas creating purple, green and orange, and brown in the center.

Constructing Venn Diagrams for Visualizing Intersections of Sets

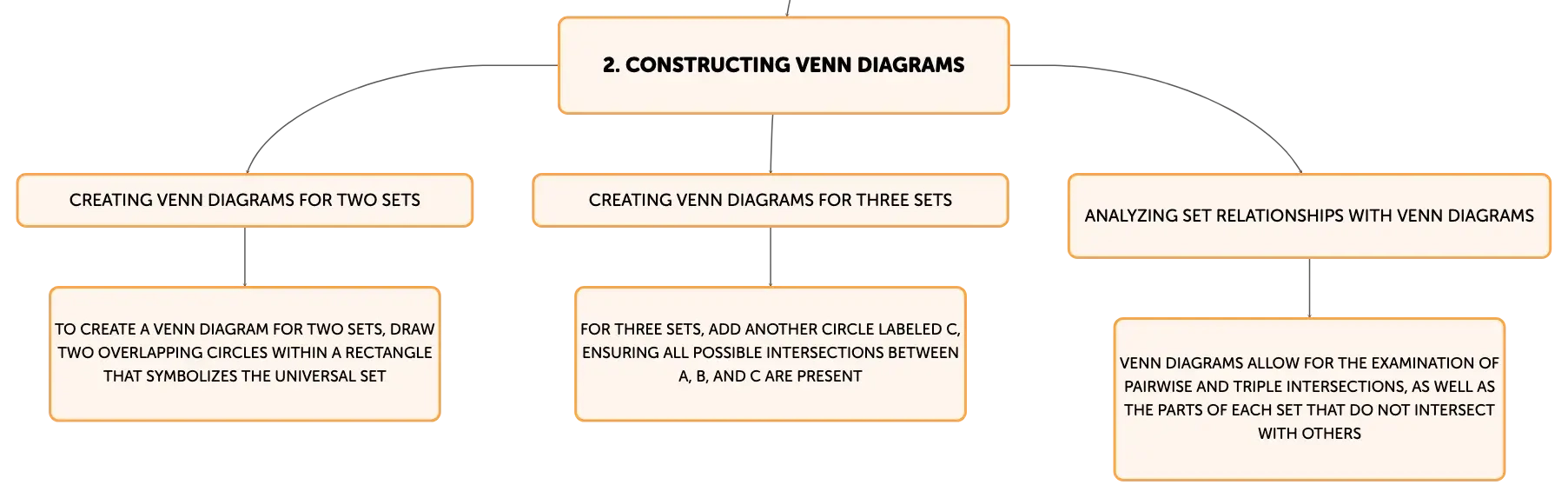

To create a Venn diagram for two sets, draw two overlapping circles within a rectangle that symbolizes the universal set U. Label the circles A and B to represent the individual sets. For three sets, add another circle labeled C, ensuring all possible intersections between A, B, and C are present. This setup allows for the examination of pairwise and triple intersections, as well as the parts of each set that do not intersect with others, providing a foundation for further analysis of set relationships.

Utilizing Venn Diagrams to Analyze Set Interactions

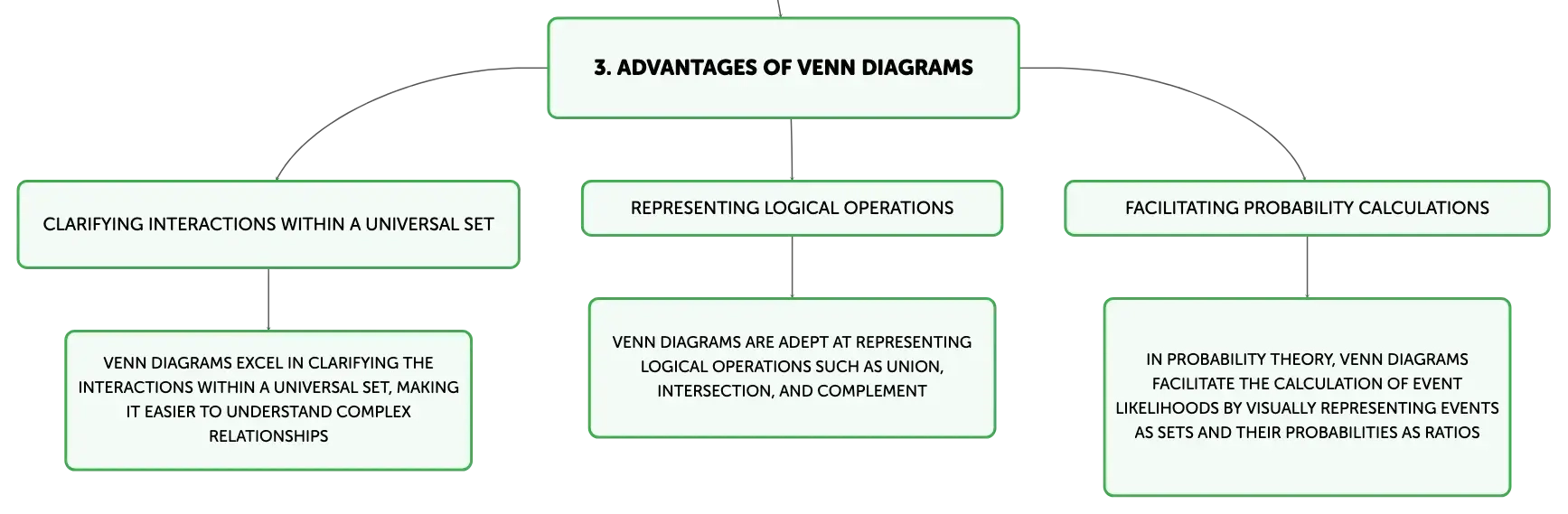

Venn diagrams excel in clarifying the interactions within a universal set. For instance, in a class of 40 students, if 22 play football, 16 play rugby, and 8 play both, a Venn diagram can effectively display this information. The number 8 is placed in the intersection of the circles representing football and rugby, with the remaining students allocated to the appropriate sections of the diagram. This visual tool allows for an immediate understanding of the number of students involved in each sport, including those who participate in neither.

Depicting Logical Operations in Set Theory Using Venn Diagrams

Venn diagrams are adept at representing logical operations such as union (A ∪ B), intersection (A ∩ B), and complement (A'). The union encompasses all elements in either set or both, while the intersection includes only those elements common to both sets. The complement of a set contains all elements in the universal set that are not in the set itself. These operations are visually represented in Venn diagrams, aiding in the comprehension of complex set relationships.

Calculating Probabilities with the Aid of Venn Diagrams

In probability theory, Venn diagrams facilitate the calculation of event likelihoods. Events are depicted as sets, and their probabilities are determined by the ratio of the number of favorable outcomes to the total number of possible outcomes. For example, to find the probability of a student studying exactly one subject among maths, physics, or chemistry, a Venn diagram can help identify the relevant subsets and their non-overlapping regions. This visual approach is particularly useful for identifying mutually exclusive events, which have no intersection in the diagram.

Shading Venn Diagrams to Illustrate Logical Relationships

Shading is a common technique to highlight specific logical relationships in Venn diagrams. To represent the intersection of the complement of set A with set B (A' ∩ B), one would shade the area outside of A that also falls within B. Conversely, to show the complement of the union of A and B (A ∪ B)', the area outside both A and B would be shaded. These shading strategies provide a clear and immediate visual interpretation of the relationships between sets.

Concluding Insights on Venn Diagrams in Set Theory and Probability

Venn diagrams are an invaluable graphical tool for depicting the relationships between sets in a clear and intuitive way. The symbols ∪, ∩, and U are integral to Venn diagram notation, signifying union, intersection, and the universal set, respectively. When constructing and interpreting Venn diagrams, it is essential to account for all elements within the universal set. Venn diagrams not only facilitate the visualization of set relationships but also enhance the understanding of probabilities and logical operations in set theory.
