The Weibull Distribution: A Versatile Statistical Model for Reliability Engineering and Survival Analysis
The Weibull distribution, a statistical model named after Waloddi Weibull, is crucial in reliability engineering and survival analysis. It uses scale ( heta) and shape (eta) parameters to model time-to-event data, accommodating various failure rates. Its flexibility allows it to represent different failure rate behaviors and is widely applied in fields like medical research and product lifespan estimation. Understanding its probability density and cumulative distribution functions is key for real-world applications.
See moreExploring the Weibull Distribution

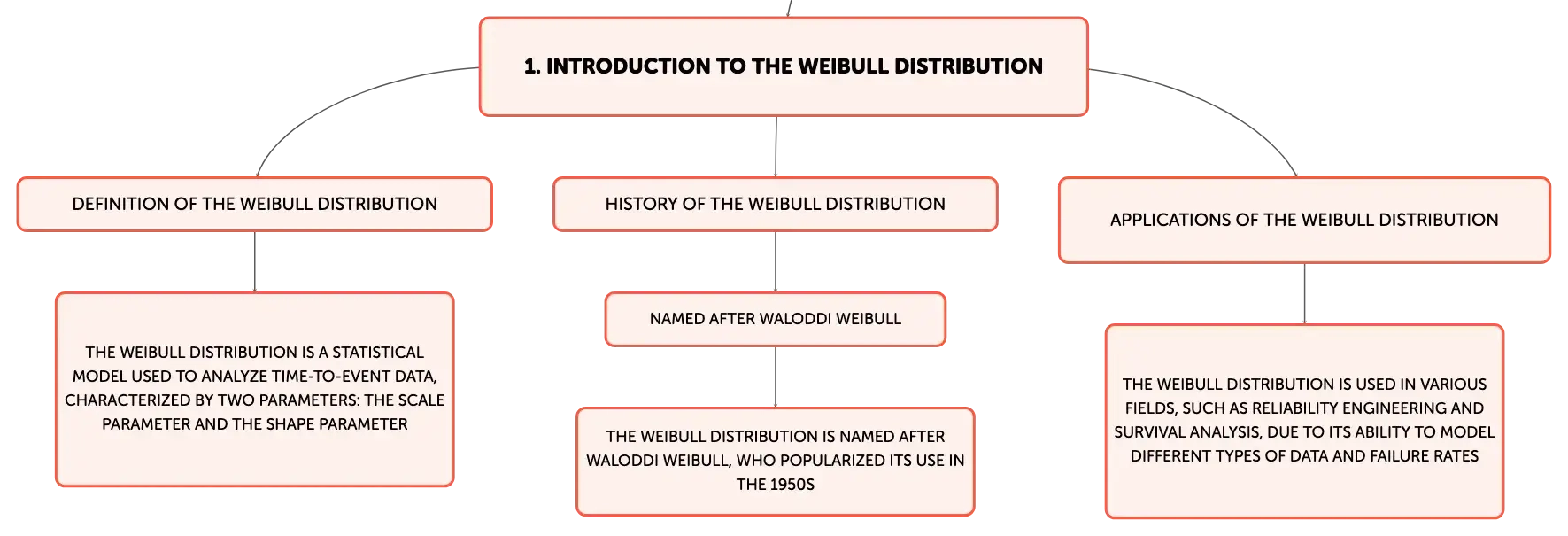

The Weibull distribution is a versatile statistical model widely used in reliability engineering and survival analysis. Named after Waloddi Weibull, who popularized its use in the 1950s, this distribution is a flexible tool for modeling time-to-event data. It is characterized by two parameters: the scale parameter (\( \theta \)), which dictates the distribution's scale, and the shape parameter (\( \beta \)), which defines its form, ranging from exponential to Rayleigh distributions depending on the value. The Weibull distribution is adept at modeling various types of data, accommodating different failure rates and life behaviors, which makes it an indispensable method for analyzing the probability of failure or survival over time across numerous fields.Mathematical Representation of the Weibull Distribution

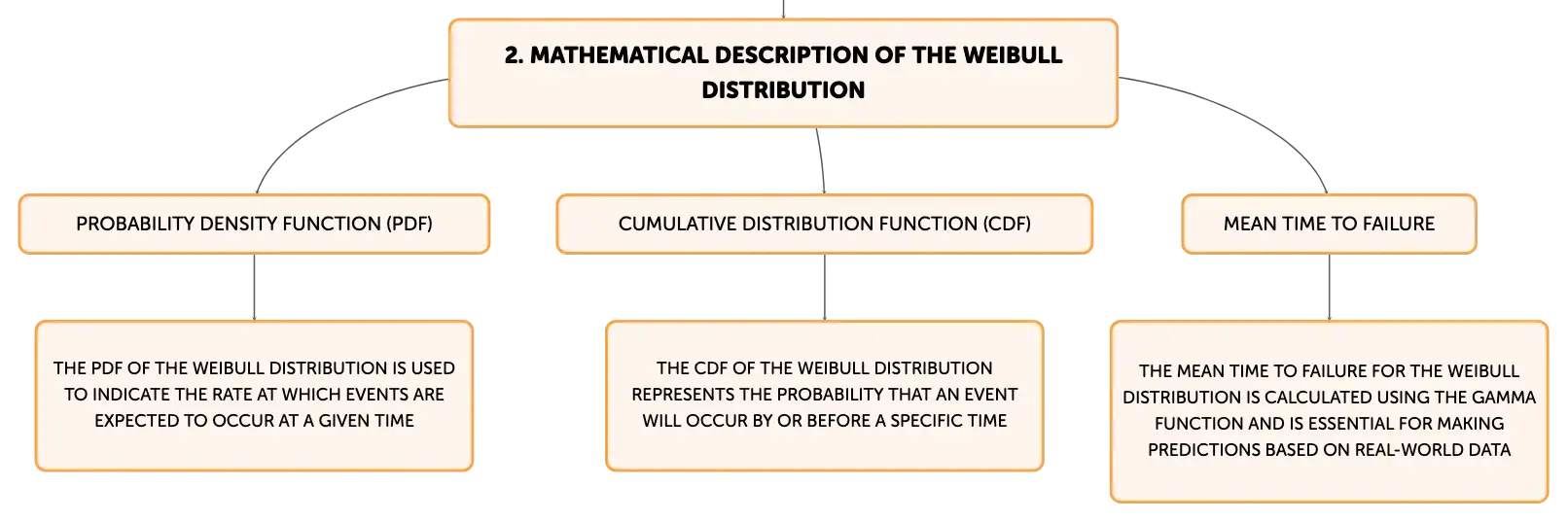

The Weibull distribution is mathematically described by its probability density function (PDF): \[f(t; \theta, \beta) = \frac{\beta}{\theta} \left( \frac{t}{\theta} \right)^{\beta-1} e^{-\left( \frac{t}{\theta} \right)^\beta}\] where \(t\) represents the time until an event occurs, such as equipment failure. The PDF indicates the rate at which events are expected to occur at a given time, and integrating the PDF over a time interval yields the probability of an event occurring within that interval. The cumulative distribution function (CDF) is given by: \[F(t; \theta, \beta) = 1 - e^{-\left( \frac{t}{\theta} \right)^\beta}\] which represents the probability that an event will occur by or before a specific time. The expected value or mean time to failure for the Weibull distribution is: \[\mu = \theta \Gamma\left(1 + \frac{1}{\beta}\right)\] where \(\Gamma\) denotes the gamma function. Understanding these mathematical expressions is fundamental for applying the Weibull distribution to real-world data and making informed predictions.Real-World Applications of the Weibull Distribution

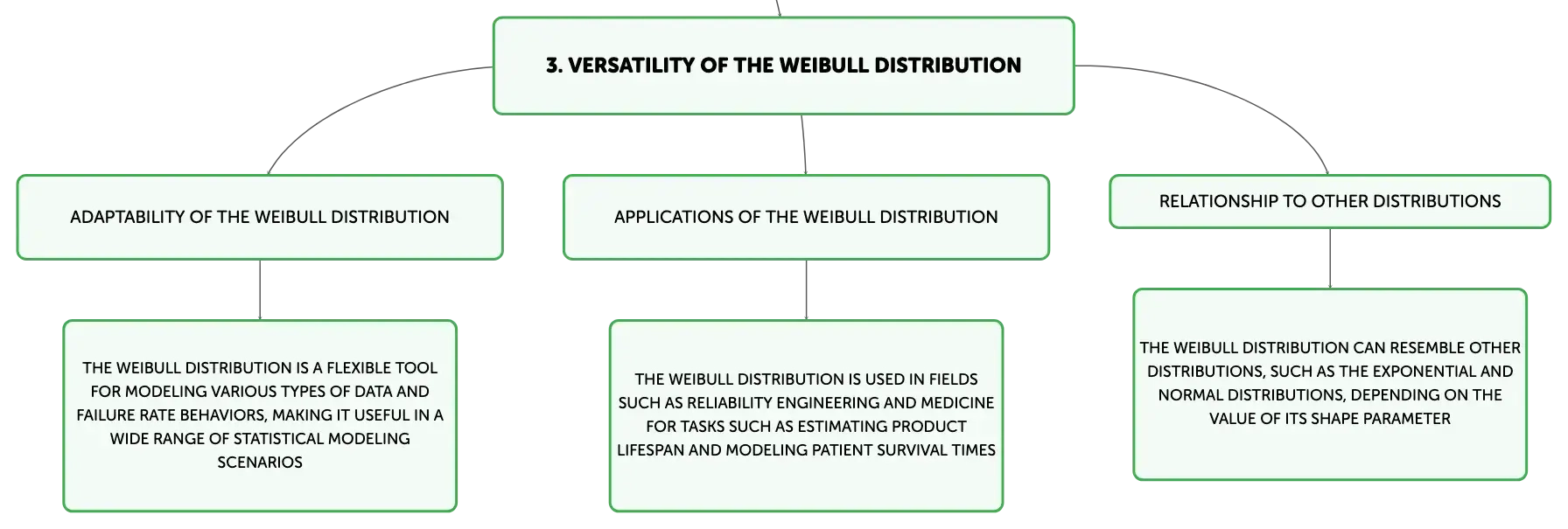

The Weibull distribution is employed in a variety of practical contexts due to its adaptability. In the field of reliability engineering, it is used to estimate the lifespan of products and components, aiding in the development of maintenance schedules and warranty policies. For instance, the failure patterns of wind turbine blades can be modeled using the Weibull distribution to optimize maintenance routines. In the medical field, it helps in modeling patient survival times, which is critical for evaluating treatment efficacy and making prognostic assessments. The ability of the Weibull distribution to represent different failure rate behaviors, from increasing to decreasing hazard functions, makes it a powerful analytical tool for a multitude of statistical modeling scenarios.Distinctive Features of the Weibull Distribution
The Weibull distribution is notable for its flexibility, which stems from its shape and scale parameters. These parameters not only determine the distribution's spread and asymmetry but also describe the behavior of the failure rate over time. Depending on the value of the shape parameter (\( \beta \)), the Weibull distribution can resemble other distributions; it simplifies to an exponential distribution when \( \beta = 1 \) and can approximate a normal distribution when \( \beta \) is around 3.6. This ability to morph into various forms based on parameter values highlights the Weibull distribution's utility as a universal modeling tool in statistical analysis.Computing Probabilities Using the Weibull Distribution
Calculating the probability of an event occurring within a specific time frame using the Weibull distribution involves the CDF, which is the integral of the PDF over the desired time range. This computation is essential for risk assessment and for making predictions based on historical data. For example, a safety engineer might use the CDF to estimate the probability of equipment failure within a certain operational period. The accuracy of these calculations allows for decision-making based on probabilistic models, which is crucial for forecasting equipment reliability, scheduling maintenance, and evaluating product longevity. The Weibull distribution thus serves as a robust and adaptable framework for data analysis and probabilistic forecasting in various industries.Want to create maps from your material?
