Dot Plots: A Visual Tool for Data Analysis

Exploring the Basics of Dot Plots

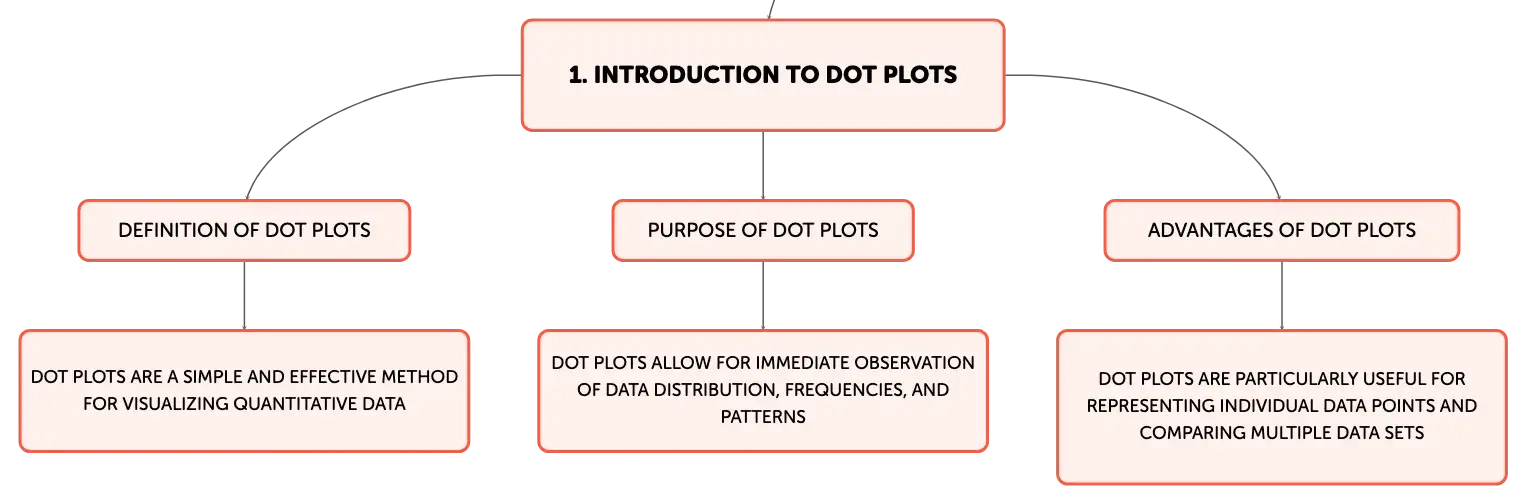

Dot plots are a straightforward and effective method for visualizing quantitative data, particularly when the data set is relatively small. Each value in the data set is represented by a dot above a horizontal axis, which is scaled to encompass the full range of the data. This form of visualization allows for immediate observation of the distribution of data points, frequencies, and any discernible patterns or outliers. Dot plots are particularly useful when individual data points are significant and need to be distinctly represented, which might be lost in aggregate forms of data visualization like histograms or bar charts.

Constructing and Analyzing Dot Plots

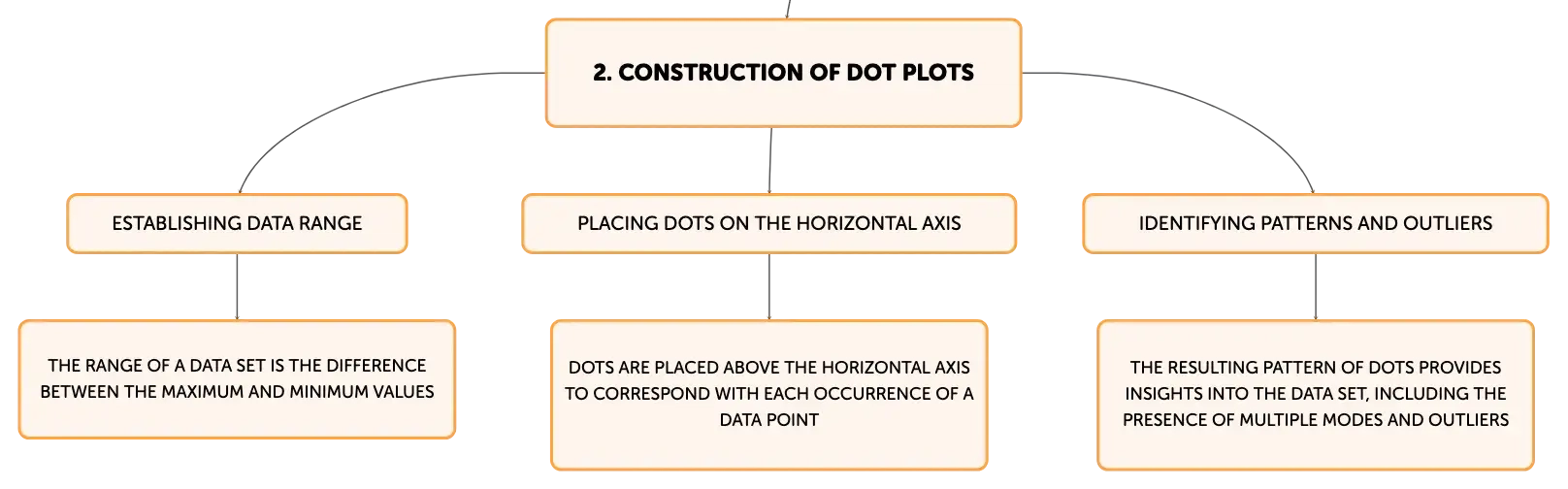

To construct a dot plot, one must first establish the data range by identifying the smallest and largest values. A horizontal axis is drawn to represent this range, and dots are placed above it to correspond with each occurrence of the data points. As more dots accumulate vertically above a specific value, the frequency of that value becomes visually apparent. The resulting pattern of dots provides insights into the data set, such as the concentration of values, the presence of multiple modes, and the identification of outliers, which are data points that stand apart from the rest of the data.

Determining the Range in Dot Plots

The range of a data set is the difference between the maximum and minimum values, and it is a measure of the spread or dispersion of the data. On a dot plot, the range is easily identifiable as the horizontal distance between the extreme values represented by the outermost dots. This visual cue allows for a quick assessment of the variability within the data set, which is an important aspect of understanding the overall distribution of the data.

Central Tendency Measures in Dot Plots

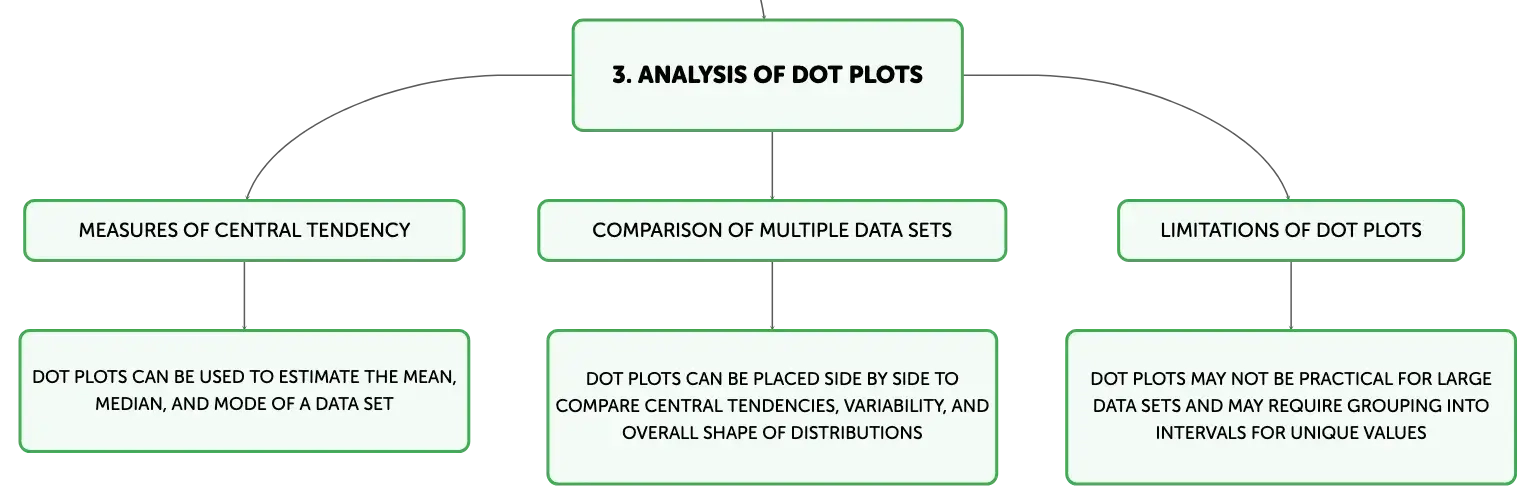

Dot plots facilitate the determination of central tendency measures, including the mean, median, and mode. The mean, or average, can be estimated by finding the balance point of the dot plot, where each dot is weighted by its value. The median, representing the middle value of the data set, is located by identifying the central dot or the average of the two central dots when the data set has an even number of values. The mode, the most frequently occurring value, is immediately visible as the position with the tallest stack of dots. These measures provide a snapshot of the typical values within the data set.

Comparative Analysis Using Dot Plots

Dot plots are not only effective for individual data set analysis but also for comparing multiple data sets. By placing dot plots side by side, one can compare central tendencies, variability, and the overall shape of distributions. Differences in skewness, the presence of outliers, and the concentration of data points can lead to insights about the characteristics of each data set. For instance, a left-skewed dot plot suggests a concentration of higher values, while a right-skewed plot indicates a concentration of lower values.

Strengths and Weaknesses of Dot Plots

Dot plots are advantageous for their simplicity and the detailed information they provide about each data point. They can reveal patterns, trends, and outliers effectively and are applicable to both quantitative and categorical data. However, they are less practical for large data sets due to overlapping dots that can obscure information. Additionally, while dot plots can help visualize the mean and median, they may not simplify the calculation process compared to direct computation from the data. For data with unique values, grouping into intervals may be necessary, which can make histograms or box plots more suitable alternatives.

Varieties of Dot Plots

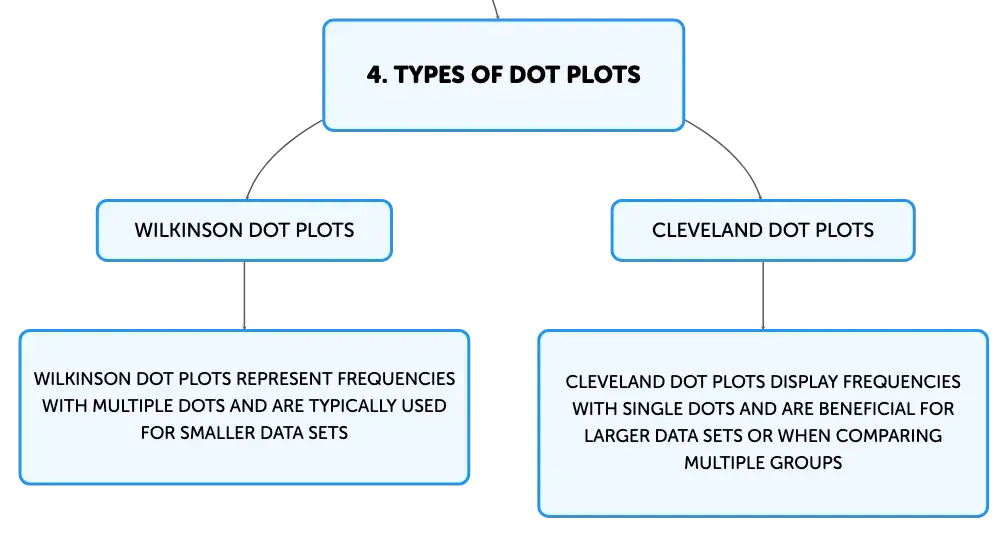

There are primarily two types of dot plots: Wilkinson and Cleveland dot plots. Wilkinson dot plots, named after the statistician Leland Wilkinson, represent frequencies with multiple dots and are typically used for smaller data sets. Cleveland dot plots, named after the researcher William S. Cleveland, display frequencies with single dots, often using different shapes or colors to represent different categories or data sets. Cleveland dot plots are particularly beneficial for larger data sets or when comparing multiple groups, as they tend to be less cluttered and more scalable.

Concluding Thoughts on Dot Plots

In conclusion, dot plots are a valuable tool for data visualization, especially suited to small data sets. They offer a clear and detailed view of each data point, facilitating the analysis of distribution, central tendencies, and variability. While they have limitations, particularly for larger data sets, dot plots remain a versatile and informative method for data analysis. Mastery of dot plot creation and interpretation is a crucial skill for students and professionals who seek to effectively analyze and communicate data insights.
