Composite Materials

Composite materials combine substances like fibers, particles, and matrices to create superior materials. They're used in aerospace, automotive, and construction, offering benefits like high strength-to-weight ratios and resistance to environmental factors. Challenges include complex manufacturing and recycling.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Purpose of reinforcement in composites

Click to check the answer

Provides strength and stiffness to the composite material.

2

Role of matrix in composites

Click to check the answer

Binds reinforcement, distributes stresses, and supports structural integrity.

3

Advantages of composites over individual materials

Click to check the answer

Lighter, stronger, more resistant to environmental factors than constituent materials alone.

4

Ceramic matrix composites (CMCs) are created by adding ______ agents to ceramics, resulting in enhanced ______ and mechanical properties.

Click to check the answer

reinforcing toughness

5

Due to their increased durability and thermal resistance, CMCs are crucial in ______, ______, and ______ industries.

Click to check the answer

aerospace automotive biomedical

6

Fiber-reinforced composites composition

Click to check the answer

Consist of long strands like carbon or glass fibers in a resin matrix.

7

Particle-reinforced composites composition

Click to check the answer

Contain dispersed particles, e.g., silicon carbide, within a matrix.

8

Laminar composites example

Click to check the answer

Plywood, made of bonded layers of material.

9

The main component of glass, a ______ material, is ______ ______, often derived from ______.

Click to check the answer

non-crystalline silicon dioxide sand

10

______ ______, used in items such as cookware and laboratory equipment, is noted for its ______ ______.

Click to check the answer

Borosilicate glass thermal resistance

11

Components of reinforced concrete

Click to check the answer

Concrete for compressive strength; steel rebar for tensile strength.

12

Applications of reinforced concrete

Click to check the answer

Used in buildings, bridges, and infrastructure due to its versatility and strength.

13

The environmental ______ of composite materials, especially regarding ______ and lifecycle, is a subject of concern and study.

Click to check the answer

impact disposal

14

Polymers: Natural vs. Synthetic

Click to check the answer

Polymers can be naturally occurring or man-made; plastics like polyethylene are synthetic examples.

15

Properties of Metals

Click to check the answer

Metals are conductive, ductile, and strong; found as pure elements or in alloys.

16

Use of Polymers and Metals in Composites

Click to check the answer

Polymers and metals are combined in composites to improve structural integrity and durability.

17

The benefits of ______ materials continue to promote advancements in materials engineering and technology.

Click to check the answer

composite

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Technology

iOS: The Premier Mobile Operating System

Technology

BODE Diagrams: A Tool for System Analysis

Technology

Integrated Circuits: The Building Blocks of Modern Technology

Technology

The Importance of Transistors in Modern Electronics

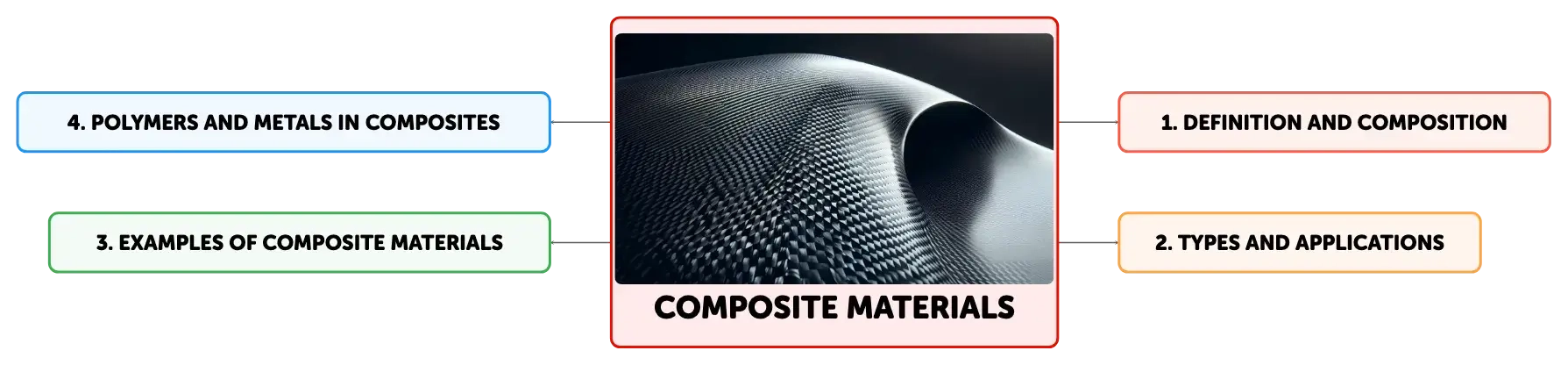

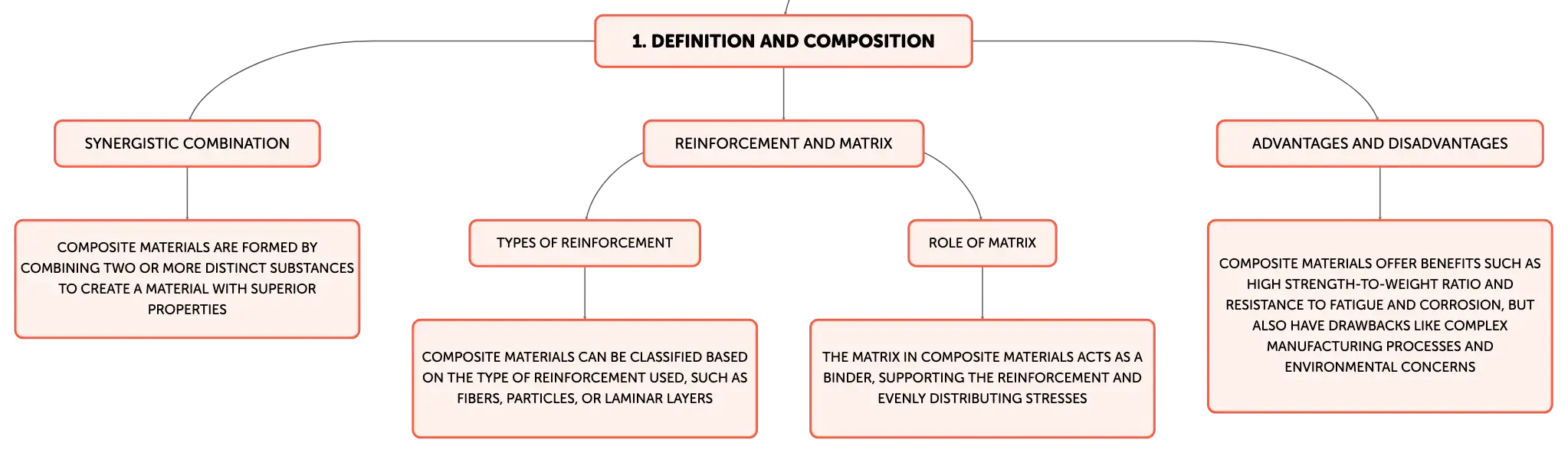

Introduction to Composite Materials

Composite materials are engineered by synergistically combining two or more distinct substances to form a material with superior properties. These materials are typically composed of a reinforcement, such as fibers or particles, embedded within a matrix, which acts as a binder. The reinforcement imparts strength and stiffness, while the matrix supports the reinforcement and evenly distributes stresses. Composites are designed to capitalize on the strengths of their constituents while overcoming their individual limitations, resulting in a material that is often lighter, stronger, and more resistant to environmental factors than the materials from which it is made.
Close up of carbon fiber composite material with shiny woven texture and blurred background of gray aerodynamic structure.

Ceramic-Based Composite Materials

Ceramics, known for their hardness, thermal stability, and brittleness, are also used in composite materials. By incorporating reinforcing agents, ceramic matrix composites (CMCs) are formed, which exhibit improved toughness and mechanical properties over conventional ceramics. These composites are essential in high-performance applications in industries such as aerospace, automotive, and biomedical fields, where they provide enhanced durability, thermal resistance, and wear resistance.

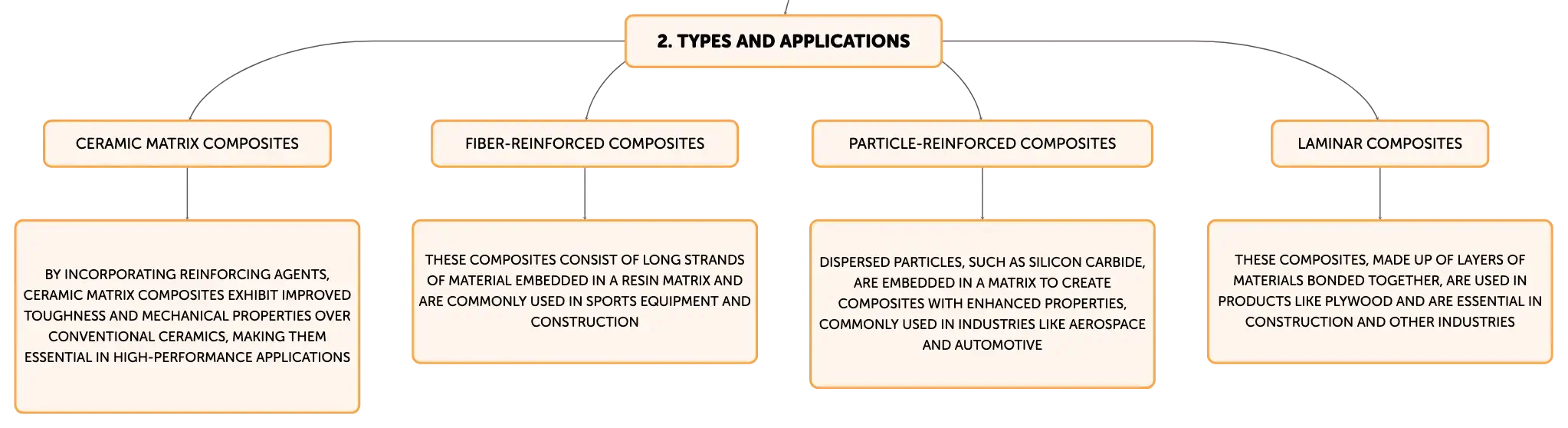

Classification and Examples of Composite Materials

Composite materials are classified according to the type of reinforcement used. Fiber-reinforced composites consist of long strands of material, such as carbon or glass fibers, embedded in a resin matrix. Particle-reinforced composites contain dispersed particles like silicon carbide within a matrix. Laminar composites, such as plywood, consist of layers of materials bonded together. Common examples of composites include carbon fiber-reinforced polymers in sports equipment, fiberglass in boat hulls, and reinforced concrete in construction.

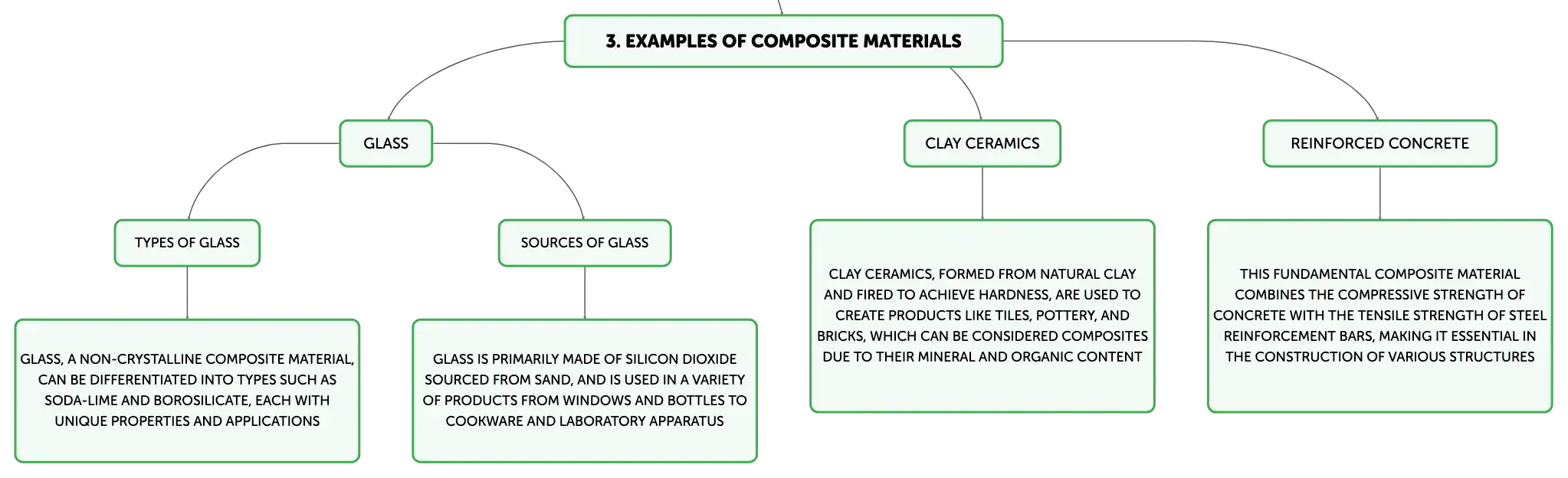

Glass and Clay Ceramics in Composite Forms

Glass is a non-crystalline composite material primarily made of silicon dioxide, commonly sourced from sand. It is differentiated into types such as soda-lime glass, prevalent in windows and bottles, and borosilicate glass, known for its thermal resistance and used in cookware and laboratory apparatus. Clay ceramics, formed from natural clay and fired to achieve hardness, are used to create products like tiles, pottery, and bricks, which can be considered composites due to their mineral and organic content.

The Importance of Reinforced Concrete

Reinforced concrete is a fundamental composite material in the construction industry, combining the compressive strength of concrete with the tensile strength of steel reinforcement bars (rebar). This combination allows reinforced concrete to support a variety of structural loads and stresses, making it a versatile and essential material for the construction of buildings, bridges, and other infrastructure.

Pros and Cons of Composite Materials

Composite materials offer numerous advantages, including a high strength-to-weight ratio, resistance to fatigue and corrosion, and the ability to be engineered for specific applications. However, they also have drawbacks, such as complex manufacturing processes, higher costs, vulnerability to certain types of impact damage, and challenges in repair and recycling. The environmental impact of composites, particularly in terms of disposal and lifecycle, is an area of ongoing concern and research.

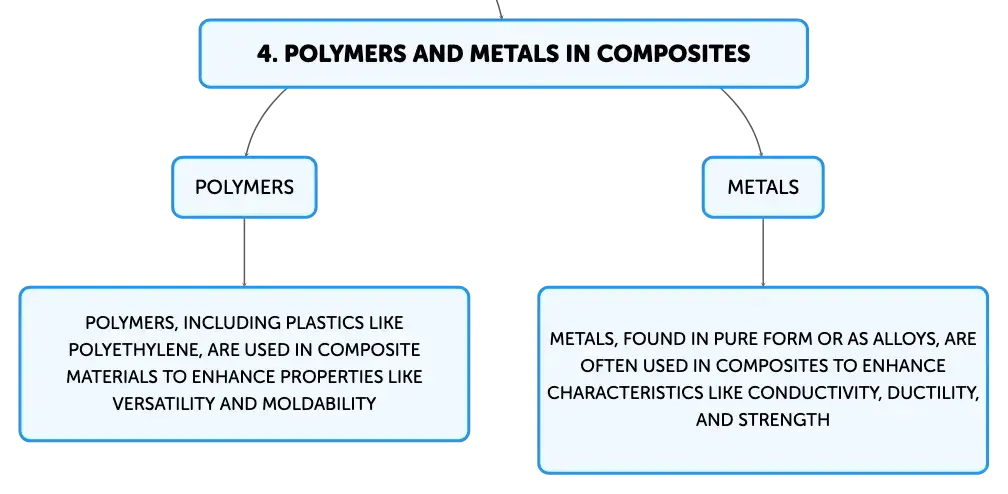

Composites Versus Polymers and Metals

Polymers and metals are distinct classes of materials with unique properties. Polymers, which include a vast array of plastics such as polyethylene, can be either naturally occurring or synthetic and are valued for their versatility and moldability. Metals, found in pure form or as alloys, are notable for their conductivity, ductility, and strength. Both polymers and metals are often used as components in composite materials to enhance characteristics like structural integrity and durability, surpassing the capabilities of conventional materials or metal alloys.

The Impact of Composite Materials

Composite materials are a critical innovation in material science, offering tailored properties for a wide range of applications. By combining the advantageous attributes of different materials and minimizing their weaknesses, composites have become integral to many industries. Despite the challenges associated with their production and use, the benefits of composite materials continue to foster advancements and drive progress in materials engineering and technology.
