Normal Distribution and Percentiles

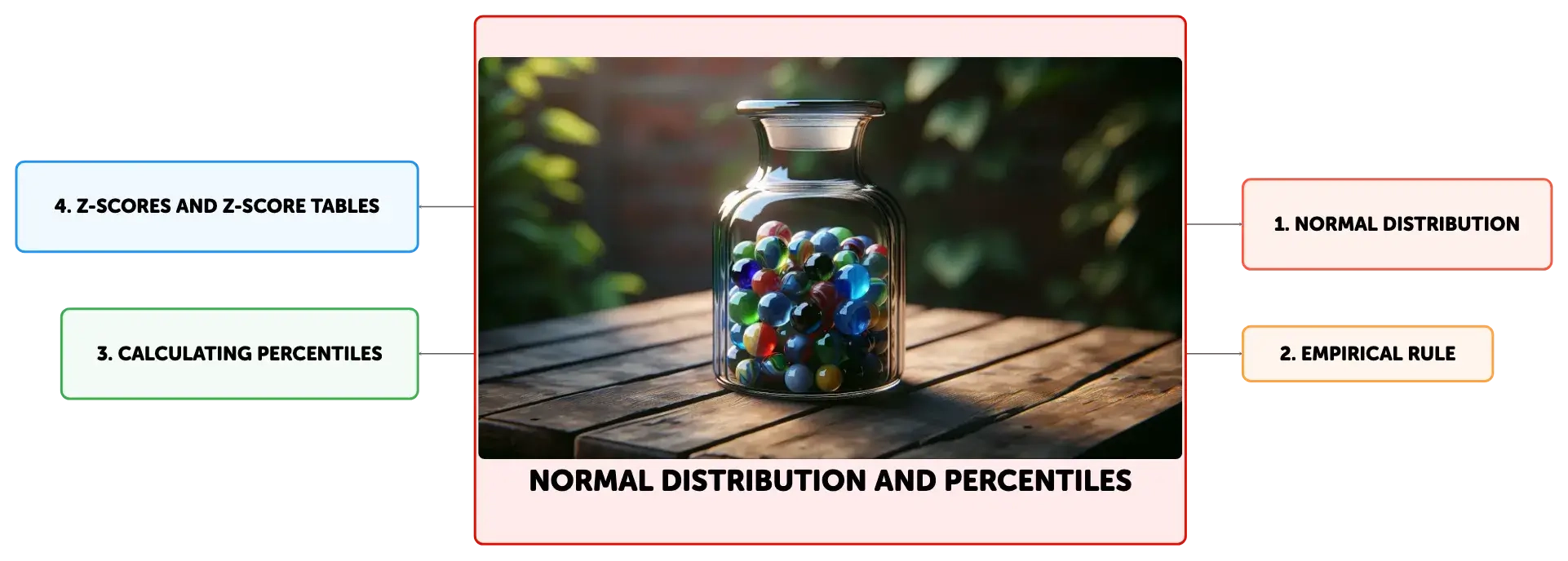

Concept Map
Normal distribution is a fundamental concept in statistics, characterized by a symmetric, bell-shaped curve where mean, median, and mode coincide. This text delves into the Empirical Rule, percentiles, and z-scores, illustrating how they are used to analyze data trends and make predictions. Understanding these concepts is crucial for interpreting data in various fields, from growth charts to standardized tests.
Summary
Outline
Exploring the Fundamentals of Normal Distribution
The normal distribution is a cornerstone of statistical analysis, depicted as a symmetric, bell-shaped curve centered around the mean. This distribution is pivotal for its ability to model and predict data trends. In a perfectly normal distribution, the mean, median, and mode coincide, and the data is spread around the mean in a predictable pattern defined by standard deviations. The total area under the curve equates to the probability of all possible outcomes, which is 100% for the entire data set. The normal distribution is particularly relevant for large sample sizes and is commonly observed in various natural and human-made phenomena, such as heights, blood pressure readings, and standardized test scores.The Empirical Rule and Its Application to Normal Distribution
The Empirical Rule, also known as the "68-95-99.7 Rule," is a statistical guideline that illustrates the proportion of data within one, two, and three standard deviations from the mean in a normal distribution. It states that approximately 68% of the data lies within one standard deviation of the mean, about 95% within two standard deviations, and around 99.7% within three standard deviations. This rule is instrumental for assessing the spread and dispersion of data. Percentiles are another key concept in normal distribution, representing the point below which a given percentage of observations fall. The 50th percentile, also known as the median, marks the middle of the dataset, with half of the observations lying below and half above this point.Determining Percentiles Using Standard Deviation
Calculating a percentile in a normal distribution can be achieved by considering the standard deviations from the mean. Since the mean represents the 50th percentile, one can estimate the percentile rank of a given value by adding or subtracting the standard deviation percentages. For example, a value one standard deviation above the mean is at the 84th percentile (50% + 34.13%), while a value one standard deviation below the mean is at the 16th percentile (50% - 34.13%). This approach provides a straightforward way to gauge where a particular score or measurement lies within the context of the overall data distribution.Utilizing Z-Scores to Identify Percentiles
A z-score is a statistical metric that quantifies the number of standard deviations a data point is from the mean. It is calculated with the formula \(Z=\frac{x-\mu}{\sigma}\), where \(x\) is the data value, \(\mu\) is the mean, and \(\sigma\) is the standard deviation. Z-scores are vital for comparing values from different normal distributions and for determining the percentile of a value that is not exactly on the mean or a whole number of standard deviations away. To find the percentile associated with a specific z-score, one can refer to a z-score table, which provides the cumulative probability for each z-score.Interpreting Z-Score Tables for Percentile Determination
Z-score tables are essential tools for translating a z-score into a percentile. To use the table, one locates the z-score and identifies the corresponding cumulative area, which represents the proportion of data below the z-score. This cumulative area, when expressed as a percentage, indicates the percentile rank. For instance, a z-score of 0.47 corresponds to a cumulative area of approximately 0.6808, which translates to the 68th percentile. This methodical process allows for accurate determination of percentiles for a wide range of z-scores.Visual Representation of Percentiles in the Normal Distribution
The normal distribution curve serves as a graphical tool to illustrate percentiles and their associated z-scores. Due to the curve's symmetry, percentiles equidistant from the mean have z-scores with equal magnitude but opposite signs. For example, the 25th percentile has a z-score of approximately -0.675, while the 75th percentile has a z-score of approximately +0.675. This symmetry facilitates the interpretation of data, enabling one to deduce the percentile rank of a value based on its position relative to the mean on the distribution curve.Real-World Applications of Normal Distribution
The principles of normal distribution find practical application in various real-life situations, such as analyzing growth charts, evaluating standardized test scores, and solving probability problems. For instance, a farmer can assess the growth percentile of a calf by calculating its z-score and consulting a z-score table. Similarly, a student preparing for a standardized test can use the z-score to estimate the score needed to reach a desired percentile. These examples underscore the importance and utility of understanding normal distribution and percentile ranks in diverse fields.Comparative Analysis Using Normal Distribution
Normal distributions facilitate the comparison of different datasets by standardizing scores into z-scores, which account for variations in means and standard deviations. This allows for meaningful comparisons across different tests or measurements. For example, to compare a student's performance on two distinct standardized tests, one can calculate the z-scores for each test score and determine the corresponding percentiles. This is possible because the shape of the normal distribution curve remains consistent, regardless of the specific parameters of the datasets being compared.
Show More

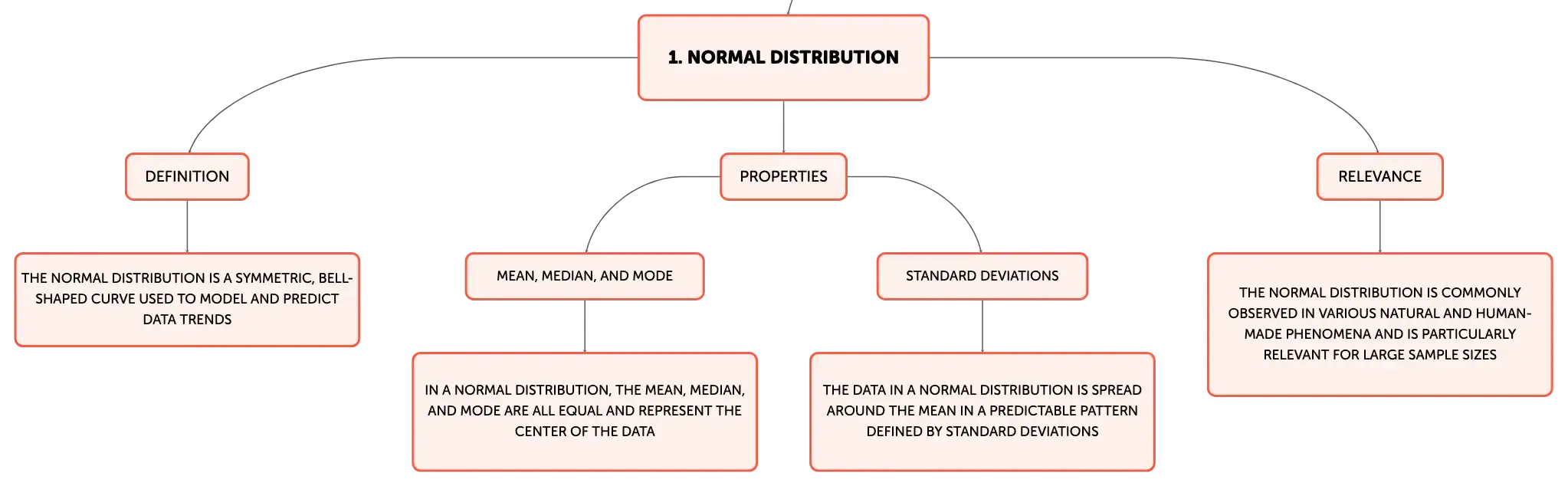

Normal Distribution
Definition
The normal distribution is a symmetric, bell-shaped curve used to model and predict data trends
Properties
Mean, Median, and Mode
In a normal distribution, the mean, median, and mode are all equal and represent the center of the data
Standard Deviations
The data in a normal distribution is spread around the mean in a predictable pattern defined by standard deviations
Relevance
The normal distribution is commonly observed in various natural and human-made phenomena and is particularly relevant for large sample sizes

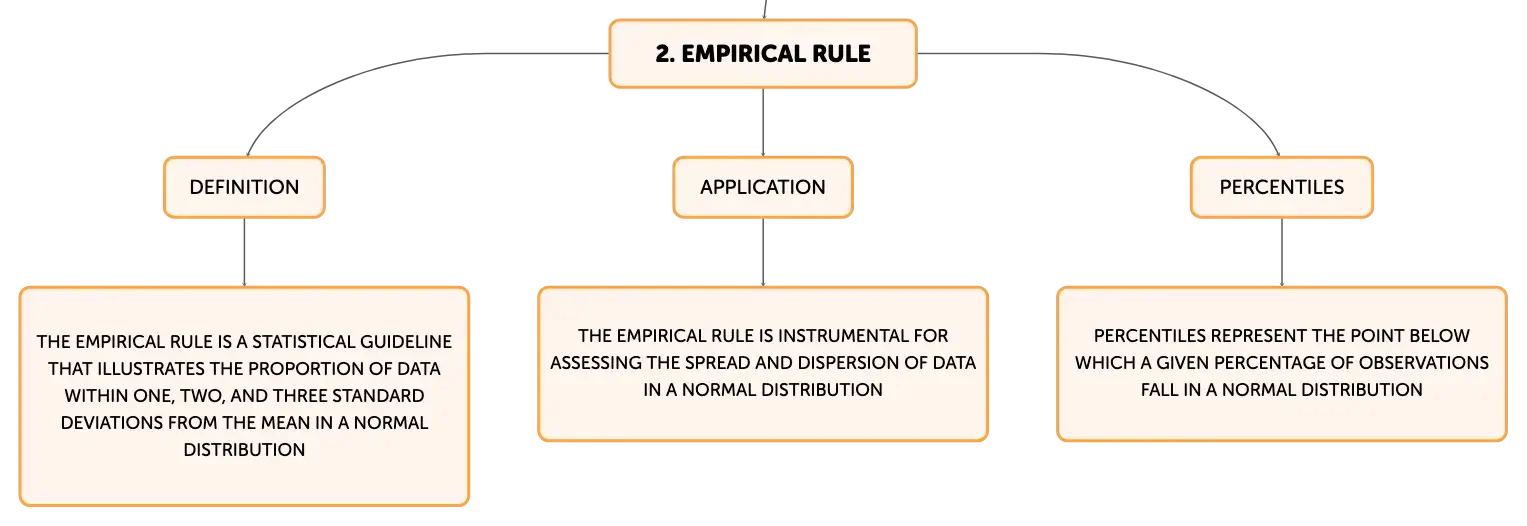

Empirical Rule
Definition
The Empirical Rule is a statistical guideline that illustrates the proportion of data within one, two, and three standard deviations from the mean in a normal distribution
Application
The Empirical Rule is instrumental for assessing the spread and dispersion of data in a normal distribution
Percentiles
Percentiles represent the point below which a given percentage of observations fall in a normal distribution

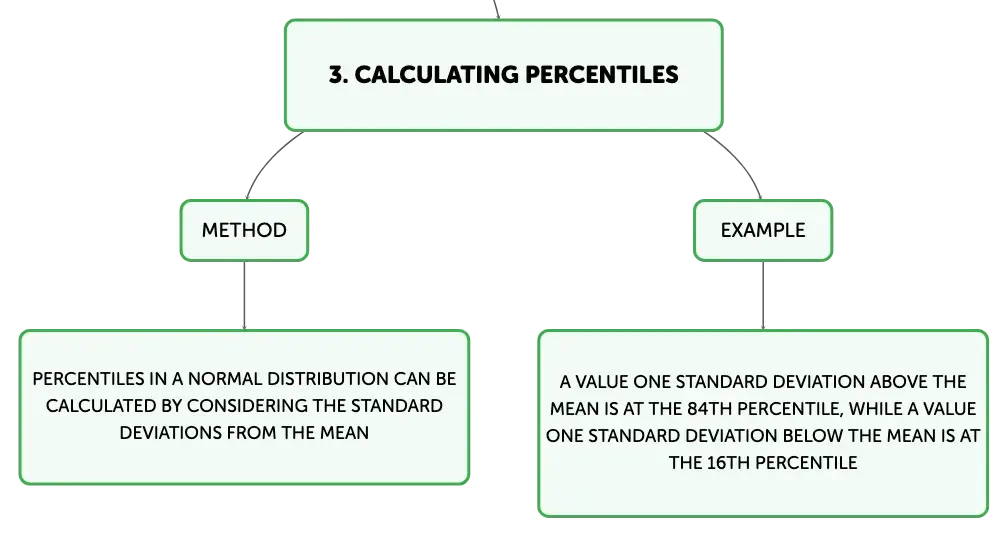

Calculating Percentiles
Method
Percentiles in a normal distribution can be calculated by considering the standard deviations from the mean
Example
A value one standard deviation above the mean is at the 84th percentile, while a value one standard deviation below the mean is at the 16th percentile

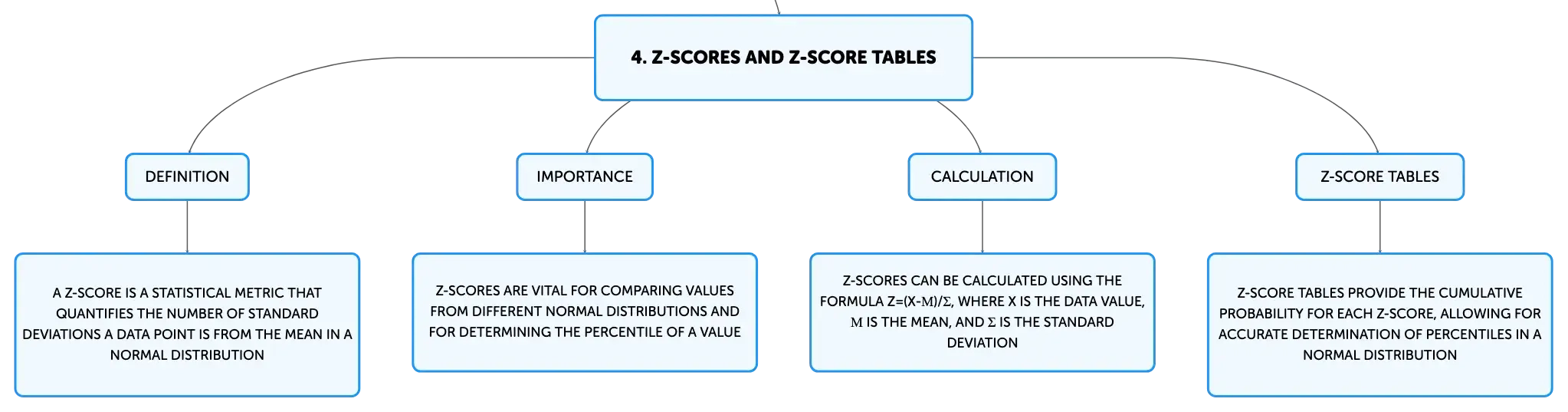

Z-Scores and Z-Score Tables
Definition
A z-score is a statistical metric that quantifies the number of standard deviations a data point is from the mean in a normal distribution
Importance
Z-scores are vital for comparing values from different normal distributions and for determining the percentile of a value
Calculation
Z-scores can be calculated using the formula Z=(x-μ)/σ, where x is the data value, μ is the mean, and σ is the standard deviation
Z-Score Tables
Z-score tables provide the cumulative probability for each z-score, allowing for accurate determination of percentiles in a normal distribution
Normal Distribution and Percentiles
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Normal Distribution Symmetry
Symmetric, bell-shaped curve; mean, median, mode at center.
01
Standard Deviations in Normal Distribution
Data spread pattern around mean; predictable via standard deviations.
02
Normal Distribution Total Area
Area under curve equals 100% probability for all outcomes.
