The Coefficient of Friction

The coefficient of friction is a crucial concept in physics, representing the ratio of frictional to normal force between two surfaces. It informs the resistance to sliding, with a higher coefficient indicating greater resistance. This text delves into the dynamics of frictional and normal forces, Coulomb's law, the dimensionless nature of the coefficient, and its practical applications in problem-solving and real-world scenarios, including stability assessments and motion analysis on inclined planes.

see more
Open map in editor

1

3

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Coefficient of friction - dimensionality?

Click to check the answer

Dimensionless scalar value - no units.

2

Frictional force vs. Normal force in friction?

Click to check the answer

Frictional force resists motion; normal force perpendicular to surfaces.

3

Impact of materials on coefficient of friction?

Click to check the answer

Dependent on materials' nature and surface conditions.

4

The ______ force is equivalent in magnitude and opposite in direction to the gravitational force component perpendicular to the surface.

Click to check the answer

normal

5

Coulomb's law: friction vs. area of contact

Click to check the answer

Frictional force is independent of the apparent area of contact.

6

Coulomb's law: friction vs. relative speed

Click to check the answer

Frictional force is independent of relative speed up to a certain limit.

7

Coefficient of friction equation

Click to check the answer

Coefficient of friction (μ) is calculated as μ = F/N, where F is the frictional force and N is the normal force.

8

To determine the coefficient of friction for various materials, ______ methods are used to measure the ______ and ______ coefficients.

Click to check the answer

experimental static kinetic

9

Nanoscale friction vs. macroscopic friction

Click to check the answer

At nanoscale, friction behavior often deviates from macroscopic norms, challenging traditional models.

10

Impact of specific materials on friction

Click to check the answer

Certain materials exhibit unique frictional properties, such as negative friction coefficients, under specific conditions.

11

Coefficient of friction role in mass-spring systems

Click to check the answer

Determines forces and acceleration in mass-spring systems on frictional surfaces.

12

Coefficient of friction in slope stability

Click to check the answer

Assesses slope stability and landslide potential; critical for civil engineering.

13

Importance of accurate friction coefficient determination

Click to check the answer

Essential for precise predictions and safety in engineering and physics applications.

14

The ______ of ______ is a key factor in examining the interaction of forces and movement between surfaces in contact.

Click to check the answer

coefficient friction

15

This ratio, which lacks ______, is essential for forecasting the movement of items in contexts ranging from basic ______ experiments to intricate ______ systems.

Click to check the answer

dimensions physics engineering

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Standard Units of Measurement

View document

Physics

Forces and Resultant Force

View document

Physics

Elastic Energy

View document

Physics

Newton's Second Law of Motion

View document

Exploring the Coefficient of Friction

The coefficient of friction, symbolized by \(\mu\), is a dimensionless scalar value that represents the ratio of the frictional force (F) resisting the relative motion of two surfaces to the normal force (N) acting perpendicular to the surfaces. This coefficient is a measure of how much force is needed to slide one surface over another and is dependent on the materials and conditions of the surfaces in contact. A higher coefficient indicates a greater resistance to sliding, while a lower coefficient suggests less resistance.

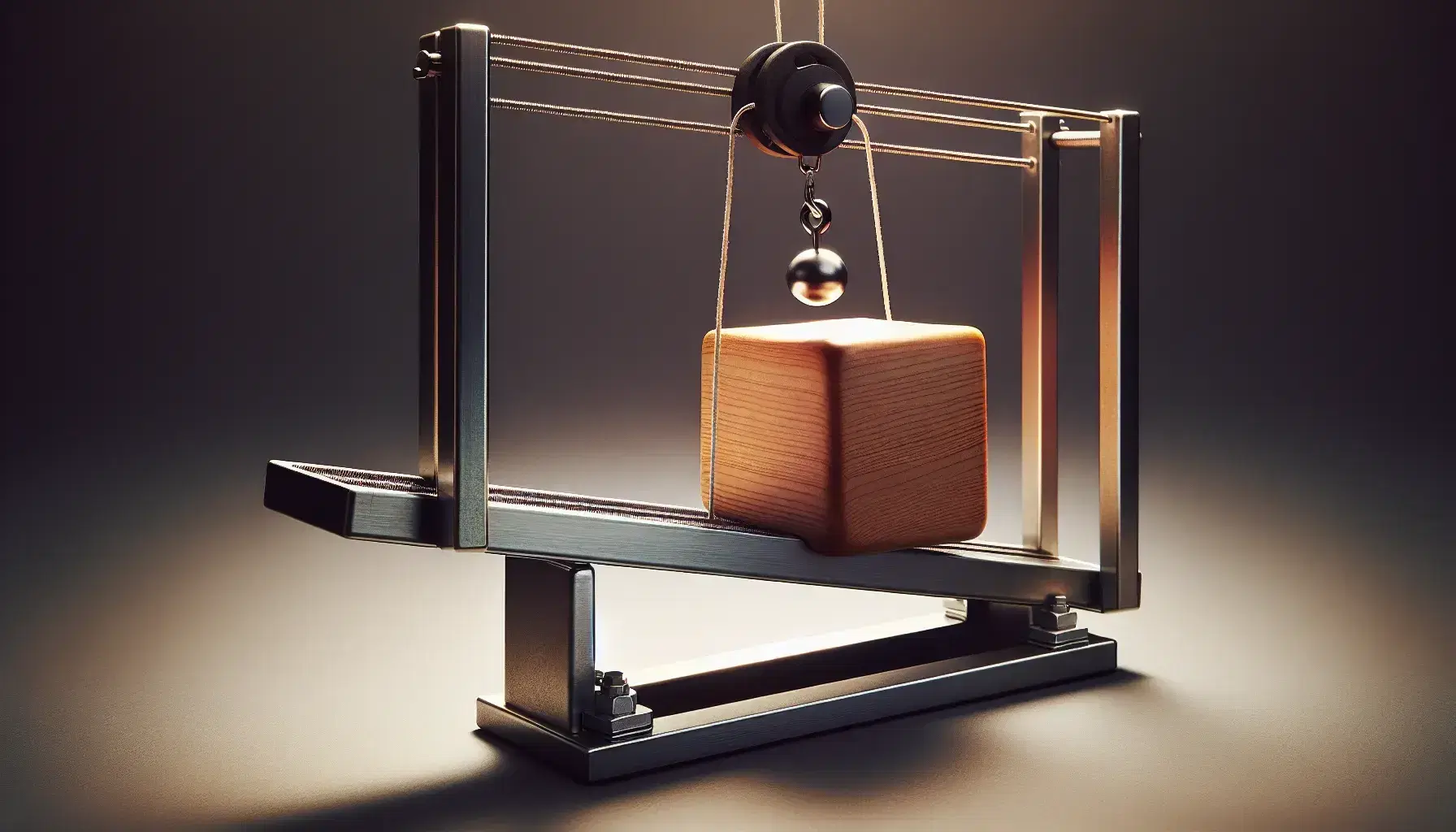

Close-up of a physics inclined plane experiment with a wooden block on a steel ramp, connected to hanging metal weights by a string over a pulley.

Frictional Force and Normal Force Dynamics

Understanding the coefficient of friction requires a comprehension of the forces involved. The frictional force is the tangential force that opposes the sliding motion between two surfaces. It arises from the interlocking of surface irregularities and is proportional to the normal force, which is the support force exerted by a surface perpendicular to the direction of the frictional force. The normal force is equal in magnitude and opposite in direction to the component of the gravitational force perpendicular to the surface.

Coulomb's Law of Friction and Coefficient of Friction Calculation

Coulomb's law of friction, established by Charles-Augustin de Coulomb, states that the frictional force is proportional to the normal force and is independent of the apparent area of contact and the relative speed of the surfaces up to a certain limit. The coefficient of friction is calculated using the equation \(\mu = \frac{F}{N}\), where \(F\) is the frictional force and \(N\) is the normal force. This equation is applicable for both static friction (before sliding begins) and kinetic friction (during sliding).

Dimensionless Nature and Measurement of Coefficient of Friction

The coefficient of friction is a dimensionless quantity, meaning it has no units. It is a ratio of two forces, both measured in Newtons (N), and thus cancels out any units, leaving a pure number. The coefficient of friction is typically determined through experimental methods, using devices that measure the static coefficient (before movement) and the kinetic coefficient (during movement) for different material pairings.

Negative Coefficient of Friction Phenomena

In certain conditions, such as at the nanoscale or with specific materials, a negative coefficient of friction can be observed, where an increase in normal force leads to a decrease in frictional force. This phenomenon is not common in everyday macroscopic interactions but is an area of interest in advanced material science and nanotechnology, challenging traditional friction models.

Coefficient of Friction in Problem Solving

The coefficient of friction is essential for solving physics problems involving motion on surfaces. It is used to calculate the maximum static frictional force that can be applied to an object before it begins to move. On an inclined plane, the coefficient of friction can be related to the angle of inclination by the equation \(\mu = \tan(\theta)\), where \(\theta\) is the angle of the plane with the horizontal. This relationship simplifies the analysis of forces and motion on inclined surfaces.

Practical Applications of the Coefficient of Friction

The coefficient of friction has numerous practical applications in physics and engineering. For example, it is used to determine the forces and acceleration in systems involving masses connected by springs on a surface with friction. It also plays a role in assessing the stability of slopes and the potential for landslides, where changes in the coefficient of friction can significantly affect the outcome. These applications demonstrate the importance of accurately determining and applying the coefficient of friction in real-world scenarios.

Key Insights into the Coefficient of Friction

In conclusion, the coefficient of friction is a pivotal parameter in the study of motion and forces between contacting surfaces. It is a dimensionless ratio that provides insight into the resistance to sliding between materials. Its value is critical for predicting and analyzing the behavior of objects in various contexts, from simple physics demonstrations to complex engineering systems. A thorough understanding of the coefficient of friction is indispensable for students and professionals in the fields of physics, engineering, and beyond.
