Eulerian Graphs: A Key Concept in Graph Theory
Eulerian graphs are fundamental in Graph Theory, characterized by Eulerian circuits that traverse each edge once. Named after Leonhard Euler, these graphs require connectivity and even vertex degrees. They differ from Hamiltonian graphs and have practical uses in optimizing delivery routes and logistics, leveraging Euler's theorem for efficiency.
See moreExploring Eulerian Graphs in Graph Theory
Eulerian graphs are a pivotal concept in Graph Theory, an important branch of mathematics often covered in advanced mathematics courses. An Eulerian graph is characterized by the existence of an Eulerian circuit—a path that traverses each edge of the graph exactly once before returning to the starting vertex. This concept is named after the mathematician Leonhard Euler, who solved the famous Seven Bridges of Königsberg problem and laid the foundation for this area of study. For a graph to be Eulerian, it must be connected, meaning all vertices are reachable from one another, and every vertex must have an even degree, which is the number of edges incident to the vertex.Identifying Eulerian Graphs
To determine if a graph is Eulerian, one must verify two key properties. Firstly, the graph must be connected; a graph that is not connected cannot support an Eulerian circuit. Secondly, all vertices in the graph must have an even degree. If both conditions are satisfied, the graph is Eulerian, and it is possible to construct an Eulerian circuit. This circuit is found by traversing the graph in such a way that each edge is visited exactly once, without retracing any edge, and ending the walk at the initial starting vertex.Practical Examples of Eulerian Graphs
Eulerian graphs can be illustrated through practical scenarios where Eulerian circuits are sought. For instance, consider a graph with edges represented as {(A, B), (A, C), (B, C), (C, D)}. To assess if this graph is Eulerian, one would first confirm its connectivity and then examine the degree of each vertex. Here, vertices A and B each have a degree of 2, and C has a degree of 4, which are all even. However, vertex D has a degree of 1, which is odd. Since not all vertices have an even degree, the graph does not fulfill the necessary criteria and is thus not Eulerian.Distinguishing Eulerian and Hamiltonian Graphs
Eulerian and Hamiltonian graphs are distinct concepts within Graph Theory. Hamiltonian graphs are defined by the presence of a Hamiltonian cycle—a path that visits each vertex exactly once and returns to the starting vertex. The requirements for a graph to be Hamiltonian are less stringent than those for an Eulerian graph, as there is no necessity for vertices to have an even degree. Finding Eulerian circuits is computationally feasible, whereas identifying Hamiltonian cycles is an NP-complete problem, which is more complex and lacks an efficient solution. The applications of these two types of graphs vary, with Eulerian graphs being instrumental in optimizing delivery routes, while Hamiltonian graphs are significant in problems related to scheduling, network routing, and resource management.Theorems and Applications of Eulerian Graphs in the Real World

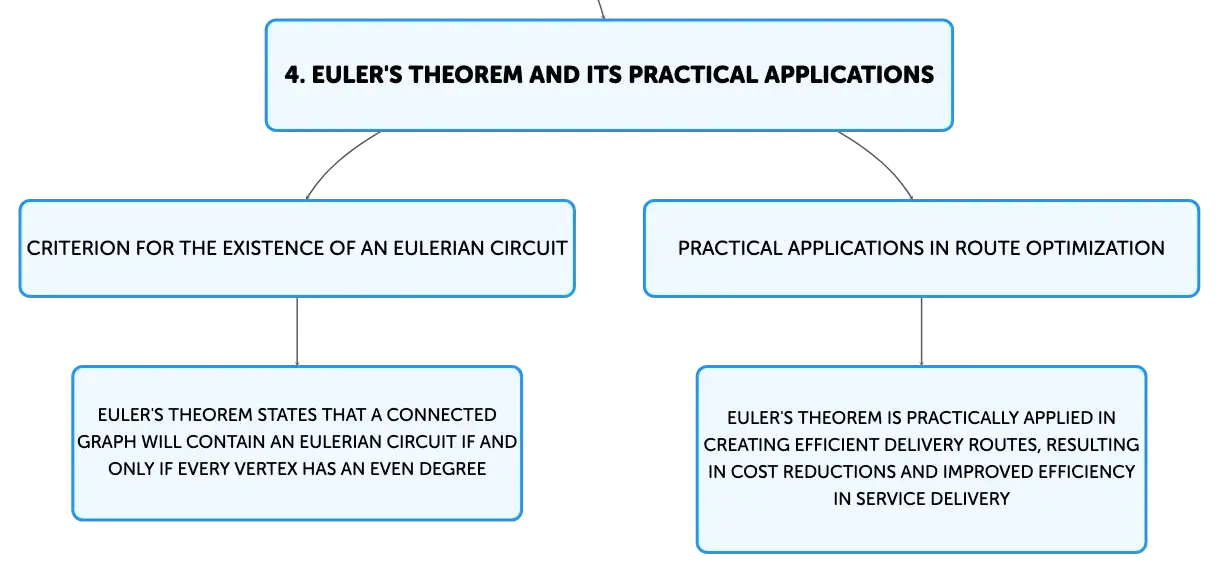

Eulerian graphs have significant real-world applications, especially in logistics and urban planning. Euler's theorem provides a clear criterion for the existence of an Eulerian circuit: a connected graph will contain such a circuit if and only if every vertex has an even degree. This theorem is practically applied in creating efficient delivery routes, where the goal is to avoid repeated traversal of the same paths, thereby saving fuel and optimizing logistics. Such applications result in cost reductions and improved efficiency in service delivery.Key Insights into Eulerian Graphs
In conclusion, Eulerian graphs are defined by their Eulerian circuits, which necessitate that each edge be visited precisely once. The essential features of an Eulerian graph are connectivity and an even degree at every vertex. Eulerian graphs are distinct from Hamiltonian graphs, which require visiting each vertex once without the even degree condition. Eulerian circuits can be determined with relative ease, while finding Hamiltonian cycles is computationally intensive. The study of Eulerian graphs is not only of theoretical interest but also has practical implications, particularly in the field of route optimization and logistics management.Want to create maps from your material?
