The SUVAT Equations: A Comprehensive Framework for Uniformly Accelerated Motion
The SUVAT equations are central to understanding linear motion with uniform acceleration, involving displacement (s), initial velocity (u), final velocity (v), acceleration (a), and time (t). These equations are crucial for calculating variables like the time needed for an object to reach a certain speed, the distance covered under constant acceleration, or the initial velocity of a moving object. They are foundational in physics education for analyzing motion-related problems.
See more1
4
Exploring the SUVAT Equations of Motion

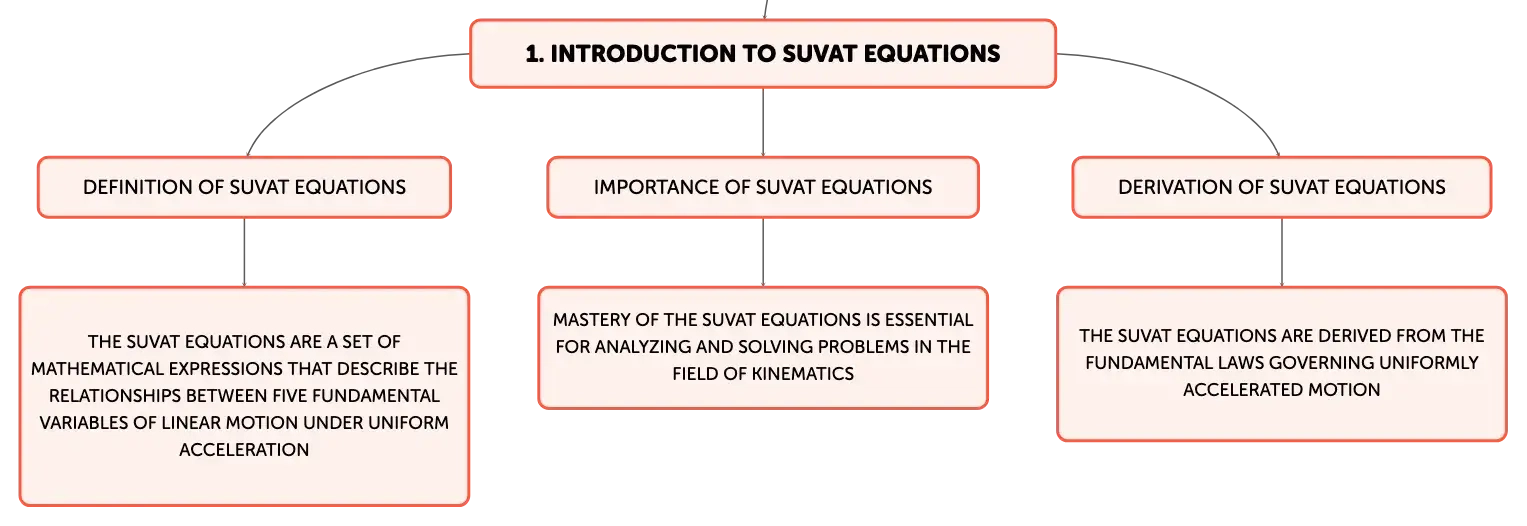

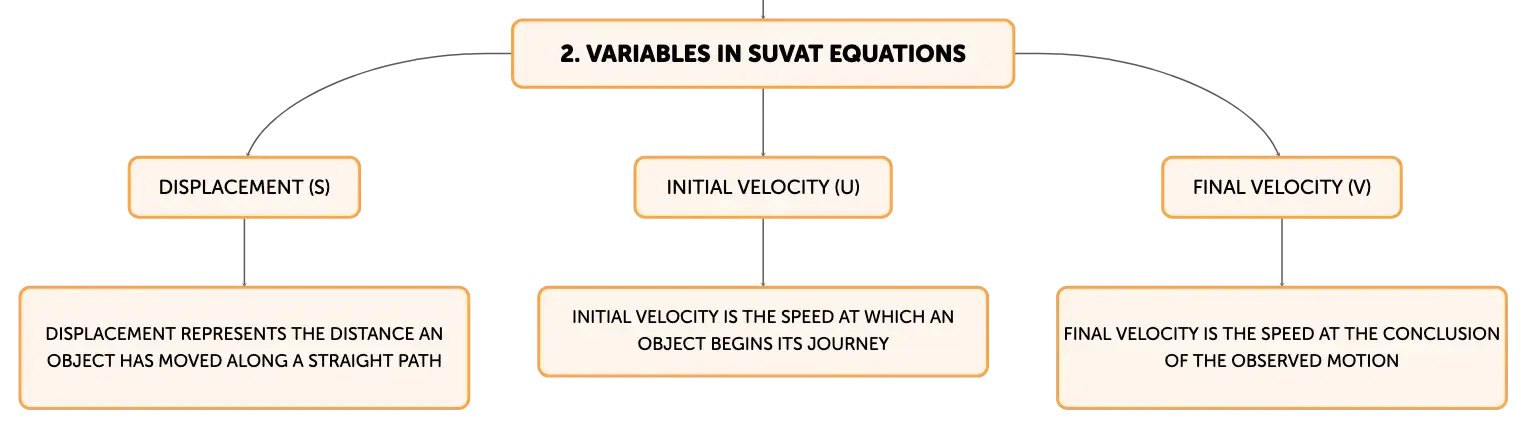

The SUVAT equations are a quintet of mathematical expressions that elegantly encapsulate the relationships between five fundamental variables of linear motion under uniform acceleration. These variables are: displacement (s), representing the distance an object has moved along a straight path; initial velocity (u), the speed at which the object begins its journey; final velocity (v), the speed at the conclusion of the observed motion; acceleration (a), the constant rate at which the object's velocity changes; and time (t), the duration over which the motion occurs. Mastery of these variables and their interplay is essential for the analysis and solution of problems in the field of kinematics.The Quintessential SUVAT Equations
Each of the five SUVAT equations incorporates four of the motion variables, enabling the determination of the unknown quantity when the other three are given. The equations are as follows: \(v = u + at\) delineates the relationship between final velocity, initial velocity, acceleration, and time; \(s = \frac{1}{2} (u + v) t\) connects displacement with initial velocity, final velocity, and time; \(s = ut + \frac{1}{2}at^2\) and \(s = vt - \frac{1}{2}at^2\) offer two distinct formulas for displacement, each utilizing a different set of the remaining variables; and \(v^2 = u^2 + 2as\) establishes a link between the squares of the velocities, acceleration, and displacement. These equations are indispensable in the realm of physics for the analysis of uniformly accelerated motion and are derived from the fundamental laws governing such acceleration.The Scope of SUVAT Equations

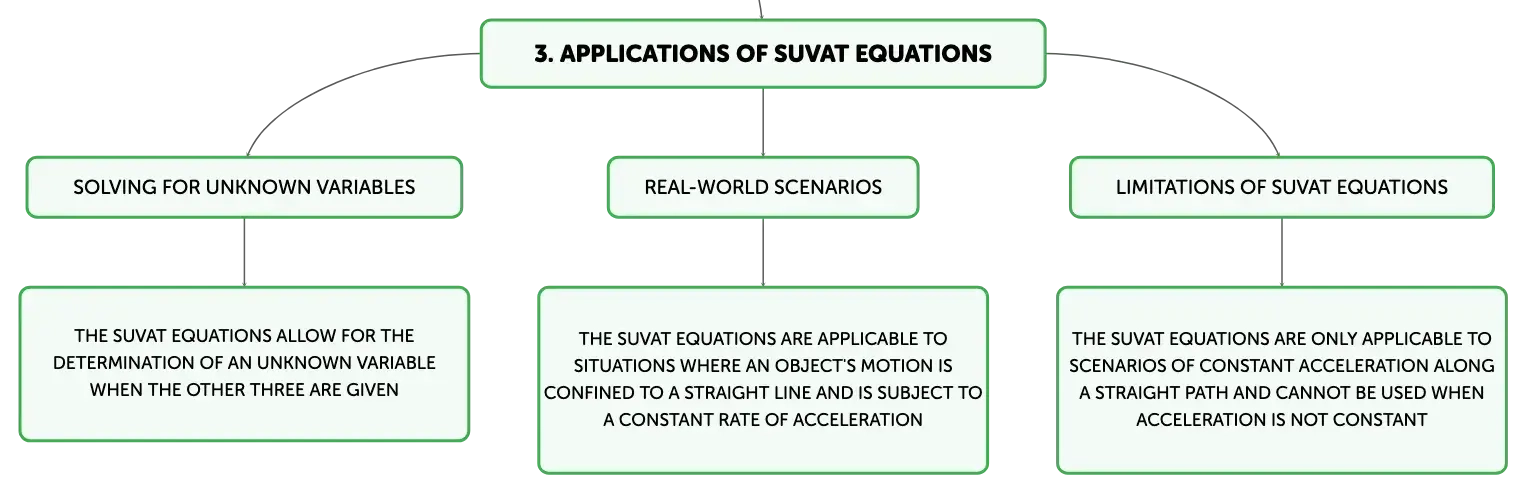

The SUVAT equations are pertinent to situations where an object's motion is confined to a straight line and is subject to a constant rate of acceleration. This encompasses a variety of real-world scenarios, such as a vehicle gaining speed on a straight roadway or an object being projected vertically and experiencing gravitational acceleration. It is imperative to recognize that these equations presuppose a uniform rate of acceleration throughout the motion, rendering them inapplicable to circumstances where the acceleration is not constant.Origin of the SUVAT Equations
The genesis of the SUVAT equations is rooted in the fundamental concept of acceleration as the change in velocity over time. The initial equation \(v = u + at\) emerges from a simple rearrangement of the definition of acceleration. The second equation \(s = \frac{1}{2} (u + v) t\) is derived by considering the mean velocity during uniform acceleration and multiplying it by the elapsed time to ascertain displacement. The third and fourth equations are derived by substituting the value of v from the first equation into variations of the second equation. The final equation \(v^2 = u^2 + 2as\) results from the elimination of time from the second equation, revealing the interdependence of the velocities, acceleration, and displacement.Problem-Solving with SUVAT Equations
The SUVAT equations serve as a robust framework for addressing a multitude of kinematic problems. They enable the calculation of the time required for a vehicle to attain a specified speed from a known initial velocity and acceleration, or the computation of the distance a cyclist has traversed under constant acceleration. These equations also facilitate the determination of a runner's initial velocity prior to acceleration or the duration it takes for a ball to reach its maximum height when thrown upwards. By judiciously selecting the appropriate equation and substituting the known quantities, one can isolate and solve for the unknown variable, thereby solidifying the SUVAT equations as an integral component of physics education.Concluding Insights on SUVAT Equations
The SUVAT equations are indispensable for a comprehensive understanding of the motion of objects under uniform acceleration. They offer a systematic approach to interlinking displacement, velocity, acceleration, and time within the context of linear motion. These equations are applicable exclusively to scenarios of constant acceleration along a straight path and are underpinned by the elementary principles of acceleration. Proficiency in the application of the SUVAT equations empowers students to tackle a broad spectrum of motion-related problems, thereby deepening their grasp of kinematics and the foundational laws of motion.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In kinematics, understanding the interplay of displacement (s), initial velocity (u), final velocity (v), acceleration (a), and time (t) is crucial for ______.
Click to check the answer
2
SUVAT equation for final velocity (v)
Click to check the answer
3
SUVAT equation for displacement (s) using velocities
Click to check the answer
4
SUVAT equation without time
Click to check the answer
5
The ______ equations are used when an object moves in a straight line with a ______ rate of acceleration.
Click to check the answer
6
Definition of acceleration in SUVAT
Click to check the answer
7
Mean velocity concept in SUVAT
Click to check the answer
8
Elimination of time in SUVAT
Click to check the answer
9
In physics education, the ______ equations are crucial for finding unknown variables like initial velocity, time, or maximum height achieved by an object in motion.
Click to check the answer
10
SUVAT Equations Application
Click to check the answer
11
SUVAT Variables Interconnection
Click to check the answer
12
SUVAT Equations Relevance to Kinematics
Click to check the answer
