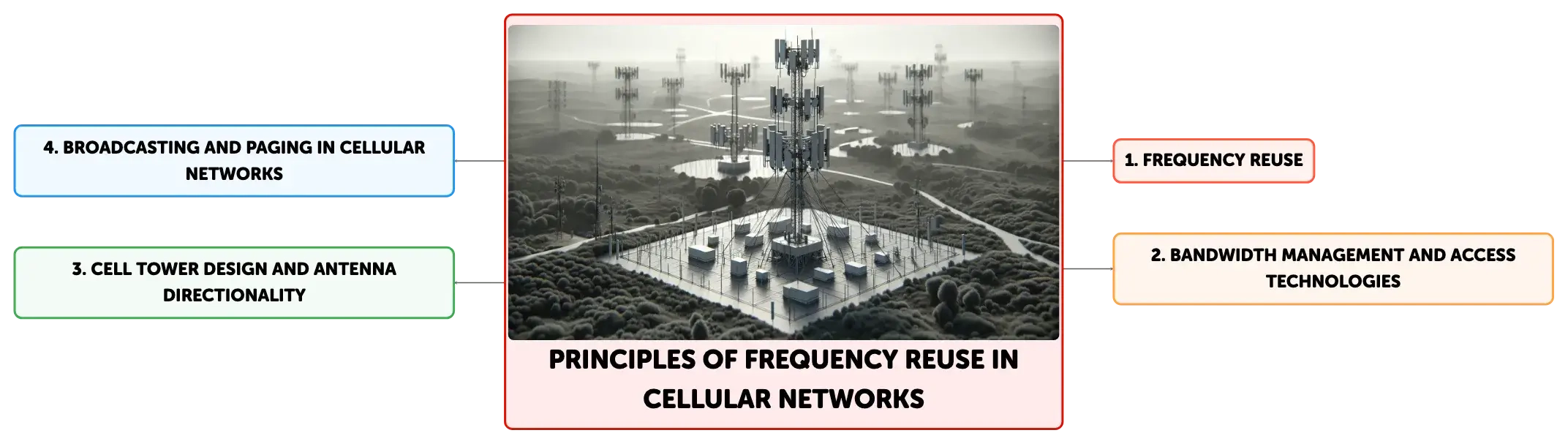

Principles of Frequency Reuse in Cellular Networks
Exploring the principles of frequency reuse in cellular networks, this overview covers the spatial distribution of frequency channels, the critical parameters of reuse distance and factor, and the impact of cell radius on coverage. It delves into sectorization, bandwidth allocation, and advanced access technologies like CDMA and OFDMA. The role of cell tower design, antenna directionality, broadcasting, paging, and the handover process for continuous connectivity are also highlighted.
See morePrinciples of Frequency Reuse in Cellular Networks

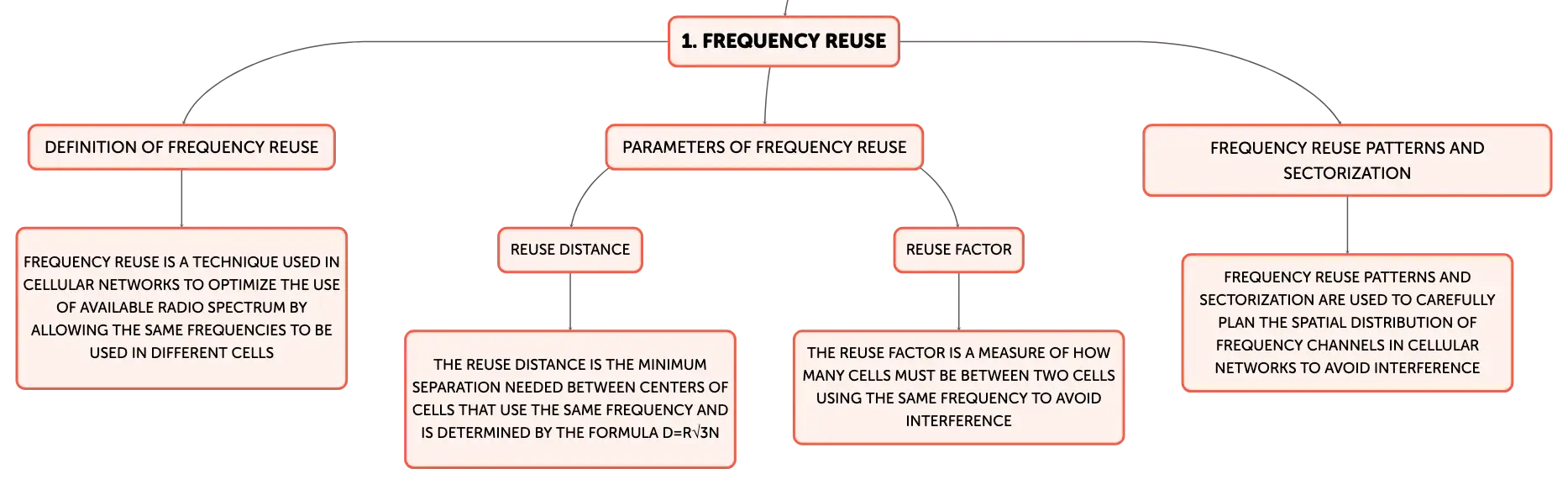

Cellular networks optimize the use of available radio spectrum by employing a technique known as frequency reuse, which allows for the same frequencies to be used in different cells that are sufficiently separated to avoid interference. This spatial distribution of frequency channels is carefully planned to ensure that adjacent cells use different frequencies, while cells that are far apart can reuse the same frequency. The concept of frequency reuse is underpinned by two critical parameters: the reuse distance and the reuse factor. The reuse distance, denoted by D, is the minimum separation needed between centers of cells that use the same frequency and is determined by the formula D=R√3N, where R represents the radius of the cell and N is the cluster size, or the number of cells that collectively use a complete set of available frequencies. The cell radius can vary significantly, typically from 1 to 30 kilometers, depending on the environment and the desired coverage. Cells may also be designed to overlap or be further divided into smaller cells, known as microcells or picocells, to enhance network capacity and coverage in densely populated areas.Frequency Reuse Patterns and Sectorization
The frequency reuse factor, often denoted as K, is a measure of how many cells must be between two cells using the same frequency to avoid interference. It is inversely represented as 1/K, where a lower value of K indicates more aggressive frequency reuse. Common reuse factors are 1/3, 1/4, 1/7, 1/9, and 1/12, which are chosen based on the desired balance between coverage and capacity. To further improve capacity, cells can be divided into sectors, typically three 120-degree sectors, each served by its own directional antenna. This sectorization leads to a more granular reuse pattern of N/K, where N is the number of sectors. Historical frequency reuse patterns include 3/7 for the North American Advanced Mobile Phone System (AMPS), 6/4 for Motorola's Narrowband AMPS (NAMPS), and 3/4 for the Global System for Mobile Communications (GSM).Bandwidth Management and Access Technologies

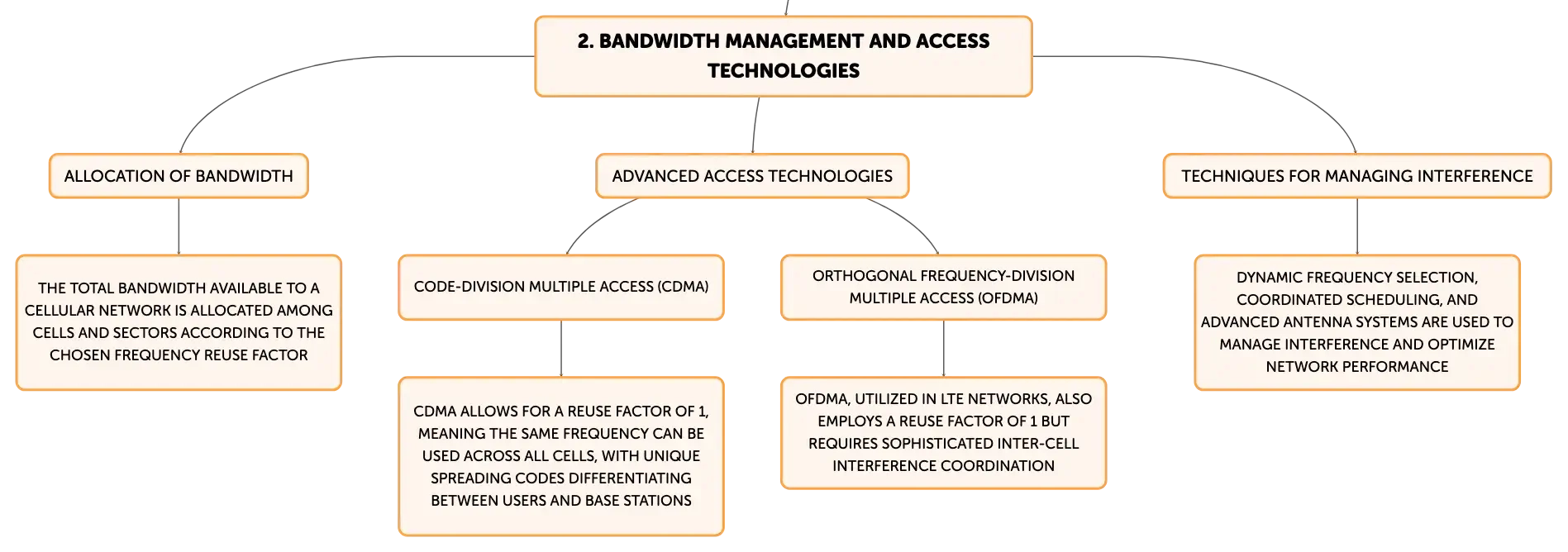

The total bandwidth, B, available to a cellular network is allocated among cells and sectors according to the chosen frequency reuse factor. Each cell is assigned a bandwidth of B/K, and each sector within a cell receives B/NK. Advanced access technologies have introduced new approaches to frequency reuse. Code-division multiple access (CDMA) allows for a reuse factor of 1, meaning the same frequency can be used across all cells, with unique spreading codes differentiating between users and base stations. Orthogonal frequency-division multiple access (OFDMA), utilized in Long-Term Evolution (LTE) networks, also employs a reuse factor of 1 but requires sophisticated inter-cell interference coordination. Techniques such as dynamic frequency selection, coordinated scheduling, and advanced antenna systems like multi-site Multiple Input Multiple Output (MIMO) are used to manage interference and optimize network performance.Cell Tower Design and Antenna Directionality

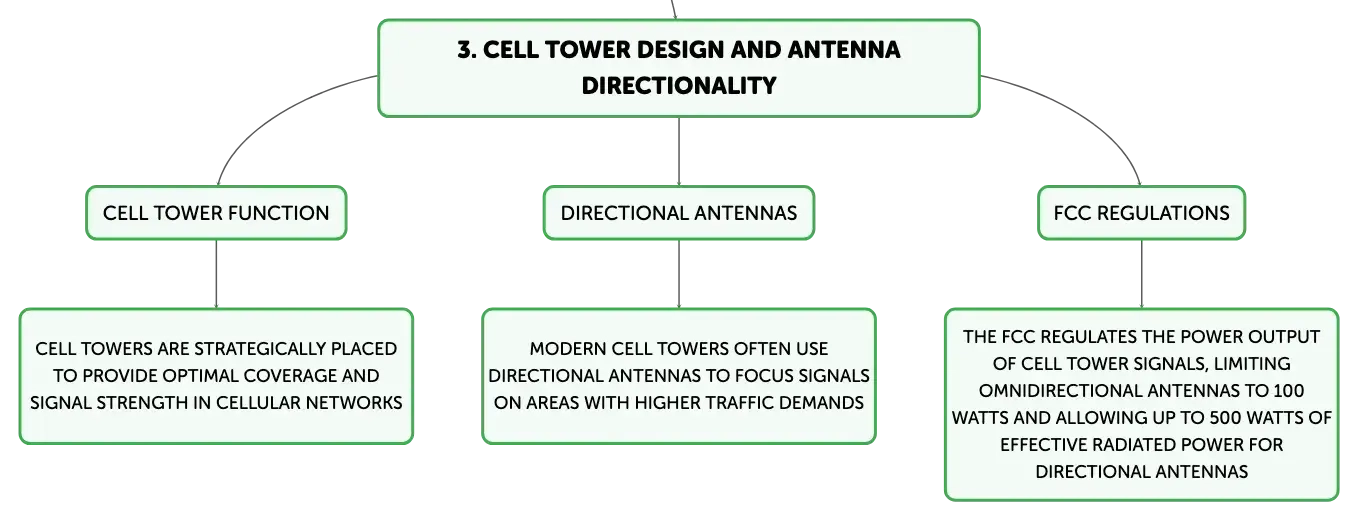

Cell towers are the backbone of cellular networks, strategically placed to provide optimal coverage and signal strength. Traditional cell towers emitted signals in all directions (omnidirectional), but modern towers often use directional antennas to focus signals on areas with higher traffic demands. In the United States, the Federal Communications Commission (FCC) regulates the power output of cell tower signals, limiting omnidirectional antennas to 100 watts and allowing up to 500 watts of effective radiated power (ERP) for directional antennas. Towers are typically positioned at the vertices of hexagonal cells, with each tower equipped with three sets of directional antennas, each covering a 120-degree arc. This configuration allows each tower to serve three different cells, improving coverage and signal quality.Broadcasting and Paging in Cellular Networks

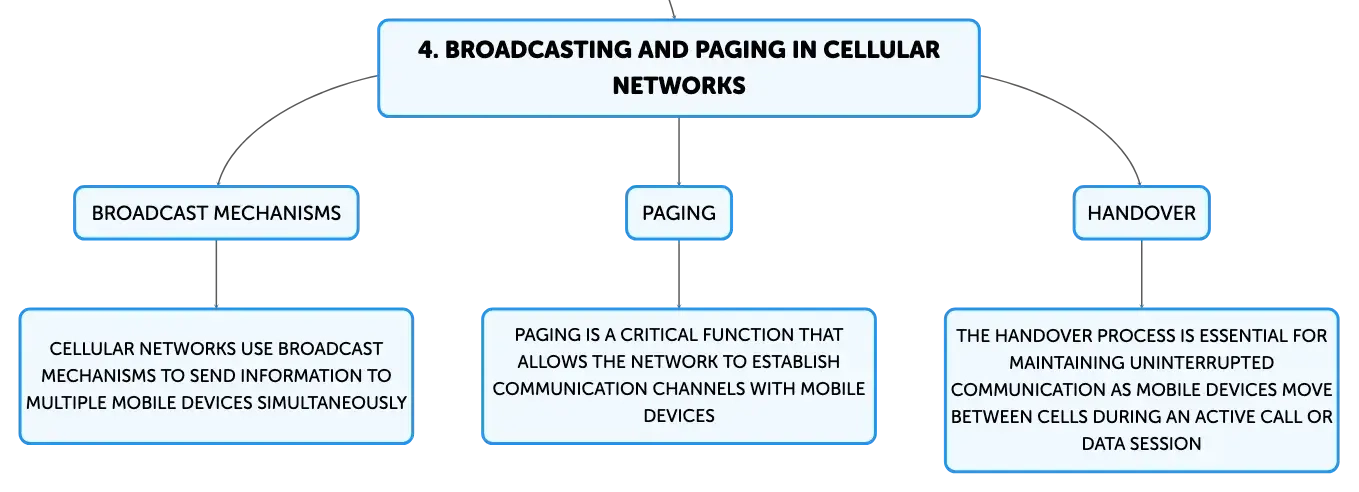

Cellular networks use broadcast mechanisms to send information to multiple mobile devices simultaneously. Paging is a critical function that allows the network to establish communication channels with mobile devices. Paging can be done in various ways, including sequential, parallel, or selective, depending on the network's requirements. In GSM and UMTS networks, a group of cells known as a Location Area (or Routing Area for data sessions) is defined, and the paging message is broadcast to all cells within this area. This approach is also employed in CDMA networks for services like SMS and in UMTS networks to achieve low downlink latency during packet data sessions.Handover: Ensuring Continuous Connectivity
The handover process is essential for maintaining uninterrupted communication as mobile devices move between cells during an active call or data session. This process involves the network automatically transferring the device's connection from one cell's frequency to another's. While the specifics of handover protocols can vary among different cellular technologies, the goal is consistent: to provide a seamless transition without dropping the call or data session. The network continuously monitors signal strength and quality to determine the optimal timing for handover, ensuring that users experience a continuous and reliable connection as they traverse the cellular network.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In cellular networks, a method called ______ reuse allows the same frequencies to be utilized in separate cells without interference.
Click to check the answer
2
The formula for determining the reuse distance includes the cell radius (R) and the ______ size, which is the count of cells using all available frequencies.
Click to check the answer
3
To increase capacity and coverage in crowded areas, cells may overlap or be subdivided into ______ or picocells.
Click to check the answer
4
Define frequency reuse factor (K).
Click to check the answer
5
Explain 1/K in frequency reuse.
Click to check the answer
6
Historical frequency reuse patterns: AMPS, NAMPS, GSM.
Click to check the answer
7
In a cellular network, the total available bandwidth, ______, is divided among cells and sectors based on the frequency reuse factor.
Click to check the answer
8
Code-division multiple access (CDMA) technology permits the same frequency to be utilized in all cells, with a reuse factor of ______, using unique codes to distinguish users and stations.
Click to check the answer
9
Role of cell towers in cellular networks
Click to check the answer
10
FCC regulations on cell tower power output
Click to check the answer
11
Cell tower antenna configuration
Click to check the answer
12
Cellular networks utilize ______ to transmit data to numerous mobile devices at once.
Click to check the answer
13
Paging may be executed in ______, ______, or ______ ways, based on what the network needs.
Click to check the answer
14
In GSM and UMTS systems, a ______ is defined for paging, which includes a cluster of cells.
Click to check the answer
15
For data sessions in GSM and UMTS, the equivalent of a Location Area is called a ______.
Click to check the answer
16
CDMA networks also use this paging strategy for services like ______ and to reduce ______ in UMTS networks.
Click to check the answer
17
Handover Process Function
Click to check the answer
18
Handover Protocols Variability
Click to check the answer
19
Handover Timing Determination
Click to check the answer
