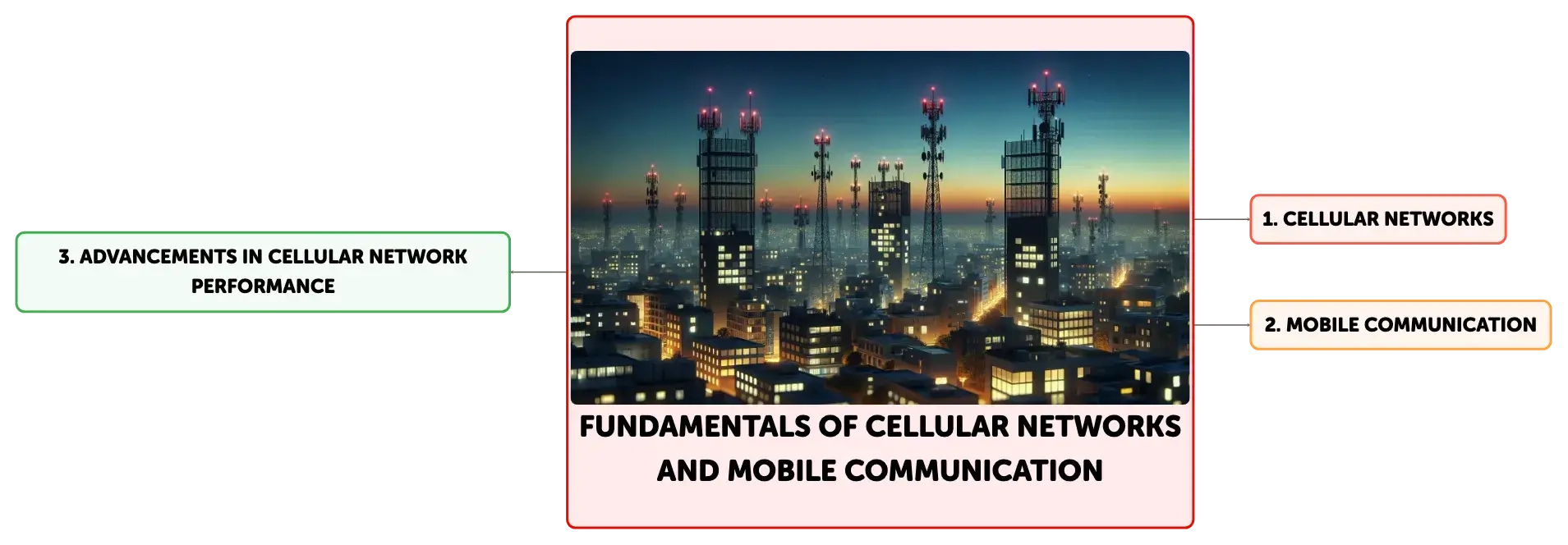

Concept Map

Algorino

Edit available

Explore the intricacies of cellular networks, the backbone of mobile communication. Learn about cell site design, coverage, and the evolution of standards like GSM and CDMA. Understand key components, handover mechanisms, frequency allocation, and advancements like MIMO and SDMA that enhance network performance and connectivity.

Summary

Outline

The Fundamentals of Cellular Networks and Mobile Communication

Cellular networks form the essential infrastructure for mobile communication, allowing mobile devices to connect and communicate wirelessly over distances. These networks are composed of interconnected cell sites or base stations that use radio frequencies to transmit and receive signals from mobile devices. To efficiently manage the radio spectrum and support a multitude of simultaneous users, cellular networks employ low-power transmitters and dynamically assign frequencies, a process managed by sophisticated computer systems to reduce interference and optimize bandwidth usage.

Modern cityscape at dusk with cell towers and illuminated buildings, starry sky and red signal lights on antennas.

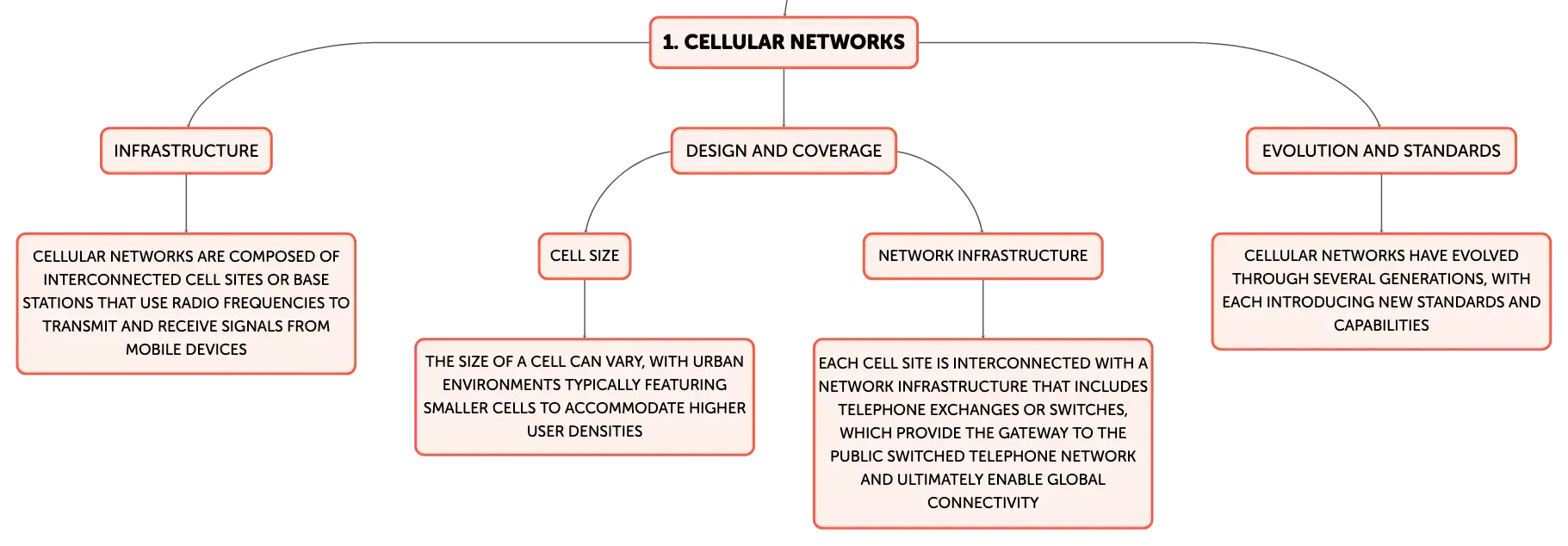

Cellular Network Design and Coverage

Cellular networks are meticulously designed to maximize coverage and capacity. Operators partition regions into cells, each served by a base station, which facilitates the management of network resources and ensures consistent service quality. The size of a cell can vary, with urban environments typically featuring smaller cells to accommodate higher user densities. Each cell site is interconnected with a network infrastructure that includes telephone exchanges or switches, which provide the gateway to the public switched telephone network and ultimately enable global connectivity.

Evolution and Standards of Cellular Network Technologies

Cellular networks have evolved through several generations, with each introducing new standards and capabilities. Prominent digital standards include Global System for Mobile Communications (GSM), Code Division Multiple Access (CDMA), and Advanced Mobile Phone System (AMPS). While the United States experienced a diverse adoption of these standards, GSM became the de facto standard in Europe and many other regions. These technologies support a spectrum of services, including voice, text messaging, and increasingly, high-speed mobile data and internet access.

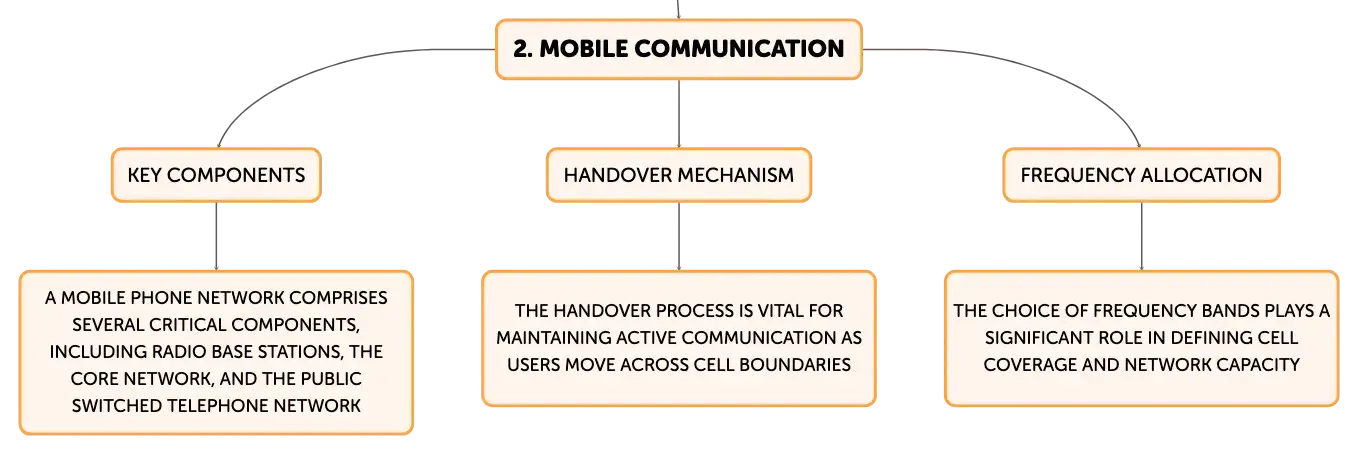

Key Components of Mobile Phone Networks

A mobile phone network comprises several critical components: the radio base stations, which form the base station subsystem; the core network, which includes both circuit-switched and packet-switched architectures for handling voice, text, and data services; and the public switched telephone network (PSTN) for broader connectivity. These elements collaborate to manage user mobility, call establishment, and seamless service continuity through processes such as registration and handover.

The Handover Mechanism in Cellular Networks

The handover process is vital for maintaining active communication as users move across cell boundaries. Mobile devices continuously monitor signal quality and, when necessary, initiate a handover to a new cell site. In CDMA networks, a "soft handoff" technique is often used, where the device simultaneously connects to multiple base stations before transitioning, minimizing call drops and ensuring a smoother user experience.

Frequency Allocation and Impact on Cell Coverage

The choice of frequency bands plays a significant role in defining cell coverage and network capacity. Lower frequencies are advantageous for expansive rural coverage due to their longer wavelengths and better penetration of natural and man-made obstacles. Conversely, higher frequencies are suitable for dense urban areas, providing increased capacity but with reduced range. Network operators must carefully plan frequency use and transmission power to maintain optimal service quality and minimize interference.

Determining Cell Size and Coverage

The size of a cell in a cellular network is influenced by the operating frequency, with lower frequencies capable of covering larger areas and higher frequencies suited for smaller, densely-packed cells. This relationship is a key consideration in network design, particularly for technologies like CDMA2000, where frequency selection directly impacts coverage area and the density of cell sites required to provide comprehensive service.

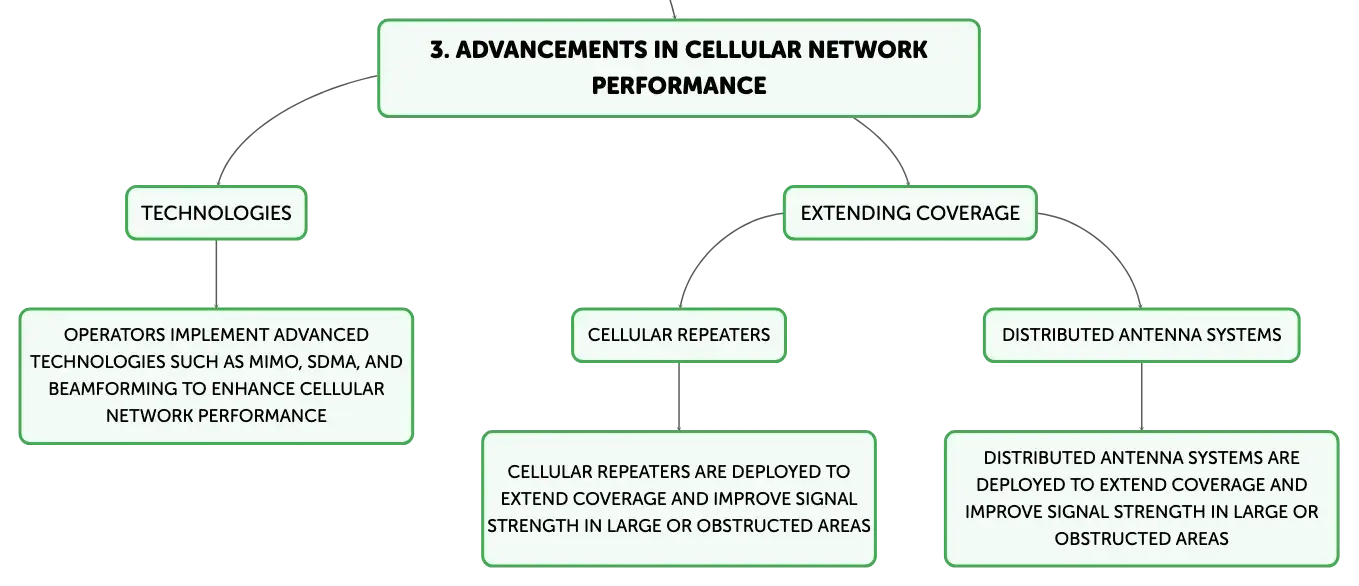

Advancements in Cellular Network Performance

To enhance cellular network performance, operators implement advanced technologies such as Multiple Input Multiple Output (MIMO), Space-Division Multiple Access (SDMA), and beamforming. These techniques allow for more efficient utilization of the radio spectrum, improving both network capacity and communication quality. Additionally, cellular repeaters and distributed antenna systems are deployed to extend coverage and improve signal strength in large or obstructed areas, ensuring reliable connectivity for users.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

______ networks are vital for mobile communication, enabling devices to connect wirelessly over ______.

Cellular

distances

To manage the radio spectrum and support many users, cellular networks use low-power ______ and dynamically assign ______.

transmitters

frequencies

Cell network design purpose

Maximize coverage and capacity
