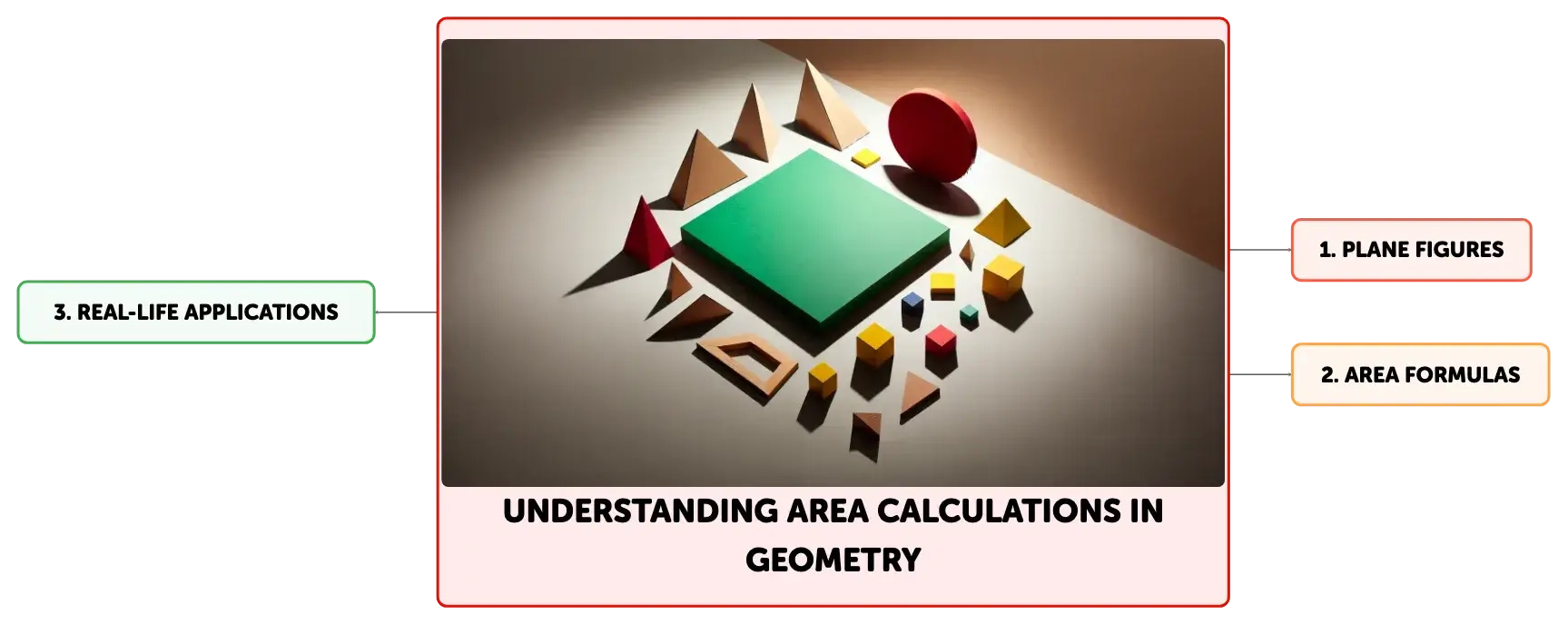

Understanding Area Calculations in Geometry

Understanding the calculation of area for plane figures is fundamental in geometry. This includes formulas for regular shapes like squares and triangles, as well as strategies for irregular figures. Calculating areas is crucial for real-life applications such as gardening, flooring, and construction. Mastery of these concepts aids in solving mathematical problems and practical shape analyses.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of plane figures

Click to check the answer

Two-dimensional shapes on a flat surface, with length and width, but no height or depth.

2

Concept of area

Click to check the answer

Measures surface extent in square units, e.g., cm², m², ft².

3

Calculating area for shapes

Click to check the answer

Use specific formulas and methods for regular and irregular shapes to determine area.

4

______ plane figures, like squares and equilateral triangles, have sides and angles that are all ______.

Click to check the answer

Regular equal

5

Area calculation for all triangle types?

Click to check the answer

Same formula: 1/2 × base × height.

6

Area relevance for 2D and 3D shapes?

Click to check the answer

Formula applies to 2D triangles and 3D pyramid bases.

7

Practical use of triangle area calculation?

Click to check the answer

Determines maintenance time for areas like gardens.

8

A ______ is a four-sided shape whose interior angles total up to ______ degrees.

Click to check the answer

Quadrilateral 360

9

To find the area of a ______, multiply its base by its height.

Click to check the answer

parallelogram

10

Area formula for a kite

Click to check the answer

Half the product of its diagonals

11

Area calculation for a trapezoid

Click to check the answer

Average parallel sides' lengths, multiply by height

12

Area formulas for regular pentagons and hexagons

Click to check the answer

Use apothem and side length

13

When dealing with a shape that encloses a circle, the area of the ______ is subtracted from the ______ shape's total area.

Click to check the answer

circle outer

14

Real-life area calculation examples

Click to check the answer

Cover for cuboidal block, square tiles for trapezoidal patio.

15

Application of area formulas

Click to check the answer

Reinforces geometric principles through practical exercises.

16

Understanding the ______ of both regular and irregular figures is essential for a wide range of ______ and practical tasks.

Click to check the answer

formulas mathematical problems

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Perpendicular Bisectors

View document

Geometry

Parametric Equations for Hyperbolas

View document

Geometry

Parallel Lines and Transversals

View document

Geometry

Angle Measurement in Geometry

View document

Understanding Plane Figures and the Concept of Area

Geometry introduces us to plane figures, which are two-dimensional shapes that exist on a flat surface, defined by length and width but lacking height or depth. These shapes are essential for comprehending the concept of area, which quantifies the extent of a surface and is measured in square units, such as square centimeters (cm²), square meters (m²), or square feet (ft²). Calculating the area of plane figures requires an understanding of both regular and irregular shapes, as each has specific formulas and methods for determining their respective areas.
Assorted geometric shapes on a light gray surface, including a green rectangle, red circle, blue triangle, yellow squares, and wooden hexagons.

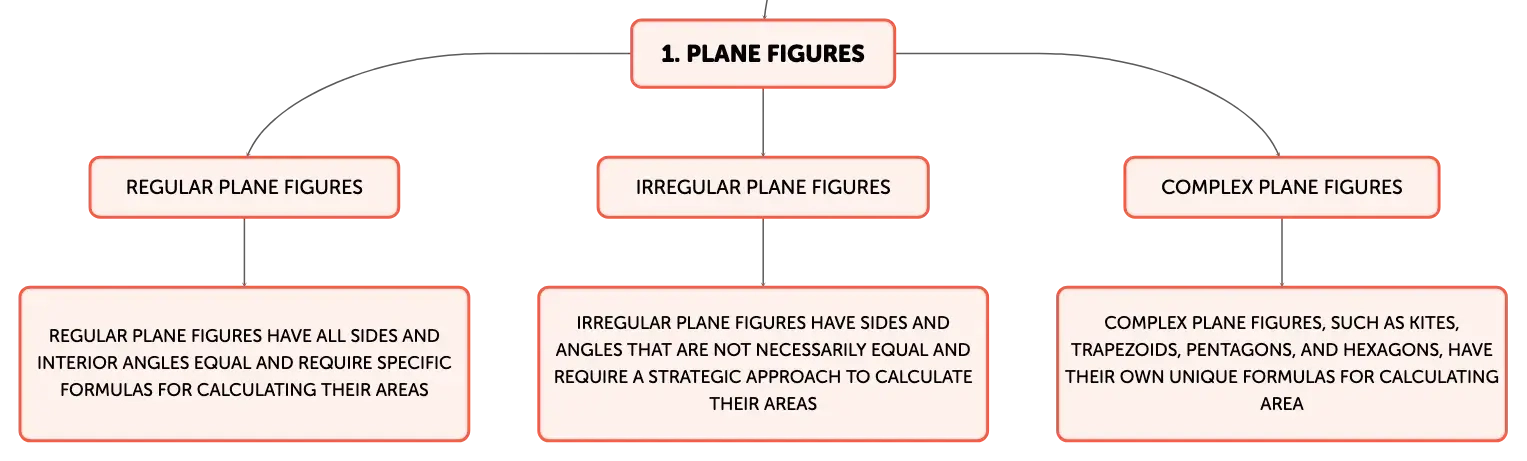

Distinguishing Between Regular and Irregular Plane Figures

Plane figures are classified as either regular or irregular based on the uniformity of their sides and angles. Regular plane figures, such as squares, equilateral triangles, and regular polygons, have all sides and interior angles equal. Irregular plane figures, which include rectangles, parallelograms, and various other triangles and quadrilaterals, have sides and angles that are not necessarily equal. Recognizing the type of plane figure is crucial for employing the correct formula to calculate its area.

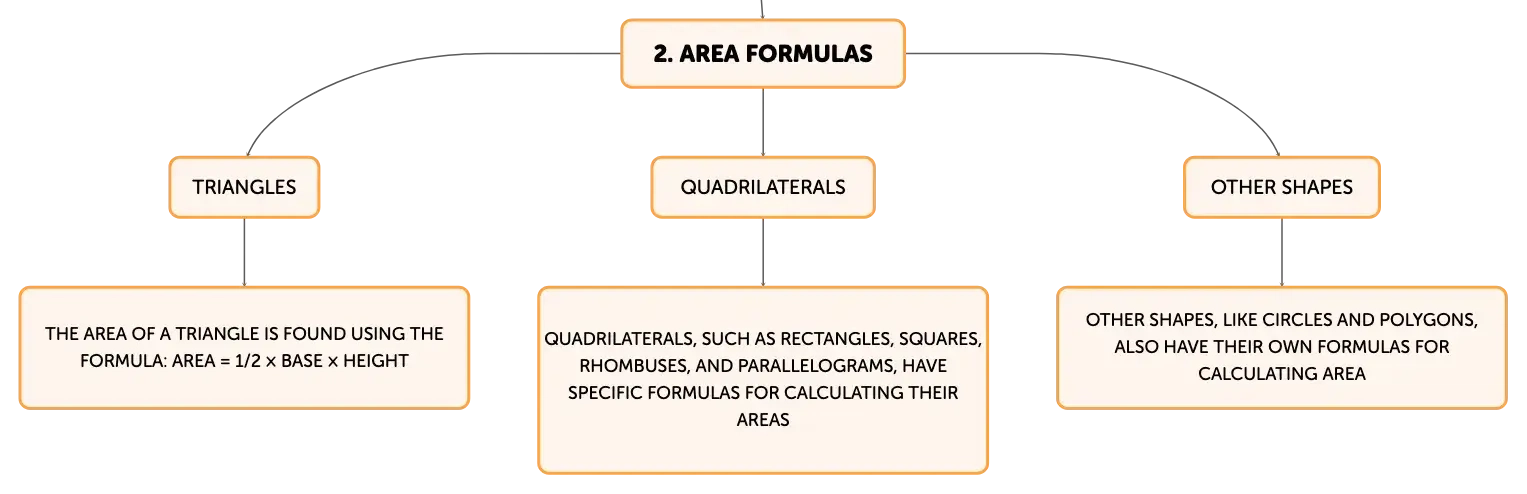

Formula for the Area of Triangles

The area of a triangle is found using the formula: area = 1/2 × base × height. This formula applies to all triangles, regardless of their shape or whether they are part of a two-dimensional plane or the base of a three-dimensional object like a pyramid. For instance, to calculate the area of a triangular garden with a base of 12 meters and a height of 15 meters, one would use this formula to determine the area, which can then inform how much time is needed to maintain the garden based on a given work rate.

Area Formulas for Quadrilaterals

Quadrilaterals are four-sided figures with interior angles that add up to 360 degrees. They come in various types, each with a unique formula for calculating area. The area of a rectangle is the product of its length and width, while the area of a square is found by squaring the length of one of its sides. For a rhombus, the area is calculated as half the product of its diagonals, and for a parallelogram, it is the base multiplied by the height. These formulas are practical for real-life applications, such as flooring a room or determining the space occupied by furniture.

Calculating the Area of Complex Plane Figures

In addition to quadrilaterals, there are other complex plane figures like kites, trapezoids, pentagons, and hexagons, each with its own area calculation formula. The area of a kite is half the product of its diagonals. A trapezoid's area is calculated by averaging the lengths of the parallel sides and then multiplying by the height. For regular pentagons and hexagons, the area formulas involve the apothem and the length of the sides. Knowledge of these formulas is necessary for accurately determining the area of such shapes in various applications.

Strategies for Calculating the Area of Irregular Plane Figures

Irregular plane figures often require a strategic approach to calculate their area, which may include breaking the figure down into a combination of regular shapes. The area of each segment is calculated separately, and then the areas are summed to find the total area of the irregular figure. For example, a cross-shaped figure can be divided into rectangles, with the area of each rectangle calculated and then added together. To find the area of a shape with an inscribed circle, one would subtract the area of the circle from the total area of the outer shape.

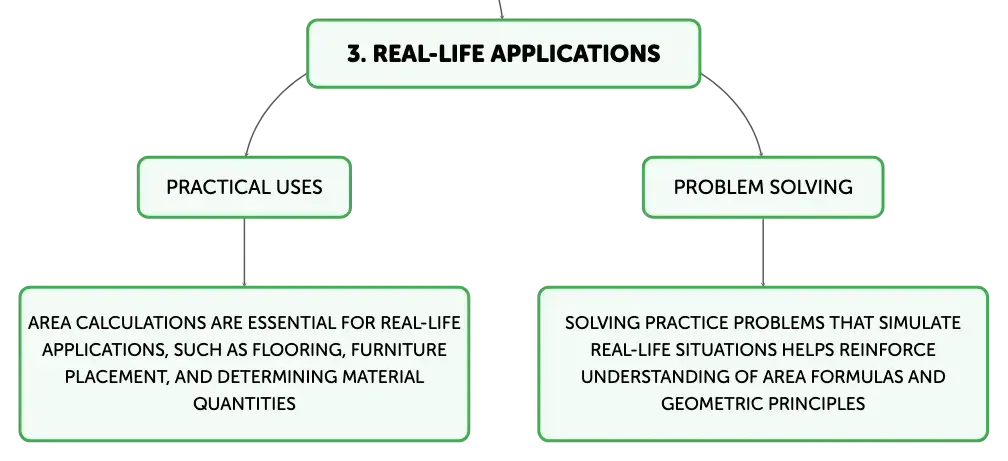

Practice Problems for Area Calculation

To gain proficiency in area calculations, it is beneficial to solve practice problems that simulate real-life situations. These problems might involve calculating the area of a cover needed for a cuboidal block or the number of square tiles required for a trapezoidal patio. Through these practical exercises, students can apply their understanding of area formulas and reinforce their grasp of geometric principles.

Key Takeaways in Plane Figure Area Calculation

A thorough understanding of area calculation involves recognizing the type of plane figure, selecting the appropriate formula, and applying it to determine the surface size. Regular and irregular figures each have distinct formulas that reflect their geometric characteristics. Mastery of these concepts is crucial for solving a broad spectrum of mathematical problems and for practical applications, from simple area determinations to complex shape analyses.
