Angle Measurement in Geometry

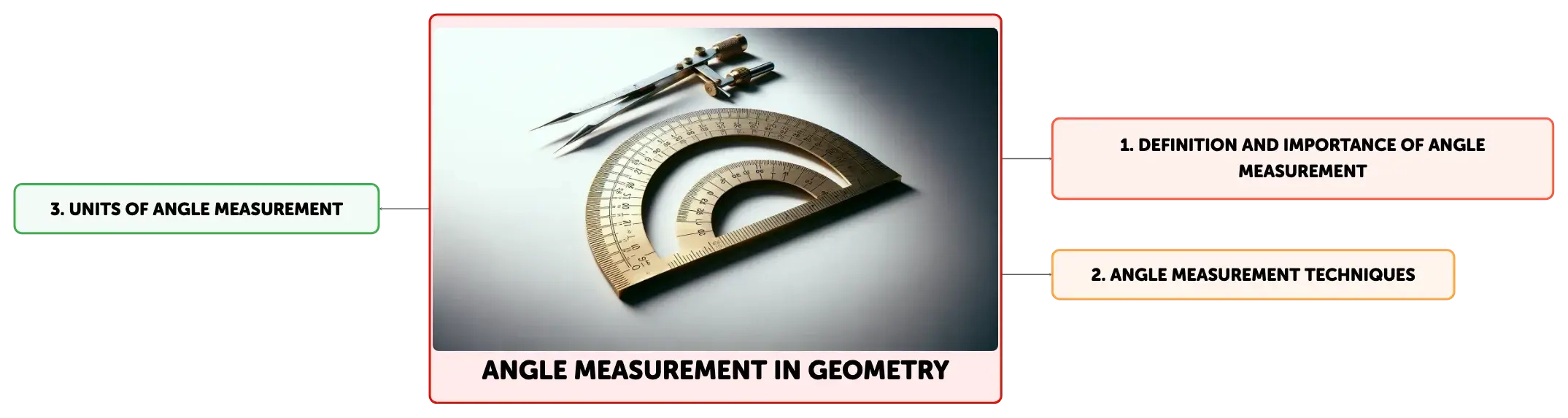

Concept Map
Exploring the fundamentals of angle measurement, this overview covers techniques using a protractor, mathematical calculations for unknown angles, and trigonometry in right-angled triangles. It delves into the units of measurement for angles, such as degrees and radians, and provides insights into calculating acute angles and the sum of interior angles in polygons. The content is essential for understanding geometric principles and their applications in various problems.
Summary
Outline
Fundamentals of Angle Measurement

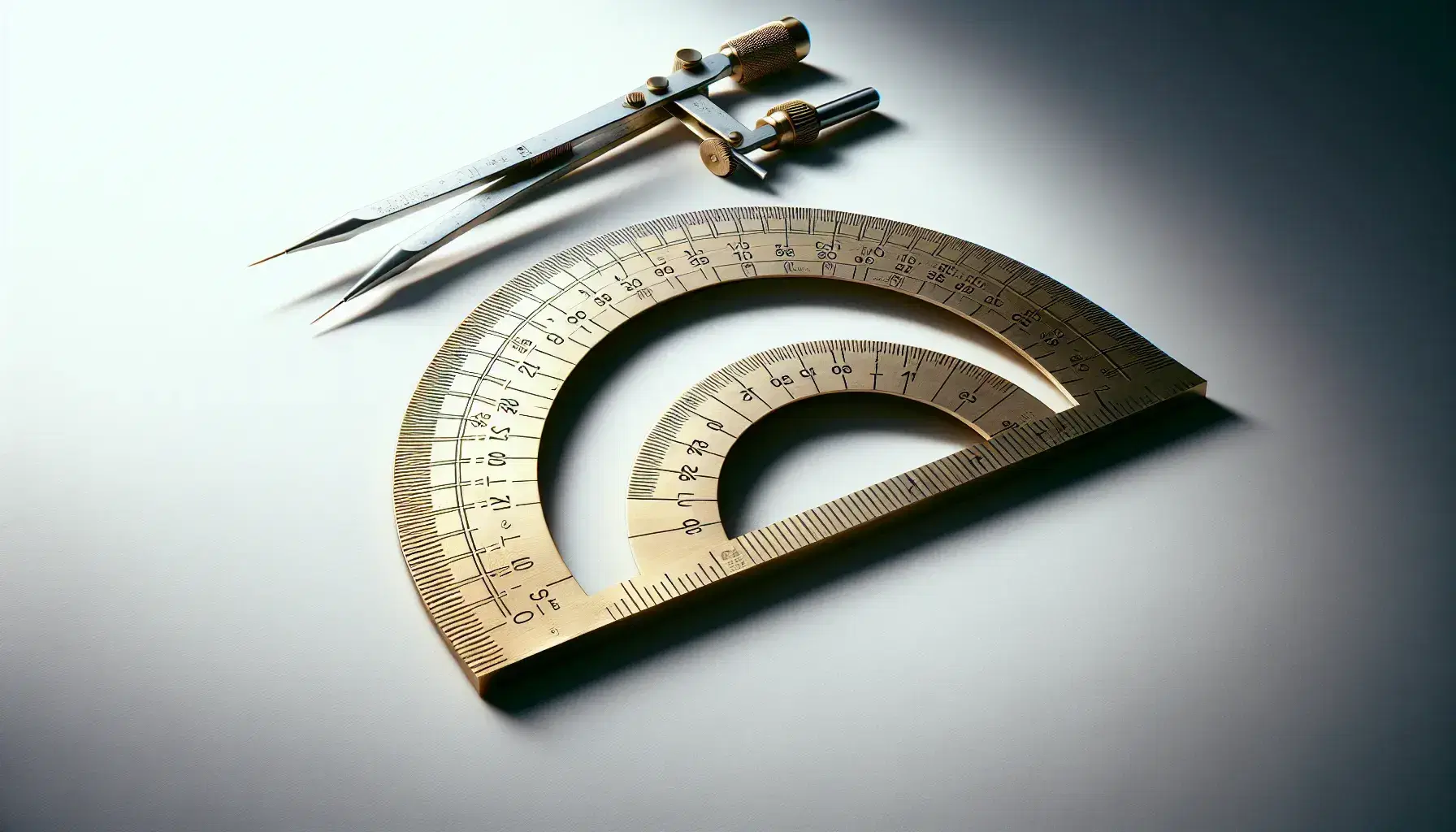

Angle measurement is an essential aspect of geometry, focusing on the size determination of an angle, which is created by two intersecting lines, known as rays, that share a common endpoint called the vertex. This measurement can be achieved through various techniques, including the use of a protractor—a semi-circular instrument marked with degrees. To measure an angle with a protractor, align its midpoint with the angle's vertex and one ray with the baseline of the protractor. The point where the second ray intersects the protractor's scale provides the angle's measurement in degrees. For example, if the second ray points to the 40° mark, the angle is 40 degrees.Mathematical Angle Calculations
Angles can be calculated mathematically using geometric principles and formulas. A fundamental principle is that the sum of angles on a straight line equals 180 degrees. To find an unknown angle on a straight line, subtract the known angle from 180 degrees. For instance, if one angle measures 109 degrees, the other is 180 - 109 = 71 degrees. In polygons, the sum of interior angles can be found using the formula (n-2)×180°, where 'n' is the number of sides. This allows for the calculation of any missing interior angles when the sum and other individual angles are known. For example, in a hexagon, the missing angle 'x' can be determined by subtracting the sum of the known angles from the total sum of the interior angles, which is (6-2)×180° = 720 degrees.Trigonometry in Right-Angled Triangles
Trigonometry is particularly useful in analyzing right-angled triangles, establishing relationships between the angles and the lengths of the sides. The sides are categorized as the Opposite (opposite the angle of interest), the Adjacent (next to the angle and forming the right angle), and the Hypotenuse (the longest side, opposite the right angle). The trigonometric ratios—sine (sin), cosine (cos), and tangent (tan)—are remembered using the mnemonic SOH CAH TOA, which stands for Sine = Opposite/Hypotenuse, Cosine = Adjacent/Hypotenuse, and Tangent = Opposite/Adjacent. To find an angle, one can use the inverse trigonometric functions (arcsin, arccos, arctan) with the known side lengths.Units for Measuring Angles
Angles are commonly measured in degrees and radians. A degree is a measure that divides one full rotation into 360 equal parts, while a radian is another measure where one full rotation is equal to 2π radians. Radians are frequently used in advanced mathematics and physics. To convert degrees to radians, the formula is Radians = Degrees × π/180. For example, 45 degrees can be converted to radians as 45 × π/180 = π/4 radians.Measuring Acute Angles and Summary
Acute angles, which are less than 90 degrees, are measured using the same methods as other angles. Whether employing a protractor, utilizing trigonometric functions, or using the formula for the sum of interior angles in polygons, the approach is consistent. In summary, mastering angle measurement is crucial in geometry, with applications ranging from basic manual measurements to advanced trigonometric calculations. The sum of interior angles in polygons, along with the constant sum of exterior angles at 360 degrees, provides a basis for solving a variety of geometric problems. A thorough understanding of angle measurement units and the ability to convert between degrees and radians is vital for students and practitioners of mathematics.
Show More

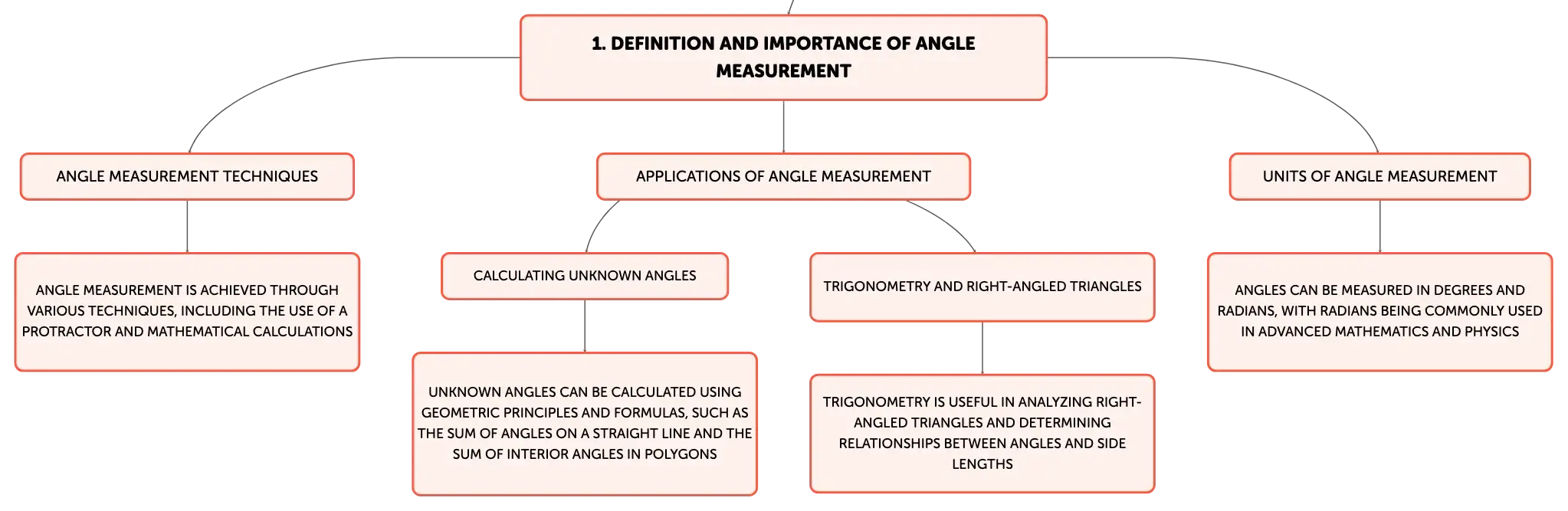

Definition and Importance of Angle Measurement
Angle Measurement Techniques
Angle measurement is achieved through various techniques, including the use of a protractor and mathematical calculations
Applications of Angle Measurement
Calculating Unknown Angles
Unknown angles can be calculated using geometric principles and formulas, such as the sum of angles on a straight line and the sum of interior angles in polygons
Trigonometry and Right-Angled Triangles
Trigonometry is useful in analyzing right-angled triangles and determining relationships between angles and side lengths
Units of Angle Measurement
Angles can be measured in degrees and radians, with radians being commonly used in advanced mathematics and physics

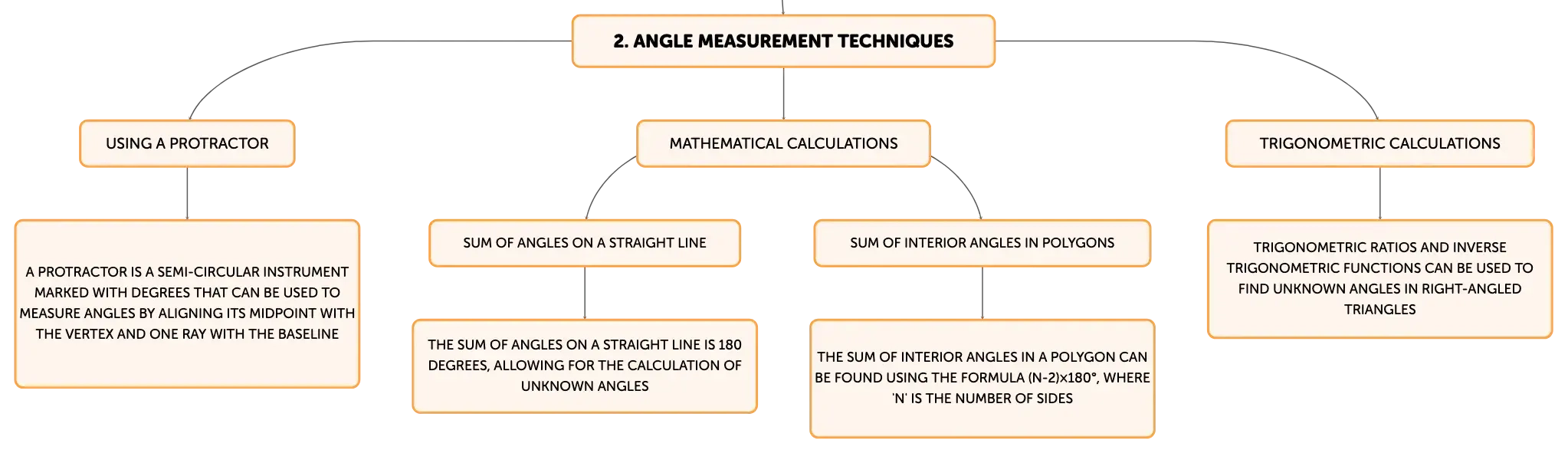

Angle Measurement Techniques
Using a Protractor
A protractor is a semi-circular instrument marked with degrees that can be used to measure angles by aligning its midpoint with the vertex and one ray with the baseline
Mathematical Calculations
Sum of Angles on a Straight Line
The sum of angles on a straight line is 180 degrees, allowing for the calculation of unknown angles
Sum of Interior Angles in Polygons
The sum of interior angles in a polygon can be found using the formula (n-2)×180°, where 'n' is the number of sides
Trigonometric Calculations
Trigonometric ratios and inverse trigonometric functions can be used to find unknown angles in right-angled triangles

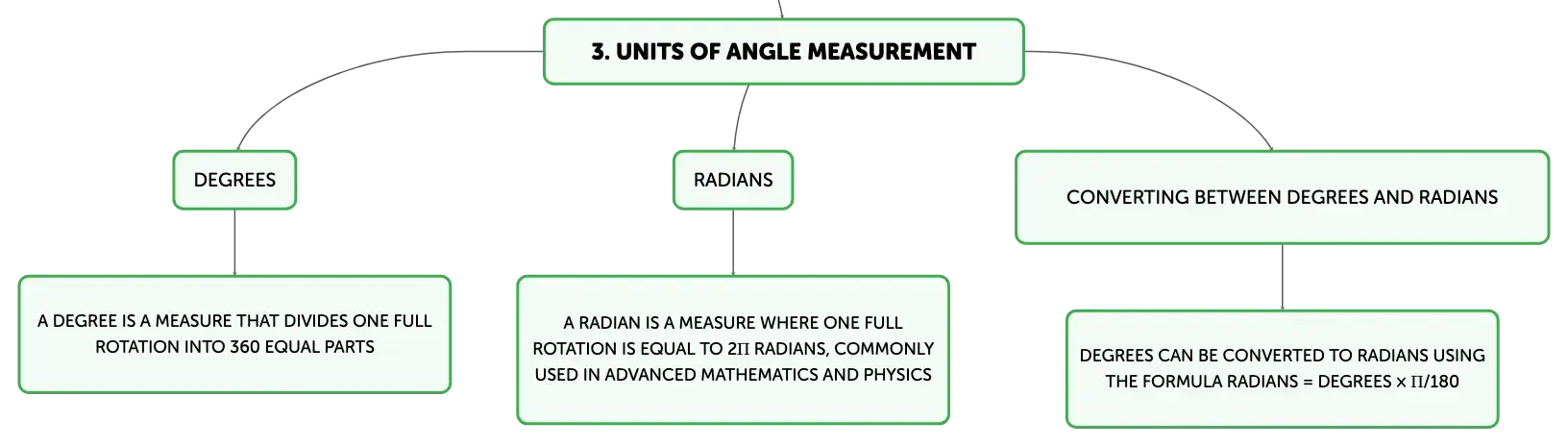

Units of Angle Measurement
Degrees
A degree is a measure that divides one full rotation into 360 equal parts
Radians
A radian is a measure where one full rotation is equal to 2π radians, commonly used in advanced mathematics and physics
Converting Between Degrees and Radians
Degrees can be converted to radians using the formula Radians = Degrees × π/180
Angle Measurement in Geometry
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Definition of an angle in geometry
An angle is formed by two intersecting rays sharing a common endpoint called the vertex.
01
Components of an angle
An angle consists of two rays (the sides of the angle) and a vertex (the common endpoint).
02
Reading angle measurements
Angle size is read where the second ray intersects the protractor's scale, measured in degrees.
