Three-Dimensional Shapes and Their Properties

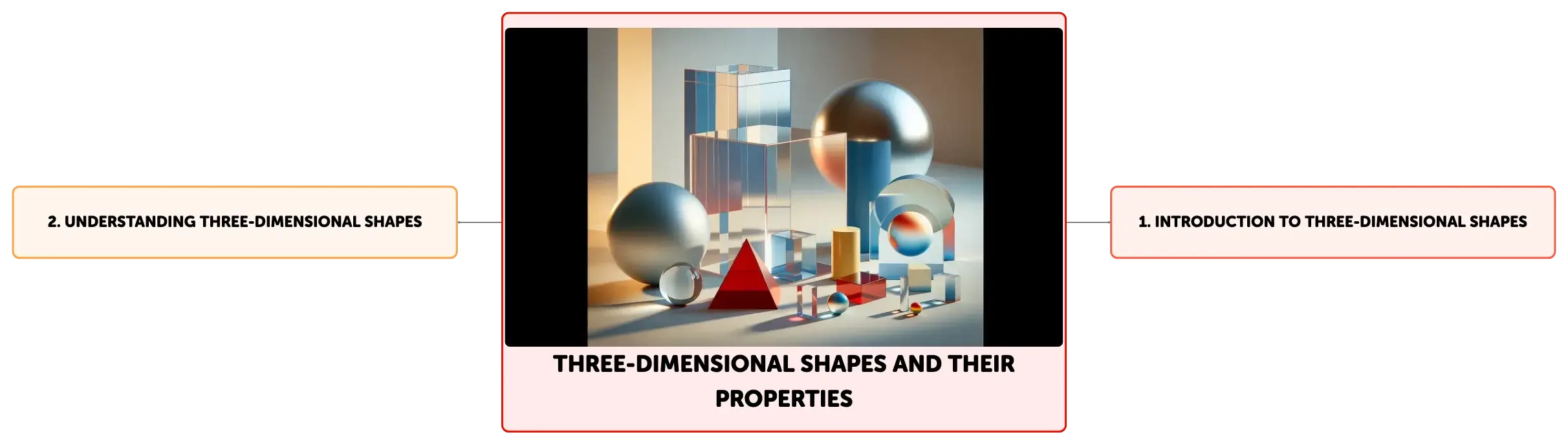

Concept Map
Exploring the nature of three-dimensional shapes reveals their fundamental role in our physical world. These shapes, or solids, are defined by their faces, edges, and vertices. Common solids like cubes, spheres, and polyhedra have unique geometric properties. Understanding how to calculate their surface area and volume is crucial, as is Euler's Formula, which relates the faces, vertices, and edges of convex polyhedra.
Summary
Outline
Exploring the Nature of Three-Dimensional Shapes
Three-dimensional shapes, also known as solids, extend in three directions—length, width, and height—and are the building blocks of our physical world. These shapes are characterized by their faces, edges, and vertices. A face is a flat or curved surface that forms part of the boundary of a solid, edges are the line segments or curves where two faces intersect, and vertices are the points where two or more edges meet. Understanding these elements is crucial for grasping the geometry of three-dimensional objects.Identifying Characteristics of Common Solids
Recognizing the unique properties of common solids is fundamental to understanding their geometry. Solids such as cubes, spheres, cones, cylinders, prisms, and polyhedra each have distinct numbers of faces, edges, and vertices. For example, a cube has six square faces, twelve straight edges, and eight vertices, while a sphere is a unique solid with no edges or vertices and a single continuous curved face. These defining features allow us to classify and differentiate between various types of three-dimensional figures.Calculating Surface Area and Volume
Surface area and volume are intrinsic properties of three-dimensional shapes. Surface area is the total area of all the faces of a solid, and volume is the measure of the space enclosed within it. Specific formulas are used to calculate these properties for different types of solids. For instance, the surface area of a sphere is determined by the formula \(A=4πr^2\), and its volume by \(V=\frac{4}{3}πr^3\), where \(r\) is the radius. Mastery of these formulas is vital for practical applications in various fields, including engineering, architecture, and manufacturing.Understanding Euler's Formula for Polyhedra
Euler's Formula is a cornerstone of polyhedral geometry, relating the number of faces (F), vertices (V), and edges (E) of a polyhedron. The formula states that for any convex polyhedron, \(F + V - E = 2\). This elegant equation is a useful tool for validating the properties of polyhedra. For example, a cuboid, which has six faces, eight vertices, and twelve edges, satisfies Euler's Formula: \(6 + 8 - 12 = 2\). It is important to note that Euler's Formula is applicable only to convex polyhedra and does not extend to solids with non-polyhedral (curved) surfaces.Applying Euler's Formula to Diverse Polyhedra
Euler's Formula is versatile and can be applied to a wide range of convex polyhedra to confirm their geometric properties. A square-based pyramid, with five faces, five vertices, and eight edges, fits the formula perfectly (\(5 + 5 - 8 = 2\)). Similarly, a triangular prism, which has five faces, six vertices, and nine edges, also conforms to Euler's Formula (\(5 + 6 - 9 = 2\)). These examples demonstrate the consistency of Euler's Formula across various polyhedral shapes. However, the formula is not valid for non-convex polyhedra or solids with curved surfaces, such as spheres and cylinders.Conclusion: The Importance of Geometric Literacy
A thorough understanding of three-dimensional shapes is indispensable for interpreting and engaging with the physical world. Knowledge of the basic elements such as faces, edges, and vertices, as well as the more advanced concepts of surface area, volume, and Euler's Formula, forms the foundation of geometric literacy. This understanding is not only crucial for academic success in mathematics and related fields but also has practical implications in everyday life, enabling us to better comprehend and manipulate the objects around us.
Show More

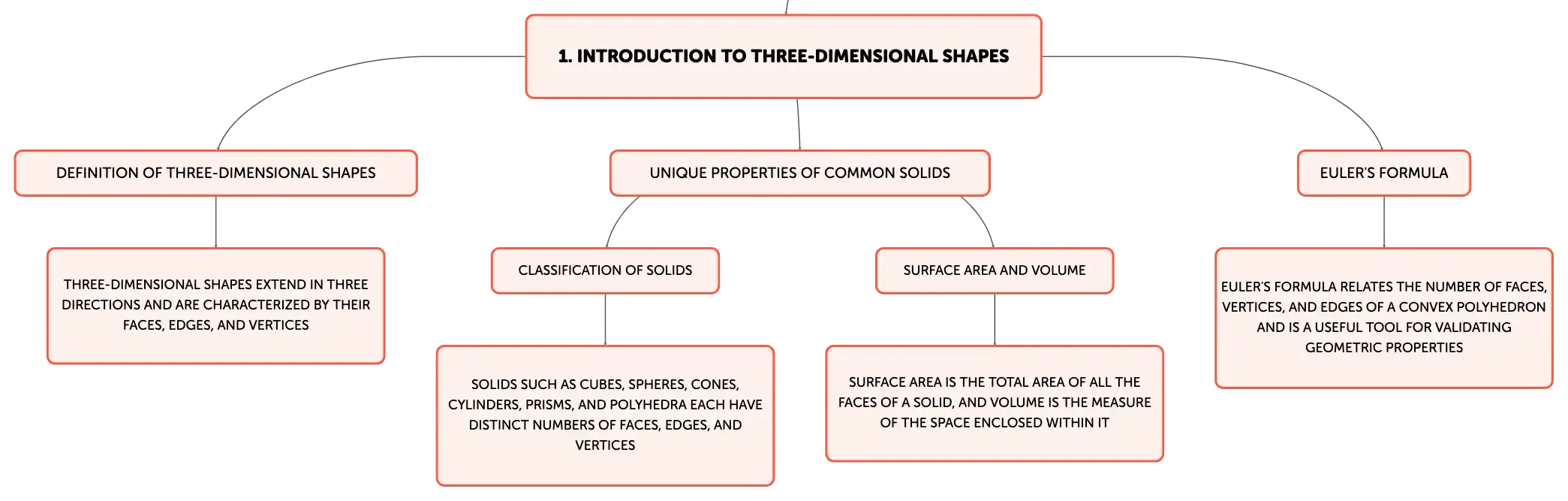

Introduction to Three-Dimensional Shapes
Definition of Three-Dimensional Shapes
Three-dimensional shapes extend in three directions and are characterized by their faces, edges, and vertices
Unique Properties of Common Solids
Classification of Solids
Solids such as cubes, spheres, cones, cylinders, prisms, and polyhedra each have distinct numbers of faces, edges, and vertices
Surface Area and Volume
Surface area is the total area of all the faces of a solid, and volume is the measure of the space enclosed within it
Euler's Formula
Euler's Formula relates the number of faces, vertices, and edges of a convex polyhedron and is a useful tool for validating geometric properties

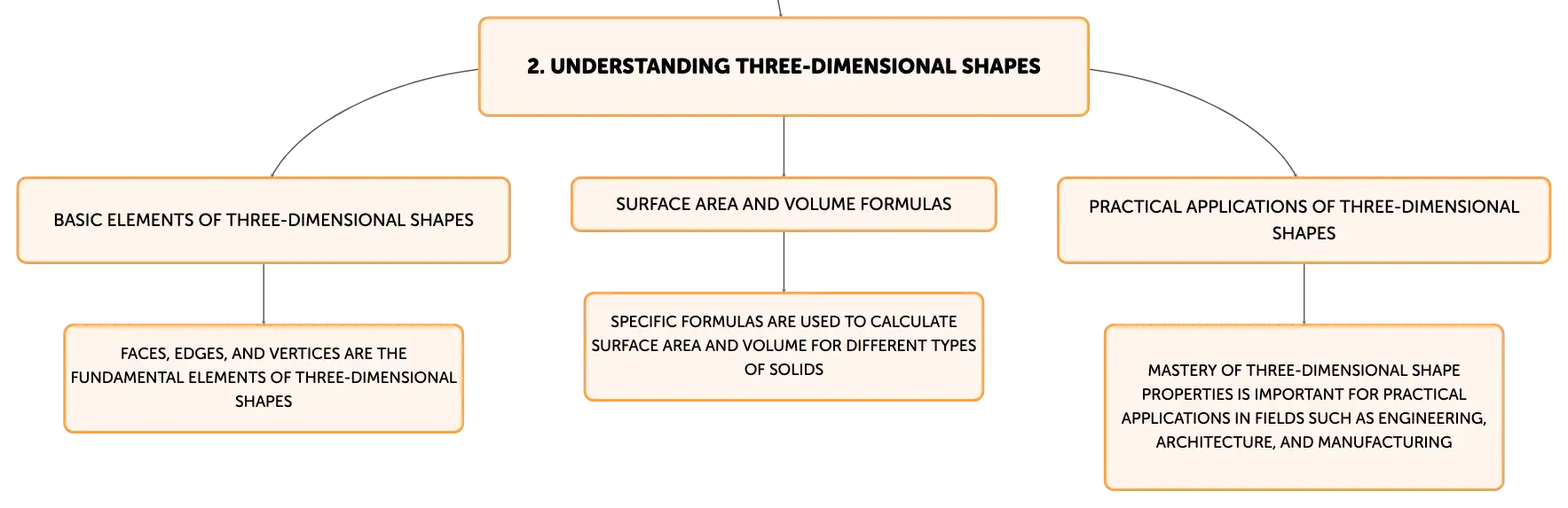

Understanding Three-Dimensional Shapes
Basic Elements of Three-Dimensional Shapes
Faces, edges, and vertices are the fundamental elements of three-dimensional shapes
Surface Area and Volume Formulas
Specific formulas are used to calculate surface area and volume for different types of solids
Practical Applications of Three-Dimensional Shapes
Mastery of three-dimensional shape properties is important for practical applications in fields such as engineering, architecture, and manufacturing
Three-Dimensional Shapes and Their Properties
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Definition of a face in 3D shapes
A face is a flat or curved surface forming part of the boundary of a solid.
01
Meaning of edges in 3D geometry
Edges are line segments or curves where two faces of a solid intersect.
02
Role of vertices in solids
Vertices are points where two or more edges meet in a three-dimensional shape.
