Exploring the Perpendicular Bisector

A perpendicular bisector is a geometric construct that intersects a line segment at a 90-degree angle, thereby dividing it into two congruent parts. This term combines 'perpendicular', denoting lines that meet at right angles, with 'bisector', which signifies the division of a line into two segments of equal length. Perpendicular bisectors are not only foundational in the study of geometry but also have practical applications in fields such as engineering, architecture, and design, where they are used to create symmetrical designs and ensure precise right angles.

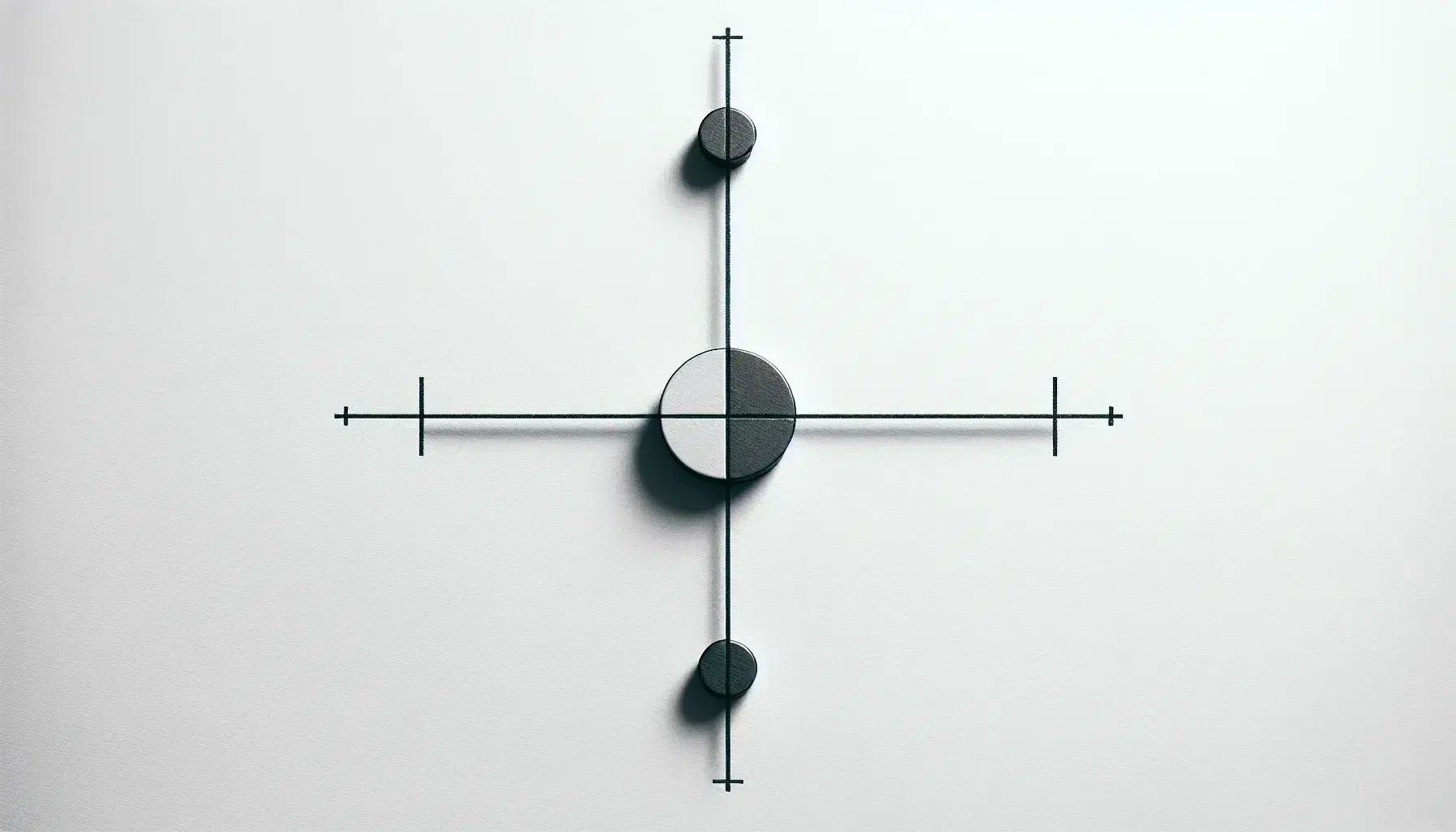

Geometric illustration of a T-shaped figure with a perpendicular bisector at the midpoint of a straight line segment on a white background.

Calculating the Slope of a Perpendicular Bisector

To find the equation of a perpendicular bisector, one must first calculate its slope. The slope of the bisector is the negative reciprocal of the slope of the original line segment. If the line segment's equation is given by $y = mx + c$, where $m$ is the slope, then the slope of the perpendicular bisector is $-\frac{1}{m}$. For instance, if a line segment has a slope of 3, the slope of its perpendicular bisector will be $-\frac{1}{3}$. This inverse relationship is essential for constructing the perpendicular bisector's equation.

Determining the Midpoint of a Line Segment

The midpoint of a line segment is the point equidistant from the segment's endpoints. This point is where the perpendicular bisector will intersect the segment. To find the midpoint, one averages the x-coordinates and the y-coordinates of the endpoints separately, using the formula $\left(\frac{x_1 + x_2}{2}, \frac{y_1 + y_2}{2}\right)$, where $(x_1, y_1)$ and $(x_2, y_2)$ are the coordinates of the endpoints. This calculation is a basic yet powerful tool in geometry for identifying the central point of a segment.

Constructing the Equation of a Perpendicular Bisector

With the slope of the perpendicular bisector and the midpoint of the line segment determined, these values can be plugged into the point-slope form of a linear equation to derive the equation of the perpendicular bisector. The point-slope form is $y - y_1 = m(x - x_1)$, where $m$ is the slope and $(x_1, y_1)$ is a point on the line, which is the midpoint in this context. By inserting the calculated slope and midpoint coordinates into this formula, one can obtain the precise equation of the perpendicular bisector.

Essential Insights on Perpendicular Bisectors

To conclude, perpendicular bisectors are lines that intersect and halve another line segment at a right angle. The process to derive the equation of a perpendicular bisector involves finding the negative reciprocal of the original line's slope and the midpoint of the segment. These values are then incorporated into the point-slope formula to establish the bisector's equation. Mastery of perpendicular bisectors is a critical aspect of geometry, with significant applications in various scientific and technical fields.

Perpendicular Bisectors

Concept Map

Summary

Outline

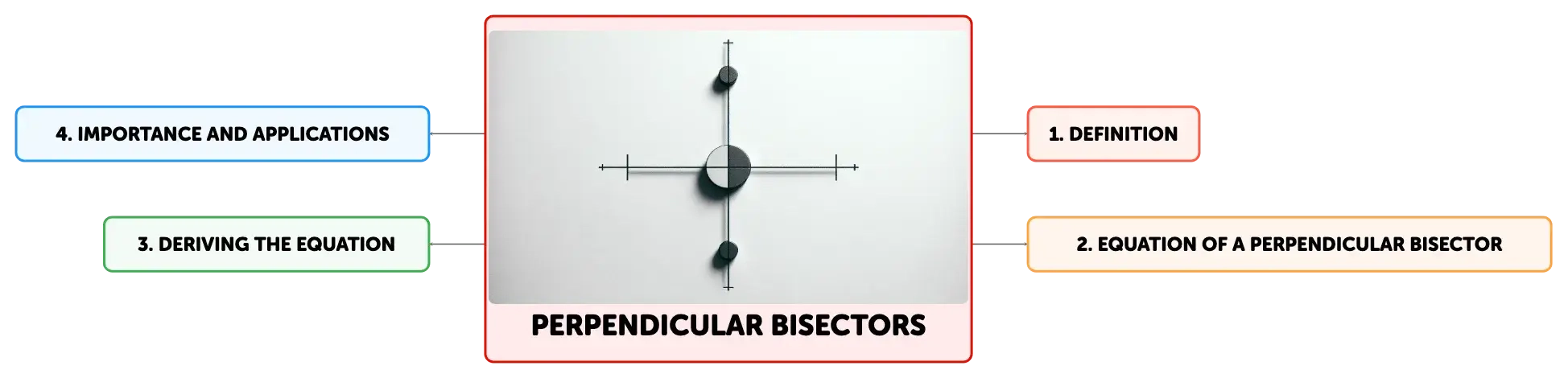

Perpendicular Bisectors

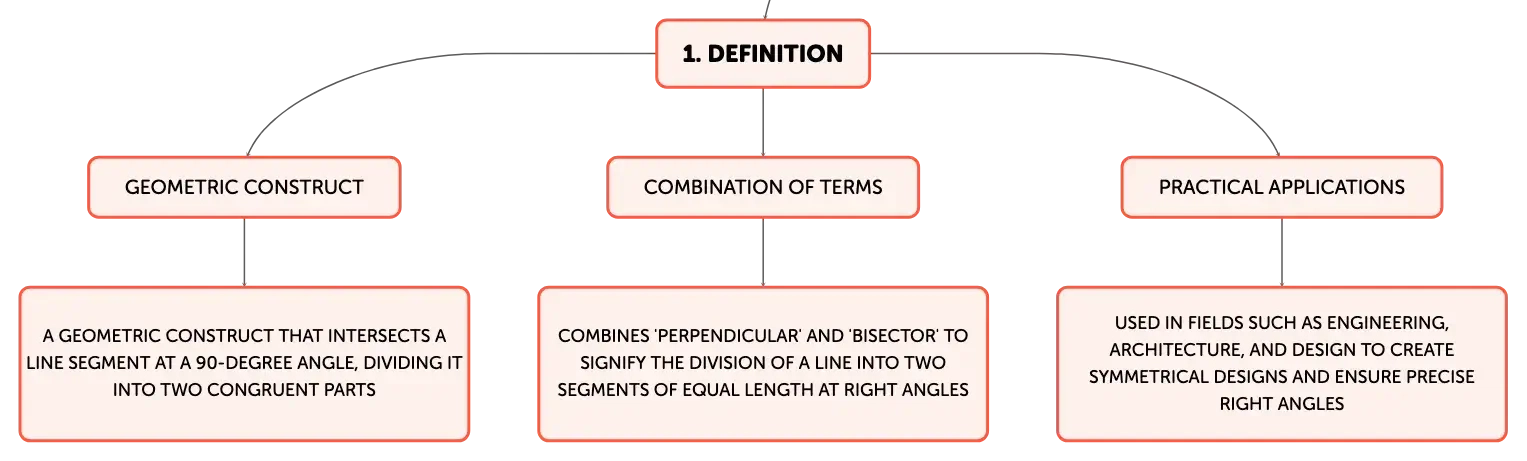

Definition

Geometric construct

Combination of terms

Practical applications

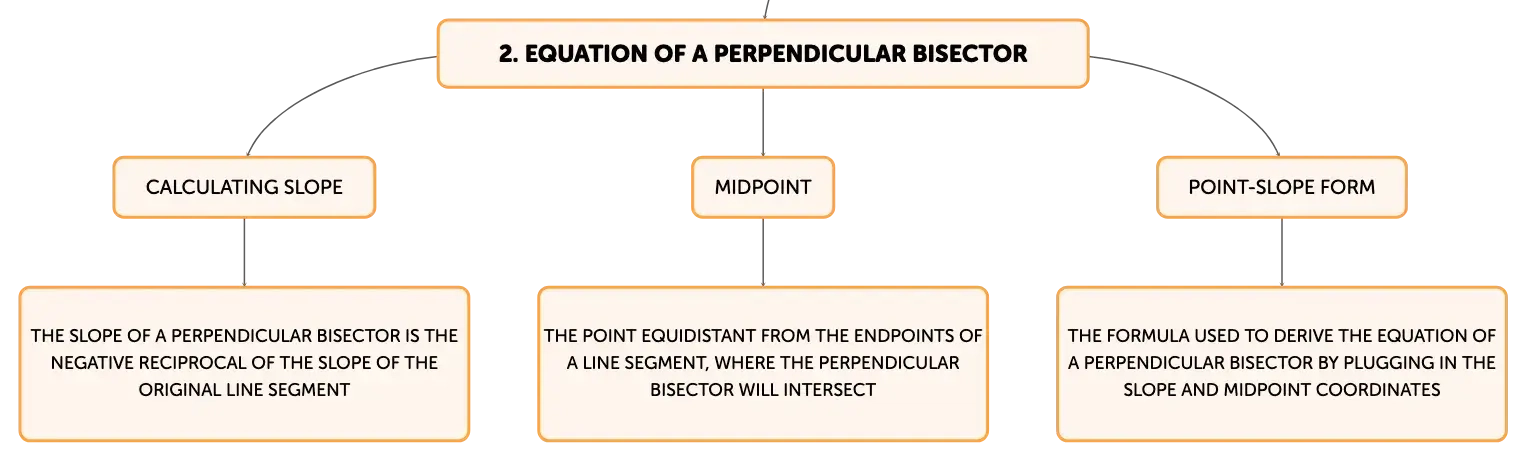

Equation of a Perpendicular Bisector

Calculating slope

Midpoint

Point-slope form

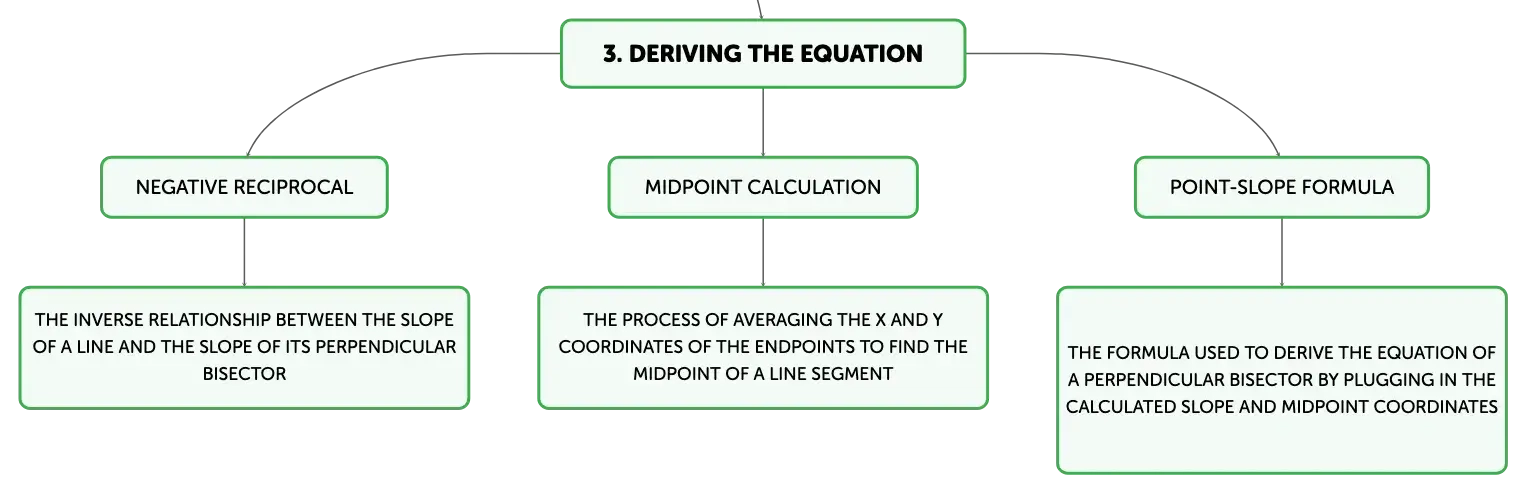

Deriving the Equation

Negative reciprocal

Midpoint calculation

Point-slope formula

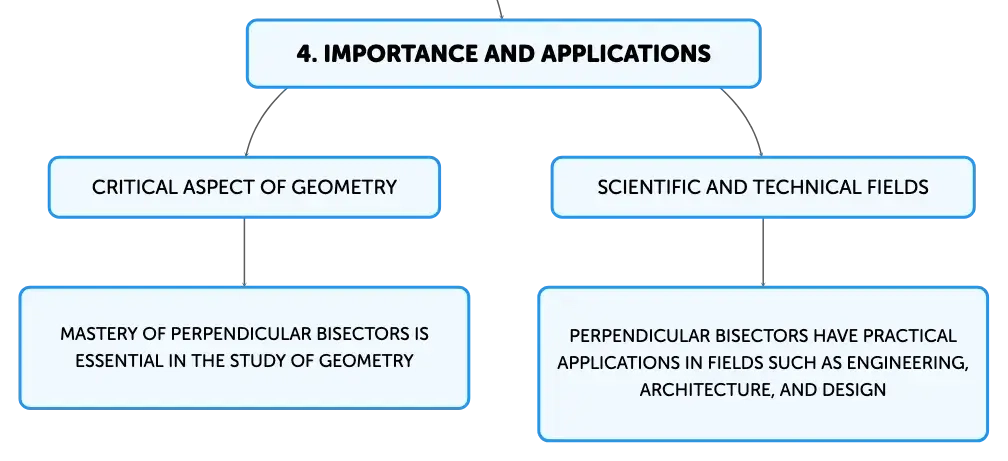

Importance and Applications
