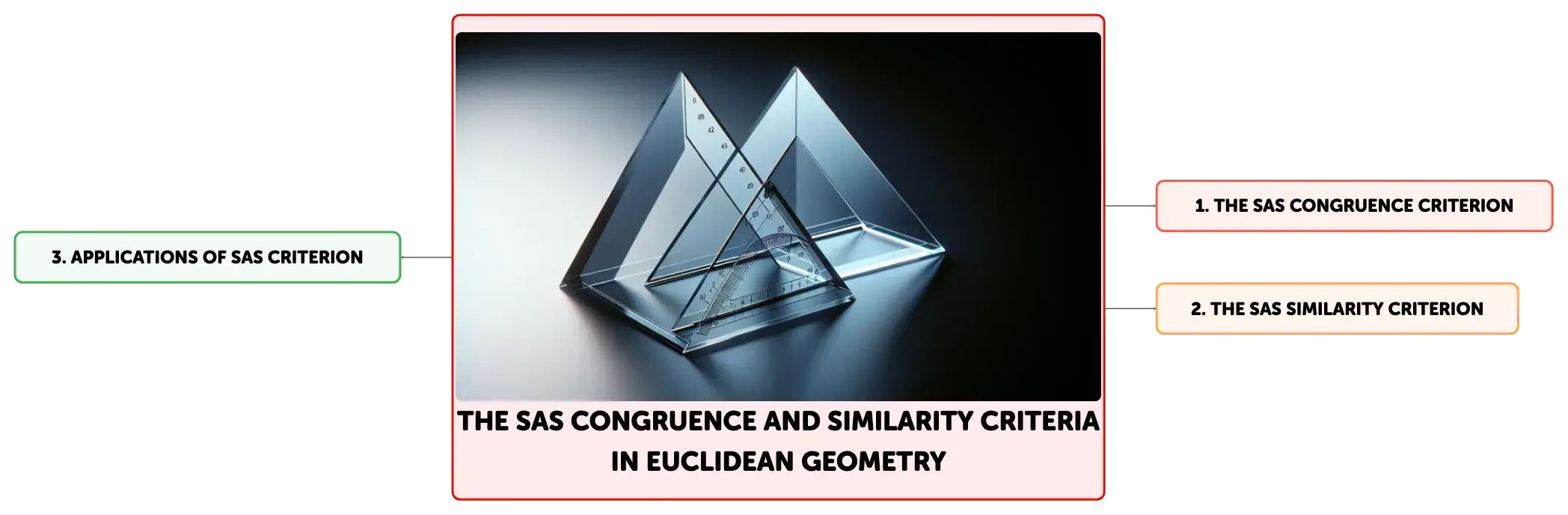

The SAS Congruence and Similarity Criteria in Euclidean Geometry

The Side-Angle-Side (SAS) Congruence Criterion is a fundamental principle in Euclidean geometry that establishes when two triangles are congruent. It requires two sides and the included angle of one triangle to be congruent to those of another. The SAS Similarity Criterion, on the other hand, deals with the proportionality of sides and congruence of included angles for triangle similarity. These criteria are crucial for geometric proofs, calculations of triangle areas, and practical applications in geometry.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The ______ Criterion is crucial for geometric proofs, confirming that the angle in question is the one enclosed by the two sides being compared.

Click to check the answer

SAS Congruence

2

SAS Congruence Criterion Definition

Click to check the answer

Two triangles are congruent if two sides and the included angle of one are equal to two sides and the included angle of the other.

3

Role of Included Angle in SAS Criterion

Click to check the answer

The included angle is crucial as it ensures the fixed distance between the ends of the two congruent sides, confirming the triangles' congruence.

4

Consequence of Triangles Meeting SAS Criterion

Click to check the answer

If two triangles meet the SAS criterion, all corresponding sides and angles are congruent, proving the triangles are identical in shape and size.

5

If the side lengths AB/XY = BC/YZ and the angle at B is identical to the angle at Y, then triangle ABC is similar to triangle ______.

Click to check the answer

XYZ

6

SAS Criterion Definition

Click to check the answer

Rule determining triangle congruence when two sides and included angle are known.

7

Area Formula Derivation via SAS

Click to check the answer

Derived by constructing perpendicular from vertex to opposite side, creating right triangle.

8

Height Determination in SAS Area Calculation

Click to check the answer

Use trigonometric functions on right triangle formed by perpendicular to find height.

9

If triangles ABC and XYZ have proportional sides AB/XY and BC/YZ, and ______ B is congruent to ______ Y, the triangles are deemed similar.

Click to check the answer

angle angle

10

The ______ area formula, which relies on the SAS Criterion, is used for calculating the ______ of a triangle when two sides and the included angle are known.

Click to check the answer

SAS area

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Perpendicular Bisectors

View document

Geometry

Prisms and their Volume Calculations

View document

Geometry

Angle Measurement in Geometry

View document

Geometry

Triangles and Circles: Basic Geometric Shapes

View document

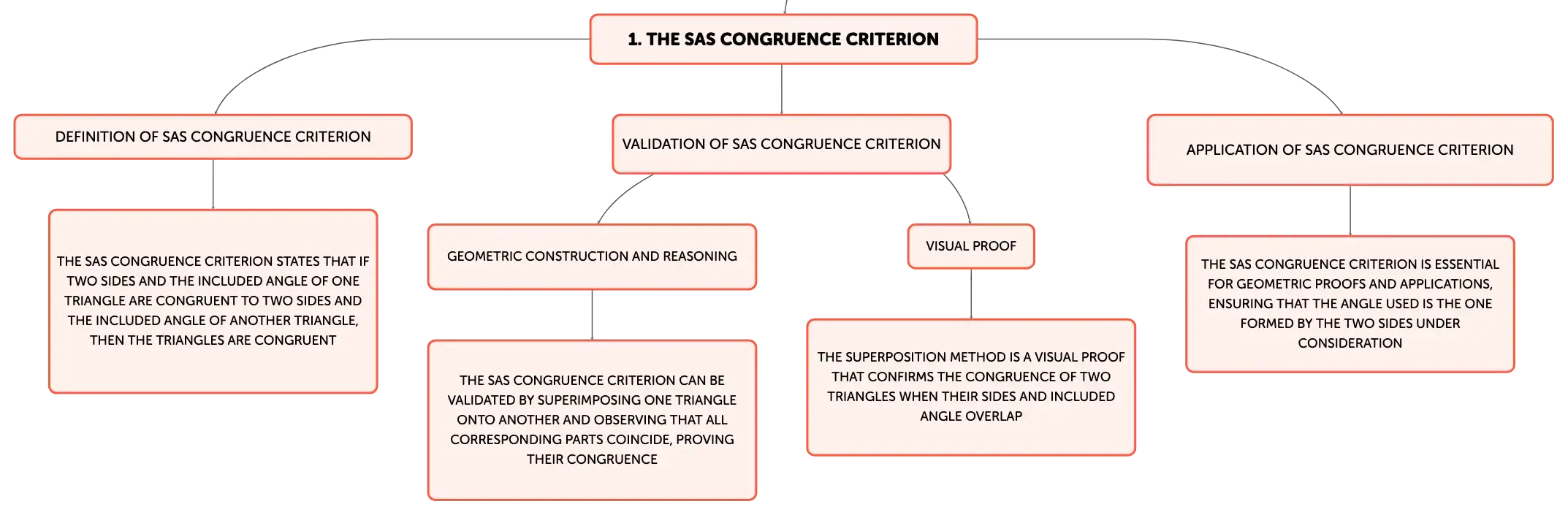

Exploring the Side-Angle-Side (SAS) Congruence Criterion

The Side-Angle-Side (SAS) Congruence Criterion is a pivotal concept in Euclidean geometry that determines when two triangles are congruent. This criterion states that if two sides and the included angle (the angle between the two sides) of one triangle are respectively congruent to two sides and the included angle of another triangle, then the triangles are congruent in their entirety. Congruence between triangles implies that all their corresponding sides and angles are identical. The SAS Congruence Criterion is essential for geometric proofs and applications, ensuring that the angle used is the one formed by the two sides under consideration.
Clear acrylic equilateral and scalene triangles aligned by one side on a matte black surface, reflecting faintly with a light-induced color spectrum.

Demonstrating the SAS Congruence Criterion

The SAS Congruence Criterion can be validated through geometric construction and reasoning. By superimposing one triangle onto another so that the congruent sides and included angle overlap, it becomes apparent that the two triangles are identical in shape and size. This superposition method is a visual proof that all corresponding parts of the triangles coincide, affirming their congruence. For example, if triangles ABC and DEF have sides AB congruent to DE, AC congruent to DF, and angle A congruent to angle D, then by aligning AB with DE and AC with DF, the third sides BC and EF, as well as the remaining angles, will also correspond, proving that triangles ABC and DEF are congruent.

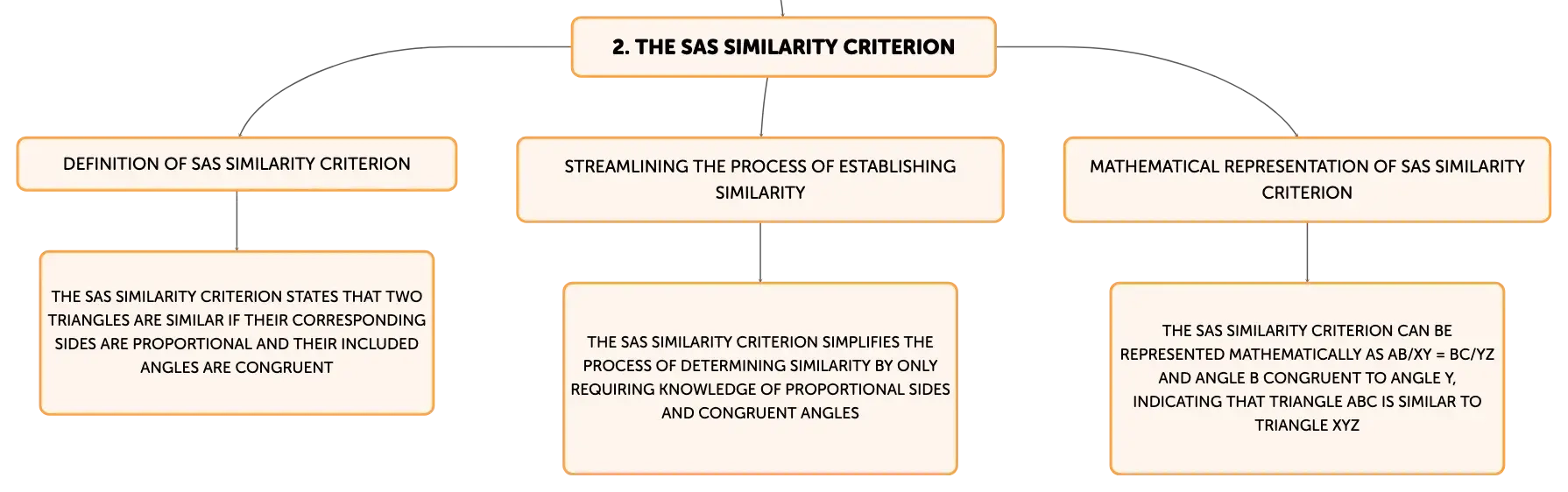

The SAS Similarity Criterion

The SAS Similarity Criterion is analogous to the congruence criterion but pertains to the similarity of triangles. Triangles are similar if their corresponding sides are proportional and their included angles are congruent. This criterion streamlines the process of establishing similarity, as complete knowledge of all sides and angles is not necessary. For instance, if the lengths of two sides of one triangle are in the same ratio to the lengths of two corresponding sides of another triangle, and the included angles are congruent, then the triangles are similar. Mathematically, if AB/XY = BC/YZ and angle B is congruent to angle Y, then triangle ABC is similar to triangle XYZ.

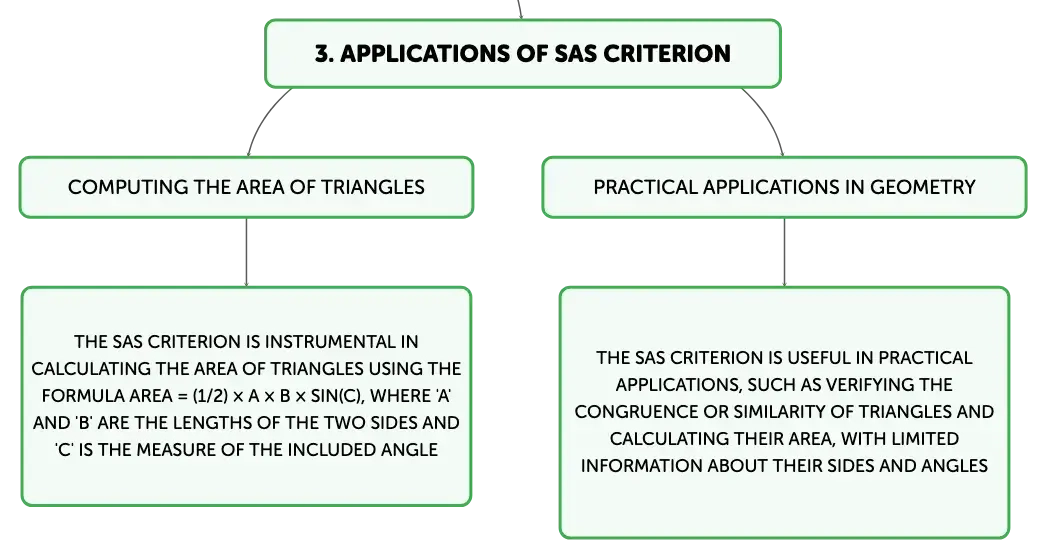

Utilizing the SAS Criterion for Area Calculation

Beyond determining congruence and similarity, the SAS Criterion is instrumental in computing the area of triangles. The area formula for triangles using the SAS Criterion is Area = (1/2) × a × b × sin(C), where 'a' and 'b' are the lengths of the two sides and 'C' is the measure of the included angle. This formula is derived by dropping a perpendicular from a vertex to the opposite side, creating a right triangle, and then applying trigonometric functions to find the height. The height is then used in the standard area formula for triangles (Area = (1/2) × base × height). This approach is particularly valuable in trigonometry and applies to any triangle where two sides and the included angle are known.

Practical Applications and Insights of the SAS Criterion

The SAS Criterion is exemplified through practical applications in geometry. When given two sides and the included angle of a triangle, one can verify the congruence or similarity of the triangle with another by checking the proportionality of the sides and the congruence of the included angles. For example, if triangles ABC and XYZ have sides AB/XY = BC/YZ and angle B congruent to angle Y, then the triangles are similar. Furthermore, the SAS Criterion is useful for calculating the area of a triangle, as demonstrated when the sides and included angle are known, and the area is computed using the SAS area formula. In essence, the SAS Congruence and Similarity Criteria are indispensable tools in geometry, facilitating the comparison of triangles with limited information and assisting in various geometric computations, including area determination.
