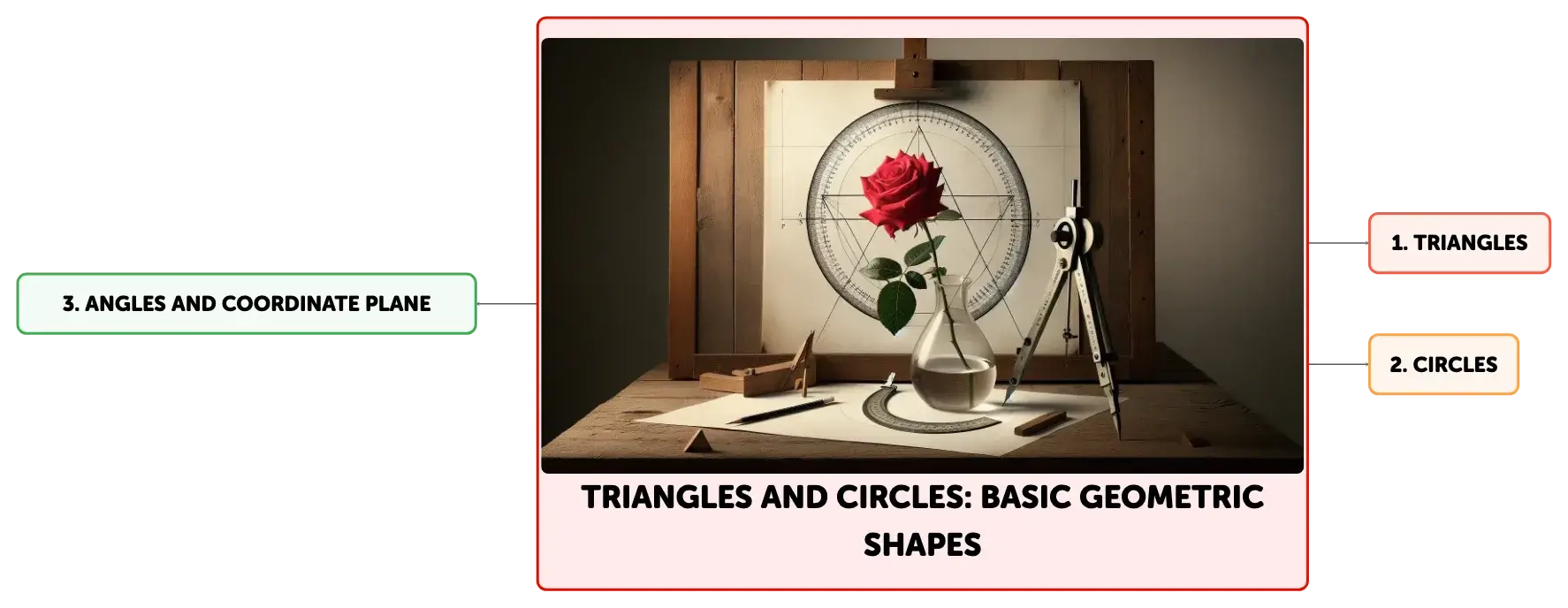

Triangles and Circles: Basic Geometric Shapes

Fundamental Shapes in Geometry: Triangles and Circles

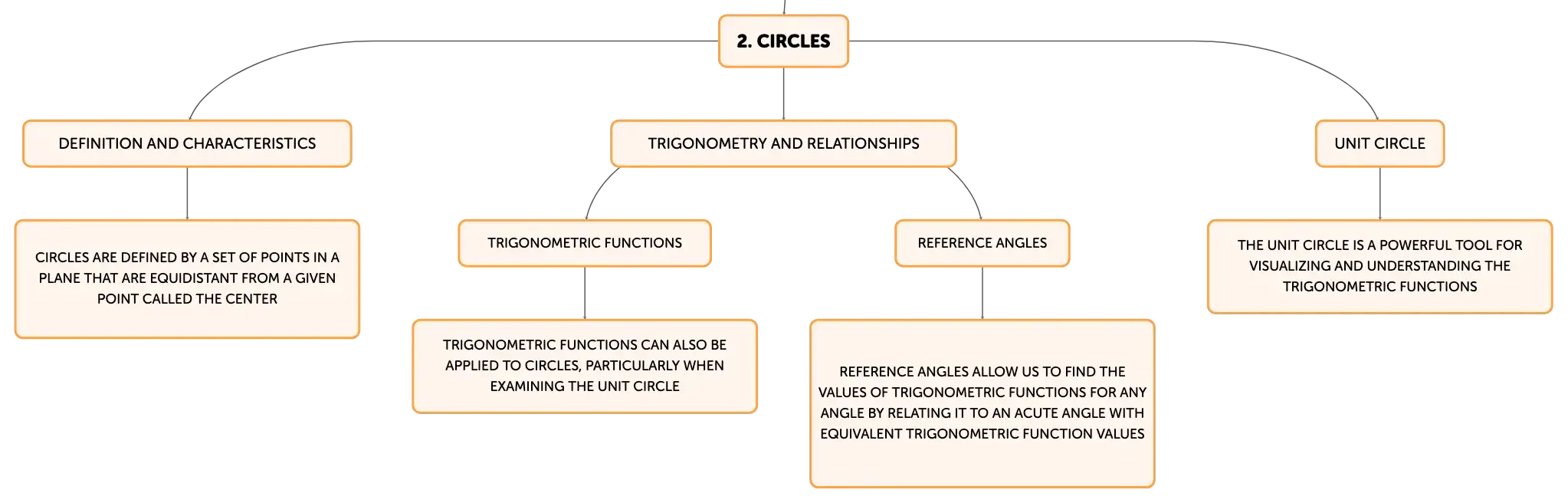

Triangles and circles are two of the most basic geometric shapes, each with their own unique set of characteristics. A triangle is a polygon with three edges and three vertices, formed by connecting three line segments end-to-end. The study of triangles is a central part of trigonometry, which explores the relationships between the angles and lengths of triangles through functions such as sine, cosine, and tangent. Circles, on the other hand, are defined by a set of points in a plane that are equidistant from a given point called the center. The distance from the center to any point on the circle is the radius. Despite their differences, triangles and circles are closely linked in geometry, particularly when examining the trigonometric functions using the unit circle.

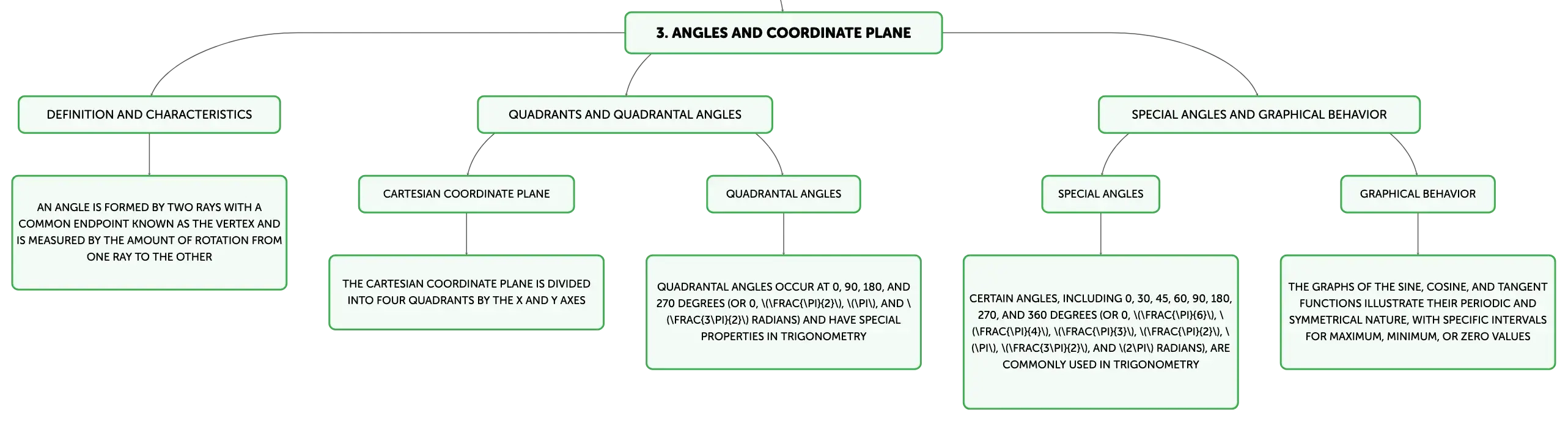

Angles in Standard Position

An angle is formed by two rays with a common endpoint known as the vertex. The size of an angle is measured by the amount of rotation from one ray to the other. When an angle is placed in a Cartesian coordinate system with its vertex at the origin and one ray, the initial side, along the positive x-axis, it is said to be in standard position. The other ray, the terminal side, extends from the vertex and determines the angle's measure. Angles in standard position can be used to define trigonometric functions and to understand the relationship between angles and the coordinate plane.

Quadrants of the Cartesian Plane and Quadrantal Angles

The Cartesian coordinate plane is divided into four quadrants by the x and y axes. Quadrant I is where both x and y coordinates are positive, Quadrant II has negative x and positive y coordinates, Quadrant III contains negative values for both x and y coordinates, and Quadrant IV has positive x and negative y coordinates. The quadrant in which an angle's terminal side lies determines the sign of the trigonometric functions for that angle. Angles that lie directly on the axes are called quadrantal angles and occur at 0, 90, 180, and 270 degrees, or 0, \(\frac{\pi}{2}\), \(\pi\), and \(\frac{3\pi}{2}\) radians.

Reference Angles in Trigonometry

A reference angle is the smallest angle between the terminal side of an angle in standard position and the x-axis. It is always positive and less than or equal to 90 degrees (or \(\frac{\pi}{2}\) radians). Reference angles are useful in trigonometry because they allow us to find the values of trigonometric functions for any angle by relating it to an acute angle with equivalent trigonometric function values. This concept is particularly helpful when working with angles in different quadrants of the coordinate plane.

The Unit Circle and Trigonometry

The unit circle is a circle with a radius of one unit, centered at the origin of the Cartesian coordinate plane. It is a fundamental tool in trigonometry as it provides a geometric representation of the trigonometric functions. For any angle \(\theta\), the coordinates of the point where the terminal side of the angle intersects the unit circle are \((\cos \theta, \sin \theta)\). This relationship is based on the Pythagorean Theorem, which in the context of the unit circle leads to the identity \((\sin \theta)^{2} + (\cos \theta)^{2} = 1\). This identity is essential for understanding the behavior of sine and cosine functions.

Interpreting the Unit Circle

The unit circle is a powerful tool for visualizing and understanding the trigonometric functions. It is divided into angles measured in degrees or radians, with each quadrant representing a range of 90 degrees or \(\frac{\pi}{2}\) radians. The coordinates of points on the unit circle correspond to the values of the sine and cosine functions for the angles formed by the line segments connecting those points to the origin. The tangent function is the ratio of the sine to the cosine of the angle and can be understood in terms of the unit circle as well. By studying the unit circle, students can learn to find the values of trigonometric functions for any angle.

Trigonometric Functions and Angle Measures

Trigonometric functions such as sine, cosine, and tangent define the relationship between the angles of a right triangle and the ratios of its sides. These functions are not limited to acute angles but apply to all angles, which is made possible by the unit circle. Certain angles, known as special angles, including 0, 30, 45, 60, 90, 180, 270, and 360 degrees (or 0, \(\frac{\pi}{6}\), \(\frac{\pi}{4}\), \(\frac{\pi}{3}\), \(\frac{\pi}{2}\), \(\pi\), \(\frac{3\pi}{2}\), and \(2\pi\) radians), are commonly used in trigonometry. The unit circle helps in determining the trigonometric function values for these angles, providing a clear understanding of their behavior and properties.

Graphs of Trigonometric Functions

The graphs of the sine, cosine, and tangent functions illustrate their periodic and symmetrical nature. Sine and cosine functions have a period of \(2\pi\) radians and are symmetric about the origin and the y-axis, respectively. Their values oscillate between -1 and 1, and they reach their maximum, minimum, or zero values at specific intervals. The tangent function, with a period of \(\pi\) radians, has no maximum or minimum values due to its vertical asymptotes, which occur at odd multiples of \(\frac{\pi}{2}\) radians. Understanding the graphical behavior of these functions is essential for analyzing and predicting the outcomes of trigonometric equations and applications across various angles.
