Prisms and their Volume Calculations

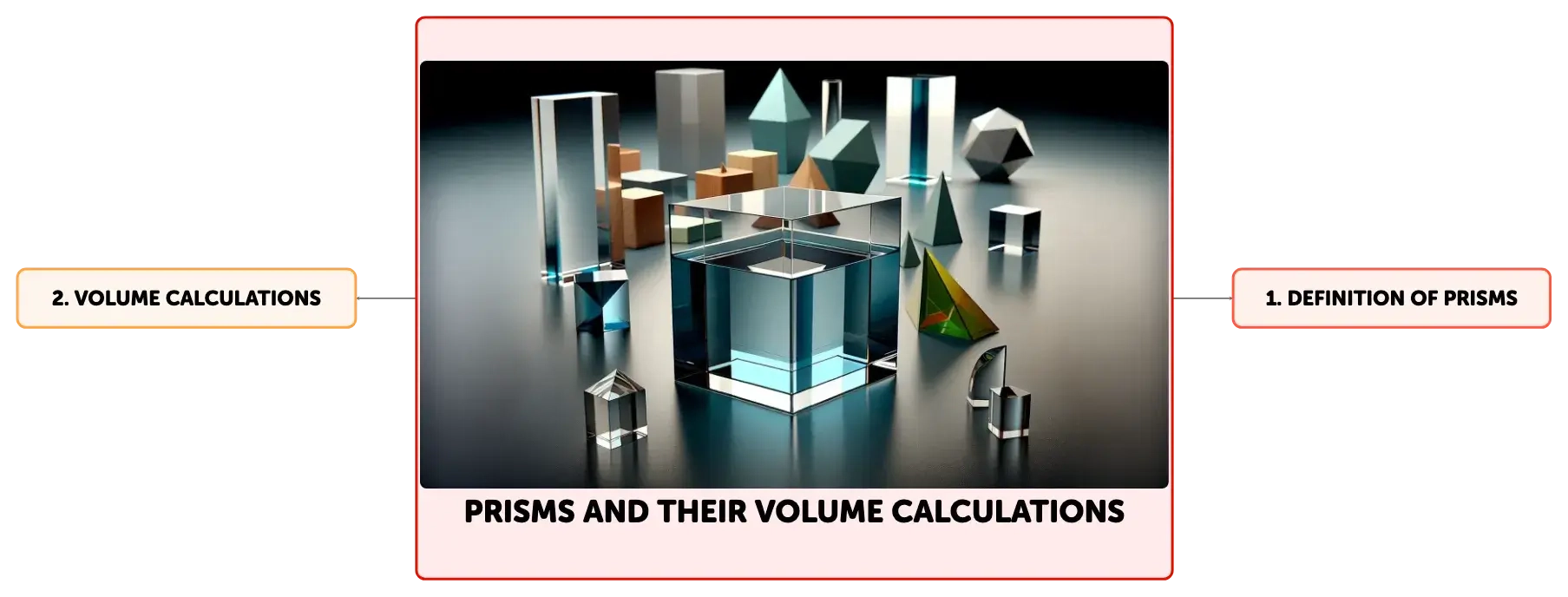

Concept Map

Exploring the characteristics and volume calculations of prisms, this content delves into the geometry of prisms, including their types and the formulas for determining their volume. It highlights the practical applications of these calculations in various fields such as architecture and product design, and explains how to compute the volume of composite prismatic shapes for real-life problem-solving.

Summary

Outline

Prisms and their Volume Calculations

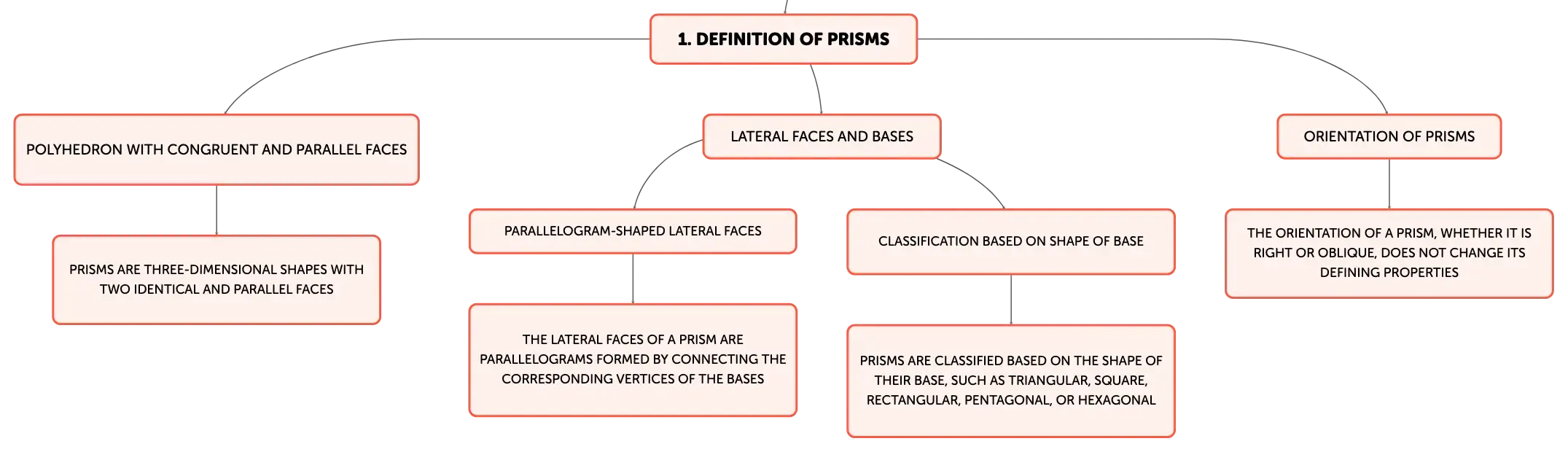

Definition of Prisms

Polyhedron with congruent and parallel faces

Prisms are three-dimensional shapes with two identical and parallel faces

Lateral faces and bases

Parallelogram-shaped lateral faces

The lateral faces of a prism are parallelograms formed by connecting the corresponding vertices of the bases

Classification based on shape of base

Prisms are classified based on the shape of their base, such as triangular, square, rectangular, pentagonal, or hexagonal

Orientation of prisms

The orientation of a prism, whether it is right or oblique, does not change its defining properties

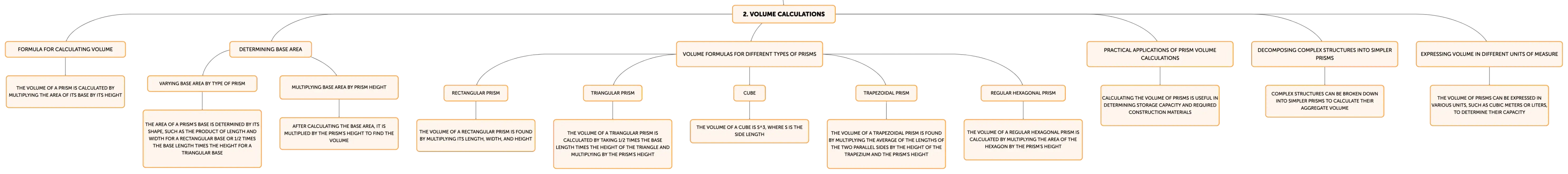

Volume Calculations

Formula for calculating volume

The volume of a prism is calculated by multiplying the area of its base by its height

Determining base area

Varying base area by type of prism

The area of a prism's base is determined by its shape, such as the product of length and width for a rectangular base or 1/2 times the base length times the height for a triangular base

Multiplying base area by prism height

After calculating the base area, it is multiplied by the prism's height to find the volume

Volume formulas for different types of prisms

Rectangular prism

The volume of a rectangular prism is found by multiplying its length, width, and height

Triangular prism

The volume of a triangular prism is calculated by taking 1/2 times the base length times the height of the triangle and multiplying by the prism's height

Cube

The volume of a cube is s^3, where s is the side length

Trapezoidal prism

The volume of a trapezoidal prism is found by multiplying the average of the lengths of the two parallel sides by the height of the trapezium and the prism's height

Regular hexagonal prism

The volume of a regular hexagonal prism is calculated by multiplying the area of the hexagon by the prism's height

Practical applications of prism volume calculations

Calculating the volume of prisms is useful in determining storage capacity and required construction materials

Decomposing complex structures into simpler prisms

Complex structures can be broken down into simpler prisms to calculate their aggregate volume

Expressing volume in different units of measure

The volume of prisms can be expressed in various units, such as cubic meters or liters, to determine their capacity

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Prism Bases

Two congruent, parallel faces of a prism.

Lateral Faces of Prisms

Parallelograms connecting corresponding vertices of bases.

Prism Orientation Types

Right prisms have aligned bases; oblique prisms have offset bases.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Still life with submerged red rose in glass vase, detailed pencil-drawn geometric shapes on paper, scattered colored pencils, and drawing tools on wooden surface.

Triangles and Circles: Basic Geometric Shapes

Clear acrylic equilateral and scalene triangles aligned by one side on a matte black surface, reflecting faintly with a light-induced color spectrum.

The SAS Congruence and Similarity Criteria in Euclidean Geometry

Modern cityscape with parallel skyscrapers, a transversal road, and vibrant vehicles under a gradient blue sky, highlighting architectural parallelism.

Parallel Lines and Transversals

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Specific Volume Formulas for Various Prisms

The volume formulas for prisms depend on the shape of their bases. For a rectangular prism (cuboid), the volume is the product of its length (l), width (w), and height (h): V = l × w × h. The volume of a triangular prism is found by taking 1/2 times the base length (b) times the height of the triangle (h_triangle) and then multiplying by the height of the prism (h_prism): V = 1/2 × b × h_triangle × h_prism. For a cube, with all sides equal, the volume is s^3, where s is the side length. The volume of a trapezoidal prism is the product of the area of the trapezoidal base, which is the average of the lengths of the two parallel sides (a and b) times the height of the trapezium (h_trapezium), and the height of the prism (h_prism): V = 1/2 × (a + b) × h_trapezium × h_prism. For a regular hexagonal prism, the volume is the area of the hexagon, which can be calculated using the formula (3√3/2) × s^2, where s is the side length, multiplied by the height of the prism (h_prism): V = (3√3/2) × s^2 × h_prism.

Real-World Applications of Prism Volume Calculations

Calculating the volume of prisms is essential in various practical contexts, such as determining the storage capacity of containers or the quantity of construction materials required. For instance, the volume of a cereal box can be found using the formula for a rectangular prism. To compute the volume of a jewelry box with a trapezoidal base, the formula for a trapezoidal prism is used. These calculations involve substituting the known dimensions into the respective formula and performing the necessary arithmetic operations to obtain the volume.

Combining Volumes of Composite Prismatic Shapes

Complex structures can often be decomposed into simpler prismatic components, facilitating the calculation of their aggregate volume. For example, a structure composed of a rectangular prism sitting on top of a trapezoidal prism can have its total volume determined by calculating the volume of each separate prism and summing the results. This approach is instrumental in assessing the volume of irregularly shaped objects, such as a tiered storage unit. Once the aggregate volume is ascertained, it can be expressed in any desired unit of measure, like cubic meters or liters, to ascertain the object's capacity.

Concluding Insights on Prism Volume Computation

To conclude, prisms are a class of polyhedra with distinct congruent bases and parallelogram-shaped lateral faces. The volume of a prism, a key attribute, is computed by multiplying the area of its base by the prism's height. Each prism type has a tailored volume formula, all of which derive from the fundamental principle of base area times height. These computations are not only academically significant but also have practical implications in fields such as architecture, engineering, and product design. Mastery of prism volume calculations is a valuable competency that bolsters spatial awareness and enhances analytical skills.
