Linear Interpolation in Statistics
Concept Map
Linear interpolation in statistics is a technique for estimating values within two known data points. It's used to calculate key measures such as the median, first quartile (Q1), and third quartile (Q3) in a dataset. By applying the formula y = y1 + ((x-x1)(y2-y1))/(x2-x1), statisticians can predict values that fall within class intervals of grouped data. This method assumes a linear relationship between points and is crucial for interpreting frequency distributions and cumulative frequencies.
Summary
Outline
Exploring Linear Interpolation in Statistics
Linear interpolation is a method used in statistics to estimate values that fall within two known data points. It is particularly useful for interpreting grouped data in a frequency distribution with class intervals. The technique assumes a linear relationship between the two points and uses this to predict values such as the median, quartiles, and percentiles. The formula for linear interpolation is \(y = y_1 + \frac{(x-x_1)(y_2-y_1)}{(x_2-x_1)}\), where \(x_1\) and \(y_1\) are the coordinates of the first data point, \(x_2\) and \(y_2\) are the coordinates of the second data point, \(x\) is the value at which we want to interpolate, and \(y\) is the estimated value.Calculating the Median with Linear Interpolation
The median is the value that divides a dataset into two equal halves and can be determined using linear interpolation for grouped data. To calculate the median, one must first ascertain the cumulative frequency for each class interval. The median corresponds to the \(\frac{n+1}{2}\)th value, where \(n\) is the total number of observations. By plotting the cumulative frequency against the upper class boundaries, one can interpolate the median on a graph. This involves finding the class interval that includes the median position and using the linear interpolation formula to pinpoint the median value within that interval.Estimating the First Quartile with Linear Interpolation
The first quartile, or Q1, signifies the 25th percentile of a dataset, indicating the value below which a quarter of the data lies. To estimate Q1 using linear interpolation, one locates its position at the \(\frac{n+1}{4}\)th value. Identifying the appropriate class interval that encompasses the first quartile is essential. The linear interpolation formula is then applied, similar to the median, to calculate the precise value of Q1 within that interval.Interpolating the Third Quartile Value
The third quartile, or Q3, marks the 75th percentile, separating the highest 25% of the data from the rest. Its position is at the \(\frac{3(n+1)}{4}\)th value in the dataset. After determining the class interval that contains the third quartile, linear interpolation is utilized to ascertain the exact value. The interpolation formula, which incorporates the gradient between the known data points, is used to estimate Q3 accurately within the specified class interval.Concluding Insights on Linear Interpolation
Linear interpolation is an indispensable statistical tool for estimating values within a range of data points. It relies on the premise of a linear relationship between known points and is expressed through a simple yet powerful formula. This technique is not limited to calculating the median and quartiles; it also extends to forecasting and predicting data trends. When dealing with grouped data, constructing a cumulative frequency graph is crucial for the application of linear interpolation. The positions of the median, first quartile, and third quartile are based on the total number of observations and are located at the \(\frac{n+1}{2}\), \(\frac{n+1}{4}\), and \(\frac{3(n+1)}{4}\) positions, respectively. By graphing the upper class boundaries against cumulative frequencies and employing the interpolation formula, students can effectively estimate these key statistical measures.
Show More

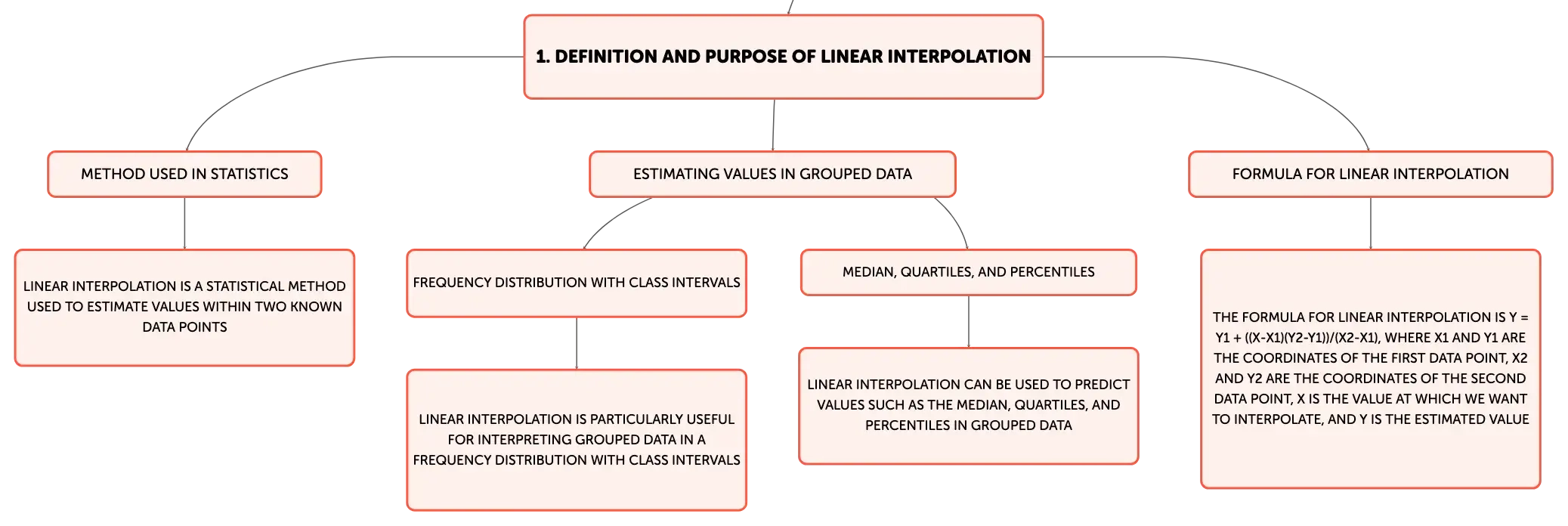

Definition and Purpose of Linear Interpolation
Method used in statistics
Linear interpolation is a statistical method used to estimate values within two known data points
Estimating values in grouped data
Frequency distribution with class intervals
Linear interpolation is particularly useful for interpreting grouped data in a frequency distribution with class intervals
Median, quartiles, and percentiles
Linear interpolation can be used to predict values such as the median, quartiles, and percentiles in grouped data
Formula for linear interpolation
The formula for linear interpolation is y = y1 + ((x-x1)(y2-y1))/(x2-x1), where x1 and y1 are the coordinates of the first data point, x2 and y2 are the coordinates of the second data point, x is the value at which we want to interpolate, and y is the estimated value
Calculating the Median using Linear Interpolation
Cumulative frequency and upper class boundaries
To calculate the median using linear interpolation, one must first determine the cumulative frequency for each class interval and plot it against the upper class boundaries
Interpolating the median on a graph
By finding the class interval that includes the median position and using the linear interpolation formula, one can estimate the median value within that interval
Position of the median in a dataset
The median corresponds to the (n+1)/2th value, where n is the total number of observations
Estimating Quartiles using Linear Interpolation
First quartile (Q1)
The first quartile, or Q1, is the 25th percentile of a dataset and can be estimated using linear interpolation by locating its position at the (n+1)/4th value
Third quartile (Q3)
The third quartile, or Q3, is the 75th percentile of a dataset and can be estimated using linear interpolation by locating its position at the 3(n+1)/4th value
Identifying the appropriate class interval
To accurately estimate the quartiles using linear interpolation, it is essential to identify the class interval that contains the respective quartile position

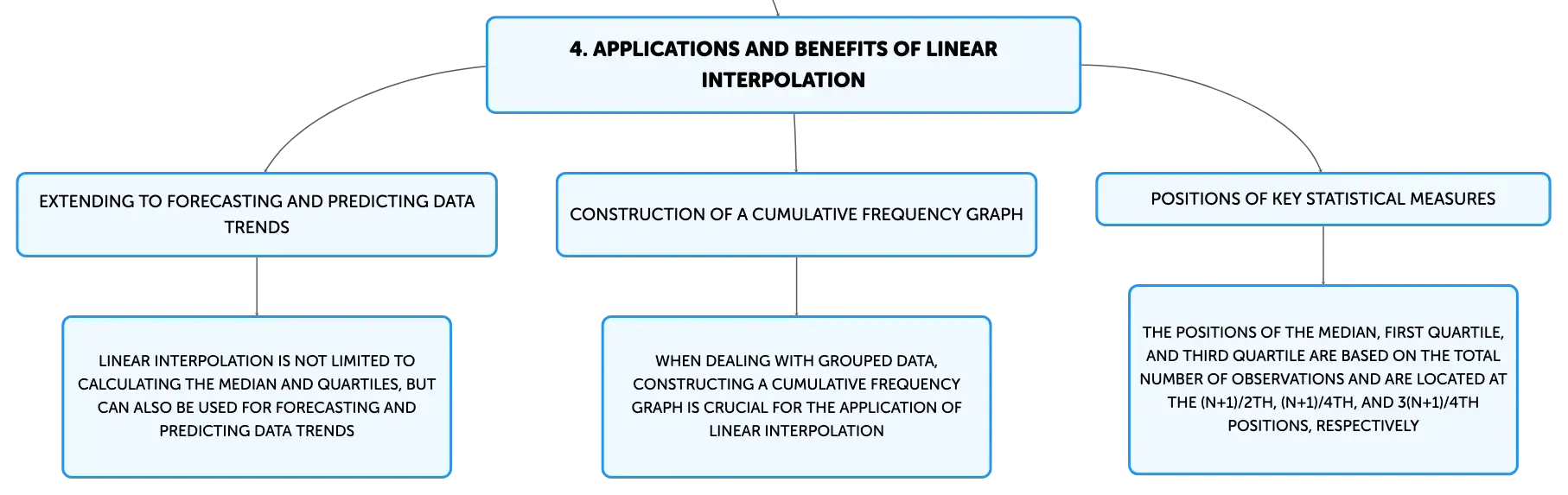

Applications and Benefits of Linear Interpolation
Extending to forecasting and predicting data trends
Linear interpolation is not limited to calculating the median and quartiles, but can also be used for forecasting and predicting data trends
Construction of a cumulative frequency graph
When dealing with grouped data, constructing a cumulative frequency graph is crucial for the application of linear interpolation
Positions of key statistical measures
The positions of the median, first quartile, and third quartile are based on the total number of observations and are located at the (n+1)/2th, (n+1)/4th, and 3(n+1)/4th positions, respectively
Linear Interpolation in Statistics
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Linear interpolation assumption
Assumes linear relationship between two known data points for estimation.
01
Linear interpolation application
Used for estimating medians, quartiles, percentiles in grouped data.
02
Linear interpolation formula variables
x1, y1: coordinates of first data point; x2, y2: coordinates of second data point; x: interpolation value; y: estimated value.
