Key Concepts in Geometry

Concept Map

Understanding triangle area calculation is crucial in geometry. This overview covers formulas for oblique triangles using sine, simplified methods for right-angled triangles, and height determination in equilateral triangles. It emphasizes the use of the base-height formula, the Law of Sines, and the Pythagorean theorem to solve various triangle area problems.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

For the area calculation to be correct, the base and height must meet at a ______ angle.

right

Formula for area of oblique triangle

Area = 1/2 × a × b × sin(C), where a and b are sides, C is included angle

Law of Sines relation to oblique triangle area

Area formula derived from Law of Sines, used when height is not perpendicular

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

$Close-up of a wooden compass with metal hinge drawing an arc on white paper, set on a dark table with a refractive glass of water in the background.$

Circle Segments and Their Properties

Equilateral blue triangles demonstrating congruence, gradient green triangles showing similarity, hand measuring wooden triangle with ruler and protractor.

Triangle Congruence and Similarity

Assorted geometric tools on a wooden surface, including a clear protractor, metal compass, and colored shapes like a triangle, square, and rectangle.

Geometry: The Study of Shapes, Sizes, and Space

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring Triangle Area Formulas

The area of a triangle is a key concept in geometry, calculated using formulas that depend on the triangle's characteristics. The universal formula for the area of any triangle is area = ½ × base × height, where the base is any side of the triangle, and the height is the perpendicular distance from the chosen base to the opposite vertex. It is essential that the base and height intersect at a right angle for the formula to yield an accurate result.

Colorful geometric wooden blocks on a table, including blue triangles, red squares, green rectangles, and a yellow right-angled triangle, with a white chalkboard in the background.

Area Formulas for Oblique Triangles

For oblique triangles, which lack a right angle, the area can be found using the formula area = ½ × a × b × sin(C), where 'a' and 'b' are any two sides, and 'C' is the included angle between them. This formula is derived from the Law of Sines and is particularly useful when the height is not perpendicular to any side of the triangle, making the standard base-height method impractical.

Simplified Area Calculation for Right-Angled Triangles

In right-angled triangles, the area calculation is simplified as one of the legs can serve as the height, being perpendicular to the base by definition. The formula becomes area = ½ × base × height, with the base and height being the two legs that form the right angle. To find missing side lengths, the Pythagorean theorem is used, stating that the square of the hypotenuse (c) is equal to the sum of the squares of the other two sides (a² + b² = c²).

Height Determination in Equilateral Triangles

For equilateral triangles, with all sides equal, the height can be found by constructing a perpendicular line from a vertex to the midpoint of the opposite side, thus forming two congruent right-angled triangles. The height can then be determined using the Pythagorean theorem, with the equation being h² = a² - (a/2)², where 'h' is the height and 'a' is the length of a side. Once the height is known, it can be substituted into the general area formula.

Comprehensive Guide to Triangle Area Calculation

To summarize, the area of a triangle can be accurately calculated using the formula area = ½ × base × height, with the base and height at right angles. For oblique triangles, the formula area = ½ × a × b × sin(C) is applicable, using two sides and the included angle. The Pythagorean theorem is instrumental in solving for missing sides in right-angled triangles, which are then used to compute the area. Mastery of these formulas and their appropriate application is essential for precise calculation of triangle areas in various scenarios.

Algorino

Edit available

Key Concepts in Geometry

Concept Map

Summary

Outline

Key Concepts in Geometry

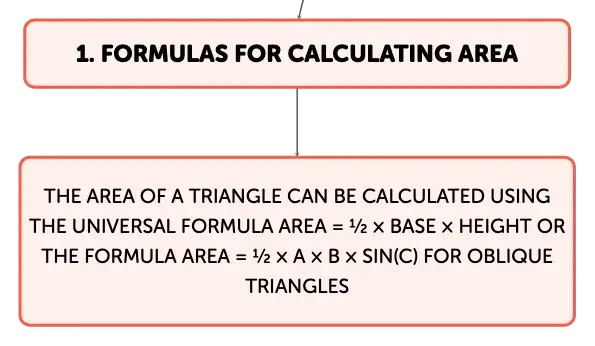

Formulas for Calculating Area

The area of a triangle can be calculated using the universal formula area = ½ × base × height or the formula area = ½ × a × b × sin(C) for oblique triangles

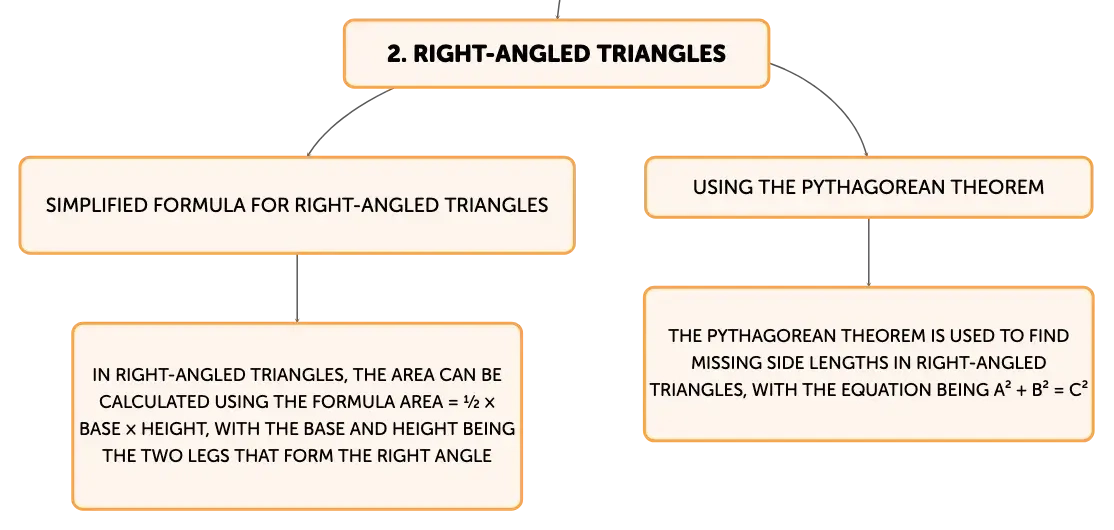

Right-Angled Triangles

Simplified Formula for Right-Angled Triangles

Using the Pythagorean Theorem

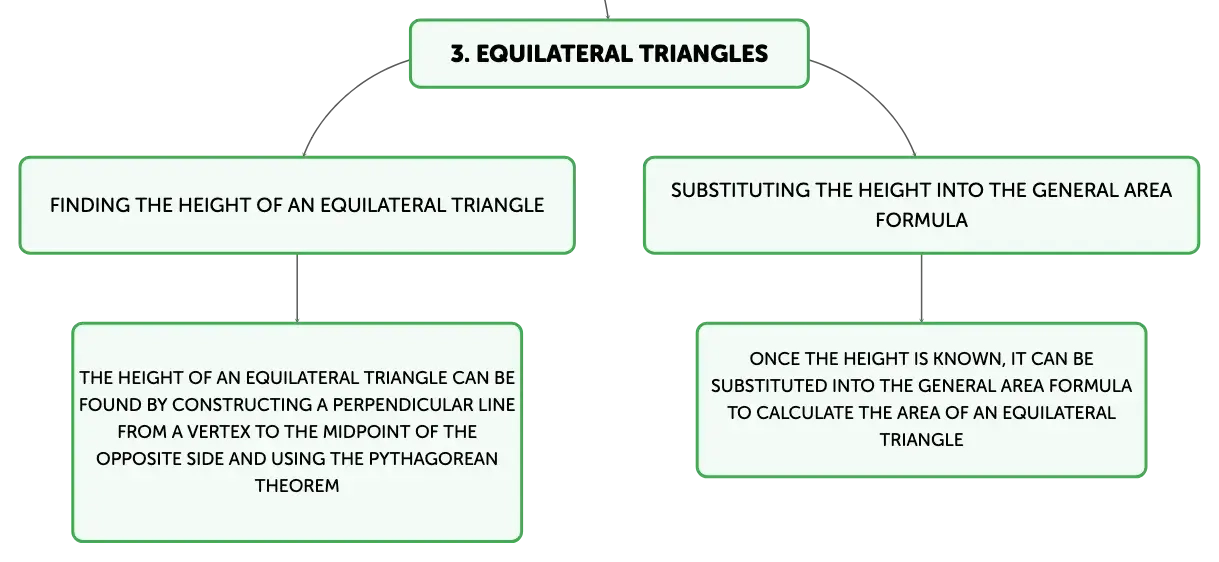

Equilateral Triangles

Finding the Height of an Equilateral Triangle

Substituting the Height into the General Area Formula
